JL Audio 13W1v2-4 Owner's Manual page 3

SUBWOOFER
Volume
(net int.)
1.5 cu. ft.
13W1v2-4
42.5 litres
1.75 cu. ft.
13W1v2-8
49.5 litres
SUBWOOFER
Volume
(net int.)
2.625 cu. ft.
13W1v2-4
74.3 litres
2.625 cu. ft.
13W1v2-8
74.3 litres
• The enclosure recommendations listed are external
dimensions which assume the use of 3/4" (19mm)
thick material. If you are using 5/8" (16mm) thick
material, subtract 1/4" (6.5mm) from each dimension.
Do not use any material with a thickness of less than
5/8" (16mm) as this may compromise the rigidity of
the enclosure.
• All enclosure volumes listed are net internal volumes!
Box volume displacement, port displacement and
brace displacement must be added to obtain the final
gross internal volume. All enclosure dimensions listed
have already taken this into account.
• When using two subwoofers in a common
enclosure simply double the required volume and,
in the case of a ported enclosure, use two times the
recommended port(s).
• We recommend the use of this speaker in a bi-
amplified system using high-quality satellite speakers
and amplifiers. We do not recommend the use of
this subwoofer with a passive crossover (coil), as this
type of device will adversely affect performance.
JL AUDIO 13W1v2-4/13W1v2-8
All specifications are subject to change without notice.

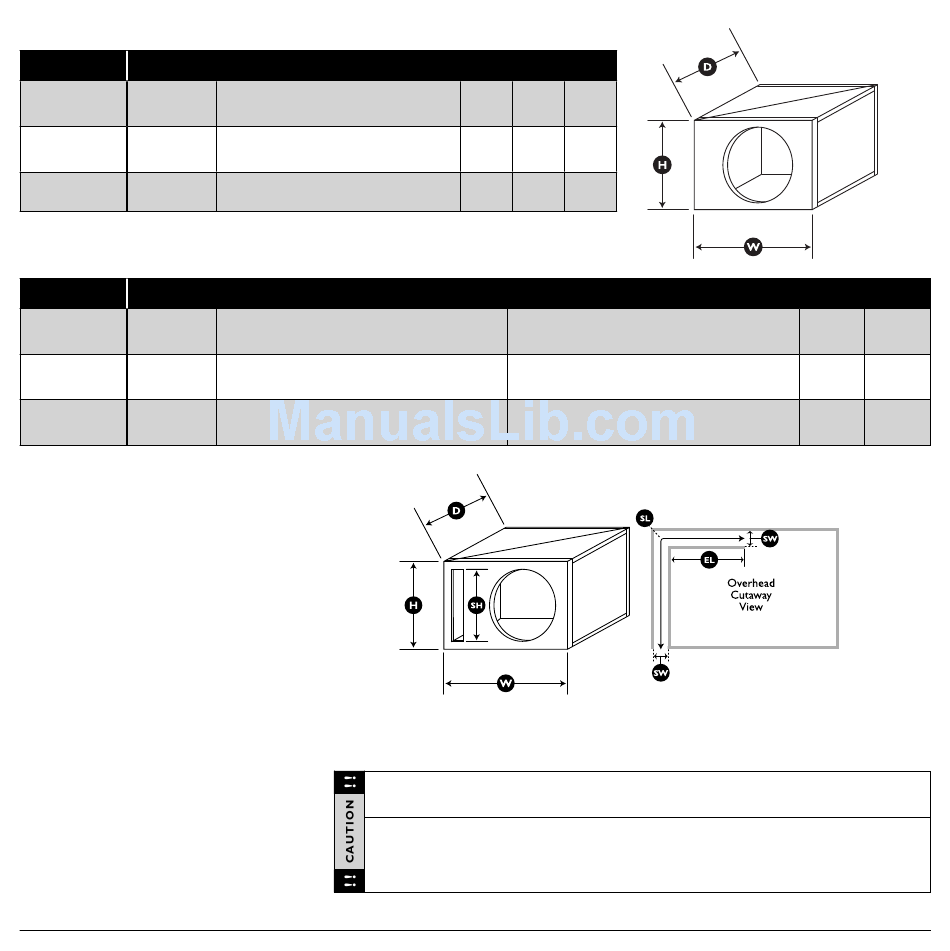

RECOMMENDED SEALED ENCLOSURES
External Dimensions
(Width x Height x Depth)
18.5 in. x 16.5 in. x 12 in.
470 mm x 419 mm x 305 mm
18.5 in. x 16.5 in. x 13.75 in.
470 mm x 419 mm x 349 mm
RECOMMENDED PORTED ENCLOSURES
Enclosure External Dimensions
(Width x Height x Depth)
23.75 in. x 17 in. x 18 in.
603 mm x 432 mm x 457 mm
23.75 in. x 17 in. x 18 in.
603 mm x 432 mm x 457 mm
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance
speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend
bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for
reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important
in a hatchback, station wagon, sports utility vehicle, or van.
F3 Fc
Qtc
(Hz) (Hz)
40.7 38.8 0.713
38.0 39.0 0.772
Slot Port Internal Dimensions
(Slot Width x Slot Height x Slot Length)
1.5 in. x 15.5 in. x 31.5 in.
38 mm x 394 mm x 800 mm
1.5 in. x 15.5 in. x 31.5 in.
38 mm x 394 mm x 800 mm
Tune to:
(Hz)
26.0
26.0
"EL" (Port Extension Length):
13W1v2: 13.5 in. (343 mm)
F3
(Hz)
26.0
27.0
3
