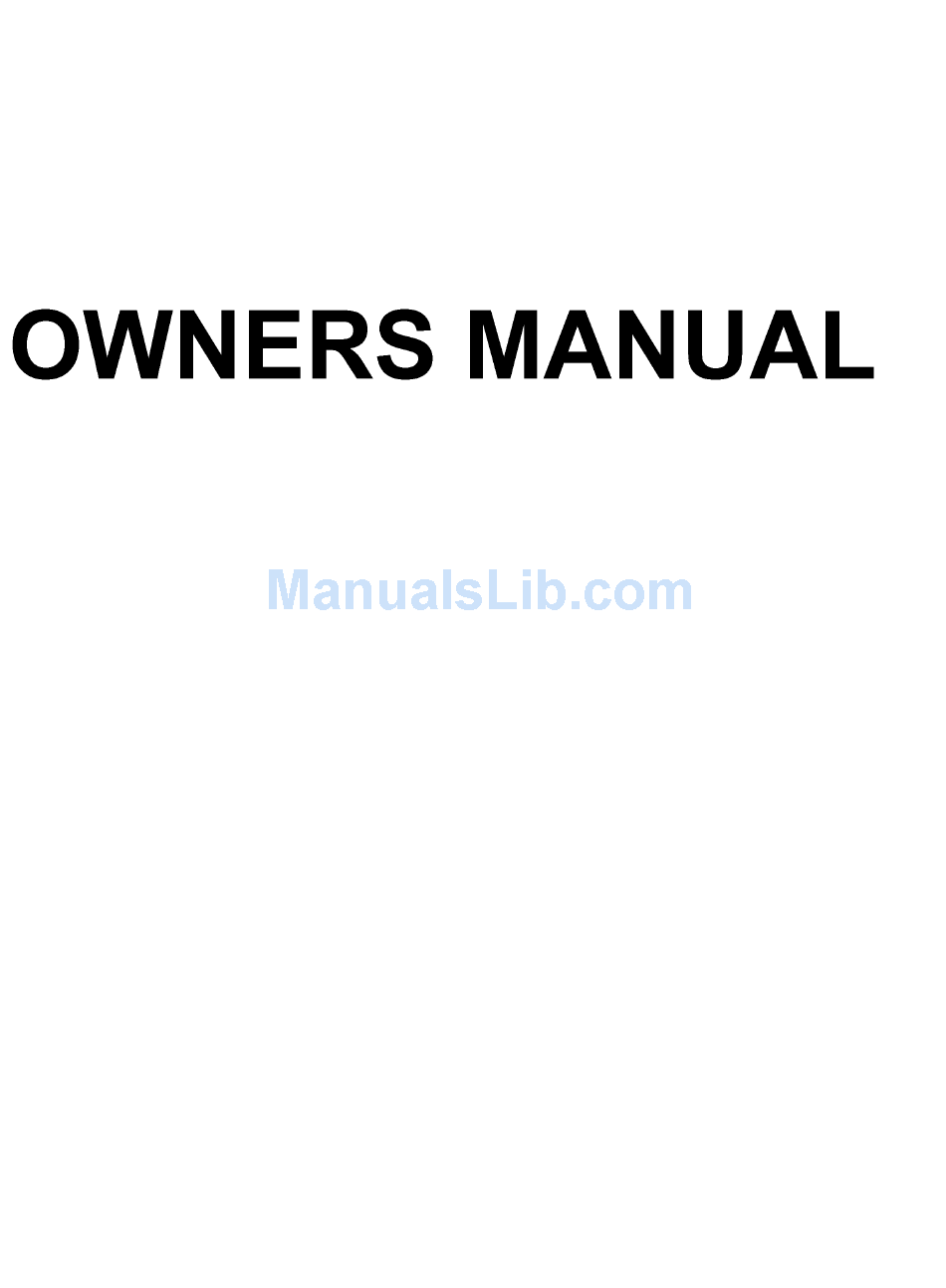

  • Page 1 OWN ERS MAN UAL...
  • Page 2 I Ill T able of Contents Safety Precautions Accessories Using the Remote Control To arrange cables in order - Optional Connecting the Speakers - Optional Name and Function of the Parts Connecting to External Devices When Connecting to your PC Watching RGB Outputs When Watching VCR/DVD When Watching HDTV (720p/1080i)
  • Page 3 A 3828TUL310B-ENG 2005,5,16 11:11AM_II°IXl Please read these safety precautions carefully before using the product. Precautions in installing the Product /_ Warning • Keep away from heat sources like electrical heaters. - Electrical shock, fire, malfunction or deformation may occur. Keep the packing anti-moisture material or vinyl packing out of the reach of children. - Anti-moisture material is harmful if swallowed.
  • Page 4 Electrical Power Related Precautions Warning Make sure to connect the power cable to the grounded current. - You may be electrocuted or injured. Use the rated voltage only. - The product can be damaged, or you may be electrocuted. During a thunder or lightning storm, unplug the power cable or signal cable. - You may be electrocuted or a fire can break out.
  • Page 5 Caution • Do not shock the product when moving it. - You may be electrocuted or the product can be damaged • Do not dispose the product-packing box. Use it when you move. • Make the panel face forward and hold it with both hands to move. - If you drop the product, the damaged product can cause electric shock or fire.
  • Page 6 Please check the accessories in the product package. * The product and the accessories can be different from the figures shown here. Desktop Stand Type Free Mount Type ii_lllll;llil!iliil!iliil!ilii!ill;iilli_illl_iliil_ililliiliiil_iii!iiiiilliIii_ii_iiiiiilii!ii_iliil_i:;;l_ Product Remote Control/ Batteries ® User's Guide/ 15-pin D-Sub Signal DVI-D Signal Cable Driver CD/Cards Cable Power Cord...
  • Page 7 Name of the Remote Control Buttons On/Off Button Mute button Sleep Button WhenwatchingAV/S-Video/ • Input Select Component1/Component2 • AV Button -The productwillbe automaticallyturnedoff ......!See nex! page! after a certainperiod of time. Press this buttonrepetitivelyto select an • Menu Button appropriatetime duration •...
  • Page 8 Input Select Button If you press the button once, This button will be enabled only when the following Input Signal you selected the AV signal• The signal Window will appear• Select type will be changed with the following the signal type you want order•...
  • Page 9 3. SWAP Button You can swap the main screen and the sub-screen when the PIP/POP/PBP function is used. When 'Input Signal 1' comes on in the main screen, only 'Input Signal 2' can be displayed on the sub- screen. On the contrary, if the main screen displays 'Input Signal 2', the sub-screen can display 'Input Signal 1' only.
  • Page 10 * Applicableonly for modelsthat supportthe stand ]_. Disassemble the stand cover. The cover may be easily disassembled by pressing down on the base as shown in the figure. Standcover 2. After connecting the cables, correctly position the stand cover into the holes on the stand.
  • Page 11 * Applicableonly for modelsthat supportthe speakers Use the screws to secure the speakers on the rear side of the product as shown in the below figure. When the speaker is installed.
  • Page 12 * The product image in the user's guide could be different from the actual image. @ Rear View - Open the back cap before you install the product. Power Connector : Connect the power cord Wired Remote Control Port @ RS-232C Serial Ports PC Signal Inputs PC Sound Jack : Connect the audio cable to the *LINE OUT jack of the PC sound card.
  • Page 13 First o fall,seeifthecomputer, product andtheperipherals areturned off. Then, connect thesignal input c able. When connecting withthe DVI signal input cable. When connecting with the D-Sub signal input cable. (IBM compatible PC1) When connecting with the D-Sub signal input cable. (IBM compatible PC2) When connecting with the D-Sub signal input cable.
  • Page 14 A 3828TUL310B-ENG 2005,5,16 11:11AM_II°IXl @(_) Turn on power by pressing the power button on the product. (_)Turn on the PC. Select an input signal. Press the SOURCE button on the remote control to select the input signal. ( sou.cE--- • A---SET Or, press the SOURCE button...
  • Page 15 Use this function when displaying ANALOG RGB inputs of a PC to the other product. • To use different products connected to each other Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB INPUT connector of other products.
  • Page 16 Connect the video cable as shown in the below figure and then connect the power cord (See page A11). When connecting with a RCA cable. Connect the input terminal with a proper color match. (Video - Yellow, Sound (left) - White, Sound (right) - Red) When connecting with a S-Video cable.
  • Page 17 Connect the video/audio cable as shown in the below figure and then, connect the power cord (See page A11 ). • Connect the input terminal witha proper color match. Product HDTV Receiver * The HDTV terminal also supports SDTV (480i/480p/576i/576p). Select an input signal.
  • Page 18 Connect the video/audio cable as shown in the below figure and then, connect the power cord (See page A11). • Connect the input terminal witha proper color match. Product DVD Receiver Select an input signal. Press the SOURCE button on the remote control to select the input signal. SOURCE'--* •...
  • Page 19 asshown inthebelow figure and then connect the onnect the video/audio cable power cord (See page A11 ). Product DVI-D RCA-PC Signal Cable Audio Cable VCR/DVD/Set-top Select an input signal. Press the SOURCE button on the remote control to select the input signal. ( SOURCE--- V•-- SET Or, press the SOURCE button at the front side of the product.
  • Page 20 Connect totheexternal device i f yourecord t hebroadcasting. • When you set the input signal of the main screen as 'AV (CVBS)', you can transmit the signal that you're watching to the AV output terminal. Product AUDIO IN Video/TV/Product...
  • Page 21 Name of the Buttons in the Screen Adjustment Unit (Power Button _ * Press this button toturn on thepower. P ressthisbuttonagainto turn it off. * This Indicator lights up green when the display operates normally(on Indicator) ower mode). If the display is in sleep (Energy Saving) mode, this indicator color changes to amber.
  • Page 22 Name of the Buttons in the Screen Adjustment Unit _AUTO/SELECTButton_ ForPCAnalogsignal] [Other signals] ,,The current signal and mode information will be displayed. SOURCE ---'- • A --_ AUTO/SELECT (_SOURCE Button_ • Selectthe input signal Composite Video S-Video Separate Video Component I HDTV Component 2 RGB1...
  • Page 23 OSD Menu Icon Function Description Adjusts screen brightness, contrast and color that you prefer. PICTURE SOUND Adjusts the screen status according to the circumstances. SPECIAL SCREEN Adjusts PIP/POP/PBP mode function. PIP/POP/PBP OSD(On screen Display) The OSD function enables you t o adjust the screen status c0nveniently since it provides graphical presentation.
  • Page 24 How to adjust the OSD (On Screen Display) screen MENU oEXIT Popsup Movewhere Select a Movewhere Select a i Adjust t hestatus Save Exitfromthe themenu youwantto menu icon youwantto menuiconi adjustmen[ _nenu s creen screen adjust adjust • Use the remote control to adjust the OSD screen. Press the MENU Button, then the main menu of the OSD appears.
  • Page 25 Adjusting Screen Color EZ Video AVIS-Video/Component Component 2 input only The EZ Video function automatically adjusts the screen image quality depending on the AV usage environment. • Dynamic : Select this option to display with a sharp image. • Standard : The most general and natural screen display status. •...
  • Page 26 A 3828TUL310B-ENG 2005,5,16 11:11AM_II°IXl Adjusting Screen Color RGB1, 2 / DVI input only • 6500K/9300K/3600K Selecting a factory setting color set. 6500K: Slightly reddish white. 9300K: Slightly bluish white. 3600K: Slightly yellowish white. • User • Select this option to use the user-defined settings.
  • Page 27 Selecting the options Input If you press the button once, the following Input Signal Window will appear. Select the signal type you want using the • A button. Child Lock Use the y & buttons to select On or Off. The Set can be set up so that it can only be used with the remote control.
  • Page 28 Selecting the options • To use this function - Must be displayed with various other products. - Must be in a function that can be connected to RS-232C or RGB Out Tile mode It is used to enlarge the screen and also used with several products to view screen, Tile mode and choose Tile alignment and set the ID of the current product to set location.
  • Page 29 Selecting the options • Tile mode - Tile mode : row x column ( r= l, 2, 3, 4 c=1,2,3,4) - 4 x 4 available. - Configuration of an integration screen is also available as well as configuration of one by one Display. - Tile mode (product 1 ~ 4) : r(2) x c(2) olumn - Tile mode (product 1 ~ 9) : r(3) x c(3)
  • Page 30 Selecting the options - Tile mode (product 1 ~ 2) : r(2) x c(1) olumn Reset Use this function to reset the product to the factory default. However, language selection will not be initialized. Selecting the options Set ID You can assign a unique Set ID NO (name assignment) to each product when several products are connected for display.
  • Page 31 Adjusting Screen CLOCK/PHASE and Position To select the image size of the screen. <AViS-Video/Component 1, 2 inputonly> <RGB1, 2 / DVI input only> *When the Component 1 input signal is 720p or 1080i, the spectacle function is not supported. Auto- y..
  • Page 32 Adjusting PIP/POP/PBP Mode (Multiple Screen) Functions On/Off After selecting PIP in the PIP On/Off menu, the following menu items can be adjusted. After selecting POP in the POP On/Off menu, the following menu items can be adjusted. After selecting PBP in the PBP On/Off menu, the following menu items can be adjusted.
  • Page 33 A 3828TUL310B-ENG 2005,5,16 11:12AM_11°IXl Adjusting PIP/POP/PBP Mode (Multiple Screen) Functions Position To adjust the position to PIP screen. Swap To switch the main-screen and sub- screen in PIP/POP/PBP mode.
  • Page 34 A 3828TUL310B-ENG 2005,5,16 11:12AM_11°IXl @ Is the product power cord connected? • See if the power cord is properly connected to the outlet. @ Is the power indicator light on? See if the power switch is turned on. @ Power is o@ power indicator is green •...
  • Page 35 A 3828TUL310B-ENG 2005,5,16 11:12AM_lI°IZl @ _sthe screen position wrong? • D-Sub analog signal - Press the "AUTO" button in the remote control to automatically select the optimal screen status that fits into the current mode. If adjustment is not satisfactory, use the Position OSD menu.
  • Page 36 @ No sound? • See if the audio cable is connected properly. • Adjust the volume. • See if the sound is set properly. @ He sound is available when the • See if the Sound is set to On inthe PIP/POP/PBP menu.
  • Page 37 The product specifications can change without prior notice for product improvement. LCD Panel [32 inch] 32 inches (80.04 cm) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel Visible diagonal size: 80.04 cm 0.5025 mm (Pixel Pitch) [37 inch] 37 inches (94.03 cm) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel Visible diagonal size: 94.03 cm 0.6000 mm (Pixel Pitch)
  • Page 38 The product specifications can change without prior notice for product improvement. Dimensions &Weight Width x Height x Depth ....[32 inch] ..[1] 80.30 cm (31.61inches)x 54.00cm (21.26inches)x 18.00cm (7.09inches) [2] 80.30 cm (31.61inches)x 49.30 cm (19.4inches)x 9.99cm (3.93inches) [3] 96.40 cm (37.95inches)x 54.00cm (21.26inches)x 18.00cm (7.09inches) [4] 96.40 cm (37.95inches)x 49.30 cm (19.4inches)x 9.99cm (3.93inches) [37 inch] [1] 92.80 cm (36.54inches)x 61.90 cm (24.37inches)x 22.77 cm (8.96inches)
  • Page 39 The product specifications can change without prior notice for product improvement..........................Dimensions &Weight [32 inch] [1] 19.4 kg (42.77Ibs) [2] 16.0 kg (35.27Ibs) [3] 21.1 kg (46.52Ibs) [4] 17.7 kg (39.02Ibs) [37 inch] [1] 26.7 kg (58.86Ibs) [2] 23.5kg (51.81Ibs) [3] 30.5 kg (67.24Ibs) [4] 25.7 kg (56.66Ibs)
  • Page 40 A 3828TUL310B-ENG 2005,5,16 11:12AM_11°IXl The product specifications can change without prior notice for product improvement. RGB1 / RGB2 : 1600 X 1200 @60Hz Video Signal Max. Resolution DVI • 1280 X 1024 @60Hz - It may not be supported depending on the OS or video card type. Recommended R esolution RGB1 / RGB2 : WSXGA 1360 X 768 @60Hz DVl : WSXGA 1360 X 768 @60Hz - It may notbe supporteddepending on theOS or videocardtype.
  • Page 41 The product specifications can change without prior notice for product improvement. RGB1 /RGB2 1920 X 1080 @60Hz Video Signal Max.Resolution DVl : 1920 X 1080 @60Hz Recommended R esolution RGB1 / RGB2 : WXGA 1920 X 1080 @60Hz DVI :WXGA 1920 X 1080 @60Hz Horizontal Frequency RGB1 / RGB2 : 30 - 83 kHz DVI : 30 - 83 kHz...
  • Page 42 A 3828TUL310B-ENG 2005,5,16 8:27PM_lI°IXl @ PC Mode- PresetMode [ 32/37/42 inchmodel] 640x 350 31.469 VESA 1024 x 768 60.123 31.468 720x 400 VESA 1024 x 768 68.68 640x 480 31.469 VESA 1280 x 720 44.772 37.500 VESA 640 x 480 VESA 1360 x 768 47.72 43.269...
  • Page 43 VESA wall mounting Connected to another object (stand type and wall-mounted type.) This product accepts a VESA- compliant mounting interface pad.- (optional) For further information, refer to the VESA Wall Mounting Instruction Guide. Kensington Security Slot- optional Connected to a locking cable that can be purchased separately at most computer stores...
  • Page 44 PM_II°IXl A 3840TRL304F-ENG 2005,5,17 2:22 Use this method to connect several products to a single PC. You can control several products at a time by connecting them to a single PC. Connecting the cable Connect the RS-232C cable as shown in the picture. * The RS-232C protocol is used for communication between the PC and product.
  • Page 45 DIGITAL_z Command Reference List COMMAND1 COMMAND2 DATA(Hexa) 01. Power OOH - 01H 02H - 08H 02. Input Select 01H - 06H 03. Aspect Ratio 04. Screen Mute OOH - 01H 05. Volume Mute OOH - 01H 06. Volume Control OOH - 64H 07.
  • Page 46 @ Transmission / Receiving Protocol Transmission I [Commandl][Command2][ ][Set ID][ ][Data][Cr] I * [Command 1]: First command. (j or k) * [Command 2]: Second command. * [Set ID]: You can adjust the set ID to choose desired product ID number in Special menu. Adjustment range is 0 - 99. When selecting Set ID '0', every connected TV set is controlled.
  • Page 47 DIGITAL_z Transmission / Receiving Protocol 01. Power (Command : a) • To control Power On/Off of the Set. Transmission I [k][a][ ][Set ID][ ][Data][Cr] Data 0 • Power Off 1 • Power On Acknowledgement I [a][ ][Set ID][ ][OK][Data][x] • To show the status of Power On/Off. Transmission I [k][a][ ][Set ID][ ][gg][Cr] Data 0 •...
  • Page 48 Transmission / Receiving Protocol 03. Aspect Ratio(Command : c) (Manin picure format) • To adjust the screen format. You can also adjust the screen format using the ARC (Aspect Ratio Control) button on remote control or in the Screen menu. Transmission I [k][c][ ][Set ID][ ][Data][Cr] Data 1 : 4:3...
  • Page 49 DIGITAL_z @ Transmission / Receiving Protocol 05. Volume Mute(Command : e) • To control On/Off of the Volume Mute. Transmission I [k][e][ ][Set ID][ ][Data][Cr] Data 0 • Volume Mute On (Volume Off) 1 • Volume Mute Off (Volume On) Acknowledgement I [e][ ][Set ID][ ][OK][Data][x] Data 0 •...
  • Page 50 .:oHt olli , tl e Mull )le l ro Transmission / Receiving Protocol 07. Contrast(Command : g) • To adjust screen contrast. You can also adjust the contrast in the Picture menu. Transmission [ [k][g][ ][Set ID][ ][Data][Cr] Data Min • 00H - Max : 64H •...
  • Page 51 DIGITAL_z @ Transmission / Receiving Protocol 09. Color(Command : i) (Video only) • To adjust the screen color. You can also adjust the color in the Picture menu. Transmission I [k][i][ ][Set ID][ ][Data][Cr] Data Min : 00H - Max : 64H (Hexadecimal code) Acknowledgement I [i][ ][Set ID][ ][OK][Data][x]...
  • Page 52 Transmission / Receiving Protocol 11. Sharpness(Command : k) (Video only) • To adjust the screen Sharpness. You can also adjust the sharpness in the Picture menu. Transmission [ [k][k][ ][Set ID][ ][Data][Cr] Data Min : OOH- Max : 64H (Hexadecimal code) Acknowledgement I [k][ ][Set ID][ ][OK][Data][x] Data...
  • Page 53 DIGITAL_z Transmission / Receiving Protocol 14. PIP/PBP/POP On/Off(Command : n) • To control PIP/PBP/POP On/Off of the Set. Transmission I [k][n][ ][Set ID][ ][Data][Cr] Data 0 : OFF 1 : PIP 2 : PBP 3 : POP Acknowledgement I [n][ ][Set ID][ ][OK][Data][x] Data 0 : OFF 1 : PIP 2 : PBP...
  • Page 54 Transmission / Receiving Protocol 16. Balance(Command:t) • To adjust the sound balance. Transmission [ [k][t][ ][Set ID][ ][Data][Cr] Data Min : OOH- Max : 64H (Hexadecimal code) Acknowledgement I [t][ ][Set ID][ ][OK][Data][x] Data Min : OOH- Max : 64H * Balance : -50 _ +50 17.
  • Page 55 DIGITAL_z Transmission / Receiving Protocol 18. PIP/PBP/POP SOURCE(Command • To select the sub-screen source. Transmission I [k][y][ ][Set ID][ ][Data][Cr] Data 2 : AV 6 : RGB1 3 : S-Video 7 : RGB2 4 : Component 8 : DVI 5 : Component 2 Acknowledgement I [y][ ][Set ID][ ][OK][Data][x] Data 2 : AV...
  • Page 56 Transmission / Receiving Protocol 21. Tiling Mode(Command : d d) • Change a Tiling Mode. Transmission I [d][d][][Set ID][][Data][x] Data Description Tiling mode is off. 1 x 2 mode(column x row) 1 x 3 mode 1 x 4 mode 4 x 4 mode * The data can not be set to OX or XO except 00.
  • Page 57 DIGITAL_z Transmission / Receiving Protocol 23. Tile V Position(Command : d f) )'To set the Vertical position. Transmission I [d][f][][Set ID][][Data][x] * The data range is from 00 to 64(in Hex). Acknowledgement I [f][][Set IU][][OK/NG][Uata][x] 24. Tile H Size(Command : d g) set the Horizontal size.
  • Page 58 Transmission / Receiving Protocol 26. Tile ID Set(Command : d i) • To assign the Tile ID for Tiling function. Transmission [ [d][i][][Set ID][][Data][x] * The data range is from O0 to O0 x 10 tile mode. Acknowledgement [ [i][][Set ID][][OK/NG][Data][x] 27.
  • Page 59 DIGITAL_z Transmission / Receiving Protocol *29. Temperature value Return(Command : d n) - Optional • To read the inside temperature value. Transmission [d][n][][Set ID][][Data][x] * The data is always FF(in Hex). Acknowledgement [n][][Set IU][][OK/NG][Uata][x] Data are 1 byte long in Hex ASCII format. *30.
  • Page 60 Code • Connect your wired remote control to Remote Control port on the Product. • Output waveform single pulse, modulated with 37.917KHz signal at 455KHz Carrier frequency __I--] [--]__ FCAR = 1/Tc = fosc/12 m*-_T_ Duty ratio = T1/Tc = 1/3 •...
  • Page 61 DIGIT^L_z Code(Hexa) Function Note • R/C Button • R/C Button VOL(,) R/C Button VOL(, R/C Button POWER ON/OFF R/C Button(Power On/Off) POWER Discrete IR Code(Only Power On) POWER Discrete IR Code(Only Power Off) MUTE R/C Button Number Key 0 R/C Button Number Key 1 R/C Button...
