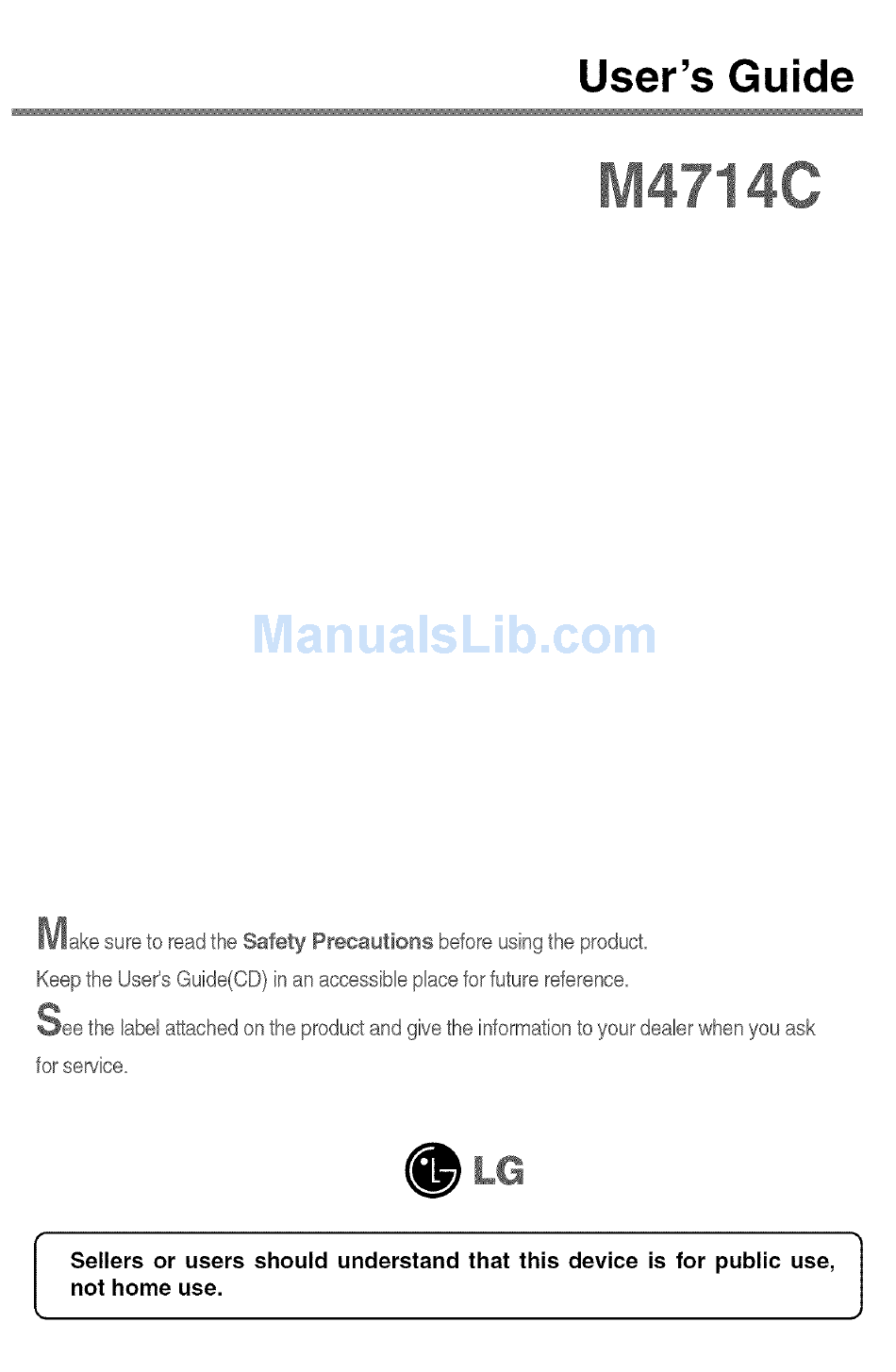

User's Guide
Make
sure to read the Safety Precautions
before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
See the label attached on the product and give the information to your dealer when you ask
for servbe_
Sellers or users should understand that this device is for public use,
not home use.
