CROSLEY

French Door Bottom

Freezer

Refrigerator

i ¸ ¸

Table

of Contents

Important Safety Instructions ...........................

Features at a Glance ........................................

Installation .....................................................

Door Removal Instructions ...............................

Installing Door Handles ..................................

Connecting Water Supply ...............................

Controls ........................................................

Automatic Ice Maker......................................

Storage Features ...........................................

Storing Food and Saving Energy .....................

Normal Operating Sounds and Sights .............. 21

Changing the Filter ........................................

Care and Cleaning .........................................

Before you Call..............................................

Major Appliance Warranty ..............................

-Ix

Lrl

22r

Table of Contents

Need help?

Do you have a question about the 242116500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Crosley 242116500

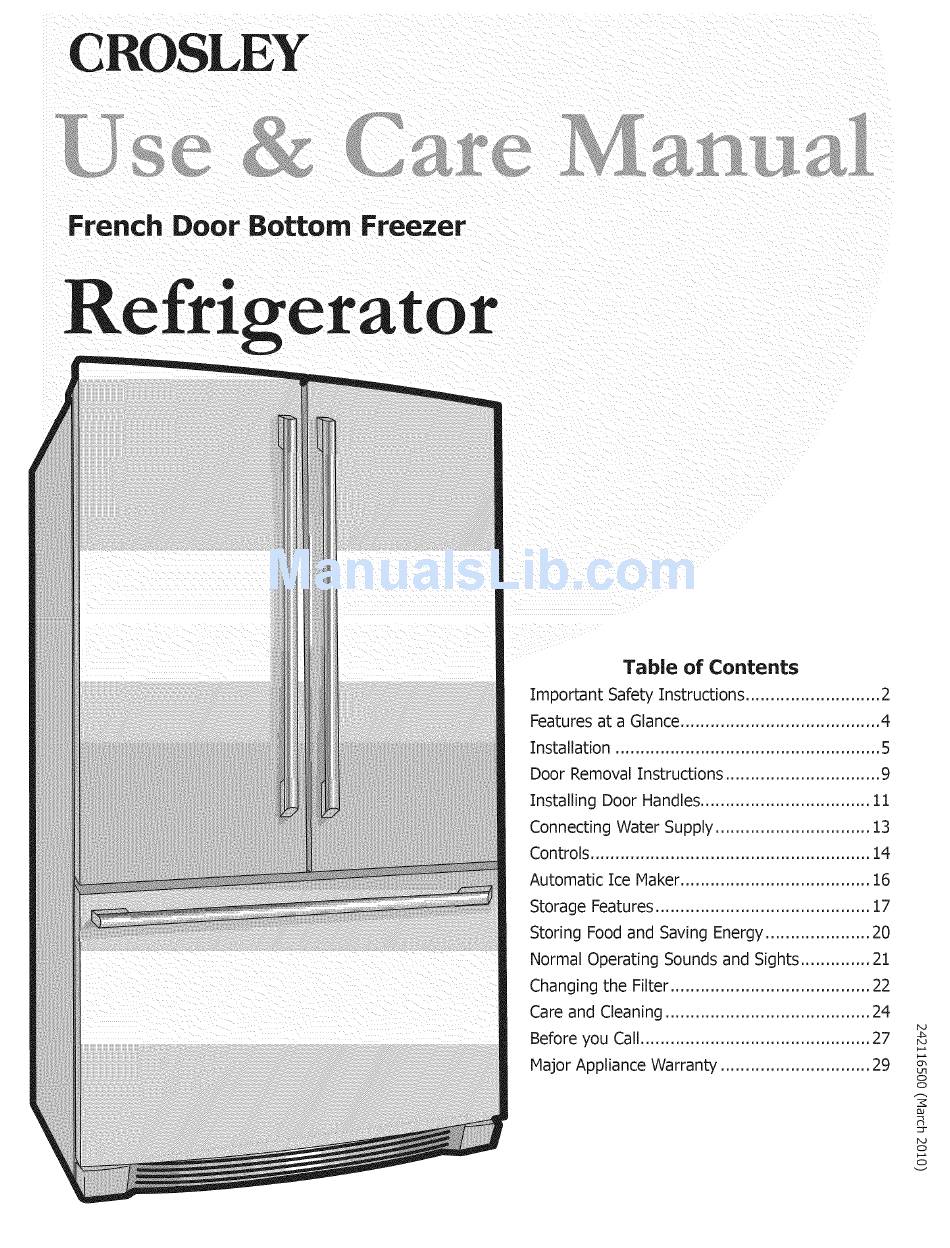

Page 1 CROSLEY French Door Bottom Freezer Refrigerator Table of Contents Important Safety Instructions ......Features at a Glance ........Installation ............. Door Removal Instructions ....... Installing Door Handles ........Connecting Water Supply ....... Controls ............Automatic Ice Maker........Storage Features ...........
Page 2: Electrical Power
Doors Please read all instructions before using this refrigerator, Handles are secure and tight Door seals completely to cabinet on all sides For your Safety 13 Freezer drawer is level across the top o DO NOT store or use gasoline, or other flammable liquids in the vicinity of this or any other appliance.
Page 3 Child Safety Fault Interrupter (GFI) circuit. Do not use an extension cord or adapter plug. Destroy or recycle the carton, plastic bags, and any If the power cord is damaged, it should be replaced exterior wrapping material immediately after the by an authorized service technician to prevent any refrigerator is unpacked.
Page 4 Features may vary according to model Incandescent Light (select models) Water FEpper Guide LED Light (select models) Filter Dairy /Compartment Air Filter Shelves _=== Flipper ! "u"'°° Crisper ==_==Crisper Drawer Drawer Door Drawer Freezer Baskets Adjustable Haker Hinges GriHe...
Page 5: Required Tools
Required Tools You will need the following tools: Tools Necessary: Components Provided: Top Hinge Top Hinge Cover Front Cover Rear Screw_ _Screw L ..sHi% 3/8" Fixed Head Wrench Installation This Use & Care Guide provides general installation and operating instructions for your model. We recommend Allow the following clearances for ease of using a service or kitchen contracting professional to installation, proper air circulation, and plumbing...
Page 6 Leveling Freezer Drawer (ifnecessary) Level Refrigerator & Adjust Doors (if necessary) Guidelines for final positioning of your refrigerator: DO NOT remove center screw from freezer drawer. Th!s is a factory adjustment: ..................................All four corners of the cabinet must rest firmly on the floor.
Page 7 To adjust the door stop: Re-tighten screw. Door stop is adjustable between 85 to 145 degrees, View shown is looking up at the bottom of the refrigerator door. Re-tighten Screw Ensure door stops in desired location before resuming normal use. To level the doors using the adjustable lower hinge (select...
Page 8 Lift the door while adjusting the washer. To raise To adjust the flipper mullion: the door, rotate washer clockwise (when viewed Loosen the screw located on the flipper mu!lion from the bottom). To lower door, rotate washer hinge. counter-clockwise when viewed from the bottom). Adjusting Flipper Mullion Screw Raising/Lowering...
Page 9 Getting through narrow spaces To remove the refrigerator doors: Trace lightly around the door's top hinges with a If your refrigerator will not fit through an entrance area, pencil. This makes reinstallation easier. you can remove the doors. Check first by measuring the entrance.
Page 10 Installing Freezer Drawer 1 With lower slides pulled out, hang drawer onto slide brackets ensuring pins on each side are fully Youwill bepulling approximately three(3)feetof inserted into slots on each side. watertubefromthe backofthe refrigerator. 4 Unscrew thethree(3) lowerhinge screws and hingeif necessary.
Page 11 Door Handle Mounting Instructions for Frigidaire Gallery® Remove handles from carton and any other protective packaging. Position fresh food handle end over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door. While holding handle firmly against door, fasten upper and lower Allen set screws (B) with supplied Allen wrench.
Page 12 Door Handle Mounting Instructions for Frigidaire Professional® Remove handles from carton and any other protective packaging. Position fresh food handle end over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door. While holding handle firmly against door, fasten upper and lower Allen set screws (B) with supplied Allen wrench.
Page 13 5305510264 (with a 20 ft. Copper Water that your water dispenser works properly, this system must Line with self-tapping saddle valve). Please refer to be completely filled with water when your refrigerator is first www.crosley.com/store for more information. connected to the household water supply line.
Page 14 IQ-Touch A red indicator light will be illuminated above most active features. Touch the icon to activate the options below. quick Increases the production water filter Press and hold for three (3) seconds to reset after filter change. Touch to toggle display from Fahrenheit to Celsius. default settings Resets all refrigerator settings such as temp, temp display and tones to their factory default settings.
Page 15 TQ-Touch "Sabbath Hode" The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community. Sabbath Mode is turned ON and OFF by pressing and holding both the freezer "v"...
Page 16: Ice Maker Operation & Care
Ice maker operation & care o The following sounds are normal when the ice maker is operating: After the refrigerator is installed properly, the ice maker - Motor running can produce ice within 24 hours. It can completely fill an - Ice dropping into ice bin ice bin in about three (3) days.
Page 17: Shelf Features
Crispers Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. Toavoid injuryfrombreakage, handle tempered g lass shelves c arefully. Features mayvaryaccording t o model. Yourrefrigerator includes S pillSafe glass shelves that are designed to catch and hold accidental spills. You can easily adjust shelf positions in the fresh food compartments to suit your needs.
Page 18: Freezer Features
Place bin liner into bin. Deli drawer Idea! for storage of deli meats and cheese. Accessories (varies by model) Dairy compartment Use the dairy compartment, at the top of the fresh food compartment door, for short-term storage of cheese, Doors spreads, or butter.
Page 19 Dividers Removal To Remove Upper Basket Remove all items from basket. Lift up on the front of the middle divider and pull out. Remove basket by pulling baskets out to their full Middle Basket extension and lift out. Divider_ Retainers Hiddle Basket Divider...
Page 20: Ideas For Storing Foods
Ideas for storing foods Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate Fresh food storage of freezing, and can raise the temperature of frozen foods. = Keep the fresh food compartment between 34 °...
Page 21: Understanding The Sounds You May Hear
Understanding the sounds you may hear Energy efficient foam in your refrigerator is not a sound Your new, high-efficiency refrigerator may introduce insulator. unfamiliar sounds. These sounds normally indicate your refrigerator is operating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more noticeable.
Page 22 Locating the Filters More about your Advanced Water Filter Your refrigerator is equipped with water filtering system. The PureSource Ultra ice and water filter The water filter system filters all dispensed drinking system is tested and certified to NSF/ANSI Standards 42 and 53 for the reduction of claims water, as well as the water used to produce ice.
Page 23: Air Filter
Air filter The air filter is located under the utility bin. Replacing your PureAdvantage air filter To ensure optimal filtering of refrigerator odors, you should change the air filter every six (6) months (the filter status light on the Touch Panel prompts you to replace the filter after six (6) months).
Page 24: Protecting Your Investment
Protecting your investment Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and fresh food compartments at least twice a year. Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners.
Page 25: Vacation And Moving Tips
Care and cleaning tips Interior & • Soap and water • Use two (2) tablespoons of baking soda in one (1) quart of warm water. Door Liners - Baking soda and - Be sure to wring excess water out of sponge or cloth before cleaning around water controls, light bulb or any electrical part.
Page 26 Replacing LED Lights (select mode=s) The fresh food compartments of your refrigerator may have LED lights. Always use Frigidaire parts for Wear gloves when replacing incandescent light bulbs to replacement. avoid getting cut. To replace LED Lights: To replace light bulbs: Unplug your refrigerator's power cord.
Page 27 1-800-944-9044 Visit our web site at (United States) www.crosley.com 1-800-265-8352 (Canada) CONCERN POTENTIAL CAUSE COHHON SOLUTION AUTOHATIC ICE HAKER Ice maker is not mak- • Tce maker power switch is Off. Turn power switch to On ("I') position. Remove small cube from ice maker. The ice and water mg any ice.
Page 28 CONCERN I POTENTIAL CAUSE COHHON SOLUTION RUNNING OF REFRIGERATOR Set freezer control. Compressor does not Freezer control is set to "OF" run. or "0". Refrigerator is in defrost cycle. • This is normal for a fully automatic defrost refrigerator. The defrost cycle occurs periodically, lasting about 30 minutes.
Page 29: Your Refrigerator
We authorize no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by an authorized Crosley Corporation servicer. In Canada, your appliance is warranted by Crosley Canada Corp.
