maintenance
WARNING: FOR YOUR OWN SAFETY, TURN
SWITCH "OFF" AND REMOVE PLUG FROM
POWER SOURCE OUTLET BEFORE MAINTAIN-
ING OR LUBRICATING YOUR LATHE.
Frequently blow out any dust that may accumulate inside
the motor.
A coat of automobile-type wax applied to the bed will help
to keep the surfaces clean and allow the tool rest and taif-
stock to more more freely.
If the power cord is worn or cut, or damaged in any way,
have it replaced immediately.
For motor maintenance, follow instructions furnished with
motor.

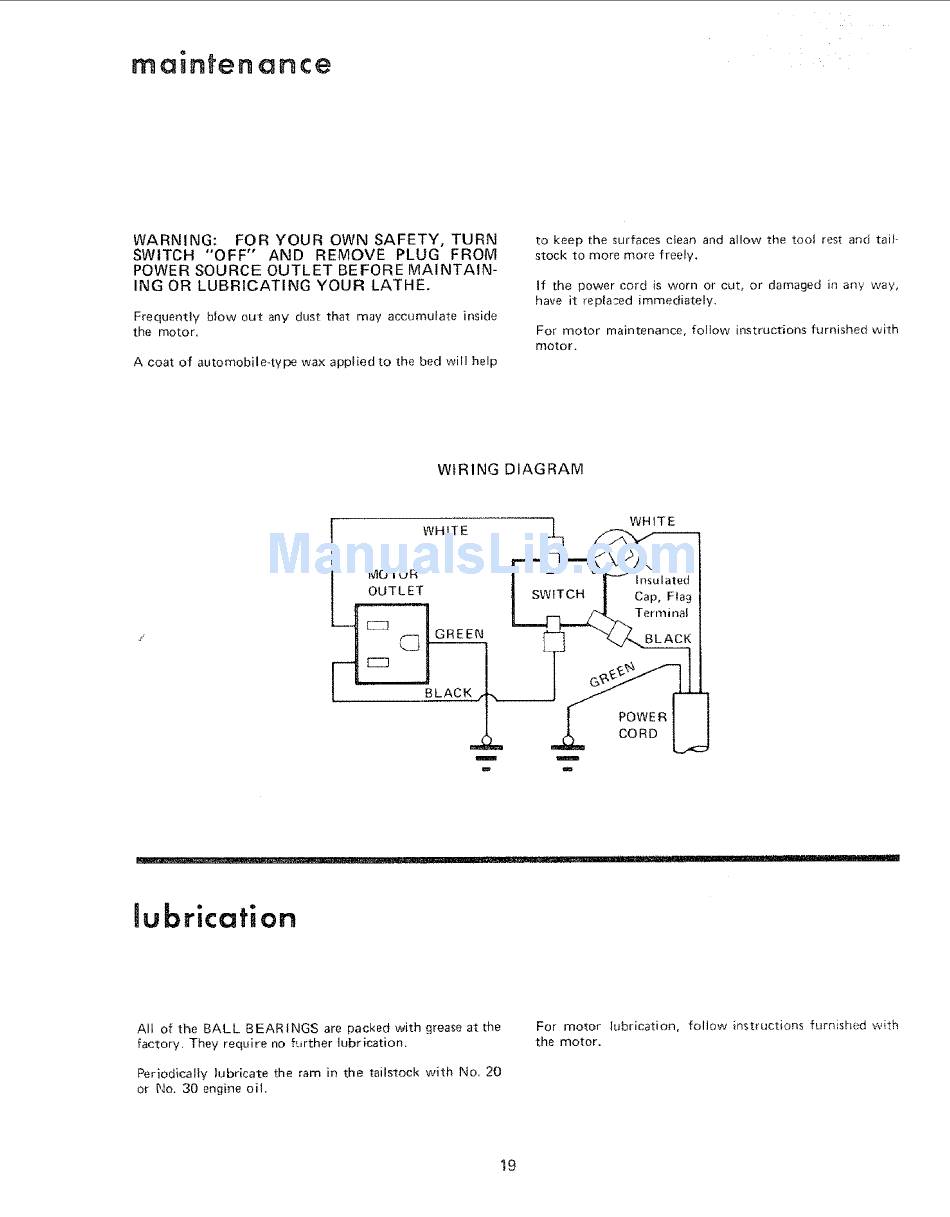

WIRING DIAGRAM
t WHITE
MOTOR
f
BLACI_
CORD
m
........... I1! i llq-' II!11 -m
nubrication
All of the BALL BEARINGS are packed with grease at the
factory. They require no f'._rther lubrication.
Periodically lubricate the ram in the tailstock with No. 20
or No, 30 engine oil.
For motor lubrication, follow instructions furnished w th
the motor.
19
