Nikon MEC-2-FL-D60-N105 Manual

Nikon MEC-2-FL-D60-N105 Manual

D60 miles eye camera
Hide thumbs

Advertisement

Quick Links

Download this manual

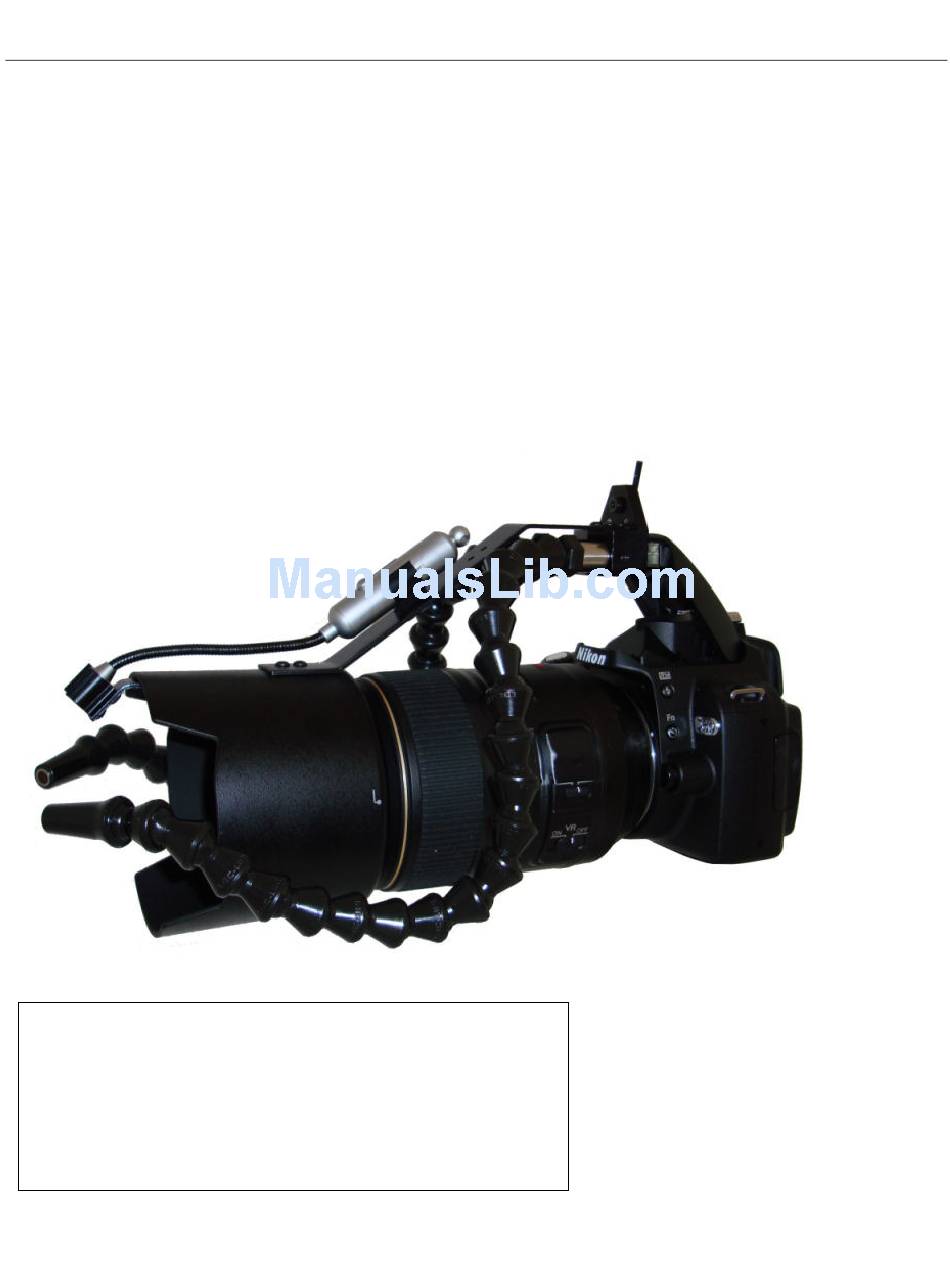

Use of Nikon D60 Miles Eye Camera (MEC-2-FL-D60-N105)
Contents of the MC-2-FL Iris Camera System ......................................................2
Preparing the Iris Camera for Use - (Flex-Lighting) ............................................3
How to Take Perfect Iris Pictures ..........................................................................8
How to Transfer Iris Images Using the Card Reader ........................................ 12
How to Organize Eye Pictures on the Computer .............................................. 14
Camera Maintenance ........................................................................................... 18
Camera Settings................................................................................................... 20
Reference for Nikon D60 Menu Settings ........................................................... 22
Your Registration Information:
Name:
Camera System Serial Number:
Camera Body Serial Number
Lens Serial Number
Lens Serial Number
Date Shipped:
Use of Iris Camera MEC-2-FL-D60-N105
_________________
_________________
: _________________
(D60)
:
_________________
(Nikon 105mm)
: _________________
(Nikon 18-55mm)
_________________
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEC-2-FL-D60-N105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nikon MEC-2-FL-D60-N105

Summary of Contents for Nikon MEC-2-FL-D60-N105

  • Page 1: Table Of Contents

    Use of Nikon D60 Miles Eye Camera (MEC-2-FL-D60-N105) Contents of the MC-2-FL Iris Camera System ............2 Preparing the Iris Camera for Use – (Flex-Lighting) ..........3 How to Take Perfect Iris Pictures ................8 How to Transfer Iris Images Using the Card Reader ........12 How to Organize Eye Pictures on the Computer ..........

  • Page 2: Contents Of The Mc-2-Fl Iris Camera System

    Use of MEC-2-FL-D60 Iris Camera Contents of the Camera Carry Case – MC-2-FL-D60-N105 Case Contents for MC-2-FL 1. Camera with Macro Lens 2. Hood-Mounted Illuminator 3. Camera Batteries 4. Camera Battery Charger Cord Compartment 5. AC cord for camera battery charger 6.

  • Page 3: Preparing The Iris Camera For Use - Flex-Lighting

    Macro Camera MEC-2-FL Kit Preparing the Iris Camera for Use – Flex-Lighting 1. Open Camera Carry Case by lifting up each latch. 2. Remove the camera from the foam padding and set down. 3. Lift Illuminator out of foam-padded case Use of Iris Camera MEC-2-FL-D60-N105...
  • Page 4 4. Remove lens cap and turn the camera on. Mode dial is set to A=Aperture priority 5. Pop up the built-in flash by pressing button on left side 6. Place illuminator onto lens at the 9:00 position: Use of Iris Camera MEC-2-FL-D60-N105...
  • Page 5 7. Rotate Illuminator until it snaps into place at 12:00 position: 8. Press focus light power switch: 9. Your camera is now ready to take iris pictures. When complete with the photography, reverse these steps to put the camera away. 10.
  • Page 6 11. For “flat” or uniform illumination, use the Both Channels Open position. This is setting is when the lever is all the way to the left or the right: Close-up detail of the lightguide channel shutter paddle switch: 12. Use the main command dial at the upper rear of the camera for adjusting the aperture. The Main Command Dial is operated with the right thumb and is used to adjust aperture.
  • Page 7 Reduction). You may also use any Nikon AF-S or AF-I autofocus lens. Older lenses will not work with the D60 since it does not include a motor drive; only the newer Nikon AF-S and AF-I lenses have a built- in motor drive for focusing. You can use any older lens but the auto-focus will not operate.

  • Page 8: How To Take Perfect Iris Pictures

    How To Take Perfect Iris Pictures 1. Be sure the client is comfortably seated and relaxed. 2. If a chinrest is not used, have the client open their own lids by putting the index finger touching the thumb up to the closed eye (using the arm on the same side of the eye being photographed), and then separating the index finger and thumb while holding them against the upper and lower lids respectively.
  • Page 9 5. If a chinrest is used, adjust the height so the center of the iris is about 1” (25mm) below the bottom of the forehead rest. When a chinrest is used, lid retraction can be accomplished using two 6” cotton swabs in one hand to separate lids. 6.
  • Page 10 16. To increase the exposure (with the Nikon D-60), adjust the Aperture using the main (rear) Command dial. Note: If the just-taken image is showing, you must press the picture-taking button slightly (or press the play button) to stop the image playback before adjusting aperture.
  • Page 11 Sample iris images: Left, Blue iris at f/51; Right, Mixed iris at f/45 Use of Iris Camera MEC-2-FL-D60-N105...

  • Page 12: How To Transfer Iris Images Using The Card Reader

    How To Transfer Iris Images Using The Card Reader 1. Start with the reader unplugged 2. Insert the SD Flash memory card into the card reader 3. Plug the card reader into the computer’s USB socket The blue light on the card reader will illuminate: 4.
  • Page 13 Card Reader Disconnection In Detail – Model S6 1-slot card reader 1. Close out all folders that reference the Flash Drive letter. When closing a folder in Windows, pressing the shift key at the same time will also close all parent windows. 2.

  • Page 14: How To Organize Eye Pictures On The Computer

    7. After Clicking the Card Reader Device, The blue light on the Card Reader will go out, indicating that the power is no longer being supplied to the card reader and it is now safe to remove the card reader from the USB socket. The below example shows the S6 card reader plugged into a 4-port USB hub;...
  • Page 15 3. At this point I am currently recommending that you select the "Microsoft Scanner and Camera Wizard" since it has the best behavior and options. I do not bother with Nikon Picture Project but it does work well with the Nikon Capture program. The Microsoft Scanner and Camera Wizard is good at putting your pics into a logical place with conventional filenames.
  • Page 16 11. Then open the image in a photo editor (such as Paint Shop Pro or Photo Shop) and crop it down to the smallest rectangle that encloses the iris. This is saved with the same filename but a "c" at the end, prior to ".jpg"...
  • Page 17 How to use the enclosed universal 12-sector iris grids with chart If you do not use printouts, just place the grids over the images on the monitor. Use of Iris Camera MEC-2-FL-D60-N105...

  • Page 18: Camera Maintenance

    Camera Maintenance – Focus Light Battery Change Focus Light Type 3 – FLV8F (LED focus light with flex end) 1. Remove the focus light from the illuminator. 2. Open the battery compartment by unscrewing the end cap. Use a small screwdriver or paper clip to twist off the end cap (it has a small hole in the end).
  • Page 19 5. Put in the new batteries with the button end (positive) first. The easy way to load the 4 button cells is to stack them up (button end up) on a sheet of paper or card, slide the focus light over them, then tilt the light with paper upright..

  • Page 20: Camera Settings

    The bottom switch for VR should be set off (to the right, toward the lens mount). b. Black plastic tape is in place to keep this switch set correctly. B. Camera Menu Settings – Nikon D60 -- These steps are already done in manufacturing. 4. Put the camera in Manual Flash Mode: a.
  • Page 21 Reference for Nikon D-60 Settings Note: These steps are already done in manufacturing, but you may need to reset these setting if the camera is used in an automatic mode for other photography. Iris Camera Menu Settings: Shooting Menu White Balance...

  • Page 22: Reference For Nikon D60 Menu Settings

    Menu Reference The Nikon D-60 has four menus (plus a retouch menu that is not normally used), each one signified by a different icon in the leftmost column. To access the menus, switch the camera on and press the MENU button on the back of the camera.
  • Page 23 Flash Compensation AF-assist 10. ISO auto 11. Fn Button 12. AE-L/AF-L 2 locks 2 locks 2 locks 13. AE Lock 14. Built-in Flash TTL- Flash TTL-Flash Manual-Full Power 15. Auto-off Timers NORM LONG LONG 16. Self-Timer 10 sec 10 sec 10 sec 17.
  • Page 24 Aperture Guide Camera: D60 Illuminator: Flex-Lighting ISO: 200 EV: 1/3 Brown: 16---18---20---22---25 Tan: 20---22---25---29---32 Mixed: 22---25---29---32---36 Blue: 25---29---32---36---40---45 Sclera: 51---57 Do not use: 4.8, 5, 5.6, 6.3, 7.1, 8, 9, 10, 11, 13, 14 Use for brown: 16 thru 25 Use for blue or mixed: 22 thru 45 Use for sclera only: 51, 57 Camera: D60...
