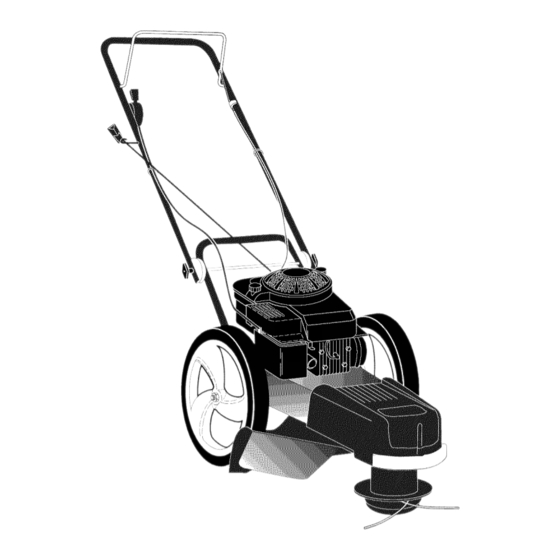

675 series briggs & stratton engine 22 inch cut wheeled weedtrimmer
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual

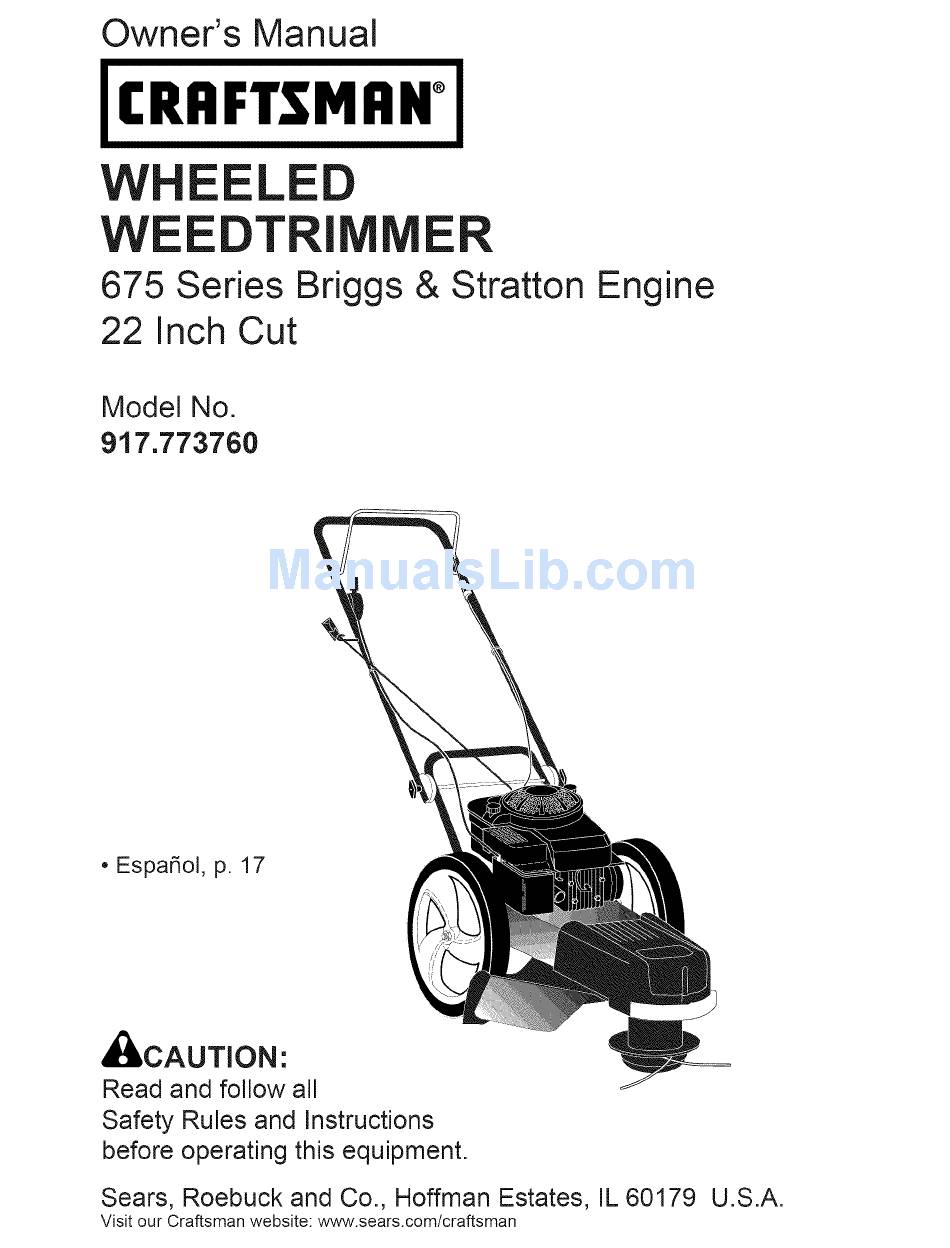

Owner's Manual
CRAFTSMI:IN °
EEL
EDT
E
675 Series Briggs & Stratton
22 Inch Cut
Engine
Model No.
917.773760
• EspaSol, p. 17
_ICAUTiON'.
Read and follow all
Safety Rules and Instructions
before operating this equipment.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.com/craftsman
U.S.A.

Advertisement

loading

Related Manuals for Craftsman 917.773760

Summary of Contents for Craftsman 917.773760

  • Page 1 675 Series Briggs & Stratton Engine 22 Inch Cut Model No. 917.773760 • EspaSol, p. 17 _ICAUTiON'. Read and follow all Safety Rules and Instructions before operating this equipment. U.S.A. Sears, Roebuck and Co., Hoffman Estates, IL 60179 Visit our Craftsman website: www.sears.com/craftsman...
  • Page 2 Sears will repair free of charge any defect in material workmanship. If this Craftsman Weedtrimmer is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase. This Warranty...
  • Page 3 _i, WARNING: Engine exhaust, some • Do not pull machine backwards unless ab- solutely necessary. Always look down and of its constituents, and certain vehicle behind beforeandwhile moving backwards. components contain or emit chemicals known to the State of California •...
  • Page 4 Repair Protection Agreements Congratulations on making a smart pur- • Fast help by phone - phone sup- chase. Your new Craftsman® product port from a Sears representative designed and manufactured for years products requiring in-home repair, plus dependable operation. But like all prod-...
  • Page 5 Serial Number: Date of Purchase: Gasoline Capacity / Type: 1.6 Quarts (Unleaded Regular) Oil Type (API SG-SL): SAE 30 (above 32°F); SAE 5W-30 (below 32°F) Oil Capacity: 20 Ounces Spark Plug (Gap: .030") Champion RJ19LM or J19LM Trimmer Line Length: 18.75 Inches (0.155...
  • Page 6 KNOW YOUR TRIMMER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR TRIMMER, Compare the illustrations with your trimmer to familiarize yourself with the location of various controls and adjustments, Save this manual for future reference, These symbols may appear on your trimmer or in literature supplied with the product,...
  • Page 7 TO ADJUST TRIMMING HEIGHT _CAUTION: Stop the engine and wait for all moving parts to stop. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug. The height of cut can be set to six (6) dif- ferent positionsranging from 1-1/2 inches The operationof any trimmer can result in to 3 inches.

  • Page 8: Add Gasoline

    ADD GASOLINE NOTE: In cooler weather it may be • Fill fuel tank to bottom of gas tank necessary to repeat priming steps. filler neck. Do not overfill. Use fresh, warmer weather overpriming may cause clean, regular unleadedgasoline flooding and engine will not start.
  • Page 9 .A..A.C, S C..OU', F..OATES ..AS YOU COMPLETE /__._OkXY SERVICE /__:x'_..,."4'r _'_'- " Z DATES REGULAR SERVICE Check for Loose Fasteners Clean Trimmer Clean Under Engine Cover I/'2 Check Drive Belt / Pulleys Check / Replace Trimmer Lines Check Engine Oil Level Change Engine Oil I/'1,2 Clean Air Filter...
  • Page 10 TRIMMER Always observe safety rules when per- forming any maintenance. TIRES • Keep tires free of gasoline, oil, or insect control chemicals which can harm rub- ber. • Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.
  • Page 11 ENGINE Replace engine oil cap. Reconnect spark plug wire to spark LUBRICATION plug. Use only high quality detergent oil rated with API service classification SG-SL. FILTER Select the oil's SAE viscosity grade Your engine will not run properly and may according to your expected operating...
  • Page 12 Keep finished surfaces and wheels free ,_CAUTION: Disconnect spark plug wire of all gasoline, oil, etc. from spark plug and place wire where We do not recommend using a garden cannot come in contact with plug. hose to clean trimmer unless the elec- •...
  • Page 13 Tighten pulley bolts securely. Always use Craftsman replacement parts NOTE: Be sure belt is inside top belt to assure proper fit and long life. keeper on idler assembly.
  • Page 14 Immediately prepare your trimmer for stor- Also, alcohol blended fuels (called gasohol age at the end of the season or if the unit or using ethanol or methanol) can attract will not be used for 30 days or more. moisture which leads to separation...

  • Page 15: Troubleshooting

    TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Parts & Repair Center. CORRECTION PROBLEM CAUSE Does not start 1. Dirty air filter. 1. Clean/replace air filter. 2. Out of fuel. 2. Fill fuel tank. 3. Stale fuel. 3.
  • Page 16 Operate a trimmer across the face of slopes, never up or down slopes. 10 DE 15 DEGREES Use this guide and do not trim on a slope greater than 15 degrees. A 10 degree slope is a hill that inoreases In height at approximately 1.7 feet in 10 feet.
  • Page 17 Sears reparara gratis todo defecto en el material y la mano de obra. Si la recortadora para mala hierba Craftsman se usa para fines comerciales o de arriendo, esta garantia s61o se aplica por noventa (90) dias a partir de la fecha de compra.
  • Page 18 I. OPERAClON GENERAL * Opere solamente con luz del dia o con una buena luz artificial. Antes de empezar, debe familiarizarse completamente con los controles y el uso * No opere la maquina bajo la influencia del correcto de la maquina. Para esto, debe leer alcohol o de las drogas.
  • Page 19 Reparacibn Congratulaciones por su buena compra. Ayuda rapida pot tel_fono - soporte tele- nuevo producto Craftsman® esta diseSado f6nico por parte de un representento Sears y fabricado para funcionar de modo fiable pot sobre productos que requieren un arreglo en muchos aSos.
  • Page 20 N6mero de Serie: Fecha de Compra: Capacidad y Tipo de Gasolina: 1.6 Cuartos (Regular sin Plomo) Tipo de Aceite (API SG-SL): SAE 30 (Sobre 32°F); SAE 5W-30 (Debajo 32°F) Capacidad de Aceite: 20 Onzas Bujia (Abertura: .030") Champion RJ19LM o J 19LM Longitud de la linea de la recortadora: 18.75...
  • Page 21 FAMILIARiCESE CON SU RECORTADORA LEA ESTE MANUAL DE USUARtO Y LAS REGLAS DE SEGURtDAD ANTES DE OPERAR SU RECORTADORA. Compare las ilustraciones can su recortadora para familiafizarse con la ubi- caci6n de los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos simbolos pueden aparecer sobre su recortadora...
  • Page 22 SEGURIDAD Cabeza recortadora La operaci6n de cualquier recortadora puede Tabulacion hacer que salten objetos extra_os dentro de de la placa sus ojos, Io que puede producir dados graves de bloque en estos. Siempre use anteojos de seguridad o protecci6n para los ojos mientras opere su recortadora o cuando haga ajustes o reparacio- nes.
  • Page 23 GASOLINA Llene el estanque de combustible hasta la parte inferior del cuello de relleno del estanque de gasolina. No Io Ilene demasiado. Use gasolina regular, sin plomo, nueva y lim- pia con el minimo de 87 octanos. No mezcle el aceite con la gasolina. Para asegurar que la gasolina utilizada sea fresca compre estanques...
  • Page 24 ,.OO.A.A °."A"T'"'"""'O f f, J A MEDIDA COMPLETE /__'/_._y FECHAS Revisar si hay sujetadores sueltos Limpiar la recortadora Limpiar debajo de la cubierta del motor t_ 2 Revisar las correas y las poleas impulsadas Verifique / reemplazar las lineas ip#_3 de la recortadora Revisar el nivel del aceite Cambiar...
  • Page 25 ,If_PRECAUCI6N: Utilice s61o la linea de Con la extremidad de la linea plagada en el lado trasero del clip del sujetador, empujar recortadora recomendada. No utilice otros la linea hacia afuera hasta que la linea este materiales como cables, cuerdas, cintas, completamente colocada debajo del clip del etc.
  • Page 26 Revise el nivel del aceite del carter antes de lnstale el cartucho, luego vuelva a poner la arrancar el motor y despues de cada cinco (5) cubierta asegurandose que las orejas esten horas de uso continuado. Apriete el tap6n del alineadas con las ranuras en la plancha aceite en forma segura cada vez que revise el trasera.
  • Page 27 PARA REMOVER/AJUSTAR LA CORREA DE ADVERTENClA: Para evitar lesi6nes serias IMPULSION DEL CABEZAL DE LA RE- ntes de dar cualquier sercicio o de hacer CORTADORA ajustes: Remueva el tomillo en el frente de la cubi- Pare el motor. erta del chasis. AsegQrese que las lineas rotatorias y que Gire la cubierta hacia arriba y a distancia de todas las partes movibles se hayan detenido...
  • Page 28 Remueva la correa de la polea del cabezal 12. lnstale la correa y el conjunto del piSon Ioco de la recortadora. en la recortadora, vuelva a conectar un Observe la posici6n del cable de control y resorte del piSon Ioco y monte el piSon Ioco del resorte de Ilamada del piton Ioco.
  • Page 29 formaci6n de acidos durante almacemamiento. Prepare inmediatamente su recortadora para el la gasolina acideca puede nafiar el sistema de alma cenamiento al final de cada temporada o si la unidad no se va a usar por 30 dias o mas. combustible de un motor durante el perido de alcamenmiento.
  • Page 30 SOLUCION DE PROBLEMAS - Vea la secci6n apropiada en el manual arnenos est_ dirigido a un centro de servico Sears. PROBLEMA CAUSA CORRECCION No arranca Filtro de aire sucio. 1. Limpie/cambie el filtro de aire. Sin combustible. 2. Llene el estanque de combus tible.
  • Page 31 GUIA CLINACI I'"o.o.To_DO,_, VEA Y DETENGA ESTA GUiA DE NIVEL CON UN ARBOL EN POSICION . .,:_ "... VERTICAL, LA ESQU|NA DE UNA ESTRUCTURA, UN POSTE DE LUZ O UNA CERCA.._ PlnAm-,._ °Qeee_o -_-_ e_ee, Opere una recortadora de maleza en sentido diagonal a tra-...
  • Page 32 CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 917.773760 16 1C 24 25...
  • Page 33 CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 917.773760 PART DESCRiPTiON Engine, Briggs & Stratton, Model No. 126L02-1100-F1 (See Breakdown) 150406 Bolt, Engine Mounting 3/8-16 179466 Pulley, Engine 88348 Washer, Flat 169821X479 Handle, Lower 150078 Screw, Hex Washer Head 5/16-18 x .75...
  • Page 34 CRAFTSMAN WEED TRIMMER . . MODEL NUMBER 917.773760 _1s2 20 44 47 21 _" "Io /' la.._. 3_¢ ._z/...
  • Page 35 CRAFTSMAN WEED TRIMMER - - MODEL NUMBER 917.773760 PART DESCRIPTION 174031X615 Chassis Assembly 182219 Line, Trimmer .155 diameter x 18.75 long 173715 Screw, Self-Tapping 5/16-18 x 1 185476 V-Belt 172145X004 Bracket, Idler 166042 Pulley, Idler, V-Groove 173716 Bolt, Hex Head 3/8-16 x 1.25...
  • Page 36 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 126L02-1100-FI 5841 684 _ "_J 51 383_ 718_ 307_ I 1330 REPAIR MANUAI_...
  • Page 37 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 126L02-1100-FI 443_ 9661 677 _j __9_ 163_ 1251 977 CARBURETOR 633 @ GASKET SET 633 G 276_ 276_ 127_ '_ 617 121 CARBURETOR OVERHAUL KIT...
  • Page 38 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 126L02-1100-FI 563949 ;I 703 _ 058 OPERATOR'S MANUAL I 1036 EMISSIONS LABEL I...
  • Page 39 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 126L02-1100-FI 358 ENGINE GASKET SET 3© 163_ 58,= 883 J 616_ Engine Power Rating information The gross power rating for individual gas engine models is labeled in accordance with SAE (So- ciety of Automo-tive Engineers) code J 11940 (Small Engine Power &...
  • Page 40 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 126L02-1100-FI PART PART DESCRIPTION DESCRIPTION 697322 Cylinder Assembly 691108 Screw (Flywheel Guard) 399269 Kit-Bushing/Seal 691740 Lock-Muffler Screw 299819s *Seal-Oil (Magneto Side) 691636 Screw (Throttle Valve) 493279 Sump-Engine 696565 Shaft-Throttle 691160 Head-Cylinder 691242 O Pin-Float Hinge 692249 , Gasket-Cylinder Head...
  • Page 41 BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 126L02-1100-FI PART PART DESCRIPTION DESCRIPTION 692299 Plate-PawI Friction 696306 Guard-Debris Screen 281505s PawI-Ratchet 794793 Cap-Fuel Tank 691251 795641 Base-Air Cleaner Primer 493537s Filter-Pre Cleaner (Governor Control Lever) 692298 Cover-Air Cleaner 499621 Dipstick 794792 Tank-Fuel 692296 , Seal-Dipstick...
  • Page 42 SERVICE NOTES...
  • Page 43 SERVICE NOTES...

  • Page 44: Need More Help

    NEED MORE HELP? You'[[ find the a_.swer a_d :more on ma_agemyhom_,oCOm - for free! o Find this and a[[ your other product manuals online. o Get answers from our team of home experts. o Get a personalized maintenance plan for your home. o Find information and too[s to help with home projects.
