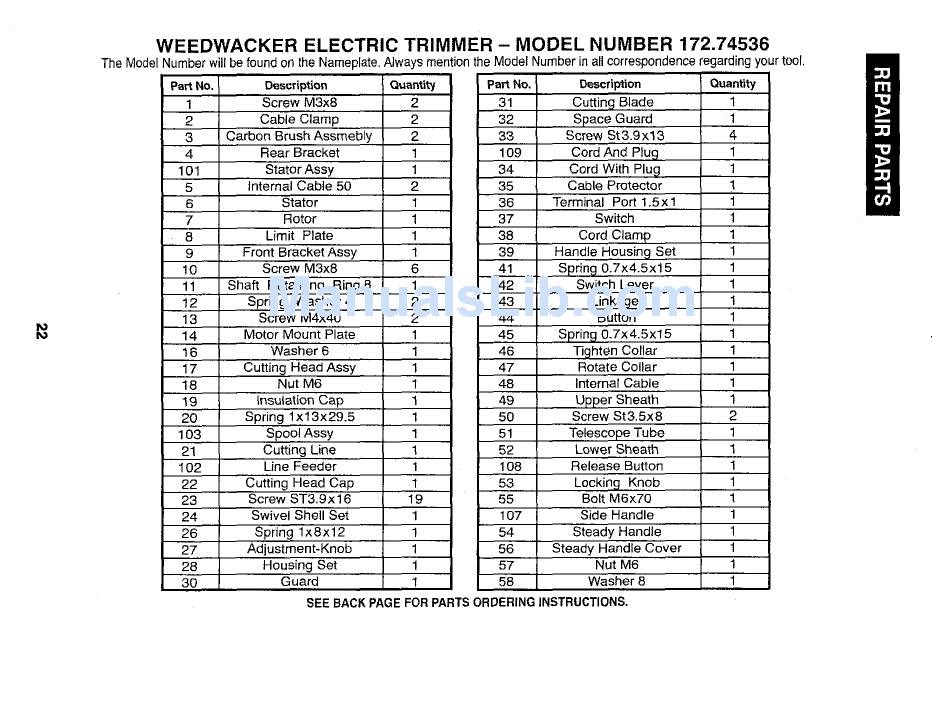

WEEDWACKER ELECTRIC TRIMMER - MODEL NUMBER 172.74536
The Model Number will be found on the Nameplate. Always mention the Model Number in all correspondence regarding your tool,
PartNo. Description Quantit,/
1 Screw M3x8 2
2 Cable Clamp 2
3 Carbon Brush Assmebty 2
4 Roar Bracket 1
101 Stator Assy 1
5 Internal Cable 50 2
6 Stator 1
7 Rotor 1
8 Limit Plate 1
9 Front Bracket Assy 1
10 Screw M3x8 6
11 Shaft Retaining Ring B 1
12 Spring Washer 4 2
13 Screw M4x40 2
14 Motor Mount Plate 1
16 Washer 6 1
17 Cutting Head Assy 1
18 Nut M6 1
19 _nsulat{on Cap 1
20 Spring 1x13x29.5 1
103 Spool Assy 1
21 Cutting Line 1
102 Line Feeder 1
22 Cutting Head Cap 1
23 Screw ST3.gx 16 19
24 Swivel Shell Set 1
26 Spring 1x8x12 1
27 Adjustment-Knob 1
28 Housing Set 1
30 Guard 1
Part No, Description Quantity
31 Cutting Blade 1
32 Space Guard 1
33 Screw St3.gx13 4-
109 Cord And Plug 1
34 Cord With Plug 1
35 Cable Protector 1
36 Terminal Port 1.5xl 1
37 Switch 1
38 Cord Clamp 1
39 Handle Housing Set 1
41 Sprin 9 0.7x4+5x15 1
42 Switch Lever 1
43 Linkage 1
44 Button 1
45 Sprin9 0.7x4.5x15 1
46 Tighten Collar 1
47 Rotate Collar 1
48 Internal Cable 1
49 Upper Sheath 1
50 Screw St3.5x8 2
51 Telescope Tube 1
52 Lower Sheath 1
108 Release Button 1
53 Locking Knob 1
55 Bolt M6×70 1
107 Side Handle 1
54 Steady Handle 1
56 Steady Handle Cover 1
57 Nut M6 1
58 Washer 8 1
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS.
