Shop fox D4028 Instruction Sheet

Model D4028/D4032
8" & 12" Digital Scale
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz

Introduction

Mount the Model D4028/D4032 on woodworking and
metalworking machinery for precise relative distance
measurements between fixed and moving parts, such as
table height, cutter height, tool depth and more.

Specifications

Maximum Measuring Distance (D4028) ..... 8
Maximum Measuring Distance (D4032) ..... 12
Resolution ............................................... 0.01mm
Maximum Measuring Speed ..................... 1500mm/sec
Battery................... One 1.5V AG13 (LR44) Button Cell
Data Port ................................... 2-Conductor Serial

Identification

Refer to Figure 1 and the following descriptions to better
understand the components of the digital scale.
A. Upper Mounting Bracket: Secures the scale body to
a fixed machine part with
B. OFF Button: Turns unit OFF.
C. Data Port: Allows a connection to an exterior
device.
D. ON/Zero Button: Turns unit ON and zeros the display
when held.
E. Battery Compartment Cover: Slides to the right for
access to the battery.
F. Display Mounting Bracket: Installs on the back
of the display unit with the two included M3-.5 x
6 Phillips head screws, and mounts to a movable
machine part with
G. Lower Mounting Bracket: Works with the upper
mounting bracket to secure the scale body.
H. Scale: Shows the relative distance the display unit
moves in inches (0.10" resolution) and millimeters.
COPYRIGHT © OCTOBER, 2010 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#13363TS
⁄ " screws (not included).
3
8
⁄ " fasteners.
3
8
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
⁄ " (216mm)
1
2
⁄ " (324mm
3
4

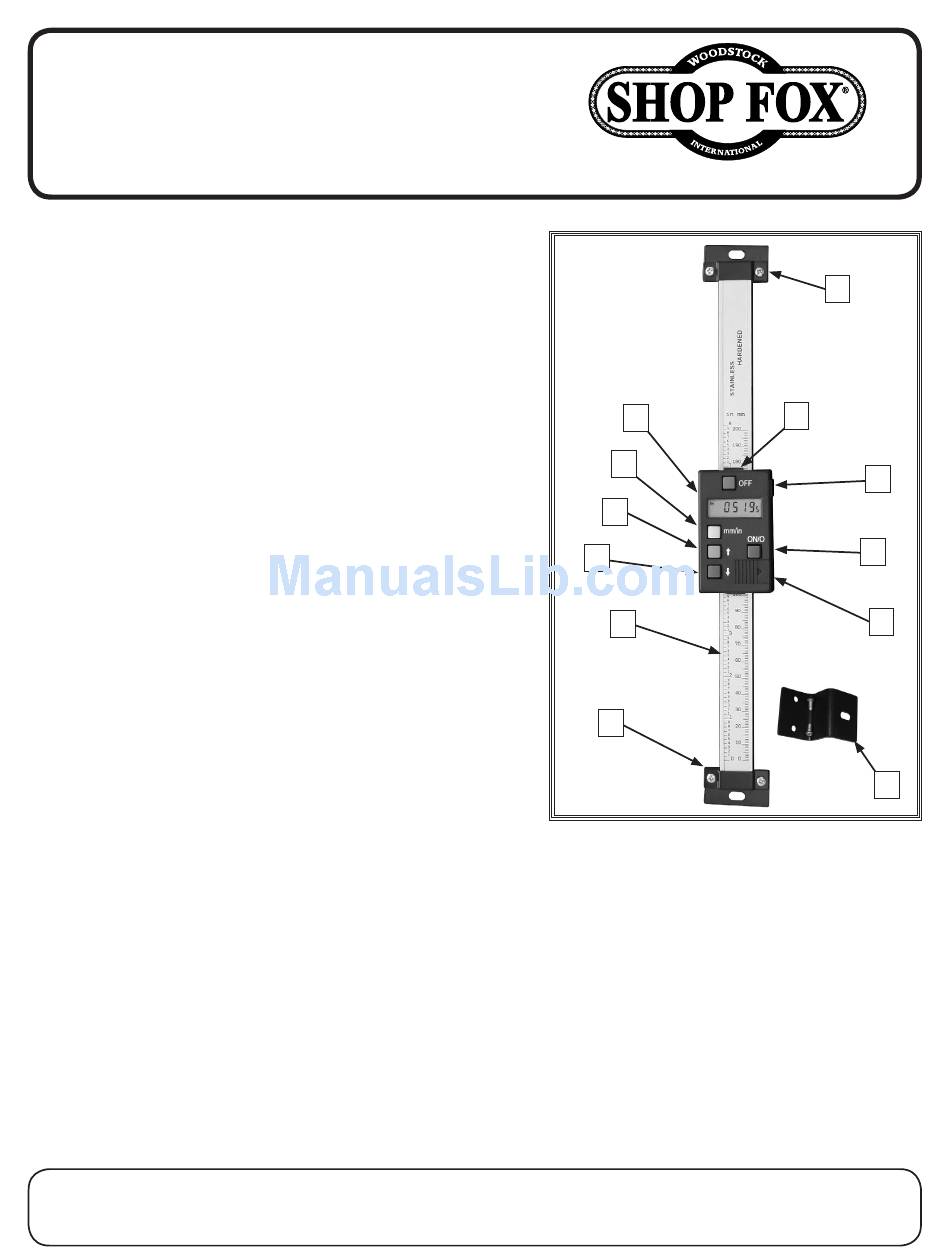

Figure 1. Identification (Model D4028
I. Decreasing Button: When held,
decreases the displayed number for
precise adjustments.
J. Increasing Button: Increases the dis-
played number when held.
K. Inch/mm Button: Toggles the display
between inches and millimeters.
L. Digital Display: Displays the current
measurement.
L
K
J
I
H
G
shown).
A
B
C
D
E
F
Printed in China
