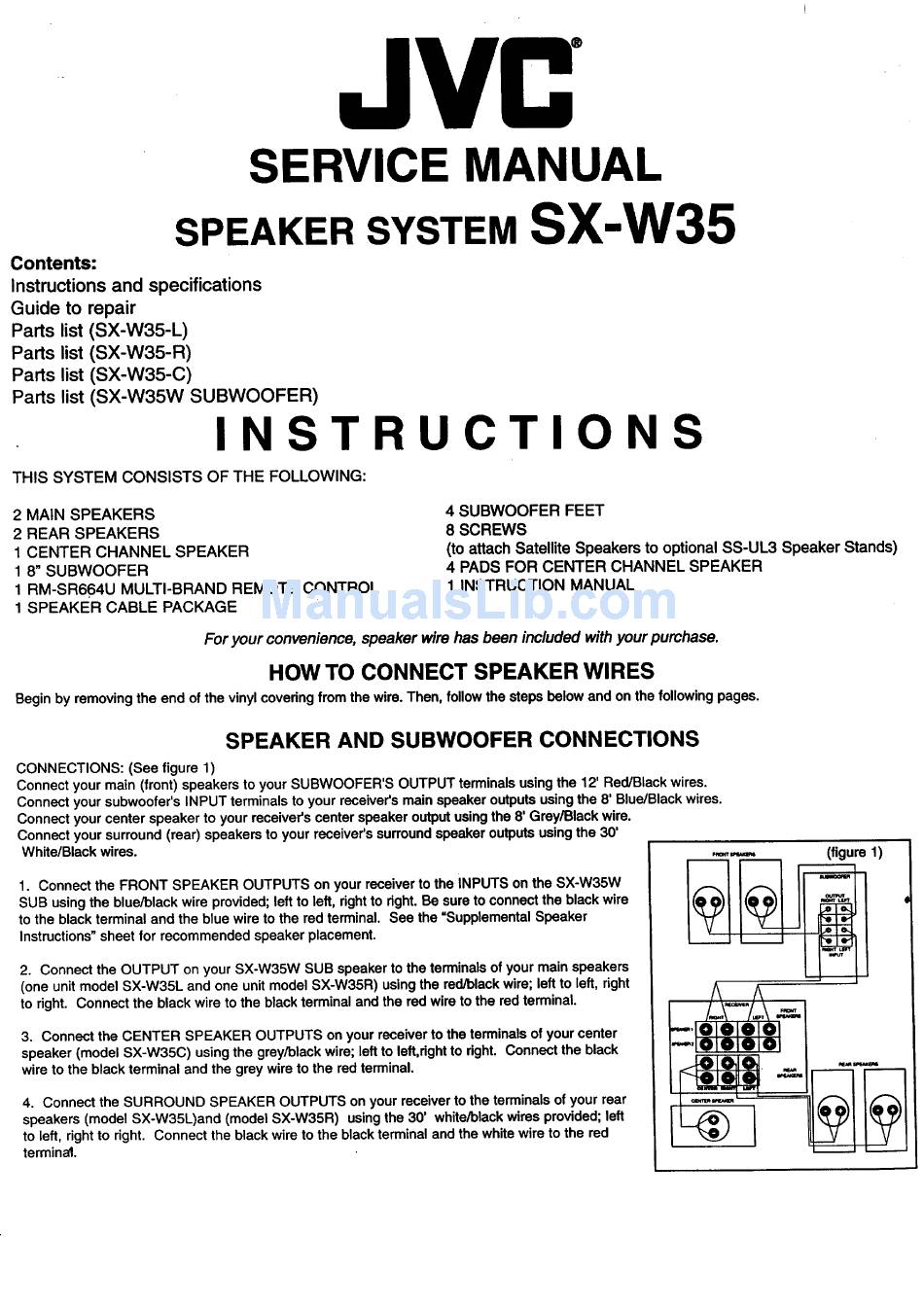

JVC SX-W35 Service Manual

SERVICE MANUAL
SPEAKER SYSTEM
SX-W35
Contents:
Instructions and specifications
Guide to repair
Parts list (SX-W35-L)
Parts list (SX-W35-R)
Parts list (SX-W35-C)
Parts list (SX-W35W SUBWOOFER)
INSTRUCTIONS
THIS SYSTEM CONSISTS OF THE FOLLOWING:
2 MAIN SPEAKERS
2 REAR SPEAKERS
1 CENTER CHANNEL SPEAKER
1 8" SUBWOOFER
1 RM-SR664U MULTI-BRAND REMOTE CONTROL
1 SPEAKER CABLE PACKAGE
4 SUBWOOFER FEET
8 SCREWS
(to attach Satellite Speakers to optional SS-UL3 Speaker Stands)
4 PADS FOR CENTER CHANNEL SPEAKER
1 INSTRUCTION MANUAL
For your convenience, speaker wire has been included with your purchase.
HOW TO CONNECT SPEAKER WIRES
Begin by removing the end of the vinyl covering from the wire. Then, follow the steps below and on the following pages.
SPEAKER AND SUBWOOFER CONNECTIONS
CONNECTIONS: (See figure 1)
Connect your main (front) speakers to your SUBWOOFER'S OUTPUT terminals using the 12' Red/Black wires.
Connect your subwoofer's INPUT terminals to your receiver's main speaker outputs using the 8' Blue/Black wires.
Connect your center speaker to your receiver's center speaker output using the 8' Grey/Black wire.
Connect your surround (rear) speakers to your receiver's surround speaker outputs using the 30'
White/Black wires.
1. Connect the FRONT SPEAKER OUTPUTS on yourreceiverto the INPUTS on the SX-W35W
SUB usingthe blue/blackwire provided; left to left, rightto right.Be sure to connectthe blackwire
to the black terminaland the bluewire to the red terminal. See the "Supplemental S peaker
Instructions" s heetfor recommendedspeakerplacement.
2. Connect the OUTPUT on your SX-W35W SUB speaker to the terminals of your main speakers
(one unit model SX-W35L and one unit model SX-W35R) using the red/black wire; left to left, right
to right. Connect the black wire to the black terminal and the red wire to the red terminal.
3. Connect the CENTER SPEAKER OUTPUTS on your receiver to the terminals of your center
speaker (model SX-W35C) using the grey/black wire; left to left,right to right. Connect the black
wire to the black terminal and the grey wire to the red terminal.
4. Connect the SURROUND SPEAKER OUTPUTS on your receiver to the terminals of your rear
speakers (model SX-W35L)and (model SX-W35R) using the 30' white/black wires provided; left
to left, right to right. Connect the black wire to the black terminal and the white wire to the red
terminal.
(figure 1)
£-A---
.--,IOlOlOlOl
-,-,IOlOlOlOl
