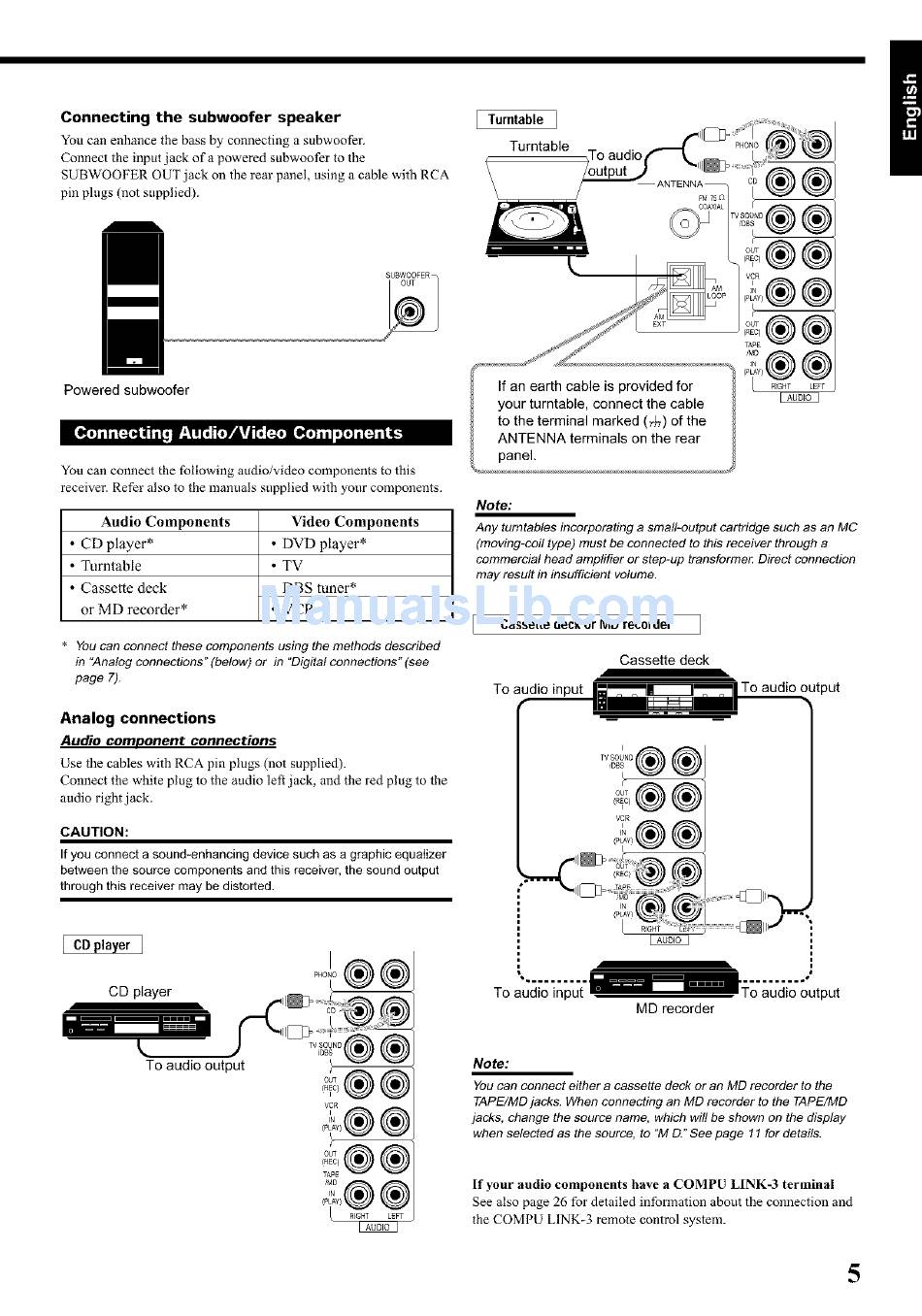

JVC RX-6000VBK Instructions Manual page 8

Connecting
the subwoofer
speaker
You can enhance the bass by connecting a subwoofer.
Connect the input jack of a powered suhwoofer to the
SUBWOOFER OUT jack on the rear panel, using a cable with RCA
pin plugs (not supplied).
A •
Powered subwoofer
You can connect the following audio/video components to this
receiver. Refer also to the manuals supplied with your components.
Audio Components
• CD player*
• Turntable
• Cassette deck
or MD recorder*
Video Components
• DVD player*
• TV
• DBS tuner*
• VCR
* You can connect these components using the methods described
in "Analog connections" (below) or in "Digital connections" (see
page 7).
Analog connections
Audio component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the
audio right jack.
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer
between the source components and this receiver, the sound output
through this receiver may be distorted.
I Turntable ]
Turntable
If an earth cable is provided for
your turntable, connect the cable
to the terminal marked (r_) of the
ANTENNA terminals on the rear
panel.
Note:
Any turntables incorporating a small-output cartridge such as an MC
(moving-coil type) must be connected to this receiver through a
commercial head amplifier or step-up transformer. Direct connection
may result in insufficient volume.
Cassette deck or MD recorder
Cassette deck
To audio input
To audio output
CD player
To audio output
® ® ,N
!pLAY)
I RIGHT LEFT
MD recorder
Note:
YOU can connect either a cassette deck or an MD recorder to the
TAPE/MD jac_s. When connecting an MD recorder to the TAPE/MD
jacks, change the source name, which wil! be shown on the display
when selected as the source, to "M D." See page 1 ! for details.
If your audio components have a COMPU LINK-3 terminal
See also page 26 for detailed information about the connection and
the COMI U LINK_3 remote control system.
5
