- Page 1 CABINET PARTS REFRIGERATOR For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) 3−09 Printed In U.S.A. (jdc) (eeb) Part No. W10266752 Rev. A...
-
Page 2: Cabinet Parts

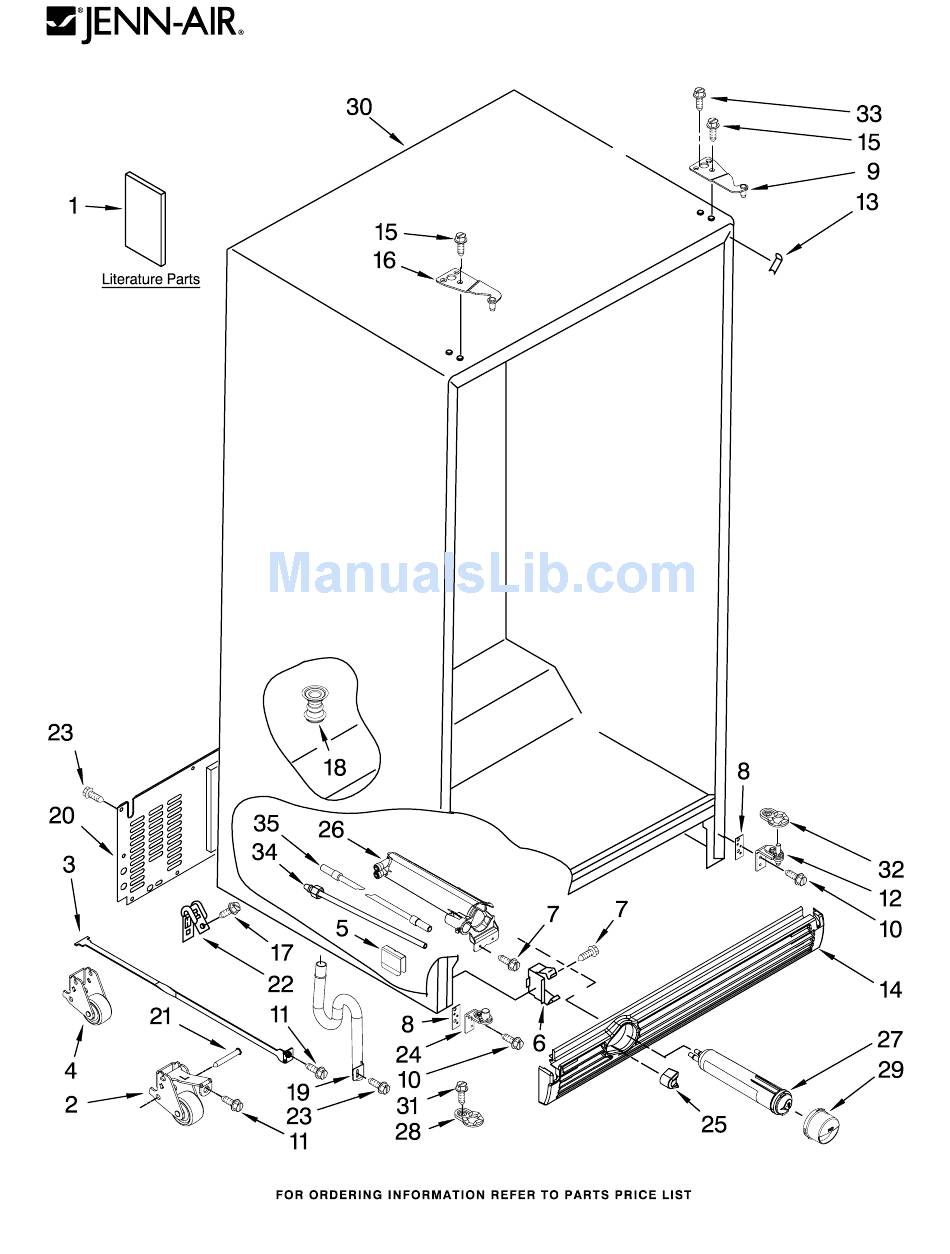

CABINET PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2307152 Hinge Assembly, 10 W10151272 Screw Bottom−FC W10168304 Use & Care Guide 11 W10141625 Screw W10142175 Service & Wiring 2307179 Hinge Assembly, (Includes 28 &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2223524 Escutcheon, Meat Pan Control 2223339 Slide, Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor 2223456 Ladder, Shelf (2) 2301234 Housing, Door Control 8 W10141645 Screw 9 W10162918 Slide, Door... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part DESCRIPTION 1 W10235943 Shelf Assembly, Cantilever (2) 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan (Includes Items 13, 14, 15 & 20) 6 W10163047 Snack Pan (Includes 30 &... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) W10266752... - Page 6 FREEZER LINER PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 941839 Hole Plug 2224053 Basket, Front 2223811 Basket, Deep (2) 2223500 Shelf Assembly, Cantilever (2) Shelf Track 2223787 Right Side 2223788 Left Side 2254615 Shelf, Fixed...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) W10266752... - Page 8 REFRIGERATOR DOOR PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part DESCRIPTION Refrigerator Door (Includes #7) W10190731 Stainless Steel 2203087 Trim, Shelf 2255421 Dairy Door 2223883 Caddy, Can 67006109 Mount, Hdl (4) Door Gasket, Magnetic 2326341 Apollo Grey Handle W10183428 Stainless Euro W10202812 Stainless Pro...
-
Page 9: Freezer Door Parts
FREEZER DOOR PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) W10266752... - Page 10 FREEZER DOOR PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10190730 Stainless Steel Handle W10183428 Stainless Euro W10202812 Stainless Pro 67006109 Mount, Hdl (4) 4 W10142285 Screw 5 W10141596 Screw, Mount (4) 2223559 Shelf Bin (3) Door Gasket, Magnetic...
-
Page 11: Air Flow Parts
AIR FLOW PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2321799 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator Cover (2) 2223986 Fan Grommet (2) -
Page 12: Control Parts
CONTROL PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part DESCRIPTION 1 W10205030 Control Box (Includes #3) 2223882 Heat Shield Asm (Includes #5) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket 2326255 Light Bulb W10266752... -
Page 13: Unit Parts
UNIT PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) W10266752... - Page 14 UNIT PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2223398 Tray, Evaporator 1 W10141645 Screw 2224022 Heat Shield 2 W10139483 Fan, Blade Following Parts Not Illustrated 22 W10177049 Drier 3 W10193018 Condenser and Optional Parts Not Included 23 W10183959 Compressor Assembly...
-
Page 15: Icemaker Parts
ICEMAKER PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) W10266752... - Page 16 ICEMAKER PARTS For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part DESCRIPTION 1 W10142287 Screw 2303216 Fitting, Water Tube 628379 Clip, Fuse 4 W10141625 Screw 5 W10214170 Water Valve Asm 2208136 Tube Clip 2174358 Cover 8 W10146358 Screw 9 W10122527 Mold & Heater Assembly (Also Order 542638 2304969 Cup, Water Fill...
- Page 17 OPTIONAL PARTS (NOT INCLUDED) For Models: JCB2585WES00, JCB2585WEP00 (Stainless Euro) (Stainless Pro) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, PRESSURIZED SPRAY Miscellaneous TORX SCREW WRENCH (12 oz.) 1117510 Torx Key 212643 Sealer, Gum 350942 Primer, White (4 Feet) 8171357 Graphite 479502 Tape, Vinyl ACCESSORIES...
