United States Stove Wonderluxe B2350B Owner's Manual

Thermostat controlled dual fuel circulator series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
Ê
Fold Here
United States Stove company
P.O. Box 151
South Pittsburg, tN 37380
• ASSEMBLY
• INSTALLATION
• OPERATION
• REPAIR PARTS
Tested To:
UL 1482 - 06 &
ULC S627-00
Fold Here
É
Place
StamP
Here
Contact local building or fire officials about permits, restrictions
Please read this entire manual before you install and use your
new room heater. Failure to follow instructions may result in prop-
U U

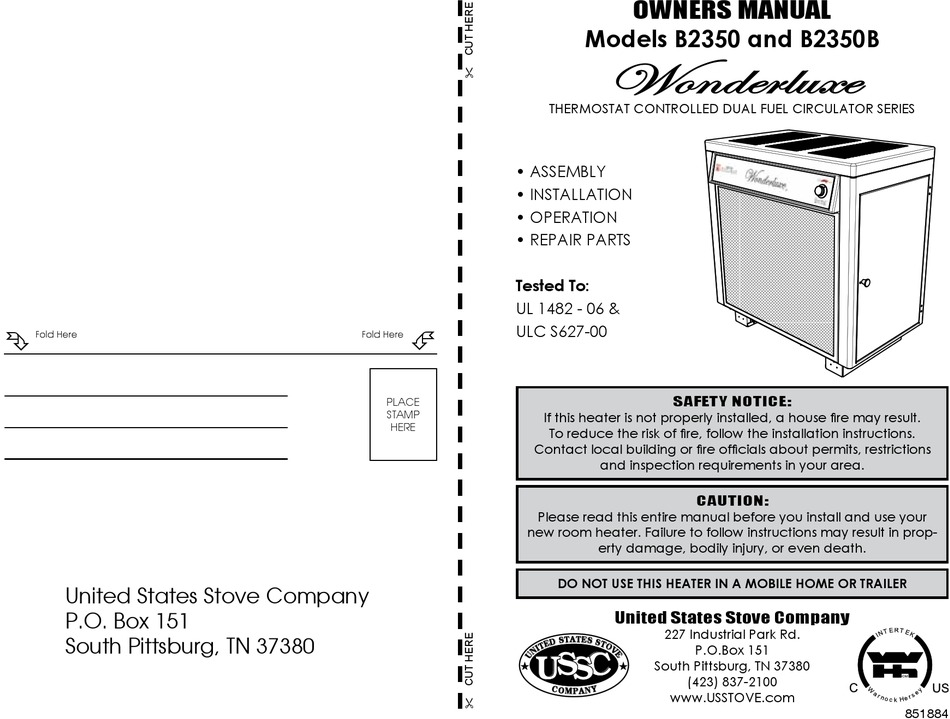

OWNERS MANUAL
Models B2350 and B2350B
Wonderluxe
THERMOSTAT CONTROLLED DUAL FUEL CIRCULATOR SERIES
SAFETY NOTICE:
If this heater is not properly installed, a house fire may result.
To reduce the risk of fire, follow the installation instructions.
and inspection requirements in your area.
CAUTION:
erty damage, bodily injury, or even death.
DO NOT USE THIS HEATER IN A MOBILE HOME OR TRAILER
United States Stove Company
227 Industrial Park Rd.
P.O.Box 151
S S
C C
S S
South Pittsburg, TN 37380
(423) 837-2100
www.USSTOVE.com
851884
