Assembly Instructions

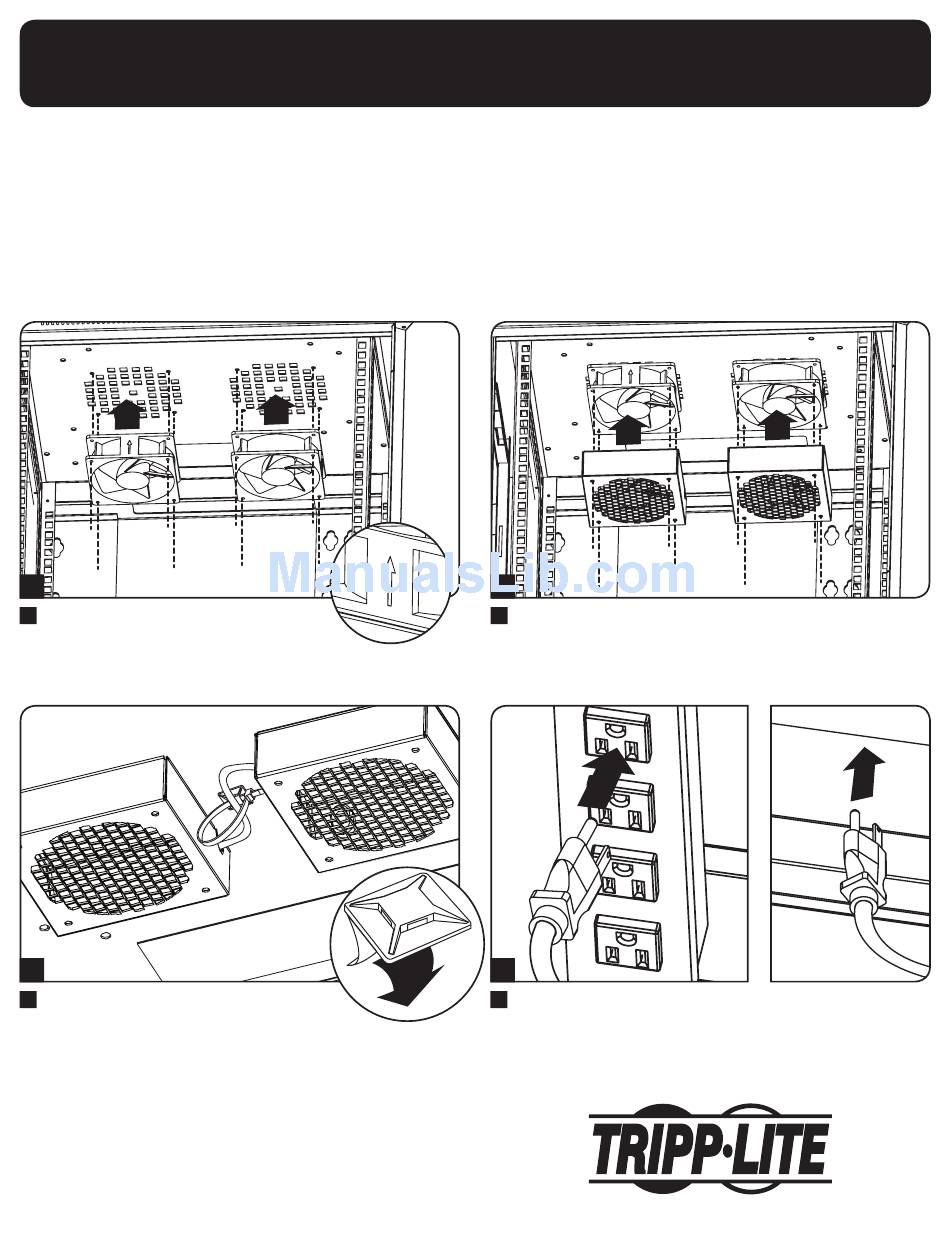

Fans mounted inside the Wall-Mount cabinet draw air out of the cabinet to provide proper equipment cooling.
1
1
Mount the SRFANWM over the vents inside
the Wall-Mount cabinet using the supplied
hardware, with airflow arrows and label facing
toward the top of the cabinet.
3
3
Secure the wire between each fan to the
cabinet using the peel-and-stick cable anchor
with tie.
See Reverse for Alternative
Installation Option
SRFANWM
Wall-Mount Enclosure Cooling Solution
Recommended Installation
© 2011 Tripp Lite. All rights reserved.
2
2
Mount the shroud casing over the fans using the supplied
hardware.
4
4
Plug the SRFANWM input cable into a power source, such as
an internal PDU. For external power connection, utilize the
removable cable access panel.
1111 W. 35th Street • Chicago, IL 60609 USA
www.tripplite.com/support
