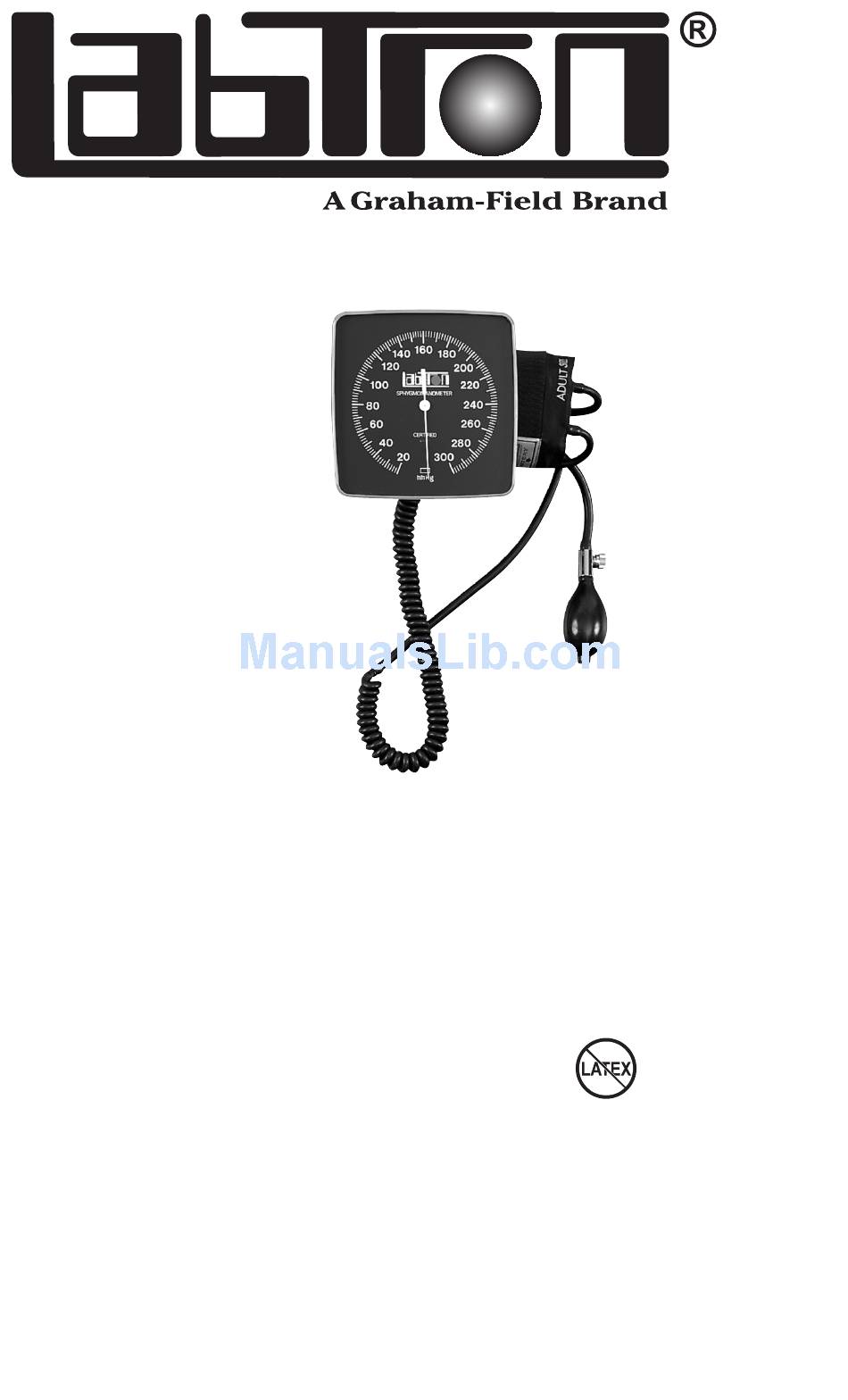

- Page 1 Wallmax™ Professional Aneroid Sphygmomanometer Model 222 Model V222B User Manual Read this manual before operating the Wallmax Professional Aneroid Sphygmomanometer. Save this manual for future reference. 222-INS-LAB-RevA07...
-
Page 2: Intended Use
CONTENTS SAFETY GUIDELINES - PLEASE READ BEFORE USE ..........2 INTENDED USE ......................2 INSTALLATION ......................3 BLOOD PRESSURE .....................5 MAINTENANCE ......................7 WARRANTY ........................7 Tools needed for installation: Drill with " drill bit Note: A stethoscope is necessary to perform the auditory component of blood pressure readings. SAFETY GUIDELINES - PLEASE READ BEFORE USE Important! Read and understand these instructions before installing or using the Labtron®... - Page 3 gauge cuff valve bulb 222 / V222B Wallmax Professional Aneroid Sphygmomanometer INSTALLATION The Wallmax Aneroid Sphygmomanometer wall mount is packaged complete with gauge, swivel bracket, and mount- ing screws. Note: Mount the gauge at the intended users' eye level to facilitate easy measurement reading.
- Page 4 1. Mount the bracket using the two center holes. Swivel the sphygmomanometer on its bracket to expose the mounting holes, as shown below. manometer mounting position screw bracket on wall Installation, 222 / V222B Wallmax Professional Aneroid Sphygmomanometer 2. Locate the wall stud where you will mount the bracket. DANGER—risk of electrocution! Ensure that there is no electrical wiring at the location where you will mount the bracket.
- Page 5 BLOOD PRESSURE Blood Pressure is a measure of the blood’s pressure in the circulatory system, which changes constantly during the course of the cardiac cycle. Blood pressure readings report two values. The higher reading (systolic pressure) shows the highest pressure in the arteries occurring when the heart contracts.
- Page 6 Inflating the cuff: Close the bulb’s air valve by turning the air release valve clockwise. Squeeze the inflation bulb at a steady rate until the gauge’s needle points at approximate- ly 30mmHg above the individual’s normal systolic pres- sure value. If the individual’s normal blood pressure is not known, it is recommended to inflate to 200mmHg.
- Page 7 MAINTENANCE Recommended care and maintenance: Do not drop or pull excessively on the sphygmomanometer components. Never inflate beyond 300mmHg. Do not expose the cuff to direct sunlight. Do not put the sphygmomanometer in contact with sharp objects which could pierce the material and cause damage. Do not dismantle or disassemble.
- Page 8 GF, Graham-Field, and Labtron are registered trademarks, and Wallmax is a trademark, of GF Health Products, Inc. Velcro is a registered trademark of Velcro Industries B.V. Packaging, warranties, products, and specifications are subject to change without notice. GF Health Products, Inc. is not responsible for typographical errors.
