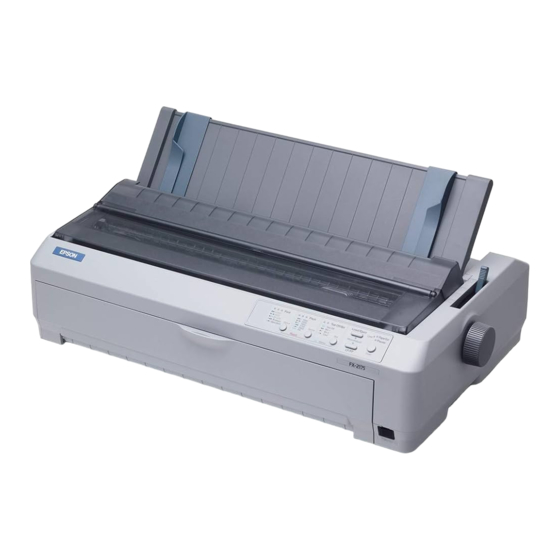

Epson FX-2175 Specifications

PRINTER TYPE
PRINTING METHOD Impact dot matrix
NUMBER OF PINS IN HEAD 18 pins (9x2 Staggered)
PRINT DIRECTION Bi-directional with logic seeking
PRINT SPEED
ULTRA SPEED DRAFT 12 CPI 571 cps
HIGH SPEED DRAFT 15 CPI 520 cps
HIGH SPEED DRAFT 12 CPI 539 cps
HIGH SPEED DRAFT 10 CPI 476 cps
HIGH SPEED DRAFT 20 CPI CONDENSED 419 cps
HIGH SPEED DRAFT 17 CPI CONDENSED 463 cps
DRAFT 15 CPI 314 cps
DRAFT 12 CPI 416 cps
347 cps
DRAFT 10 CPI
DRAFT 20 CPI CONDENSED 350 cps
DRAFT 17 CPI CONDENSED 300 cps
NLQ 20 CPI 44 cps
NLQ 17 CPI 38 cps
NLQ 15 CPI 78 cps
NLQ 12 CPI 105 cps
PRINT CHARACTERISTICS
CHARACTER SETS 13 international character sets
13 character code tables (Standard)
Italic , PC437, PC850, PC860, PC861, PC863, PC865,
Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858,
ISO 8859-15
BITMAP FONTS EPSON Draft: 10, 12, 15 cpi
EPSON Roman: 10, 12, 15 cpi, Proportional
EPSON Sans Serif: 10, 12, 15 cpi, Proportional
BAR CODE FONT EAN-13, EAN-8, Interleaved 2 of 5, UPC-A
UPC-E, Code 39, Code 128, PostNet
PRINTABLE COLUMNS
PITCH (CPI) CHARACTERS PER LINE CHARACTER
10 CPI 136 10
12 CPI 163 12
15 CPI 204 15
17 CPI CONDENSED 233 17.1
20 CPI CONDENSED 272 20
PAPER HANDLING
Manual Insertion: (Front or Rear in, Top out)
PAPER PATH
Tractor: (Front or Rear in, Top out)
(Front/Rear/Bottom in, Top out)
Cut Sheet Feeder: (Rear in, Top out)
CUT SHEET SIZE
Width: 100~420mm (3.9~16.5")
Length: 100~364mm (3.9~14.3")
No.6, No.10
ENVELOPES
Width: 101.6~406.4mm (4.0~16.0")
CONTINUOUS PAPER SIZE
Length: Max. 559mm (22.0")
*Can also print labels
PAPER THICKNESS Cut Sheet:
Single sheet 0.065~0.14mm (0.0025~0.0055")
Multi-part forms 0.12~0.39mm (0.0047~0.015")
Envelopes: 0.16~0.52mm (0.0063~0.0205")
Continuous Paper:
Single sheet/ Multi-part forms
0.065~0.39mm (0.0025~0.015")
Continuous forms with label:
Base Sheet 0.07~0.09mm (0.0028~0.0035")
Total Sheet 0.16~0.19mm (0.0063~0.0075")
PAPER FEEDING
Friction: (Front, Rear)
STANDARD
Push Tractor: (Front, Rear)
Push & Pull Tractor: (Front, Rear)
Pull Tractor: (Front, Rear, Bottom)
CSF Bin1/Bin2, Pull Tractor , Roll Paper Holder
OPTIONAL FEEDER
Original + 4 copies
COPIES
1/ 6" inch or programmable in increments of 1/ 432"
LINE SPACING
128 Kbytes
INPUT DATA BUFFER
Dealer's stamp:
Regional Offices
New Delhi - 26447201-3
12th Floor, The Millenia,
Tower A, No. 1, Murphy Road, Mumbai - 28261515-7
Ulsoor, Bangalore - 560 008. Chennai - 28203940-1,28218658
Tel : 080-30515000 Fax: 080-30515005 Hyderabad - 55331738/39
www.epson.co.in
18-PIN DOT MATRIX PRINTER
589mm
INTERFACE
STANDARD Bi-directional parallel interface
(IEEE-1284 Nibble mode)
USB (ver 1.1) I/F
Type B I/F level 2
OPTION
RIBBON CARTRIDGE
Black
COLOUR
TYPE Fabric ribbon cartridge
RIBBON LIFE Black Ribbon: Approx. 12 million characters
(Draft 10cpi, 14 dots/ character)
ACOUSTIC NOISE
Approx. 55dB (A) (ISO 7779 pattern)
RELIABILITY
MVBF (Mean Print Volume Between Failure)
25 million lines (Except print head)
MTBF (Mean Time Between Failure)
12000 POH (25% duty cycle)
PRINT HEAD LIFE 200 million strokes
CONTROL PANEL
6 Switches and 10 LEDs
ENVIRONMENTAL CONDITIONS (OPERATING)
TEMPERATURE 5~35°C
HUMIDITY 10~80% RH
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC 220~240V
50~60Hz
RATED FREQUENCY
Approx. 55W (ISO/IEC10561 Letter pattern)
POWER CONSUMPTION
Energy Star compliant
DIMENSIONS
589mm
WIDTH
350mm
DEPTH
HEIGHT 167mm
WEIGHT Approx. 9.1 kg
PRINTER DRIVER/ UTILITY
Microsoft Windows 95/98/2000/Me & Microsoft ® ®
OS
Windows NT operating system Version 4.0 ® ®
UTILITY EPSON Status Monitor 3 (Microsoft Windows
95/98/2000/Me and Microsoft Windows NT
operating system Version 4.0 environment only)
OPTIONS
HIGH CAPACITY CUT SHEET FEEDER
SINGLE BIN CUT SHEET FEEDER
PULL TRACTOR UNIT
ROLL PAPER HOLDER
FRONT SHEET GUIDE
FRONT PAPER GUIDE
RIBBON CARTRIDGE (BLACK)
SERIAL INTERFACE CARD
32KB INTELLIGENT SERIAL I/F CARD
IEEE-1284 PARALLEL I/F CARD
EpsonNET 10/100 BASE TX INT. PRINT SERVER 2
As an international ENERGY STAR Partner, EPSON has determined that
this product meets the international ENERGY STAR Program for energy
efficiency.
"EPSON ESC/P stands for EPSON standard code for printers. This
system of commands gives you software control of your printer from
your computers. It is standard for all EPSON printers and supported
by most application software for personal computers."
EPSON and EPSON ESC/P are registered trademark of SEIKO EPSON CORPORATION. Microsoft,
Windows and Windows NT are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries. All other product names and other
Kolkata - 22831589/90
company names used herein are for identification purpose only and maybe the trademarks or
registered trademarks of their respective owners. EPSON disclaims any and all rights in those
Ahmedabad - 26407176-7
marks. Print samples shown herein are simulations. Specifications are subject to change without
Pune - 24335460/90
notice.
For information on Epson Products and to order Genuine Epson
Cochin - 2356652, 2357638
Consumables, Call Epson Toll Free Number - 1600 4250011
Coimbatore - 2380002
Accessible 9AM to 9PM
18-PIN DOT MATRIX PRINTER
350mm
ADVANCED TECHNOLOGY
ADVANCED TECHNOLOGY
MULTIPLE APPLICATIONS
MULTIPLE APPLICATIONS
®
® ®
® ® ®
C80640
C80639
C80021
#8310
C81404
C81403
S015327
C82305/C82306
C82307/C82308
C82345
C82391
