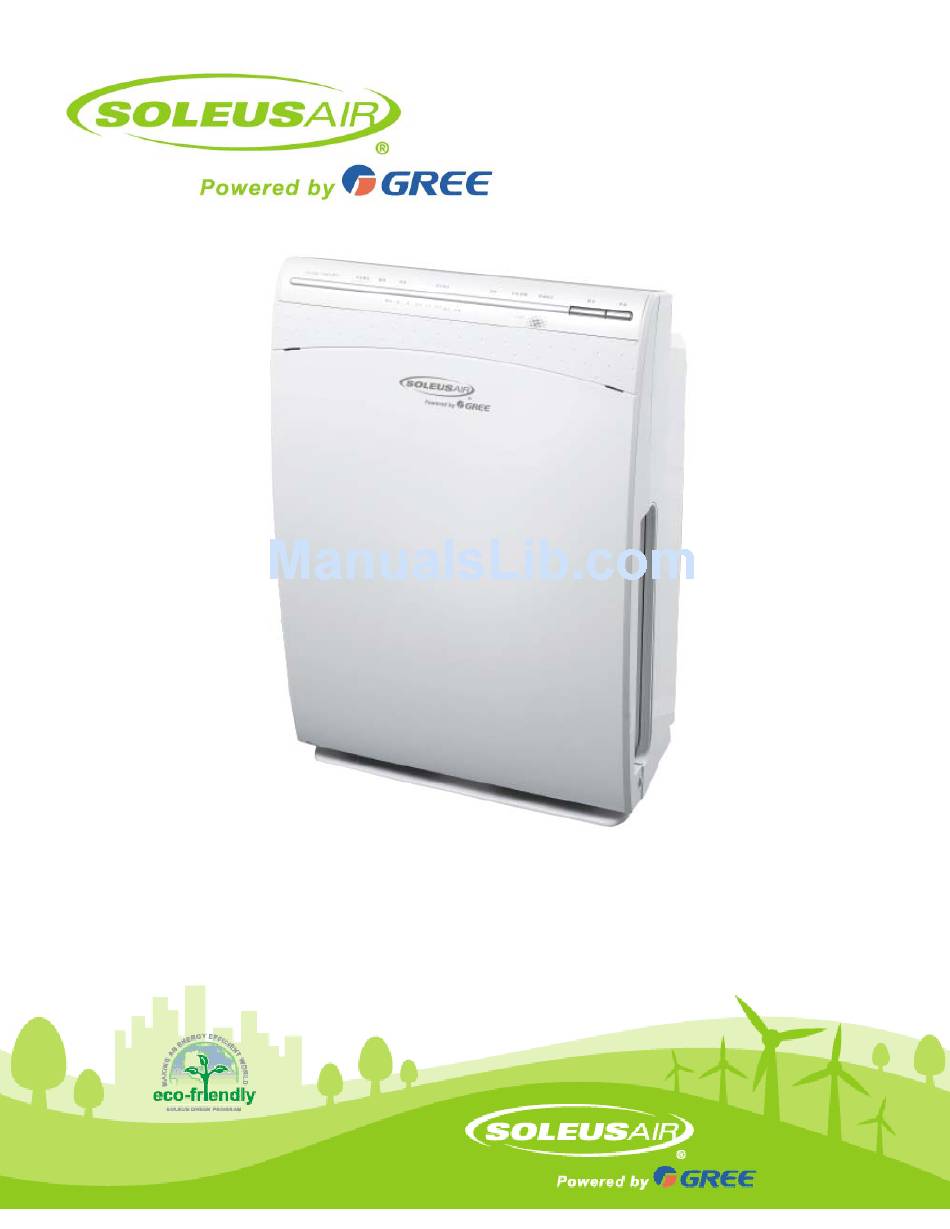

- Page 1 AH1-CC-01 HEPA Air Purifier Operating Instructions...
-
Page 2: Important Instructions
Thank you for choosing a Soleus Air Powered by Gree Air Purifier. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the op- erational aspects of your new Dehumidifier. -
Page 3: Package Contents
PACKAGE CONTENTS Air Purifier HEPA Filter & Cotton Filter Cotton Filter Replacements (3, inside unit) Carbon Filter (Inside unit) Remote Control & 1 Lithium CR2025 Battery Operating Instructions SPECIFICATIONS • Noise level is measured at a distance of 3.28 ft away from the front of the unit. •... -
Page 4: Product Diagram
PRODUCT DIAGRAM ACTIVATED CARBON FILTER LED INDICATOR HEPA & COLD LIGHTS CATALYST HOLDER MODE & POWER BUTTONS CARBON FILTER AIR PURIFIER HOLDER BODY HEPA & COLD CATALYST FILTERS DUST AIR INTAKE FRAME PARTICULATE FILTER FRONT PANEL REMOTE HOLDER HANDLE AIR EXHAUST PLASMA &... -
Page 5: Preparation For Use
PREPARATION FOR USE 1. Remove the front panel by pressing the two small buttons on the bottom of each side. 2. Remove the Dust Frame 3. Remove the HEPA & Cold Catalyst Filter Holder 4. Remove the HEPA & Cold Catalyst Filter from the package. -
Page 6: Controls And Operation
CONTROLS & OPERATION MODE BUTTON ON/OFF BUTTON INDICATOR LIGHTS REMOTE RECEIVER AIR QUALITY SENSOR ODOR SENSOR 1) Power On and Off - Press the ON/OFF button once on the control panel or remote control to manually turn the unit on. Press the ON/OFF button once more to turn the unit off. 2) Mode Selection - Press the MODE button to cycle between the different modes: Auto, Turbo, Sleep, Anion, and Odor. - Page 7 REMOTE CONTROL AND OPERATION To program the unit to automatically turn off, press the TIMER button when the unit is on. The timer can be set for 1, 2, or 4 hours. To program the unit for Auto-on turn on, press the TIMER button when the is off.
- Page 8 Cleaning the Air Purifier If you need to clean your Air Purifier, please follow the disassembly instructions below. Before cleaning, unplug your air purifier. 1. Open the Front Panel 2. Remove the Dust Frame 3. Remove the HEPA & Cold Catalyst Filters.
- Page 9 HEPA, Cold Catalyst, & Activated Carbon Filters After an extended period or use, or certain adverse conditions, your filters will need to be replaced. 1. Cold Catalyst Filter - This filter can last 3 months to 1 year in a non-smoking envi- ronment.
-
Page 10: Troubleshooting Tips
TROUBLESHOOTING TROUBLESHOOTING TIPS PROBLEM CAUSE SOLUTION Battery is dead Replace battery The remote control Battery is installed incorrectly Install the batter correctly Power cord is unplugged Plug in power cord The unit will not start Front panel is installed Install front panel correctly incorrectly Contact customer service Unit is not blowing air... -
Page 11: Warranty
One Year Limited Warranty Soleus International, Inc. warrants the accompanying Soleus Air Powered by Gree Air Purifier to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
