T A L K S W I T C H Q U I C K G U I D E
NETWORKING
TALKSWITCH
48-CAs/48-CVAs
C T.T S 0 0 5 . 5 1 6 . E N – 0 2
W W W.T A L K S W I T C H . C O M
NETWORKING TALKSWITCH 48-CAs/48-CVAs
1. ATTACH TALKSWITCH UNITS TO A LAN
Connect your TalkSwitch 48-CA and/or 48-CVA units to a Local Area Network (LAN)
using one of the following methods:
NOTE: TalkSwitch unit enclosures are not designed for stacking. We recommend
wall-mounting units in a horizontal row to maximize airflow and keep the units from
overheating.
Option #1: Ethernet Switch
We recommend integrating your phone system into your existing LAN or running
TalkSwitch on its own LAN with an Ethernet switch. A switch provides direct commu-
nication between TalkSwitch units, thus keeping the TalkSwitch voice over LAN data
isolated from other data on the network.
Step A

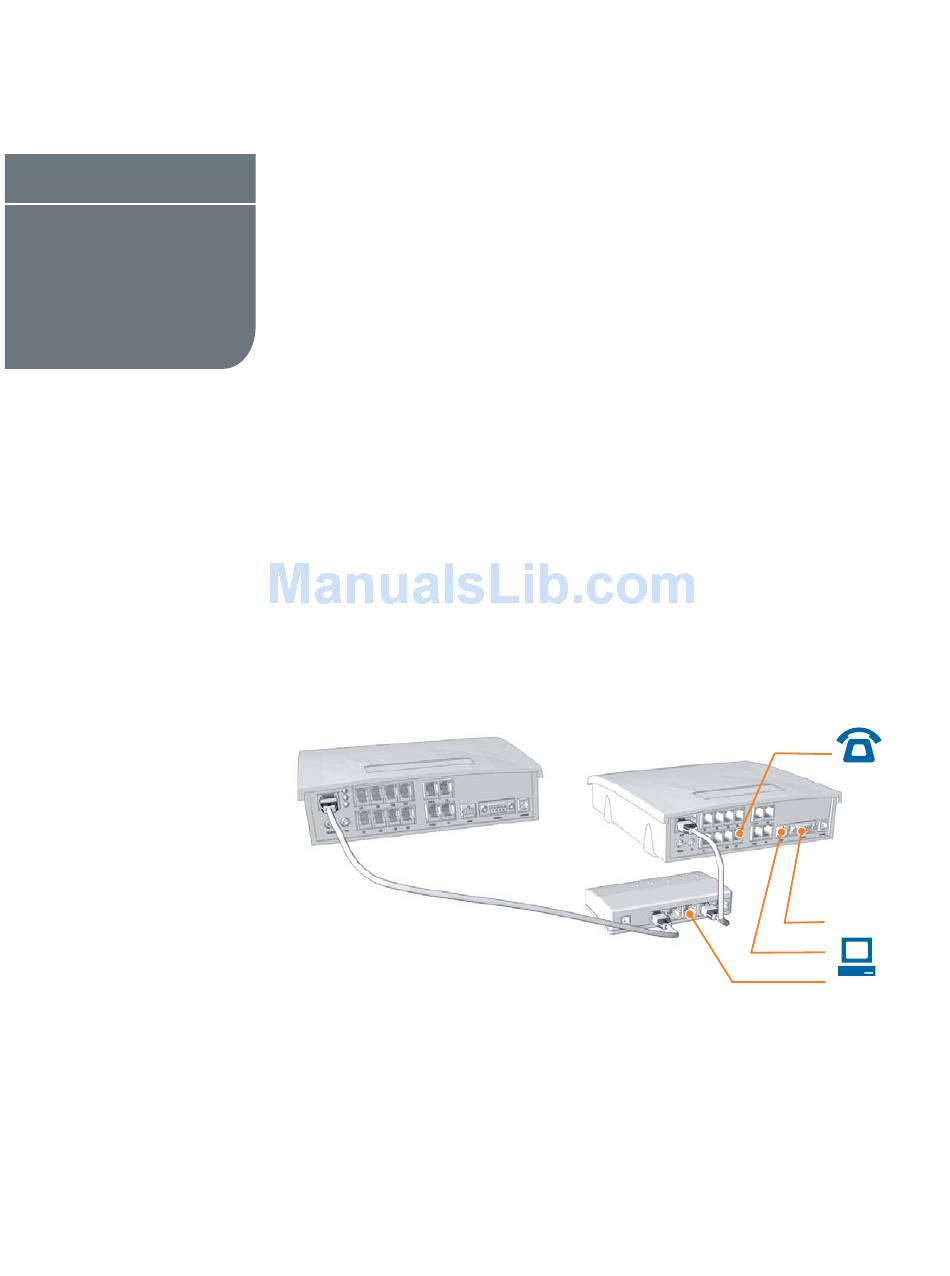

Connect up to four TalkSwitch 48-CA and/or 48-CVA units (2 are shown here) to the
LAN switch.
Step B
Make sure a computer is connected to the phone system either via the LAN or directly
from the computer to the TalkSwitch through the USB or Serial port.
TalkSwitch (unit ID 1)
TalkSwitch (unit ID 2)
Switch
E4
Phone
handset
PC running
TalkSwitch
Software
Serial
USB
LAN
1
Advertisement
Summary of Contents for Talkswitch 48-CAS
- Page 1 TalkSwitch units, thus keeping the TalkSwitch voice over LAN data isolated from other data on the network. Step A Connect up to four TalkSwitch 48-CA and/or 48-CVA units (2 are shown here) to the LAN switch. Step B Make sure a computer is connected to the phone system either via the LAN or directly from the computer to the TalkSwitch through the USB or Serial port.
- Page 2 N E T W O R K I N G T A L K S W I T C H 4 8 - C A s / 4 8 - C V A s Option #2: Crossover Cable If you plan to network only two TalkSwitch units, it is possible to network them via a LAN crossover cable.
- Page 3 It is convenient to identify the second TalkSwitch on the LAN as ID 2, the third TalkSwitch as ID 3 etc. The first TalkSwitch unit on the LAN does not need to be changed as it's ID is already set at ID 1. Change the ID number for each of the remaining units on...
- Page 4 430-439 440-449 4. INSTALL YOUR TALKSWITCH SOFTWARE Install the TalkSwitch software on your PC. If you have not done so, you may follow the instructions on the CD or see the “TalkSwitch User Guide”. 5. OPEN YOUR TALKSWITCH SOFTWARE Step A Ensure that a TalkSwitch unit is connected to the PC via the Serial or USB connection.
-
Page 5: System Information
TalkSwitch Configuration software. Each unit is identified with a tab at the top of the configuration window. See below. ‘TalkSwitch 1’ corresponds to the TalkSwitch with unit ID 1, ‘TalkSwitch 2’ with unit ID 2, etc. Configuration settings that use multiple tabs... - Page 6 N E T W O R K I N G T A L K S W I T C H 4 8 - C A s / 4 8 - C V A s Call Back: There are 4 Auto Call Back accounts per TalkSwitch unit. To use an announced message for a particular Auto Call Back account, you need to record the announced message on the same unit as the account.
