Rear Panel Connectors - Biostar TA770A2SE Setup Manual

Front Audio Connector
CD-in Connector
S/PDIF out connector
CPU Fan header
System Fan header
CMOS clear header
USB connector
Serial port Connector
Power Connector (24pin)
Power Connector (4pin)
PS/2 Keyboard
PS/2 Mouse
Back Panel
LAN port
I/O
USB Port
Audio Jack
Board Size 220 mm (W) x 307 mm (L)
OS Support Windows XP / VISTA

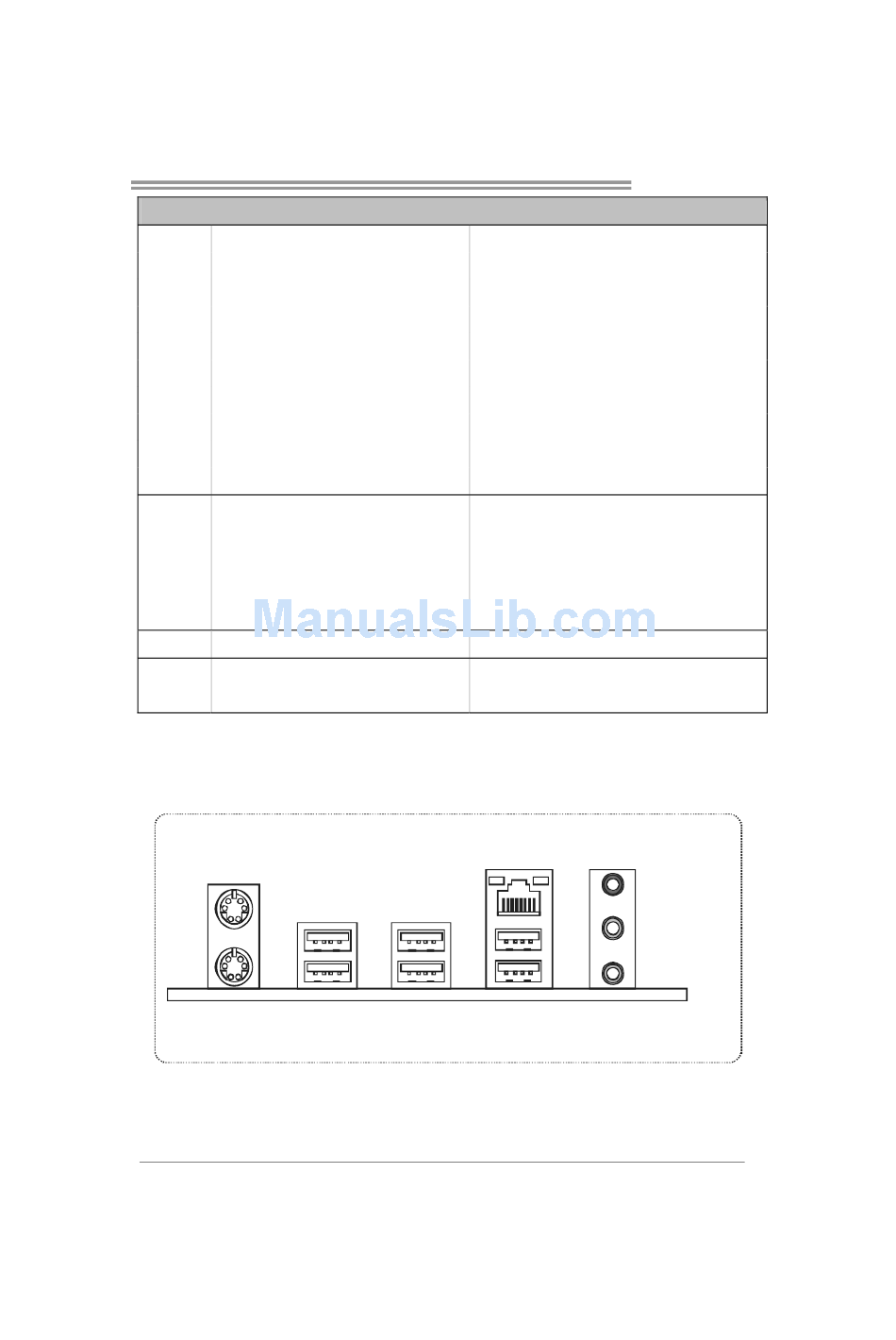

1.4 R P
EAR ANEL
PS/2
Mouse
PS/2
USBX2
Keyboar d
SPEC
x1 Supports front panel audio function
x1 Supports CD audio-in function
x1 Supports digital audio out function
x1 CPU Fan power supply (with Smart Fan function)
x2 System Fan Power supply
x1 Restore CMOS data to factory default
x3 Each connector supports 2 front panel USB ports
x1 Connects to RS-232 Port
x1 Connects to Power supply
x2 Connects to Power supply
x1 Connects to PS/2 Keyboard
x1 Connects to PS/2 Mouse
x1 Connect to RJ-45 ethernet cable
x6 Connect to USB devices
x3 Provide Audio-In/Out and microphone connection
ATX
Biostar Reserves the right to add or remove support
for any OS With or without notice.
C
ONNECTORS
LAN
USBX2 USBX2
TA770 A2+ SE
Line In/
Surroun d
Line Out
Mic I n 1/
Bass/ Center
3
