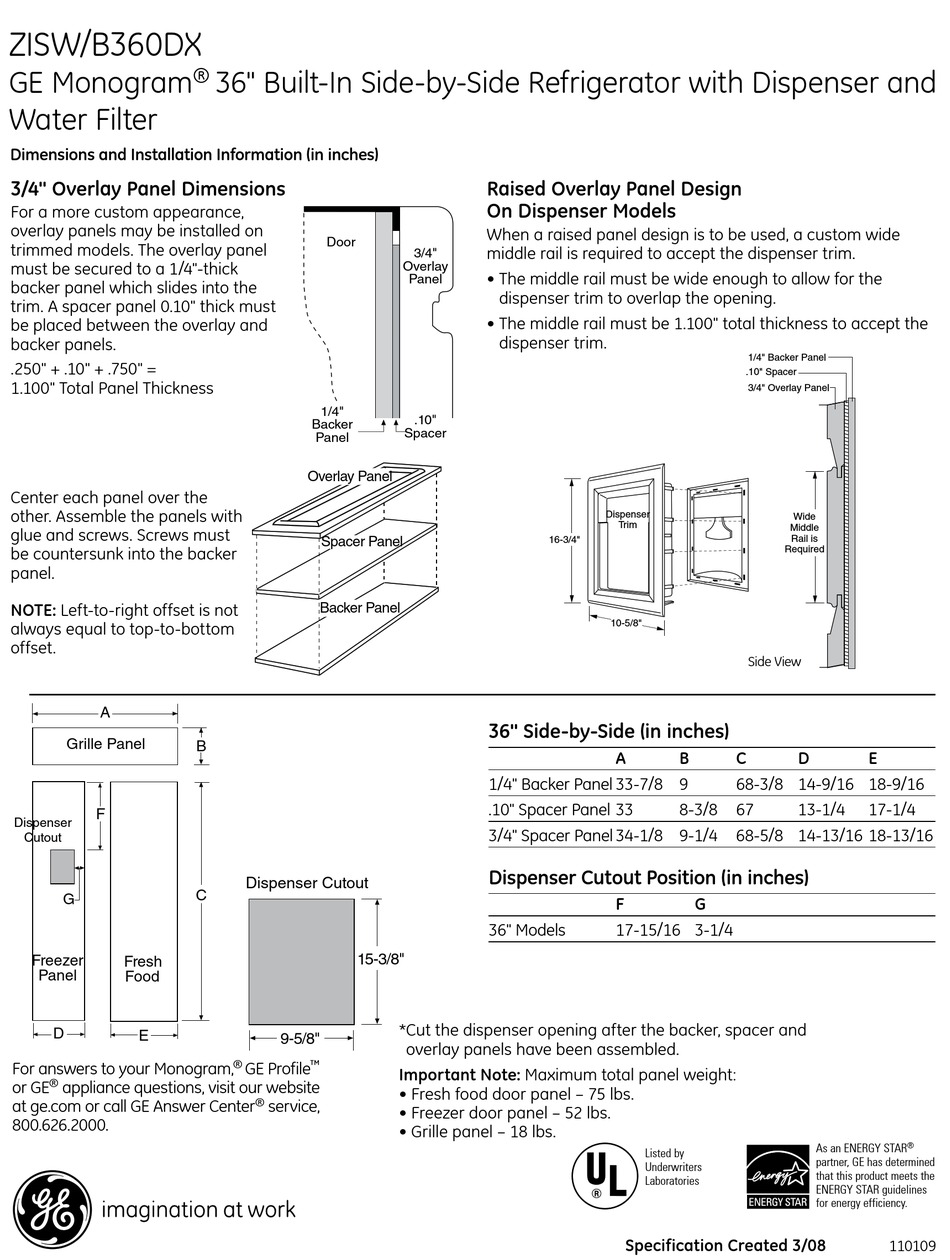

GE MonogramZISW/B360DX Dimensions And Installation Information page 3

ZISW/B360DX
GE Monogram
Water Filter
Dimensions and Installation Information (in inches)
3/4" Overlay Panel Dimensions
For a more custom appearance,
overlay panels may be installed on
trimmed models. The overlay panel
must be secured to a 1/4"-thick
backer panel which slides into the
trim. A spacer panel 0.10" thick must
be placed between the overlay and
backer panels.
.250" + .10" + .750" =
1.100" Total Panel Thickness
Center each panel over the
other. Assemble the panels with
glue and screws. Screws must
be countersunk into the backer
panel.
NOTE: Left-to-right offset is not
always equal to top-to-bottom
offset.
A
Grille Panel
F
Dispenser
Cutout
G
Freezer
Fresh
Panel
Food
D
E
For answers to your Monogram,
®
or GE appliance questions, visit our website
194Dia_64
at ge.com or call GE Answer Center
800.626.2000.
®
36" Built-In Side-by-Side Refrigerator with Dispenser and
Door
1/4"
Backer
Panel
Overlay Panel
194Dia_58
Spacer Panel
Backer Panel
194Dia_65
B
Dispenser Cutout
C
15-3/8"
9-5/8"
® ™
GE Profile
®
service,
194Dia_63
Raised Overlay Panel Design
On Dispenser Models
When a raised panel design is to be used, a custom wide
middle rail is required to accept the dispenser trim.
3/4"
Overlay
• The middle rail must be wide enough to allow for the
Panel
dispenser trim to overlap the opening.
• The middle rail must be 1.100" total thickness to accept the
dispenser trim.
.10"
Spacer
16-3/4"
36" Side-by-Side (in inches)
1/4" Backer Panel 33-7/8 9
.10" Spacer Panel 33
3/4" Spacer Panel 34-1/8 9-1/4
Dispenser Cutout Position (in inches)
36" Models
* Cut the dispenser opening after the backer, spacer and
overlay panels have been assembled.
Important Note: Maximum total panel weight:
• Fresh food door panel – 75 lbs.
• Freezer door panel – 52 lbs.
• Grille panel – 18 lbs.
1/4" Backer Panel
.10" Spacer
3/4" Overlay Panel
Dispenser
Trim
Required
10-5/8"
Side View
194Dia82
A B C
68-3/8 14-9/16 18-9/16
8-3/8 67
68-5/8 14-13/16 18-13/16
F G
17-15/16 3-1/4
Listed by
Underwriters
Laboratories
Specification Created 3/08
Wide
Middle
Rail is
D E
13-1/4 17-1/4
®
As an EnErgy StAr
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
110109
