Designed with smooth flowing lines reminiscent
of industrial designs from the early 1900s, these
heavy Cast Iron Legs provide plenty of support
and stability for shop-made workbenches or
machine stands. Just add your own bench top
and bottom shelf to suit your particular needs.

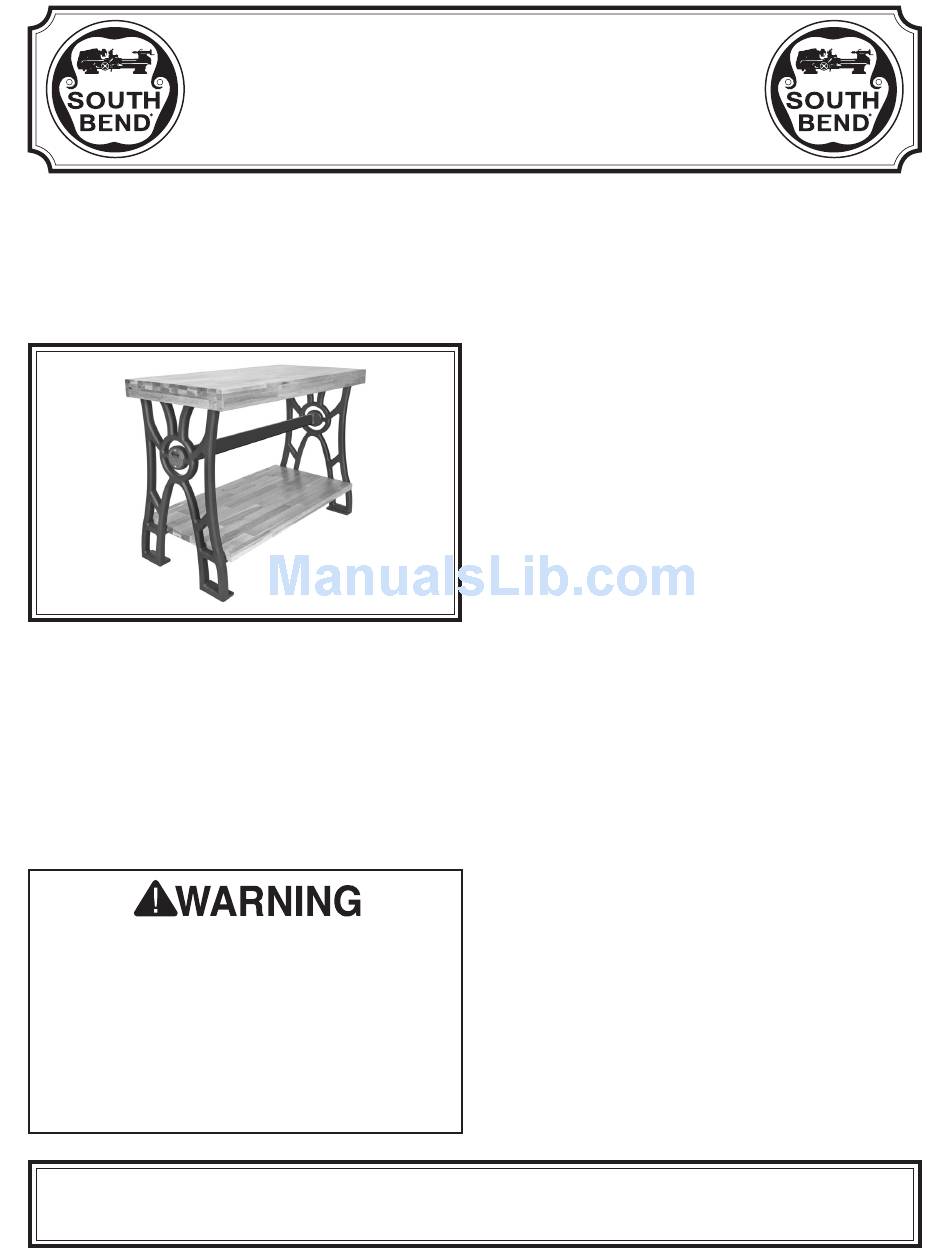

Figure 1. SB1354
(Bench top and shelf not included).
Specifications
Material ................................................... Cast Iron
Finish ..................................................Powder Coat
Weight .......................................... 110 Lbs. Per Leg
Dimensions ...........................................See Page 4
Capacity .................................. See Warning Below
Although each leg is capable of supporting
up to 2000 lbs., the actual capacity of the
completed workbench is dependent on many
factors, including (but not limited to) material
type, quality, and dimensions of the bench
top and shelf; the method and materials used
for cross bracing; the size and quality of the
hardware used; and any forces that may be
applied to the workbench during its use.
WARNING: No portion of this manual may be reproduced without written approval.
Model SB1354
Cast Iron Workbench Legs
INSTRUCTION SHEET
P.O. Box 2027, Bellingham, WA 98227 U.S.A.
PHONE: (360) 734-1540 •
Copyright © October, 2010 by South Bend Lathe Co.
#JB13348 Printed in Taiwan.
www.southbendlathe.com
Inventory
Cast Iron Legs w/Brass Nameplate ..................... 2
Things You'll Need
During the assembly process you'll need the
following (not included):
For Assembly
•
Two additional people
•
Bench Top
•
Lower Shelf
•
Cross-brace
•
Bench Mounting:
—Lag Screws
Thickness +
—Flat Washers
—Drill Bit
⁄
" (pilot hole) ............................... 1
1
4
•
Lower Shelf Mounting:
—Lag Screws
Thickness) ................................................. 4
—Flat Washers
—Drill Bit
⁄
7
32
•
Cross-Brace Mounting:
—Dependent on cross-bracing used
•
Tools needed for tightening selected
hardware
•
Cardboard (or other protective material for
assembly process) larger than bench top
dimensions
Optional
•
Leveling Feet
•
Precision Level
•
Shim Stock (as needed)
•
Floor Mounting Hardware (x4)
⁄
" Dia. x Length (Bench
5
16
⁄
") ......................................... 8
1
4
⁄
" ........................................ 8
5
16
⁄
" Dia. Length (Shelf
1
4
⁄
" ......................................... 4
1
4
" (pilot hole) .............................. 1
⁄
"-16 thread pitch
3
8
Advertisement
Table of Contents
Summary of Contents for South bend SB1354
-
Page 1: Specifications
Model SB1354 Cast Iron Workbench Legs INSTRUCTION SHEET P.O. Box 2027, Bellingham, WA 98227 U.S.A. www.southbendlathe.com PHONE: (360) 734-1540 • Inventory Designed with smooth flowing lines reminiscent of industrial designs from the early 1900s, these heavy Cast Iron Legs provide plenty of support Cast Iron Legs w/Brass Nameplate ..... - Page 2 I N S T R U C T I O N S Model SB1354 For Models Mfg. Since 7/10 Assembly Place the leg in the desired position, then mark and pre-drill holes for the mounting hardware you have chosen. Unless you The procedure that follows describes the general intend to do so, take care to avoid drilling all steps required for assembly.
- Page 3 I N S T R U C T I O N S For Models Mfg. Since 7/10 Model SB1354 Leveling Remove the shelf, then pre-drill holes for the mounting hardware you have chosen. Unless you intend to do so, take care to avoid Though leveling is not required, the Model drilling all the way through the shelf.
- Page 4 I N S T R U C T I O N S Model SB1354 For Models Mfg. Since 7/10 2-1/4" Dimensions 4-1/2" 3/8" Dia. Holes 5/8" 22-1/2" 3/4" 36-3/8" 5/16" Dia. Holes 6-3/4" 5/16" Dia. Holes 1-1/2" 2-3/4" 3/8-16 TPI Threaded Holes Parts* PART #...
