Hoffer 214D-1 User Manual

Batch controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

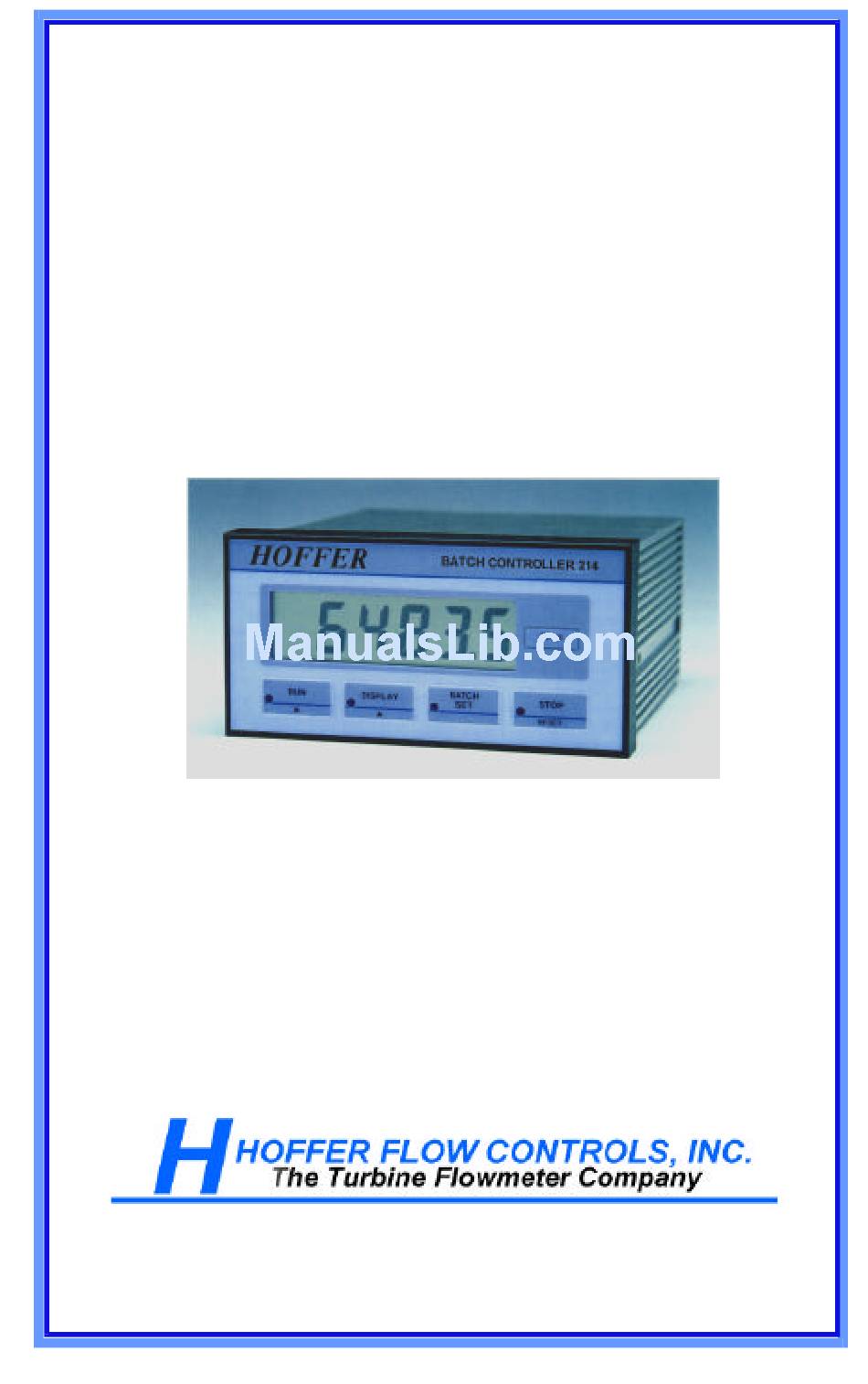

MODEL 214D-1
Batch Controller
USER'S MANUAL
HP-289
November 2002
107 Kitty Hawk Lane, P.O. Box 2145, Elizabeth City, NC 27906-2145
800-628-4584
252-331-1997
FAX 252-331-2886
www.hofferflow.com E-mail: info@hofferflow.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 214D-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hoffer 214D-1

  • Page 1 MODEL 214D-1 Batch Controller USER’S MANUAL HP-289 November 2002 107 Kitty Hawk Lane, P.O. Box 2145, Elizabeth City, NC 27906-2145 800-628-4584 252-331-1997 FAX 252-331-2886 www.hofferflow.com E-mail: info@hofferflow.com...
  • Page 2 HP289...
  • Page 3 NOTICE HOFFER FLOW CONTROLS, INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. This manual has been provided as an aid in installing, connecting, calibrating, operating, and servicing this unit.

  • Page 4: Warranty

    HOFFER FLOW CONTROLS, INC. warrants this unit to be free of defects in workmanship and materials provided that the unit was properly selected for the service intended, properly installed, and not misused. Equipment returned, transportation prepaid, within 12 months after delivery of goods or 18 months from date of shipment for units destination outside the United States and is found by HOFFER FLOW CONTROLS inspection to be defective in workmanship or materials will be repaired or replaced at HOFFER FLOW...

  • Page 5: Table Of Contents

    CONTENTS Introduction... 1 Model Number Designation ... 2 Specification ... 3 Operation ... 5 Front Panel Operation ... 6 3.1.1 Setting the Batch Quantity ... 6 3.1.2 Starting a Batch... 7 3.1.3 Stopping ... 7 3.1.4 Resetting... 7 3.1.5 Displayed Information... 7 3.1.6 Limit on Batch Size...
  • Page 6 HP289...
  • Page 7 1. Introduction The Model 214D-1 Batch Controller accepts pulse or frequency flow signals and automatically controls the batching of fluids via a one or two stage control valve. The instrument is extremely flexible and easy to operate, with a four key front panel operation that enables the batch quantity to be set and batches to be started or stopped.

  • Page 8: Model Number Designation

    Introduction Model Number Designation The Model number of an instrument describes which input and output options are installed and the AC voltage rating. MODEL 214D DIGITAL BATCH CONTROLLER (TO BE USED ONLY WHEN APPROVALS ARE REQUIRED) INPUTS ANALOG & COMMUNICATIONS POWER MOUNTING (ENCLOSURES) OPTIONS...

  • Page 9: Introduction

    OPTIONS MODEL 214D-( )-( )-( )-( ( E ) OPTION 50 W HEATER (SPECIFY 12 VDC, 115 VAC OR 220 VAC) BACKLIGHTING DISPLAY CONFORMAL COATING (CE) INTERFERENCE CE COMPLIANCE (CEN) CENELEC, CSA NRTL/C AND SAA APPROVAL (NTEP) WEIGHTS & MEASURES CUSTODY TRANSFER. (AVAILABLE ON (LA) OR (LR) OPTIONS ONLY) (UL) ELECTRICAL ETL (US) APPROVED TO UL508 &...
  • Page 10 Introduction This page intentionally left blank. HP289...

  • Page 11: Specification

    2. Specification General Display: Display Update Rate: Transducer Supply: Power Requirements: Operating Temperature: Dimensions: Cutout: Frequency Input Frequency Range: Input Circuits: Scaling Range: Relay Outputs Maximum Switching Power: Maximum Switching Voltage: Maximum Switching Current: 4-20mA Output Resolution: Accuracy: Maximum Load: Isolation: 6 digit LCD.
  • Page 12 Specification Pulse Output Pulse Width: Maximum Duty Cycle: Output: Scaling: HP289 10msec (negative going pulse) 49 pulses per second Open collector transistor will sink 100mA. The pulse output is scaled and outputs one pulse each time the accumulated total increments.

  • Page 13: Operation

    Operation 3. Operation The Model 214D-1 uses a low power CMOS microprocessor to perform all control functions and calculations. The instrument is fully configurable with all operating parameters and calculation constants user settable. (See Section 5 entitled "Configuration" for information on configuring.) All parameters and constants are stored in a non-volatile memory which retains data without battery backup for a minimum of 10 years.

  • Page 14: Front Panel Operation

    Operation Front Panel Operation The four key operation makes the operation of the Batch Controller very easy. 3.1.1 Setting the Batch Quantity The batch quantity is set as follows: Switch Action Press BATCH SET Press r Press w Press BATCH SET Once set, the batch quantity will be retained in the non-volatile memory and will not alter until changed by the user.

  • Page 15: Starting A Batch

    3.1.2 Starting a Batch To start the process the RUN key is pressed. The Run LED will light and the instrument will begin to totalize from zero or, if programmed to count down, the display will decrement from the batch quantity. The batcher has two control relays which are energized and de- energized as described in Section 3.2.

  • Page 16: Limit On Batch Size

    Operation Accumulated Total On the next press of the DISPLAY key, the display shows ACC for one second followed by the accumulated total. Accumulated Total cannot be reset during normal operation. 3.1.6 Limit on Batch Size To prevent accidental entry of large batch quantities, a maximum batch limit can be set during configuration.

  • Page 17: Batch Operations

    Batch Operations The Batch Control functions can be configured to operate in one of two ways. 1. At the end of the batch, the STOP key must be pressed to reset the Batch Total. (This must be done before another batch can be started.) Operation HP289...
  • Page 18 Operation 2. If Automatic Reset is configured on, a new batch is commenced each time the RUN key is pressed. The Batch Controller can be configured to either count up from zero on each batch or to count down from the preset batch quantity. HP289...

  • Page 19: Control Relays

    Operation 3.2.1 Control Relays The two control relays can be set up to control a single valve or a dual valve with slow-stop and/or slow-start. Alternatively, the second relay can be used to control a pump. The relay operation is shown on the previous two pages. A time delay between the Batch Start and the time when Relay 2 energizes can be set to provide a soft start up.

  • Page 20: Signal Timeout

    Operation 3.2.2 Signal Timeout The Signal Timeout period defines a time interval which is used to detect if the flow has stopped. If there is no signal input for a time greater than the Signal Timeout period the flow is deemed to have stopped.

  • Page 21: End-Of-Batch

    Operation 3.2.3 End-of-Batch The End-of-Batch is defined as being when the Batch Quantity is reached, the flow has stopped, and the Signal Timeout period has expired. If the Signal Timeout is set to zero, the End-of-Batch is defined as being when the Batch Quantity is reached, regardless of whether the flow has stopped.

  • Page 22: Auto Restart

    Operation 3.2.4 Auto Restart The Batch Controller can be configured to continually repeat the batch process. This mode of operation is selected during the configuration process. The process is started by pressing the RUN key whereby the normal batch operation is commenced. After reaching the End-of-Batch (see Section 3.2.3), the Batch Controller will then wait for a pre- programmed period before automatically resetting and starting the batch process again.

  • Page 23: Automatic Overrun Compensation

    Operation 3.2.5 Automatic Overrun Compensation The Batch Controller can be configured to automatically compensate for any overrun at the end of a batch. Typically, this is due to the slowness of a valve to close or a pump to stop pumping on receiving a signal from the Batch Controller. The result is that the batch quantity will always read higher than the batch quantity set.

  • Page 24: Calculation Of Rate And Total

    Operation Calculation of Rate and Total 3.3.1 Frequency Input The flowrate, R, is calculated as follows: where f is the input frequency in Hz. H is the timebase of rate and is 1 for seconds, 60 for minutes,3600 for hours, and 86,400 for days. is the Scaling Factor.

  • Page 25: Filtering

    Operation 3.3.2 Filtering Frequency fluctuations caused by pulsating flow through a flowmeter, often makes the Rate impossible to read with any precision. The Batch Controller has a digital filter which will average out these fluctuations and enable the Rate to be read to four digit accuracy. The degree of filtering is fully configurable which means that highly accurate and stable readings can be obtained without excessive lag.
  • Page 26 Operation Table 1 - Response to a step Input (in seconds). Note: if A is set to 1, there is NO filtering of the input signal. HP289...

  • Page 27: Total Conversion

    Total Conversion The Total Conversion feature enables the rate to be displayed in one engineering unit (e.g., gallons/minute) and the totals to be displayed in another engineering unit (e.g., barrels). The Scaling Factor is always set in the unit relating to Rate and the Total Conversion constant is a division factor which can be used to convert the totals to the different unit.

  • Page 28: The Output Pulse And Flow Alarm

    Operation The Output Pulse and Flow Alarm An OUTPUT PULSE is available on terminal 10 for driving remote counters and produces a pulse each time the Accumulated Total increments by one digit. For example, if the Accumulated Total has a resolution of 0.01 gallons, a pulse is produced each 0.01 gallons.
  • Page 29 Operation Connection of Output Pulse/Flow Alarm is as follows: Driving an External Relay or Impulse Counter Driving a Logic Input such as a PLC or Electronic Counter HP289...

  • Page 30: Options

    Options 4. Options The RS232/422/485 Interface Option With this option installed, the circuits for both the RS232 and RS422/485 interfaces are provided as standard. They can be used to interface to both printers and computers. A number of standard printer protocols are built into the instrument.

  • Page 31: Multipoint Communication

    Options 23 4.1.2 Multipoint Communication Multipoint Communication is a system whereby a number of instruments can be addressed over a dual twisted pair interface. Up to 32 instruments can be connected to a common bus using the RS422 and RS485 interfaces as shown below. To convert the RS422 interface to an RS485 interface, the RS422 (-) Data In Terminal must be connected to the RS422 (-) Data Out Terminal and the RS422 (+) Data In Terminal must be connected to the...
  • Page 32 Options Figure 2 RS485 Interface HP289...

  • Page 33: Communication Protocol

    Protocols are provided to drive the following printers: Standard Computer Printer (Note that the printer must have an RS232 Serial Interface) EPSON CTM290 Slip Printer Contrec Model 624 EPSON TM290-2 Slip Printer Contrec Model 632-2...
  • Page 34 Options input is usually connected to the "Data Buffer Full" output from the printer. If the printer buffer is large enough to handle the message output from the instrument, then this input need not be used and should be left unconnected.

  • Page 35: Configuration

    5. Configuration The Configuration process enables the Setup Parameters to be configured, as well as enabling the input signals to be checked. The configuration process can be entered in one of two ways: By connecting a wire link (or switch) to the rear terminal strip across terminals 1 and 2 By pressing the TOTAL key and while holding, pressing the RESET key.
  • Page 36 Configuration The user can toggle between these modes using the DISPLAY key and by using the STOP key select the appropriate mode. To exit Configuration, step through the Setup program, Batch program, or Test program until the end and press the STOP key when End is displayed (ensure the configuration link is removed).

  • Page 37: Configuring The Setup Parameters

    Configuring the Setup Parameters Step Display Setup Program Parameters BATCH Set Batch Parameters OPTION Options (if installed) TEST Check Input Signals Exit to normal operation The following steps are displayed when CAL is selected. RESTOT Reset all totals to zero. SCALE Scaling Factor.
  • Page 38 Configuration Step Display A.dPt Number of decimal points with which the Accumulated (non resettable) total is displayed between 0 to 00. ACCESS Enable access to configuration routine via the front keyboard only. Front No Acc HP289 Description Enable access via front keyboard. Disable access via front keyboard.

  • Page 39: Entering The Batch Parameters

    Entering the Batch Parameters Step Display BATCH Set Batch Parameters OPTION Options (if installed) TEST Check Input Signals Exit to normal operation Setup Program Parameters The following steps are displayed when BATCH is selected. BATCH L Maximum Batch Size which can be entered. xxxxxx AUTO S Automatic restart feature.
  • Page 40 Configuration Step Display OUT 30 Output on Terminal 30. AUTO R Auto Reset (not displayed if Auto Restart is programmed - Step 3 above). HP289 Description “Pump Control”. End of Batch output Batch Total must be manually reset before starting the next batch. The Batch can be automatically reset and started by pressing only the RUN key.

  • Page 41: Configuring The Options

    300, 600, 1200, 2400, 4800, or 9600 7 bits 8 bits No Parity Odd Parity Even Parity. RS232 RS422/RS485 None Id Number. Standard Computer Printer EPSON CTM 290 Slip Printer Contrec Model 624 Printer EPSON TM290-2 Slip Printer Configuration Text HP289...
  • Page 42 Configuration Step Display If a Printer Protocol is selected, the following message is displayed: UNIT xx Units of measurement printed. If a Computer Protocol is selected, the following message is displayed: ECHO ECHO Commands. HP289 Description Contrec Model 632-2 Printer Syntest SP-210 Printer Computer None...

  • Page 43: Checking The Input Signal

    Checking the Input Signal Step Display TEST Check Input Signals Exit to normal operation Setup Program Parameters BATCH Set Batch Parameters OPTION Options (if installed) The following steps are displayed when TEST is selected. Sr x.xx Software revision number. Freq Displayed for 1 second followed by the actual frequency.

  • Page 44: Input Circuits

    Input Circuits 6. Input Circuits This section covers the connection of flowmeter signals for the Model 214D Series Batch Controllers. The 214D Series has a regulated power supply output which can be used to power sensors. A trimpot on the rear of the instrument allows the voltage to be adjusted in the range of 8-24 Volts and the output can supply a maximum of 50mA.
  • Page 45 Switch Settings The following switch settings are recommended for different input signal types. Input Signal Type Input Terminals a. Logic Signal, CMOS, Pulse b. Open Collector or Reed switch c. Namur Proximity (set DC out to 8 volts) d. Switch or Reed Switch with debounce circuit (200Hz max)
  • Page 46 Input Circuits The Frequency Input Circuit HP289...
  • Page 47 MAG Coil Redi-Pulse, CMOS or Pulse Redi-Pulse, Open Collector Input Circuits HP289...
  • Page 48 Input Circuits Squarewave, CMOS or Pulse Open-Collector Reed Switch HP289...

  • Page 49: Remote Key Switches

    Input Circuits Remote Key Switches Remote push-buttons can be connected to the Model 214D-1 to duplicate the keys on the front panel. The switches are wired as follows: HP289...

  • Page 50: Installation

    Installation 7. Installation General Terminal designations for the Model 214D Batch Controller are given on the following pages. The cutout hole in the panel should be 5.5" (139mm) wide x 2.6" (67mm) high. Two side clips are supplied to secure the instrument into the panel. A case grounding point is provided via a ground lug on the side of the case.
  • Page 51 should be as short as possible and connected to the grounding lug on the side of the case. In order to comply with the requirements for Electromagnetic Compatibility as per EMC-Directive 89/336/EEC of the Council of European Community, this wiring practice is mandatory. Although it is also possible to connect shields to the signal ground (terminal 2) this practice is not in accordance with EMC directives.

  • Page 52: Terminal Wiring Designations

    Installation Terminal Wiring Designations Terminal Terminal Terminal HP289 Description Configuration Link Signal Ground Not Used Remote DISPLAY Switch Remote BATCH SET Switch Not Used Flow Alarm Flow Common (-) Flow Pulse Input Pulse Out DC Power Out (8-24 VDC) DC Ground (-) DC Power Input (+) Not Used RS232/422/485 Option...

  • Page 53: Trouble Shooting

    8. Trouble Shooting Batcher does not reset The Signal Timeout has been set to an excessively long period and has not timed out at the end of the last batch. Batch will not start or relay 1 will not close Ensure that the instrument has not timed out as controlled by the Signal Timeout and that a Flow Alarm condition does not prevail.
  • Page 54 Trouble Shooting Scaling Factor should be set to 1 and the Resolution to whole numbers. Counting erratically This can be caused by two factors: § Setting the input circuit incorrectly § Lack of shielding on the input wiring Ensure that the input selection DIP switch is correctly set for the flowmeter attached.

  • Page 55: Error Codes

    Error Codes The instrument has extensive self test facilities and will display an error code if it detects an invalid condition. If the instrument displays an error code other than those listed below, please contact the factory. Error codes are displayed as "Err ##" and a list of the commonly encountered codes are given below: Input Errors 11 Invalid input configuration programmed.

  • Page 56: Index

    Index Index AC Voltage, 42 access, 30 Auto Reset, 7 Auto Restart, 14 Automatic Overrun Compensation, Batch Limit, 8 Batch Set, 6 Baud rate, 25, 33 clock, 25 Communication Protocol, 25 communications, Computer, 26 Control Functions, Control Relay, 11 Count Down, 7 Count Up, 7 Cutout, 3 date, 25...
  • Page 57 Regulated Voltage, Remote Push- buttons, 41 Resetting, 7 Response, 18 RS232/422/485 Interface, 22 Run Key, 6 Scaling Factor, 16 Scaling Range, 3 self test, 47 Setting the Batch, Setup Parameters, Signal Timeout, 12 Slow Start, 11 Slow Stop, 11 Snubbers, 43 Specification, 3 Starting, 7 Stop Key, 11...
