Toshiba Satellite P505-S8011 Manual

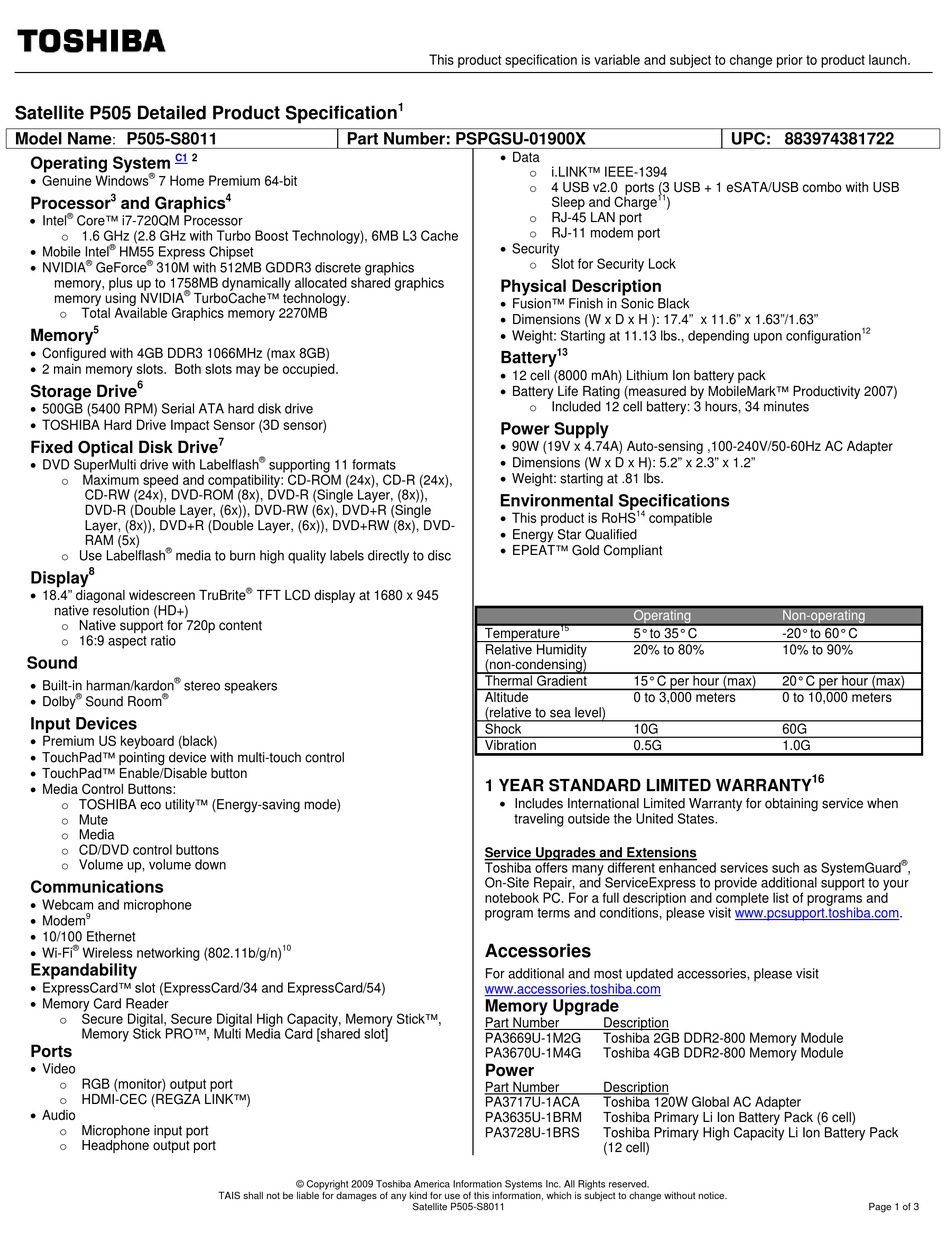

Satellite P505 Detailed Product Specification
Model Name P505-S8011
:
C1 2
Operating System
 Genuine Windows
®
7 Home Premium 64-bit
3
Processor and Graphics
 Intel
®
Core™ i7-720QM Processor
o 1.6 GHz (2.8 GHz with Turbo Boost Technology), 6MB L3 Cache
 Mobile Intel
®
HM55 Express Chipset
 NVIDIA
® ®
GeForce 310M with 512MB GDDR3 discrete graphics
memory, plus up to 1758MB dynamically allocated shared graphics
®
memory using NVIDIA TurboCache™ technology.
Total Available Graphics memory 2270MB
o
5
Memory
 Configured with 4GB DDR3 1066MHz (max 8GB)
 2 main memory slots. Both slots may be occupied.
6
Storage Drive
 500GB (5400 RPM) Serial ATA hard disk drive
 TOSHIBA Hard Drive Impact Sensor (3D sensor)
Fixed Optical Disk Drive
 DVD SuperMulti drive with Labelflash
o Maximum speed and compatibility: CD-ROM (24x), CD-R (24x),
CD-RW (24x), DVD-ROM (8x), DVD-R (Single Layer, (8x)),
DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R (Single
Layer, (8x)), DVD+R (Double Layer, (6x)), DVD+RW (8x), DVD-
RAM (5x)
®
o Use Labelflash media to burn high quality labels directly to disc
8
Display
 18.4" diagonal widescreen TruBrite
native resolution (HD+)
o Native support for 720p content
o 16:9 aspect ratio
Sound
 Built-in harman/kardon
®
stereo speakers
 Dolby
® ®
Sound Room
Input Devices
 Premium US keyboard (black)
 TouchPad™ pointing device with multi-touch control
 TouchPad™ Enable/Disable button
 Media Control Buttons:
o TOSHIBA eco utility™ (Energy-saving mode)
o Mute
o Media
o CD/DVD control buttons
o Volume up, volume down
Communications
 Webcam and microphone
 Modem
9
 10/100 Ethernet
 Wi-Fi
®
Wireless networking (802.11b/g/n)
Expandability
 ExpressCard™ slot (ExpressCard/34 and ExpressCard/54)
 Memory Card Reader
Secure Digital, Secure Digital High Capacity, Memory Stick™,
o
Memory Stick PRO™, Multi Media Card [shared slot]
Ports
 Video
RGB (monitor) output port
o
HDMI-CEC (REGZA LINK™)
o
 Audio
Microphone input port
o
Headphone output port
o
Part Number: PSPGSU-01900X
4
7
®
supporting 11 formats
®
TFT LCD display at 1680 x 945
10
© Copyright 2009 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
This product specification is variable and subject to change prior to product launch.
1
 Data
i.LINK™ IEEE-1394
o
4 USB v2.0 ports (3 USB + 1 eSATA/USB combo with USB
o
Sleep and Charge
RJ-45 LAN port
o
RJ-11 modem port
o
 Security
Slot for Security Lock
o
Physical Description
 Fusion™ Finish in Sonic Black
 Dimensions (W x D x H ): 17.4" x 11.6" x 1.63"/1.63"
 Weight: Starting at 11.13 lbs., depending upon configuration
13
Battery
 12 cell (8000 mAh) Lithium Ion battery pack
 Battery Life Rating (measured by MobileMark™ Productivity 2007)
Included 12 cell battery: 3 hours, 34 minutes
o
Power Supply
 90W (19V x 4.74A) Auto-sensing ,100-240V/50-60Hz AC Adapter
 Dimensions (W x D x H): 5.2" x 2.3" x 1.2"
 Weight: starting at .81 lbs.
Environmental Specifications
 This product is RoHS
 Energy Star Qualified
 EPEAT™ Gold Compliant
15
Temperature
Relative Humidity
(non-condensing)
Thermal Gradient
Altitude
(relative to sea level)
Shock
Vibration
1 YEAR STANDARD LIMITED WARRANTY
 Includes International Limited Warranty for obtaining service when
traveling outside the United States.
Service Upgrades and Extensions
Toshiba offers many different enhanced services such as SystemGuard
On-Site Repair, and ServiceExpress to provide additional support to your
notebook PC. For a full description and complete list of programs and
program terms and conditions, please visit www.pcsupport.toshiba.com.
Accessories
For additional and most updated accessories, please visit
www.accessories.toshiba.com
Memory Upgrade
Part Number
PA3669U-1M2G
PA3670U-1M4G
Power
Part Number
PA3717U-1ACA
PA3635U-1BRM
PA3728U-1BRS
Satellite P505-S8011
UPC: 883974381722
11
)
14
compatible
Operating
5° to 35° C
20% to 80%
15° C per hour (max)
0 to 3,000 meters
10G
0.5G
Description
Toshiba 2GB DDR2-800 Memory Module
Toshiba 4GB DDR2-800 Memory Module
Description
Toshiba 120W Global AC Adapter
Toshiba Primary Li Ion Battery Pack (6 cell)
Toshiba Primary High Capacity Li Ion Battery Pack
(12 cell)
12
Non-operating
-20° to 60° C
10% to 90%
20° C per hour (max)
0 to 10,000 meters
60G
1.0G
16
®
,
