Summary of Contents for Craftsman 917.371530
Page 1

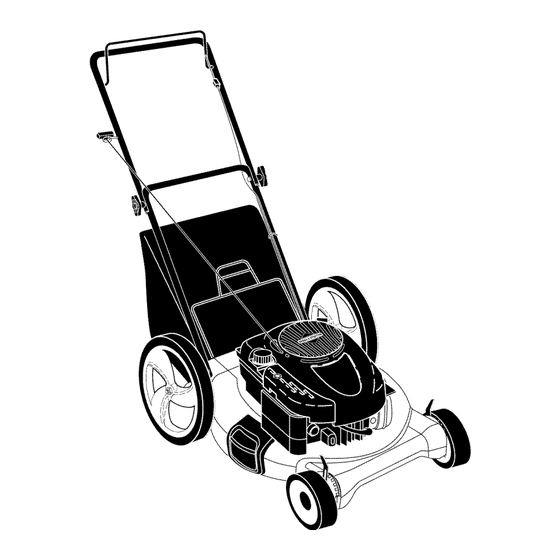

625 Series Briggs & Stratton Engine 21" Multi-Cut Model No. 917.371530 • EspaSol, p 18 CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment Sears, Roebuck and Co, Hoffman Estates, IL 60179 Visit our Craftsman website: www sears com/craftsman...
Page 2
Lawn Mower fails due to manufacturer defects in material workmanship within two years from the date of purchase, return it to any Sears store, Parts & Repair Center or other Craftsman outlet for free repair (or replacement if repair proves impossible). This warranty applies...
Page 3
I. GENERAL OPERATION • Always wear safety goggles or safety glasses with side shields when operating • Read, understand, and follow all mower. instructions on the machine and in the manual(s) before starting. Be thoroughly II. SLOPE OPERATION familiar with the controls and the proper Slopes are a major factor...
• Neverfill containersinsidea vehicle, on • Keepnuts and bolts, especiallyblade a truck or trailer bedwith a plasticliner. attachmentbolts, tight and keepequip- Always place containerson the ground mentin good condition. awayfrom yourvehicle beforefilling. • Nevertamperwith safetydevices.Check • Removegas-poweredequipmentfrom their proper operationregularly. the truck or trailerand refuel it on the •...
Page 5
Repair Protection Agreements Congratulations on making a smart pur- • Fast help by phone- phone sup- chase. Your new Craftsman® product port from a Sears representative designed and manufactured for years of products requiring in-home repair, plus dependable operation. But like all prod- convenient repair scheduling.
MOWING Read these instructions and this manual Operator POSITION its entirety before you attempt to assemble or operate your new lawn mower, control bar IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine. Your new lawn mower has been as- sembled at the factory...
Page 7
KNOW YOUR LAWN MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save this manual future reference. These symbols may appear...
Page 8
The operationof any lawn To convert to mulching or discharging SAFETY GLASSES mowercan result in foreign operation, remove grass catcher close rear door. objectsthrowninto the eyes,which can result in Pivot pins Rear Grass severeeye damage.Always catcher wear safety glassesor eye shieldswhile handle operatingyour lawn moweror performing any adjustmentsor repairs.We recom-...
Page 9
Change the oil after every 25 hours of operation or each season. You may need to change the oil more often under dusty, dirty conditions. See "TO CHANGE ENGINE OIL" in the Mainte- nance section of this manual. Engine oil cap MOWER ISNOWREADY FOR DISCHARGING OPERATION TO EMPTY...
TO STOP ENGINE MULCHING MOWING TIPS • Tostop engine,releaseoperatorpres- IMPORTANT: For best performance, encecontrol bar. keep mower housing free of built-up grass and trash. See "CLEANING" in the TO START ENGINE Maintenance section of this manual. NOTE: Due to protective coatings on the •...
Page 11
BEFORE AFTER EVERY EVERY EVERY EACH EACH 25HOURS BEFORE SCHEDULE HOURS OR SEASON HOURS STORAGE Check for Loose Fasteners Clean / Inspect Grass Catcher* Check Tires N Check Drive Wheels Clean Lawn Mower ..M Clean under Drive Cover *** Check Drive Belt / Pulleys Check / Sharpen...
LAWN MOWER IMPORTANT: Blade bolt is heat treated. Alwaysobservesafety ruleswhen per- If bolt needs replacing, replace only with formingany maintenance. approved bolt shown in the Repair Parts section of this manual. TIRES TO SHARPEN BLADE • Keep tires free of gasoline,oil, or insect controlchemicalswhichcan harmrubber.
Page 13
TO CHANGE ENGINE Install cartridge, then replace cover making sure the tabs are aligned with NOTE: Before tipping lawn mower to drain the slots in the back plate. Fasten oil, empty fuel tank by running engine until screw securely. fuel tank is empty. Disconnect spark plug wire from spark Back plate...
Page 14
A WARNING: Toavoid serious injury, Mowing Mowing beforeperformingany serviceand adjustments: 1. Releasecontrolbar and stop engine. 2. Makesure the blade andall moving sition position parts havecompletelystopped. 3. Disconnectspark plug wire fromspark Hairpin plug and placewire where it cannot cotter Handle come in contactwith plug. Mounting bracket LOW POSITION...
Page 15
Immediatelyprepareyour lawn mowerfor MOWING Operator storageat the end of the season or if the POSITION presence control bar unitwill not be usedfor 30 days or more. LAWN MOWER //// When lawn mower is to be stored for a FOLD period of time, clean it thoroughly, remove FORWARD' Upper...
CYLINDER • If possible, store your unit indoors cover it to protect it from dust and dirt. Remove spark plug. • Cover your unit with a suitable protec- Pour one ounce (29 ml) of oil through tive cover that does not retain moisture.
Page 17
TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Parts & Repair Center, CAUSE PROBLEM CORRECTION Rear of lawn mower Loss of power Raise cutting height. housing or cutting blade dragging in heavy grass. Cutting too much grass. Raise cutting height.
Page 18
Sears, al Centro de Repuestos y Reparacion, o a otro comercio donde se vendan los equipos Craftsman, a efectos de que se la reparen sin costo (o bien se la reemplacen, en caso que no sea posible repararla).
Page 19
I. OPERACION • Siempre use gafas de seguridad o anteojos con proteccion lateral cuando opere la sega- • Antes de empezar, debe familiarizarse dora. completamente con los controles y el uso correcto de la maquina. Para esto, debe leer y comprender todas las instrucciones que II.
Page 20
• Nunca repostar la maquina al interior de un Mantenga las tuercas y los pernos, espe- local. cialmente los pernos del accesorio de la • Nunca guardar la maquina o el contenedor cuchilla, apretados y mantenga el equipo en buenas condiciones. de gasolina donde hay una llama abierta, chispa o luz piloto como una caldera u otros Nunca manipule de forma indebida los...
Page 21
Congratulaciones por su buena compra. • Ayuda r&pida por telefono - soporte tele- nuevo producto Craftsman@ esta dise5ado f6nico por parte de un representento Sears y fabricado para funcionar de modo fiable por sobre productos que requieren un arreglo en muchos a5os.
Page 22
Lea estas instrucciones y este manual comple- Barra de POSICION tamente antes de tratar de montar u operar su que sxige la PARA segadora nueva. presencia SEGAR IMPORTANTE: Este cortacesped viene SIN operador ACEITE O GASOLINA en el motor. Su segadora nueva ha sido montada en la fabrica con la excepcion de aquellas partes que se dejaron sin montar por razones de envio.
Page 23
FAMILIARICESE CON SU SEGADORA LEA ESTE MANUAL DEL DUENO Y LAS REGLAS DE SEGURtDAD ANTES DE OPARAR SU SEGADORA. Compare las ilustraciones con su segadora para familiarizarse con la ubicacion de los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos simbolos pueden apareser sobre su segadora o en la literatura proporcionada con el producto.
Page 24
Para pasar a la operacion de acolchamiento, Laoperacion d e cualquier segadora puede hacerque remover la recolectora de hierba y cerrar la salten objetos extraSos d entro de puerta trasera. susojos,Ioquepuede producir Pasador Mango del daSos graves enestos.Siempre trasera bastidordel useanteojos deseguridad o proteccion p ara recogedor losojosmientras o pere su segadora o cuando...
Page 25
PASOS SIMPLES DE RECORDAR IMPORTANTE: CUANDO CONVIERTA SU SEGADORA • Revise el nivel del aceite antes de cada uso. PARA ACOLCHAMIE NTO - Agregue aceite si es necesario. Llene hasta la linea de Ileno en la varilla medidora de La plancha acolchadora trasera instalada. nivel.
Page 26
PARA PARAR EL MOTOR CONSEJOS PARA SEGAR Y ACOL- CHAR • Para parar el motor, suelte la barra de con- troles que exigen la presencia del operador. IMPORTANTE: Para obtener el mejor PARA HACER ARRANCAR EL MOTOR rendimiento mantenga la caja de la segadora AVISO: Debido alas capas protectoras del mo- sin acumulacion de cesped y basura.
Page 27
PROGRAMA ANTES DESPUES CADA CADA CADA ANTES DEL DE CADA DE CADA 25 HORAS O ALMACE= MANTENIMIENTO HORAS TEMPORADA HORAS NAMIENTO Revisar si hay Sujetadores Sueltos Limpiar/Inspeccionar el Recogedor de Cesped * Controlar los Neumaticos Controlar las Ruedas Motrices *** Limpiar la Segadora ..
Page 28
SEGADORA • La torsi6n para apretar recomendada es de 35 - 40 pies libras. Siempre observe las reglas de seguridad cu- IMPORTANTE: El perno de la cuchilla es tratado ando haga el mantenimiento. a calo. Si es necesario sustituir los pernos, LLANTAS sustituirlos s61ocon pernos aprobados mostrados •...
PARA CAMBIAR ELACEITE DELMOTOR _PRECAUCl6N: Lossolventes d epetr61eo, AVlSO:Antesdeinclinar l asegadora paradre- talescomoel keroseno, nosedebenusarpara narel aceite, d reneeltanque decombustible limpiar e l cartucho. Pueden producir el deterioro deeste.Noaceite el cartucho. Nouseairea haciendo c orrer e l motorhastaqueel tanque estevacio. presion paralimpiarlo o secarlo.
Page 30
_ADVERTENClA: Para evitar lesi6nes serias, Posici6n ¢_ Posici6n antes de dar calquier servico o de hacer ajustes: Suelte la barra de control y pare el motor. AsegQrese que la cuchilla y que todas las partes movibles se hayan detenido comple- tamente.
Page 31
Barra de control POSICION Inmediatamente prepare su segadora para el almacenamiento al final de cada temporada o si que exige PARA presencia SEGAR la unidad no se va a usar por 30 dias o mas. operador /' ,' J SEGADORA Cuando se va a guardar la segadora por cierto DOBLAR i/j\...
Page 32
ACEITE DEL MOTOR • Si es posible, guarde su unidad en un recinto Drene el aceite (con el motor caliente) y cambielo cerrado y cQbrala para protegerla contra el con aceite de motor limpio. (Vea "MOTOR" en la secci6n de Mantenimento de este manual. polvo y la mugre.
Page 33
SOLUCION DE PROBLEMAS - Vea la secci6n apropiada en el manual amenos estd dirigido a un centro de servico Sears. PROBLEMA CAUSA CORRECCION Falta de Cuchilla desgastada, doblada 1. Ajuste a la posici6n de fuerza o suelta. "Corte mas alto." AItura de las ruedas dispareja.
Page 34
CRAFTSMAN ROTARY LAWN MOWER- - MODEL NUMBER 917.371530 73 _...
Page 35
CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.371530 PART PART PART DESCRIPTION DESCRIPTION DESCRIPTION 194177X428 Helical Lockwasher Control Bar 165760 Discharge Deflector 850263 Hardened Washer 194179X479 Upper Handle 401624X004 Selector Spring, Rear 851074 169708X479 Lower Handle 701037 Selector Knob 406712 21"...
Page 36
BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122T02-0845-EA 51 _b% 383_ 718I_ 363_...
Page 39
BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122T02-0845-EA KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 791766 668 493823 • Line-Fuel (Cut to Length) Spacer (Includes 2) 188 693399 692294 Screw (Control Bracket) Spacer-Fuel Tank 190 690940 690345 Screw (Fuel Tank) Screw (Breather Cover) 691829...
Page 40
