Summary of Contents for Gigabyte GV-RX55HM256P8-RH

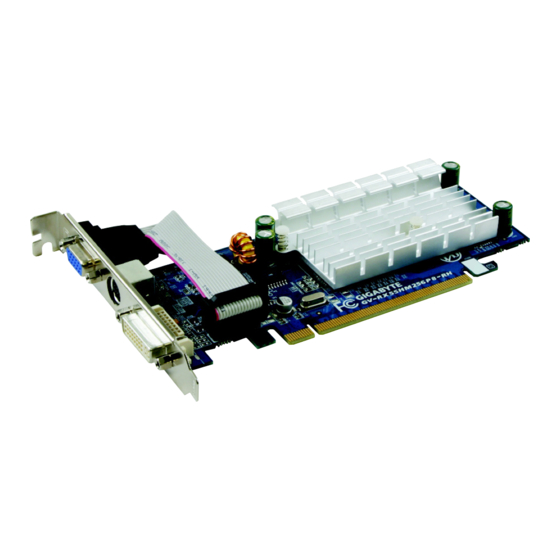

- Page 1 VGA Card GV-RX55HM256P8-RH Apr. 28, 2006...
- Page 2 VGA Card GV-RX55HM256P8-RH Apr. 28, 2006...
- Page 3 * The WEEE marking applies only in European Union's member states. Copyright © 2005 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from without the expressed, written permission of GBT.
-
Page 4: Table Of Contents
5.1. How to Reflash the BIOS ................34 5.1.1. Reflash BIOS in MS-DOS mode ................. 34 5.1.2. Reflash BIOS in Windows mode ................34 5.2. Resolutions and Color Depth Table (In Windows XP) ....... 35 ® GV-RX55HM256P8-RH Graphics Accelerator - 2 -... -
Page 5: Introduction
1. Introduction 1.1. Features Powered by ATI X550 with HyperMemory Technology Visual Processing • Unit (VPU) Supports the newest PCI Express x 16 • Supports 256MB Video memory (Local on-board memory is 128MB DDRII) • Supports DirectX 9.0 • Supports TV-Out connector •... -
Page 6: Hardware Installation
Analog LCD Monitor Analog Monitor VGA Monitor HDTV Connector (15-pin) S-Video Output TV-Out NTSC / PAL TV Projector Pb/AV Output DVI-I Connector DVI Output Digital LCD Monitor DVI-I to D-Sub Adapter Analog LCD Monitor VGA Output GV-RX55HM256P8-RH Graphics Accelerator - 4 -... - Page 7 DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON THE CARD. In order to ensure your graphics card working correctly, please use official Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem on the graphics card. - 5 -...
-
Page 8: Hardware Installation
3. Remove any existing graphics card from your computer. Or, if your computer has any on-board graphics capability, you may need to disable it on the motherboard. For more information, see you computer documentation. GV-RX55HM256P8-RH Graphics Accelerator - 6 -... - Page 9 4. Locate the PCI Express x 16 slot. If necessary, remove the metal cover from this slot; then align your graphics card with the PCI Express x 16 slot, and press it in firmly until the card is fully seated. 5.
-
Page 10: Software Installation
• If you install the graphics card drivers for the motherboard, which consist of SIS, or VIA chipsets, please install the appropriate driver program for that motherboard. Or please contact your motherboard nearest dealer for motherboard driver. GV-RX55HM256P8-RH Graphics Accelerator - 8 -... -
Page 11: Directx Installation
3.1.2. DirectX Installation Install Microsoft DirectX to enable 3D hardware acceleration support for Windows 2000 or ® Windows XP to achieve better 3D performance. ® Note: For software MPEG support in Windows 2000 or Windows XP, you must install ® ®... -
Page 12: Driver Installation
Step 2: Found new hardware wizard: Searching and installing The wizard will search for the driver and install it automatically. Step 3: Found new hardware wizard: Finish Click the Finish button to finish the installation. GV-RX55HM256P8-RH Graphics Accelerator - 10 -... - Page 13 B. Driver installation (Autorun Window) Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window. If it does not show up, please run "D:\setup.exe". Step 1. When autorun window show up, click the Install Display Drivers (Radeon X550 Series) item.
-
Page 14: Utilities On Driver Cd
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window. If it does not show up, please run "D:\setup.exe". Install GIGABYTE Utility (V-Tuner2): Click the GIGABYTE Utility item. Step 2. Click the Next button. Step 3. Enter your name and company. - Page 15 Install Hydravision : Click the Hydravision Install item. Step 2. Click the Next button. Step 3. Click the Yes button. Step 4. Click the Next button. Windows installings the components. Step 5. Click the Next button. Step 6. Click the Finish button to restart computer. Hydravision Install Then the is completed.
- Page 16 (Core Clock and Memory Clock). Displays core clock status Displays memory clock status A d j u s t c o r e Adjust memory speed speed Open Help page Select choice of skin GV-RX55HM256P8-RH Graphics Accelerator - 14 -...
-
Page 17: Taskbar Icon
After installation of the display drivers, you will find a GIGABYTE icon on the taskbar's status area. Right-clicking this icon opens the GIGABYTE control panel, showing a menu composed of shortcut of the graphics card's enhanced and other functions. You may click the "Display Properties" item, and then click Settings. Click "Advanced" after clicking Settings. - Page 18 VGA Information VGA Info lists the relevant information about your card. Color Adjust Color Adjust allows you to make color adjustments, such as brightness, contrast and gamma values for each or all of RGB colors. GV-RX55HM256P8-RH Graphics Accelerator - 16 -...
-
Page 19: Ati Catalyst Control Center
ATI CATALYST Control Center: After installation of the display drivers, you will find an ATI CATALYST Control Center icon the taskbar's status area. The ATI CATALYST Control Center is used to configure all your graphics card settings. Right-click the icon to enter the ATI CATALYST Control Center (refer to Fig. -
Page 20: Display Properties
3.1.6. Display Properties pages To access Display Properties pages, right-click the GIGABYTE icon on the taskbar and select Display Properties or right-click on Desktop and then select Properties. The Display Properties dialog box shows the information of display adapter, color, the range of display area, and the refresh rate. - Page 21 View Properties: The CATALYST Control Center dashboard supports three types of views: Standard View/ Advanced View/ Custom View. Standard View The Standard view is the default view when CATALYST Control Center is launched for the first time. It provides a single button in the left navigation pane for each main page.
- Page 22 Center. The CATALYST Control Center Preferences page contains the following options: Always on Top Hide Tooltips Hide Toolbar Text Enable System Tray menu Select a Language ... Select a Skin ... Restore facotry defaults ... GV-RX55HM256P8-RH Graphics Accelerator - 20 -...
-
Page 23: Information Center
Help Properties: The CATALYST Control Center Help feature allows you to access the comprehensive online help, register your product, or generate a problem report should you require technical support. The CATALYST Control Center Help feature offers the following options: Help Contents ... Search Help ... - Page 24 TV, or use the Wizard to help you configure your display(s). Displays Manager Advanced View Use Display Manager Advanced View to set your desktop resolution, the display refresh rate, and arrange your displays. GV-RX55HM256P8-RH Graphics Accelerator - 22 -...
-
Page 25: Display Options
Display Options: Use Display Options to configure a number of features, including 3D Refresh Rate Override, Display Detection, and Force TV detection. Monitor Properties 0: Monitor Attributes Monitor Attributes provides information about the attached monitor. You can also enable Extended Identification Data. Monitor Adjustments Use Monitor Adjustments to resize and reposi- tion the computer desktop on your monitor's... - Page 26 3D image quality, or a balance between the two. GV-RX55HM256P8-RH Graphics Accelerator - 24 -...
- Page 27 Anti-aliasing Anti-aliasing is a technique used to smooth out the jagged edges of three-dimensional curved objects or objects with diagonal edges. Anti-aliasing can be set to favor either an in- crease in system processing performance or improved image quality: Setting for performance is best used when the 3D image is animated and smoothness of mo- tion is the most important consideration.
- Page 28 3D image is animated and smoothness of motion is the most important consideration. Setting for quality is best used when high surface detail is required, especially if the animated object rotates or moves into the background. GV-RX55HM256P8-RH Graphics Accelerator - 26 -...
- Page 29 TRUFORM TRUFORM is a technology developed by ATI that overcomes the bandwidth and memory constraints of traditional 3D rendering software to produce the smoothest and most natural 3D images. TRUFORM not only enhances the smoothness, but also provides highly detailed lighting effects. This greatly enhances the realistic quality of 3D scenes by providing highlights on the surface of curved objects.
- Page 30 ) your 3D ® ® application uses, and you want to select a particular API-specific feature. If you are not sure which API your 3D application uses, consult the documention of your 3D application. GV-RX55HM256P8-RH Graphics Accelerator - 28 -...
- Page 31 Color : Use the Color page to adjust the color properties of your Desktop and Full Screen 3D applications and games. Use the Color Correction Images to e preview the changes before applying them. The Color curve is a graphical representation of all the values of gamma, brightness, or contrast. The color curve line will reflect any changes made to these elements.
- Page 32 • Motion Adaptive deinterlacing, when selected, applies the advanced motion detection to deinterlace the video. • Weave does not apply any deinterlacing. GV-RX55HM256P8-RH Graphics Accelerator - 30 -...
- Page 33 All Settings The All Settings page combines all of the principal Video features onto a single page, without any preview window, allowing quick access and adjustment. This page is useful when it is not necessary to preview the adjusted settings because the effect is already known or understood.
-
Page 34: Windows ® 2000 Driver Installation
7. Click Yes to the license agreement. 8. Follow the Wizard's on-screen instructions to complete the installation. Please make sure the Windows 2000 have installed Windows 2000 Service ® ® Pack (or later) before installing the graphics accelerator driver. GV-RX55HM256P8-RH Graphics Accelerator - 32 -... -
Page 35: Troubleshooting Tips
4. Troubleshooting Tips The following troubleshooting tips may help if you experience problems. Contact your dealer or Gigabyte for more advanced troubleshooting information. Check that the card is seated properly in the slot. PCI Express x 16 Ensure that the display cable is securely fastened to the card's display connector. -
Page 36: Appendix
BIOS if it detects the current BIOS on your card is the latest one.) 3. Update BIOS NOT through the Internet a. Download the BIOS ZIP file for your card from GIGABYTE website and extract it to your hard disk (or floppy disk). -
Page 37: Resolutions And Color Depth Table (In Windows ® Xp)
5.2. Resolutions and Color Depth Table (In Windows ® Radeon X550 2D Single Display Modes Display Maximum Color Depth (bpp) Screen Refresh Rate 8bpp(256 color) 16bpp(65K color) 32bpp(16.7M) Resolution (Hz) Standard mode High mode True mode 640 x 480 800 x 600 1024 x 768 1152 x 864 1280 x 768... - Page 38 GV-RX55HM256P8-RH Graphics Accelerator - 36 -...
