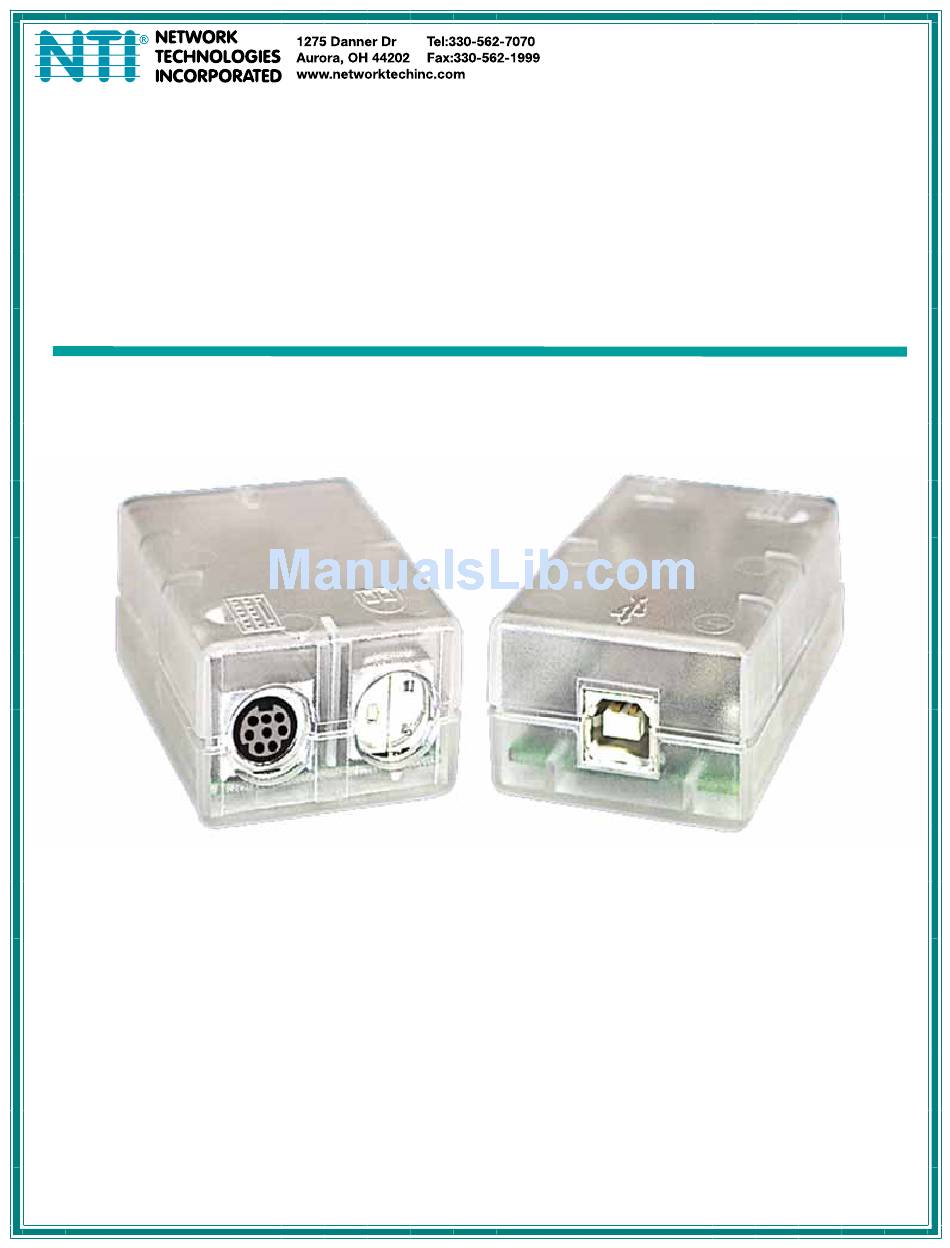

- Page 1 USB-SUN USB TO SUN ADAPTER Installation Manual MAN015 Rev Date 04/20/2006...
- Page 2 Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
- Page 3 TABLE OF CONTENTS Introduction..................................1 Applications ..................................1 Installation ..................................2 USB-SUN Adapter to NTI KVM Switch........................2 Legacy SUN Keyboard/Mouse to USB SUN Adapter ....................3 Technical Specifications..............................4 Warranty Information............................... 4 TABLE OF FIGURES Figure 1- Connect NTI Universal or Matrix KVM Switch to a SUN CPU with a USB port..............1 Figure 2- Connect a legacy SUN Keyboard/Mouse to a SUN CPU with a USB port .................
- Page 4 NTI USB-TO-SUN ADAPTER INTRODUCTION The NTI USB-SUN is a USB to SUN adapter that allows users to easily connect their SUN USB enabled CPU to an NTI Universal Multi-Platform (ST-xU) or Universal Matrix (ST-nXm-U) KVM Switch. Materials supplied: 1 NTI USB-SUN Adapter 1 USB-AB-0,5M-5T USB Type A male -to-USB Type B male cable Cable that may be required but is not supplied: Application...
- Page 5 CPU 5 DEVICES VIDEO VIDEO MONITOR CPU 4 CPU 3 CPU 2 CPU 1 NETWORK TECHNOLOGIES INC 1275 Danner Dr, Aurora, OH 44202 Tel:330-562-7070 www.nti1.com 8 pin miniDIN Rear View of USB-SUN Male Connector SKTINT-xx-MM 8 pin miniDIN Male Connector Figure 3- Connect USB-SUN to NTI Universal KVM Switch Connect the USB type B male connector (see Fig.
- Page 6 NTI USB-TO-SUN ADAPTER USB Type A Male Connector Front View of USB-SUN To USB Type A port USB-AB-0.5M-5T SUN CPU With USB Port USB Type B Male Connector Figure 5- Connect USB-SUN to SUN CPU with USB port Legacy SUN Keyboard/Mouse to USB SUN Adapter When using the USB-SUN adapter to connect a SUN Keyboard and/or Mouse to a SUN CPU with a USB port: 1.
-
Page 7: Technical Specifications
NTI USB-TO-SUN ADAPTER TECHNICAL SPECIFICATIONS Mating Face of a 8 pin miniDIN Female Mating face of a USB Type B Female PIN # SIGNAL PIN # SIGNAL +VCC - DATA +DATA MOUSE KYBD RCV KYBD XMT PWRN WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com for information regarding repairs and/or returns.
