Multi-Link ML-001 User Manual

Home smart center
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
www.skylinkhome.com
Home Smart Center
MODEL: ML-001 / ML-100
TM
CUSTOMER SERVICE
17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3
Tel : (905) 456-8883
Fax : (905) 456-7819
PATENTED
©2011 SKYLINK GROUP
P/N. 101Z379-001
FEB, 2011
Email : support@skylinkhome.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML-001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Multi-Link ML-001

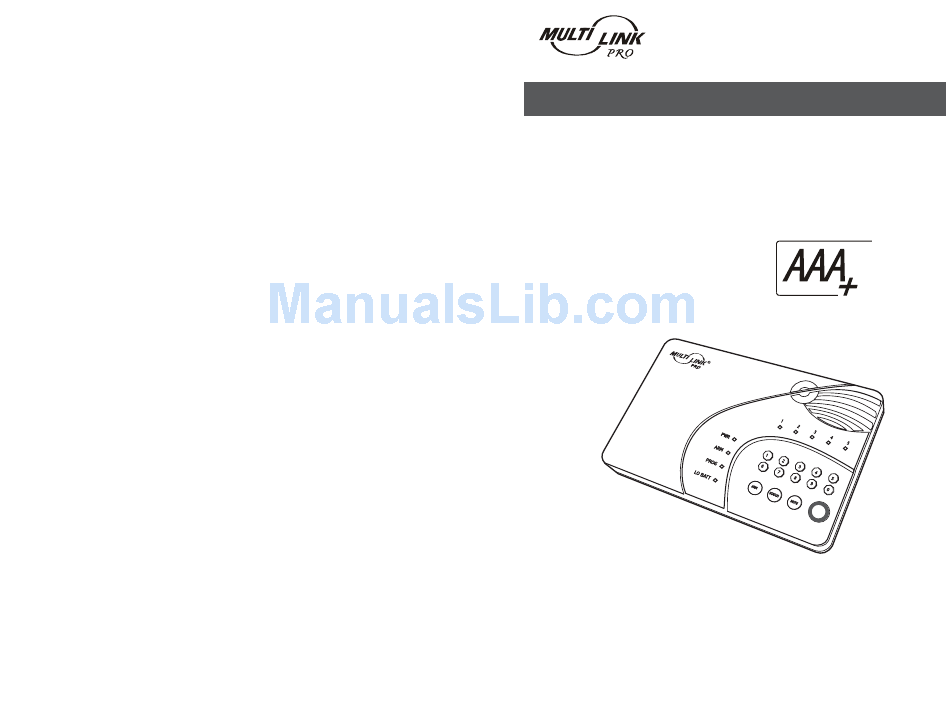

  • Page 1 ® www.skylinkhome.com Home Smart Center MODEL: ML-001 / ML-100 CUSTOMER SERVICE 17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3 Tel : (905) 456-8883 Fax : (905) 456-7819 PATENTED ©2011 SKYLINK GROUP P/N. 101Z379-001 FEB, 2011 Email : support@skylinkhome.com...
  • Page 2 Home Smart Center USER'S INSTRUCTIONS...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
  • Page 4 IC Statement Declaration of Conformity ‘’This product meets the applicable Industry Canada technical specifications.” Application of Council Directive(s) : Radio Equipment and Telecommunication Terminal Equipment Before installing this equipment, users should ensure that it is permissible Directive (1999/5/EC) - R&TTE to be connected to the facilities of the local telecommunications com- pany.

  • Page 5: Table Of Contents

    g) Should you experience trouble with this equipment, please contact CONTENT Skylink Customer Support at 1-800-304-1187 for repair or warranty information. If the equipment is causing harm to the telephone network, Introduction..........................4 the telephone company may request that you disconnect the equipment Overview........................4 Installation...........................7 until the problem is resolved.

  • Page 6: Introduction

    INTRODUCTION FCC Information Consumer Information: Overview a) This equipment complies with Part 68 of the FCC rules and the require- Congratulations on your purchase of a Home Smart Center. This is a security ments adopted by the ACTA. On the bottom of this equipment is a label control panel which not only functions as a security system, but also monitors that contains, among other information, a product identifier in the format your premises by giving you alert notification when the system is not armed.
  • Page 7 SYSTEM CONFIGURATION INTRODUCTION • Master Password ____________________ One AC adapter Secondary Password ____________________ • Duress Password ____________________ One telephone cord • Sensor locations and settings Batteries for all sensors (For ML-100A Only) - 1 PC 9V Alkaline Battery (PS-101) ZONE SENSOR 1 SENSOR 2 BEEP / ALARM AUTO MUTE...
  • Page 8 ACCESSORIES INTRODUCTION Control Module SW-100 (US and Canada) - To turn home appliances / lights on / off - Max rating: 960W (Resistive) Control Module SW-101U (UK), SW-101F (French), SW-101G (German) (3 models for 3 countries) - To turn home appliances / lights on / off Emergency Dialer (AD-433S) - External dialer with user programmable voice 905-608-9223...

  • Page 9: Installation

    ACCESSORIES INSTALLATION Installing the Console Audio Sensor (AS-101) - When audio level exceeds preset limit, it will trigger the It is important determine where the control panel will be located. Please follow the criteria below to select the ideal location for the control panel. alarm - Place beside smoke detector, CO detector, so when these Place it where electrical outlet and phone line can be accessed...
  • Page 10 ACCESSORIES INSTALLATION 4. Insert the rechargeable battery to the battery compartment. There are 2 Additional sensors and transmitters as well as add on accessories are available different types of rechargeable battery for 2 markets: to work with your system. a. North American Version: Lead Acid Connect the 2 wires to the battery.

  • Page 11: Programming Passwords

    TROUBLE SHOOTING INSTALLATION Programming Passwords Sensors Master Password can be used for programming, arming, disarming the When a sensor is triggered, the - Make sure the battery in the sensor is control panel doesn’t respond at all, installed properly, pay attention to the system, and telephone access.

  • Page 12: Phone Number Programming

    INSTALLATION TROUBLE SHOOTING Phone Number Programming Control Panel You can program up to 6 Emergency Phone Numbers. When the system is in panic, Questions Solutions the control panel will call these phone numbers and announce its status. Why I can’t arm my system? Make sure none of the sensors are The 6 emergency phone numbers include: triggered.
  • Page 13 HOME AUTOMATION INSTALLATION Note: - It’s not recommended to program 911, fire station or any emergency services ® phone numbers into any of the phone memories without their approvals. - Ensure to program a valid phone number and write down the programmed This row phone number on the System Setting Information provide on the back of this Buttons to Disable Event Tigger...

  • Page 14: Contact Id Phone Number

    INSTALLATION HOME AUTOMATION Event Trigger Contact ID Phone number You can program a telephone number for calling to the central monitoring station. You can control up to 5 different devices not only manually, but also automatically. It is When the system is in panic, the control panel will call this phone number and called Event Trigger.

  • Page 15: Account Number Programming

    HOME AUTOMATION INSTALLATION Account Number Programming ZONE LED DESCRIPTION In order to program the account number, follow the procedures follow: Zone is not occupied by any control module Flashes twice That means a remote has occupied that zone. Step Keys Function Description Note...

  • Page 16: Deactivating The Digital Dialer

    INSTALLATION HOME AUTOMATION Operation Deactivating the Digital Dialer To turn off a light with the control panel: You can deactivate the digital dialer by erase the phone number memory for Press the device number button on the control panel, i.e. pressing 1 will turn central monitoring station.

  • Page 17: Installing Door/Window Sensors

    HOME AUTOMATION INSTALLATION (ML-100A Only) Installing Door / Window Sensors Control Module [1] is represented by zone LED 1 Window / Door Sensor is used to monitor doors or windows that open and close. When these doors / windows are open or closed, the sensors will transmit a signal to the control panel This row to notify the user.

  • Page 18: Installing Motion Sensor

    INSTALLATION (ML-100A Only) HOME AUTOMATION Part 1 Learn signal from Control Module to Control Panel 2 Single flash Step Keys Function Description Note [PROG] Enter Program- Enter master 3 beeps for valid [MPIN] ming mode password to password. 1 long beep programming for invalid password.
  • Page 19 HOME AUTOMATION INSTALLATION (ML-100A Only) The Control Panel can be used to control lights and home applicances with a For outdoor monitoring, please refer to page 33 to program the motion sensor Control Module, (Control Module is sold separately). Garage door opener can be to Alert Zone.

  • Page 20: Operation

    ADVANCED PROGRAMMING OPERATION The Control Panel is always in one of the 2 operating modes: 1. Alert Mode - When the system is not armed (ARM LED off), it is in alert mode. This row 2. Alarm Mode - When the system is armed (ARM LED on), it is in alarm mode. SENSOR 1 SENSOR 2 Buttons for...

  • Page 21: The Telephone Line, Ensure The Installation Of This Model Am-002 Does Not Mute

    ADVANCED PROGRAMMING OPERATION Mute SENSOR 1 SENSOR 2 ZONE DEPENDENT FEATURES Location Location Beep / Alarm Auto Mute Event Trigger Alert zone 1 Beep / Alarm Y / N Disabled / On / Off Y / N When the alert beeping becomes undesired, you can terminate the beeping in 3 zone 2 Beep / Alarm Y / N...

  • Page 22: System Status

    OPERATION ADVANCED PROGRAMMING Learn Sensors System Status The control panel continuously monitors the system status as well as all the You can program up to 10 sensors to the control panel. There are 5 zones on sensors status. It will monitor occurrences such as triggered sensors, low the control panel, each zone can program up to 2 sensors.

  • Page 23: Disarming The System

    ADVANCED PROGRAMMING OPERATION Remote [6] is represented by zone LED 1 Note: The control panel cannot be armed if there are triggered sensors. Make sure ® all sensors are in closed position, i.e. (close all doors, windows, no movement ZONE LED REMOTE LOCATION should be detected etc).

  • Page 24: Disarming A Triggered Control Panel

    OPERATION ADVANCED PROGRAMMING 2. You must enter a valid password, either the Master Password, or Secondary Learn Keychain / Keypad Remotes Password to disarm the system before entry delay expires. Additional keychain or keypad remotes can be programmed to the control panel. 3.

  • Page 25: Panic

    ADVANCED PROGRAMMING OPERATION Panic To enable alert zone feature, follow the instructions below. Pressing the panic button on the control Step Keys Function Description Note panel or keychain remote will cause the [PROG] Enter Program- Enter master 3 beeps for valid siren to sound and outgoing calls will [MPIN] ming mode...

  • Page 26: Sensor Failure

    OPERATION ADVANCED PROGRAMMING Sensor Failure The control panel constantly monitors its sensors, if the control panel fails to communicate with any sensors, it will notify the user by: DISABLE ENABLE AUTO MUTE AUTO MUTE This row Buttons to Zone 1 1.
  • Page 27 OPERATION ADVANCED PROGRAMMING Auto Mute When the sensor is running low in battery, the sensor will send a wireless low battery signal to the control panel. The zone LED representing that sensor will be on steadily, indicating sensor(s) in that zone is in trouble condition. Control Panel When a sensor is triggered in alert mode, audio warning will be emitted, either will also have an announcement to advise the user the trouble condition is low beep or alarm.

  • Page 28: Coummunication

    COMMUNICATION ADVANCED PROGRAMMING Receiving the Emergency Call Follow the procedures below to program the beep / alarm setting. If you are on the list as one of the recipients of the emergency call, you should read Step Keys Function Description Note the following instructions carefully.

  • Page 29: Remote Operation By Telephone

    ADVANCED PROGRAMMING COMMUNICATION Remote Operation by Telephone System Armed (Alarm Mode) If a zone is set to “Beep”, the control panel will give entry / exit delay. The control panel can be operated while you are away from home. You can If a zone is set to “Alarm”, the siren will sound immediately without entry delay have access to the control panel with any touch tone phone to perform a variety of operations, listed below.

  • Page 30: Learn Sensors

    COMMUNICATION ADVANCED PROGRAMMING Advanced Programming allows users to customize the control panel to react Table 1: Remote Phone Operations differently under different conditions. Features such as: SYSTEM OPERATION PHONE COMMAND DESCRIPTION - When a sensor is triggered, the control panel can beep or alarm - Beeping can be terminated automatically after a fixed period of time for some sensors Turn on device x +[*]...
