RC4194
Dual Tracking Voltage Regulators
Features
• Simultaneously adjustable outputs with one resistor
to ±42V
• Load current – ±200 mA with 0.04% load regulation
Description
The RC/RM4194 are dual polarity tracking regulators
designed to provide balanced or unbalanced positive and
negative output voltages at currents to 200 mA.
A single external resistor adjustment can be used to change
both outputs between the limits of ±50 mV and ±42V.
These devices are designed for local "on-card" regulation,
eliminating distribution problems associated with single-
point regulation. To simplify application the regulators
require a minimum number of external parts.
The device is available in three package types to accommo-
date various power requirements. The K (TO-66) power
package can dissipate up to 3W at T
14-pin dual in-line will dissipate up to 1W and the N
14-pin dual in-line will dissipate up to 625 mW.
= +25°C. The D
A
• Internal thermal shutdown at T
• External balance for ±V
OUT
• 3W power dissipations

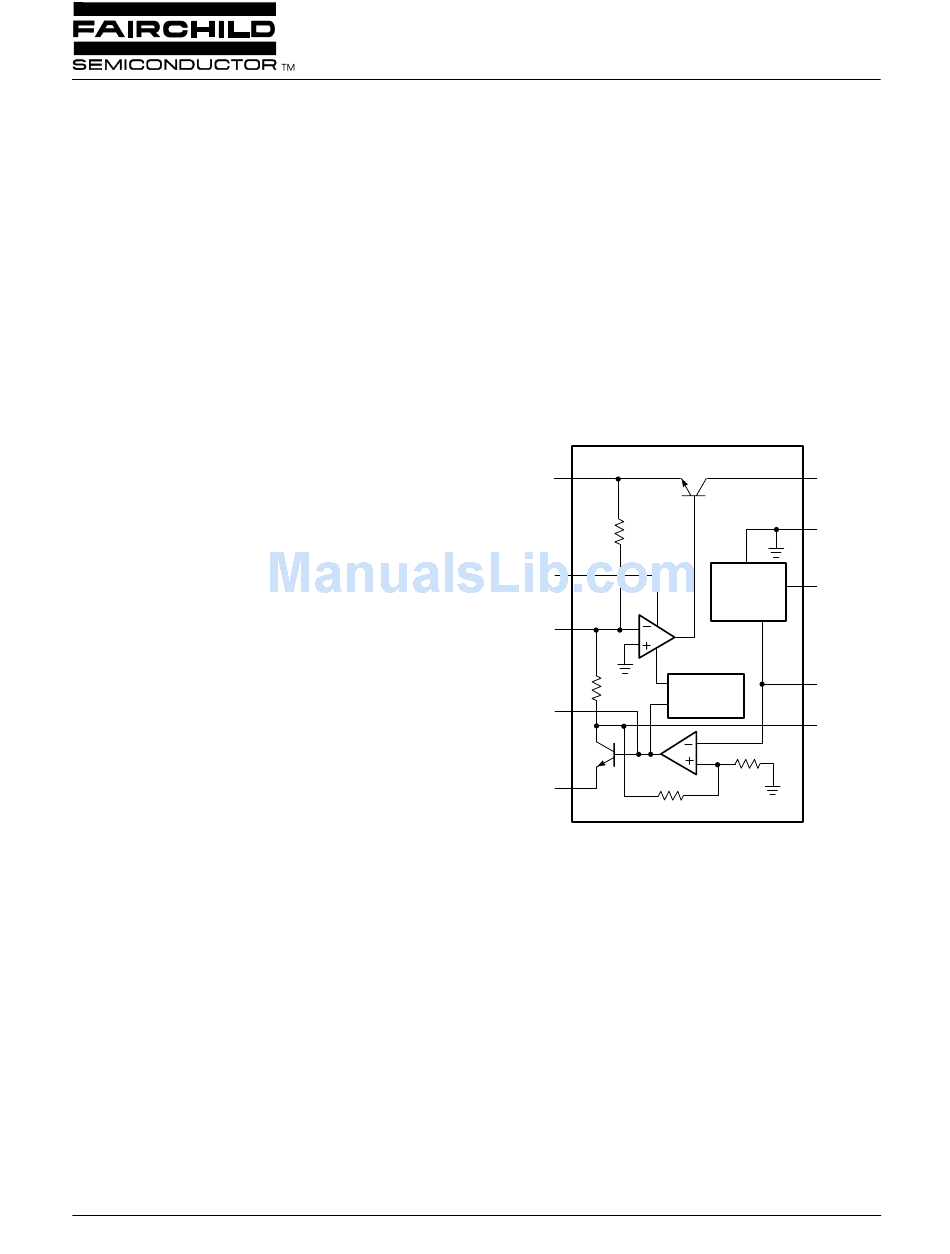

Block Diagram

4194
+V
OUT
20K
Comp+
Bal
20K
Comp–
3R
–V
S
www.fairchildsemi.com
= +175°C
J
unbalancing
+V
S
GND
100µA
R
SET
Current
Source
R
Thermal
O
Shutdown
–V
OUT
R
65-4194-01
Rev. 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC4194 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fairchild RC4194

  • Page 1: Block Diagram

    www.fairchildsemi.com RC4194 Dual Tracking Voltage Regulators Features • Simultaneously adjustable outputs with one resistor • Internal thermal shutdown at T = +175°C to ±42V • External balance for ±V unbalancing • Load current – ±200 mA with 0.04% load regulation •...
  • Page 2: Pin Assignments

    PRODUCT SPECIFICATION RC4194 Pin Assignments -V (Case) Comp+ Comp+ Comp- Comp- 65-4194-03 65-4194-02 Absolute Maximum Ratings (beyond which the device may be damaged) 1 Parameter Units ±35 Supply Voltage RC4194 ±45 RM4194 ±35 Supply Input to Output Voltage Differential RC4194 ±45 RM4194 Load Current...
  • Page 3: Operating Conditions

    RC4194 PRODUCT SPECIFICATION Operating Conditions Parameter Units °C/W Thermal Resistance CerDIP °C/W TO-66 Metal Can °C/W Thermal Resistance PDIP °C/W CerDIP °C/W TO-66 Metal Can Electrical Characteristics (±5 £ V £ V £ -8V; I = ±1mA; RM4194: -55°C £ T £...
  • Page 4: Typical Performance Characteristics

    PRODUCT SPECIFICATION RC4194 Typical Performance Characteristics 0.06 0.05 0.04 = +125¡C 0.03 = ±15V 0.02 = +25¡C 0.01 -0.01 100K 80 100 120 140 160 180 200 F (Hz) (mA) Figure 1. Ripple Rejection vs. Frequency Figure 2. Load Regulation vs. Load Current -0.2 -0.4 -0.6...
  • Page 5: Typical Applications

    RC4194 PRODUCT SPECIFICATION Typical Applications 0.01µF To Additional Comparators 4.7µF** Comp+ RM4194 (Typically 15 RC4805s) 4805 = -5V Comp- Gnd To Additional 71.5K Comparators 4.7µF R (k½ ) = 2.5 (-V Adjust R for -V = -5V (12.5 k ) 0.01µF = 20 k½...
  • Page 6 PRODUCT SPECIFICATION RC4194 Typical Applications (continued) = +15V To Additional Op Amps 0.001µF 4.7µF** Comp+ 4194 (Typically 180 741s) = -15V Comp- To Additional 71.5K Op Amps 4.7µF 0.001µF 65-0204 R (k½) = 2.5 V Figure 6. Balanced Output Voltage — Op Amp Application +V = +25V 0.01µF REF-02...
  • Page 7 RC4194 PRODUCT SPECIFICATION RC4194 Switchable Power Supply Compensation The outputs of the RC4194 can be simultaneously switched For most applications, the following compensation technique on or off under logic control as shown in Figure 8. In the is sufficient. The positive regulator section of the RC4194 is compensated by a 0.001 mF ceramic disc capacitor from the “off”...
  • Page 8: Brownout Protection

    PRODUCT SPECIFICATION RC4194 All compensation and bypass caps should have short leads, solid grounds, and be located as close to the 4194 as possi- 0.001µF ble. Refer to Figure 9 for recommended compensation cir- cuitry. Comp+ 0.01µF Protection 4194 –V –V –V –V...
  • Page 9 RC4194 PRODUCT SPECIFICATION If a small signal silicon diode is used, it will clamp the nega- Let’s look at an application where a user is trying to deter- tive output voltage at about +0.55V. A Schottky barrier or mine whether the RC4194 in a high temperature environ- germanium device would clamp the voltage at about +0.3V.
  • Page 10 PRODUCT SPECIFICATION RC4194 Given q In the above example, let’s say that the user’s load current is = 7.15°C/W for the 4194 in the K package, 200 mA and he wants to calculate the combined q he needs: = 11.75°C/W – 7.15°C/W Given: I = 200 mA, = 4.6°C/W...
  • Page 11: Simplified Schematic Diagram

    RC4194 PRODUCT SPECIFICATION Simplified Schematic Diagram...
  • Page 12: Mechanical Dimensions

    PRODUCT SPECIFICATION RC4194 Mechanical Dimensions 9-Lead Metal Can IC Header Package øD Inches Millimeters Symbol Notes Min. Max. Min. Max. øD1 .250 .340 6.35 8.64 øb .028 .034 øD — .620 — 15.75 øD1 .470 .500 11.94 12.70 .190 .210 4.83 5.33 .093...
  • Page 13 RC4194 PRODUCT SPECIFICATION Mechanical Dimensions (continued) 14-Lead Ceramic DIP Package Notes: Inches Millimeters Symbol Notes Index area: a notch or a pin one identification mark shall be located Min. Max. Min. Max. adjacent to pin one. The manufacturer's identification shall not be used as pin one identification mark.
  • Page 14 PRODUCT SPECIFICATION RC4194 Mechanical Dimensions (continued) 14-Lead Plastic DIP Package Notes: Inches Millimeters Symbol Notes Dimensioning and tolerancing per ANSI Y14.5M-1982. Min. Max. Min. Max. "D" and "E1" do not include mold flashing. Mold flash or protrusions — .210 — 5.33 shall not exceed .010 inch (0.25mm).
  • Page 15: Ordering Information

    1. /883B suffix denotes MIL-STD-883, Par. 1.2.1 compliant device. LIFE SUPPORT POLICY FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR CORPORATION. As used herein: 1.
