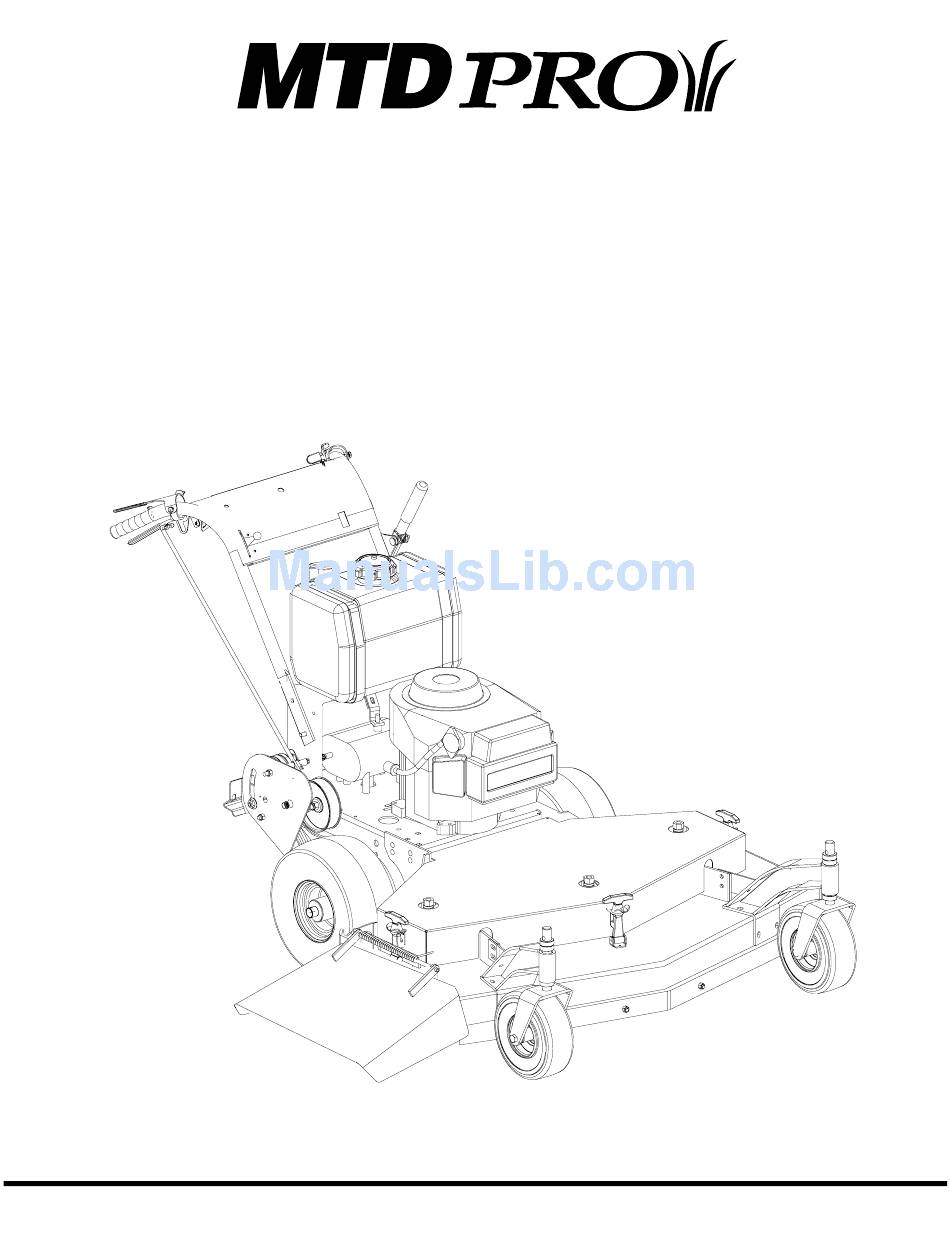

1332G
, 1336G
(55AD210Q195)
(55AE210R195)
Walk-Behind Commercial
Rotary Mowers
Professional Turf Equipment
ILLUSTRATED PARTS LIST
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for MTD 1332G
Lawn Mower MTD 133-380 25-inch Operating/Service Instructions Manual
25" cut-recoil & elect. starter (27 pages)
Lawn Mower MTD 133-630A Owner's Manual
Bolens 34" and 38" lawn tractor owner's manual (35 pages)
Lawn Mower MTD 133-668A Owner's Manual
Bolens 38" lawn tractor owner's manual (35 pages)
Lawn Mower MTD 130-460 Operating/Service Instructions Manual
Riding mower (27 pages)
Lawn Mower MTD 133-390A Owner's Manual
30" lawn tractors (32 pages)
Lawn Mower MTD 133-430 Operating/Service Instructions Manual
Mtd riding mower operating / service instructions (22 pages)
Lawn Mower MTD 133-495 Operating/Service Instructions Manual
Mtd riding mower operating/service instructions (24 pages)
Lawn Mower MTD 133-500A Owner's Manual
26" riding mower (31 pages)
Lawn Mower MTD 133-502A Owner's Manual
30" riding mowers (38 pages)
Lawn Mower MTD 133-526A Owner's Manual
26" riding mowers (44 pages)
Lawn Mower MTD 133A560B00 Owner's Manual
Variable speed rear engine riding mower (32 pages)
Lawn Mower MTD 133-699A Owner's Manual
40" lawn tractors (43 pages)
Lawn Mower MTD 132-360 Operating/Service Instructions Manual
Mtd riding mower operating manual (17 pages)
Lawn Mower MTD 136-400A Owner's Operating Service Instruction Manual
26" riding mower (23 pages)
Lawn Mower MTD 139-508-000 Owner's Manual
Variable speed rear engine riding mowers (36 pages)
Lawn Mower MTD 13WJ771S031 Operator's Manual
(69 pages)
Summary of Contents for MTD 1332G
Page 1: Illustrated Parts List
® 1332G , 1336G (55AD210Q195) (55AE210R195) Walk-Behind Commercial Rotary Mowers Professional Turf Equipment ILLUSTRATED PARTS LIST...
Page 2
This Page Left Blank Intentionally...
Page 3: Table Of Contents
TABLE OF CONTENTS 1332G / 32" Fabricated Cutter Deck and Parts List..4 and 5 1332G / 32" Fabricated Deck Cover......6 1332G, 1336G / 32"...
Page 4
1332G / 32" Fabricated Cutter Deck - Figure 1...
Page 5: 1332G / 32" Fabricated Cutter Deck And Parts List
1332G / 32" Fabricated Cutter Deck - Parts List for Figure 1 Ref. No. Part No. Description Qty. 00006168 Flat Washer, 3/8 Zinc 01001371 Hex Cap Screw, 3/8-16, 2.75 00012158 Flat Washer, 3/8 Zinc 00012173 Lock Nut, Nylon Insert, 3/8-16 00012402 Shim Washer 00012428 Lock Nut, Nylon Insert, 1/2-13 00013433 Hex Nut, 5/16-18...
Page 6: 1332G / 32" Fabricated Deck Cover
1332G / 32" Fabricated Deck Cover - Figure 2 & Parts List Ref. No. Part No. Description Qty. 01002144 Deck Cover, 32" 01001073 Decal, 32" 00021951 Rubber Hood Latch 00008745 Machine Screw, 10-24 x 1/2 00006194 Lock Nut, Nylon Insert, 10-24...
Page 7: 1332G, 1336G / 32" & 36" Chute Assembly
1332G, 1336G / 32" & 36" Chute Assembly - Figure 3 & Parts List Ref. No. Part No. Description Qty. 00003107 Cotter Pin, 5/32 x 1 1/2 Zinc 00012158 Flat Washer, 3/8, Zinc 00013597 Decal, Cut Line 00030644 Pin, Deflector Assembly, Weldment1 01002037 Torsion Spring 01004047 Chute Assembly Discharge...
Page 8: 1332G / 32" Spindle Assembly
1332G / 32" Spindle Assembly - Figure 4 & Parts List Ref. No. Part No. Description Qty. 00002766 Flat Washer, 1-1/2 x 5/8 x .05 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 00011807 Hex Nut, 5/8-11 00013091 Hex Cap Screw, 5/8-11 x 9-1/2 00013131 Hex Cap Screw, 1/4-20, .75 00013432 Flat Washer, 5/8 Zinc 00021517 Key Stick, 1/4 x 1/4 x 2...
Page 9: 1336G / 36" Fabricated Deck Cover
1336G / 36" Fabricated Deck Cover - Figure 5 & Parts List Ref. No. Part No. Description Qty. 00006194 Lock Nut, Nylon Insert 00008745 Machine Screw, 10-24 x 1/2 00021951 Rubber Hood Latch 01001067 Deck Cover, 36 01001071 Decal 36 MTD...
Page 10: 1336G / 36" Deck Assembly & Parts List
1336G / 36" Deck Assembly - Figure 6...
Page 11
1336G / 36" Deck Assembly - Parts List for Figure 6 Ref. No. Part No. Description Qty. 00006168 Flat Washer, 3/8 Zinc 01001371 Hex Cap Screw, 3/8-16, 2.75 00012158 Flat Washer, 3/8 Zinc 00012173 Lock Nut, Nylon Insert, 3/8-16 00012402 Shim Washer 00012428 Lock Nut, Nylon Insert, 1/2-13 00013433 Hex Nut, 5/16-18 00014439 Shoulder Bolt...
Page 12: 1336G / 36" Spindle Assembly
1336G / 36" Spindle Assembly - Figure 8 & Parts List Ref. No. Part No. Description Qty. 00002766 Flat Washer, 1-1/2 x 5/8 x .05 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 00011807 Hex Nut, 5/8-11 00013091 Hex Cap Screw, 5/8-11 x 9-1/2 00013131 Hex Cap Screw, 1/4-20, .75 00013432 Flat Washer, 5/8 Zinc 00021517 Key Stick, 1/4 x 1/4 x 2...
Page 13: 1332G, 1336G / Caster Assembly
1332G, 1336G / Caster Assembly - Figure 9 & Parts List Ref. No. Part No. Description Qty. 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 00012158 Flat Washer, 3/8 Zinc 00012173 Lock Nut, Nylon Insert, 3/8-16 00012428 Lock Nut, Nylon Insert, 1/2-13 00012675 Hex Cap Screw, 1/2-20, 5.50 00014528 Spacer Wheel 00021863 Klik Pin, 1.75...
Page 14: 1332G, 1336G / Tank Assembly
1332G, 1336G / Tank Assembly - Figure 10 & Parts List Ref. No. Part No. Description Qty. 00012152 Lock Nut, Nylon Insert, 1/4-20 00012235 Uni-Clamp 00021941 Spacer 00021407 Rubber Stop Pad 01000068 Fuel Tank 01000069 Fuel Cap, 3.5 01001023 Fuel Tank Strap 01000281 Grommet Fuel Tank 10 00030784 Shut Off Fuel Tank 11 01001036 Label, Mower Warning Turn Off Engine...
Page 15: 1332G, 1336G / Handle Assembly
1332G, 1336G / Handle Assembly - Figure 11 & Parts List Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 00006131 Hex Nut, 3/8-16 22 00030378 Plastic Handle Grip, Black, 4-5/8 00006168 Flat Washer, 3/8 Zinc 23 00071691 Control Rod, Hydro Spacer 00009678 Clevis Pin, 3/8 x 1-1/8 Zinc 24 00071879 Hydro Blade Clutch Rod Base 00011211 Grip, Neutral Latch, 1.25"...
Page 16: 1336G / Deck Assembly Standard Track
1336G / Deck Assembly Standard Track - Figure 12 & Parts List 39 39 Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 00006168 Flat Washer, 3/8 Zinc 21 00031602 Carriage Bolt, 1/4-20 x 1.00 00008792 Woodruff Key, 3/16 x 3/4 22 00060078 Grease Fitting, 1/4-28 x 3/16 00011454 Jam Nut, Insert Lock, 3/8-24 23 00083192 Idler Washer...
Page 17: 1332G / Deck Assembly Narrow Track
1332G / Deck Assembly Narrow Track - Figure 13 & Parts List Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 00006168 Flat Washer, 3/8 Zinc 21 00031602 Carriage Bolt, 1/4-20 x 1.00 00008792 Woodruff Key, 3/16 x 3/4 22 00060078 Grease Fitting, 1/4-28 x 3/16 00011454 Jam Nut, Insert Lock, 3/8-24 23 00083192 Idler Washer...
Page 18: 1336G / Brake Assembly Standard Track
1336G / Brake Assembly Standard Track - Figure 14 & Parts List Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 15 00021960 Retainer, Push ON, 3/8 00002528 Hex Cap Screw, 3/8-16, 2.00 00006131 Hex Nut, 3/8-16 16 00021962 E-Ring, 5/8 00010869 Flat Washer, 2.000 x 1.005 x .120 17 00021979 Drive Pulley, V...
Page 19: 1332G / Brake Assembly Narrow Track
1332G / Brake Assembly Narrow Track - Figure 15 & Parts List Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 00002528 Hex Cap Screw, 3/8-16, 2.00 15 00021960 Retainer, Push ON, 3/8 00006131 Hex Nut, 3/8-16 16 00021962 E-Ring, 5/8 00010869 Flat Washer, 2.000 x 1.005 x .120 17 00021979 Drive Pulley, V...
Page 20: 1332G, 1336G / Vari-Touch Drive Assembly
1332G, 1336G / Vari-Touch Drive Assembly - Figure 16 & Parts List Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 01002554 Hex Cap Screw, 3/8-16, .875 15 00021976 Flat Idler Drive 01001012 Left Idler Bracket 16 00021969 Jackshaft Pulley 01001010 Right Idler Bracket 17 00021964 External Retain Ring 01000642 Carriage Bolt, 3/8-16 x 5.50...
Page 21: 1332G, 1336G / 13Hp Kohler Engine Assembly
1332G, 1336G / 13HP Kohler Engine Assembly - Figure 17 & Parts List Description Part Number Engine 01000992 Air Filter Pre Cleaner Oil Filter Spark Plug Ref. Ref. No. Part No. Description Qty. No. Part No. Description Qty. 00010943 Single Ignition ON/OFF Switch 16 00021973 Bushing 01001811 Harness Hour Meter (not shown) 17 00030906 Machine Screw, 10-32 x 5/8...
Page 22
Notes...
Page 23
Notes...
Page 24
MTD Pro P.O. Box 361131 Cleveland, OH 44136-0019 Form No. 770-1877 Rev. 01-1 4/20/2001...
