Craftsman 917.388820 Owner's Manual

Craftsman 917.388820 Owner's Manual

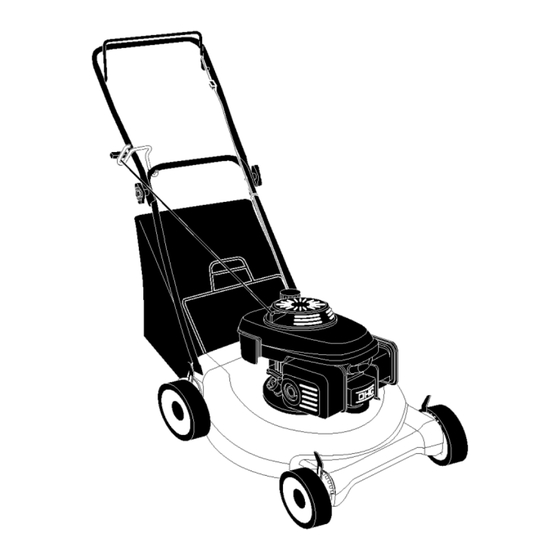

Rotary lawn mower 5.5 horsepower 21" rear discharge
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

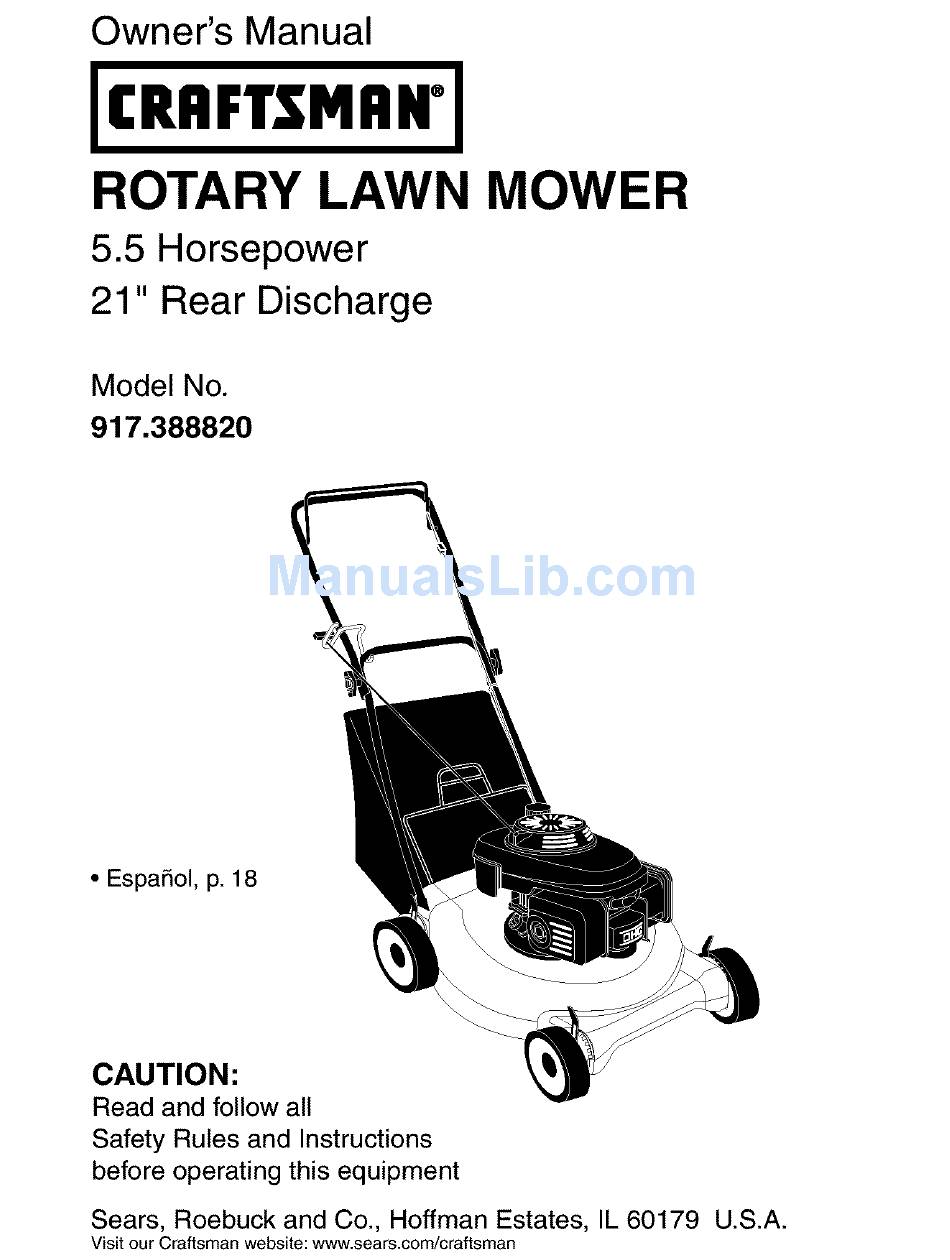

Owner's Manual
JCRHFTSMRN°J
ROTARY LAWN MOWER
5.5 Horsepower
21" Rear Discharge
Model No.
917.388820
• EspaSol, p. 18
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
U.S.A.
Visit our Craftsman website: www.sears.com/craftsman

Advertisement

loading

Related Manuals for Craftsman 917.388820

Summary of Contents for Craftsman 917.388820

  • Page 1 ROTARY LAWN MOWER 5.5 Horsepower 21" Rear Discharge Model No. 917.388820 • EspaSol, p. 18 CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. Visit our Craftsman website: www.sears.com/craftsman...

  • Page 2: Table Of Contents

    Warranty service is available by returning the Craftsman power mower to the nearest Sears Parts & Repair Center in the United States. This warranty applies only while this product is used in the United States.

  • Page 3: Operation

    I. GENERAL OPERATION II. SLOPE OPERATION • Read, understand, and follow all Slopes are a major factor related to slip instructions on the machine and in the and fall accidents which can result in manual(s) before starting. Be thoroughly severe injury. All slopes require extra cau- familiar with the controls and the proper tion.
  • Page 4 Record both serial number and date of purchase in space provided above. Repair Protection Agreements Congratulations on making a smart pur- Fast help by phone - phone support chase. Your new Craftsman® product is from a Sears technician on products designed and manufactured for years of requiring in-home repair, plus conve- dependable operation.
  • Page 5 These accessories were available when this lawn mower was produced. They are not shipped with your mower. They are also available at most Sears retail outlets and service centers. Some of these accessories may not apply to your lawn mower. LAWN MOWER PERFORMANCE CLIPPING...
  • Page 6 Read these instructions and this manual in Operator presence its entirety before you attempt to assemble control bar or operate your new lawn mower. IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine. Your new lawn mower has been as- LIFT sembled at the factory with the excep- tion of those parts left unassembled...
  • Page 7 KNOW YOUR LAWN MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your lawn mower or in literature supplied with the product.
  • Page 8 TO CONVERT MOWER The operationof any lawn mowercan result in foreign Your lawn mower was shipped ready to be objectsthrown into the used as a mulcher. To convert to bagging: • Lift rear door of the lawn mower and eyes, which can result in severeeye damage.Always place the grass catcher frame hooks wearsafety glasses or eye shields while...
  • Page 9 BEFORE STARTING ENGINE Gasoline ADD OIL filler cap Your lawnmower is shipped without oil in the engine. For type and grade of oil to use, see "ENGINE" in the Maintenance section of this manual. CAUTION: DO NOT overfill engine with oil, or it will smoke on startup.
  • Page 10 MULCHING MOWING TIPS MOWING TIPS IMPORTANT: For best performance, • Under certain conditions, such as very keep mower housing free of built-up tall grass, it may be necessary to raise grass and trash. See "CLEANING" in the the height of cut to reduce pushing Maintenance section of this manual.

  • Page 11: Maintenance Schedule

    MAINTENANCE BEFORE APTER EVERY EVERY EVERY BEFORE EACH EACH 25HOURS SCHEDULE HOURS ORSEASON HOURS STORAGE Check for Loose Fasteners Clean / Inspect Grass Catcher * Check Tires Check Drive Wheels Clean Lawn Mower ..M Clean under Drive Cover *** O Check Drive Belt / Pulleys *** Check / Sharpen / Replace Blade R Lubrication...
  • Page 12 TO SHARPEN BLADE LAWN MOWER Always observe safety rules when per- NOTE: We do not recommend sharpening the blade - but if you do, be sure the blade forming any maintenance. is balanced. Care should be taken to TIRES keep the blade balanced. An unbalanced •...
  • Page 13 Checkthe crankcaseoil level before TO CLEAN AIR FILTER starting the engineand after each five (5) 1. Remove cover. hoursof continuoususe.Tightenoil plug 2. Carefully remove cartridge. securely each time you checkthe oil level. 3. Clean by gently tapping on a flat sur- face.
  • Page 14 A_'_WARNING: To avoid serious injury, Mowing before performing any service and adjustments: 1. Release control bar and stop engine. 2. Make sure the blade and all moving parts have completely stopped. 3. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

  • Page 15: Storage

    Immediatelyprepareyour lawn mowerfor Operator presence storageat the end of the season or if the control bar unit will not be usedfor 30 days or more. LAWN MOWER Lower When lawn mower is to be stored for a period of time, clean it thoroughly, remove all dirt, grease, leaves, etc.

  • Page 16: Troubleshooting

    CYLINDER • If possible, store your unit indoors and cover it to protect it from dust and dirt. 1. Remove spark plug. • Cover your unit with a suitable protec- 2. Pour one ounce (29 ml) of oil through tive cover that does not retain moisture. spark plug hole into cylinder.
  • Page 17 TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Service Center. PROBLEM CAUSE CORRECTION Loss of power 1. Rear of lawn mower 1. Raise cutting height. housing or cutting blade dragging in heavy grass. 2. Cutting too much grass. 2.
  • Page 18 Contratapa GARANTiA LIMITADA DE DOS AI_IOS PARA LA SEGADORA A MOTOR CRAFTSMAN Per dos (2) aSos, a partir de la fecha de compra, cuando esta Segadora Craftsman se mantenga, lubrique y afine segSn las instrucciones para la operaci6n y el mantenimiento en el manual del dueSo, Sears repararA gratis todo defecto en el material y la mane de obra.
  • Page 19 HACER: I. OPERAClON • Antes de empezar, debe familiarizarse comple- • Puede recortar a trav6s de la superficie de tamente con los controles y el uso correcto de la cuesta, nunca hacia ardba y hacia abajo. la maquina. Para esto, debe leer y comprender Proceda con extrema precauci6n cuando todas las instrucciones que aparecen en la ma- cambie de direcci6n en las cuestas.
  • Page 20 • Ayuda rapida por telefono - soporte tele- nuevo producto Craftsman® estA diseSado f6nico per parte de un t6cnico Sears sobre y fabricado para funcionar de modo fiable por productos que requieren un arreglo en casa, muchos aSos.
  • Page 21 Estos accesorios estaban disponibles cuando se produjo la segadora. No son facilitados junto al ¢ortacesped. Tambi6n estAn disponibles en la mayorfa de las tiendas de Sears yen los centros de servicio. Algunos de estos accesorios tat vez no se apliquen a su segadora. RENDIMIENTO DE LA SEGADORA DESVIADOR...
  • Page 22 Lea estas instrucciones y este manual comple- Barra de control c la presencia del operador tamente antes de tratar de montar u operar su Mango superior segadora nueva. IMPORTANTE: Este cortac_sped viene SIN ACEITE O GASOLINA en el motor. Mango Inferior Su segadora nueva ha side montada en la LEVANTAR f&brica con la excepci6n de aquellas partes que...
  • Page 23 FAMILIARICESE CON SU SEGADORA LEA ESTE MANUAL DEL DUENO Y LAS REGLAS DE SEGURIDAD ANTES DE OPARAR SU SEGADORA. Compare las ilustraciones con su segadora para familiarizarse con la ubicaci6n de los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos simbolos pueden apareser sobre su segadora o en la literatura proporcionada con el producto.
  • Page 24 PARA CONVERTIR LA SEGADORA La operaci6n de cualquier Su segadora fue enviada lista para usarse segadora puede hacer que como acolchadora de capa vegetal. Para con- satten objetos extrafios dentro de vertir la a una operaci6n de ensacado: sus ojos, Io que puede producir •...
  • Page 25 ANTES DE HACER ARRANCAR rapa del MOTOR rellenador AGREGUE ACEITE de gasolina Su segadora fue enviada sin aceite en el motor. Para el tipo y el grado del aceite a utilizar, vea el "MOTOR" en la secci6n del Mantenimiento este manual. _PRECAUCI(_N: NO sobrellene el motor con aceite, o fumar&...
  • Page 26 CONSEJOS PARA SEGAR CONSEJOS PARA SEGAR Y ACOL- • Bajo ciertas condiciones, tal como c_sped CHAR muy alto, puede ser necesario el elevar la IMPORTANTE: Para obtener el mejor altura del corte para reducir el esfuerzo rendimiento mantenga la caja de la segadora necesario para empujar la segadora y para sin acumulacion de cesped y basura.
  • Page 27 PROGRAMA DESPUES CADA ANTES DE CADA 25 HORAS O ALMACE- MANTENIMIENTO TEMPORAD. E_ Umpiadlnspeccionar el RecogedordeC_sped Controlar tos Neum_ticos Controlar tas Ruedas Mortices Umpiar la Segadora ..Umpiar debajo la Cubierta de la TransmisiSn Revisar las Correas y las Poteas Impulsadas •Jr Revisar / Afitar / Cambiar la Cuchilta...
  • Page 28 PARA AFILAR LA CUCHILLA SEGADORA Siempre observe las reglas de seguridad cu- AVISO: No recomendamoselafilarlacuchilla-pero ando haga el mantenimiento. silo hace, asegQrese de que quede balanceada. LLANTAS Se tiene que tener cuidado de mantenerla balanceada. Una cuchilla que no est& bal- •...
  • Page 29 Revise el nivet d elaceitedelc_rterantesde tras 100 horas de funcionamiento, m_s a menu- arrancar e l motor y despu6s decadacinco(5) do si se utiliza en condiciones de suciedad y horas de usocontinuado. Apriete eltap6ndel polvo particulares. No lave el filtro de aire. aceiteenformasegura cadavezquerevise el PARA LIMPIAR EL FILTRO DE AIRE nivel d elaceite.
  • Page 30 _._,DVERTENCIA: Paraevitartesi6nes serias, antesdedarcalquier s ervico o dehacer a justes: 1. Suelte la barradecontrol y pareelmotor. 2. Aseg_rese quetacuchillay que todas laspartes movibles s ehayan detenido completamente. 3. Desconecte elalambre d elabujfa ypSngalo e n donde nopuedaentrar e ncontacto con6sta. SEGADORA PARA AJUSTAR LA ALTURA DE CORTE Vea "PARA AJUSTAR LA ALTURA DE CORTE °...
  • Page 31 Inmediatamente prepare su segadora para el Barra de control que almacenamiento al final de cada temporada o si operador la unidad no se va a usar por 30 dias o mas. SEGADORA Cuando se va a guardar la segadora por cierto Mango periodo de tiempo, limpiela cuidadosamente, remueva toda la mugre, la grasa, las hojas, etc.
  • Page 32 CILINBRO • Si es posible, guarde su unidad en un recinto Remueva la bujia. cerrado y ct]brala para protegerla contra el Vacfe una onza (29 ml) de aceite a trav_s polvo y la mugre. del agujero de la bujfa en el cilindro. •...
  • Page 33 SOLUCION DE PROBLEMAS - Vea la secci6n apropiada en el manual amenos estd dirigido a un centro de servico Sears. PROBLEMA CAUSA CORRECCION Falta de 1. Cuchilla desgastada, doblada 1. Ajuste a la posici6n de ruerza o suelta. "Corte m&s alto" Altura de las ruedas dispareja.
  • Page 34 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.388820...
  • Page 35 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.388820 PART PART DESCRIPTION DESCRIPTION 86902 Control Bar 88652 Hinge Screw 169709X479 Spring, Rear Door, LH Upper Handle 165766 169708X479 Lower Handle 165767 Spring, Rear Door, RH Door Bolt 186079 Rope Guide / Anti-Fold Bracket...
  • Page 36 HONDA 4-CYCLE ENGINE MODEL NUMBER GCV-160-AS3A CHOKE LABEL FAN COVER CARBURETOR AIR CLEANER RECOIL STARTER...
  • Page 37 HONDA 4-CYCLE ENGINE MODEL NUMBER GCV-160-AS3A LABELS CAMSHAFT PULLEY PART PART DESCRIPTION DESCRIPTION 7400187 Mark, Choke Indication 7049679 Pulley Comp, Camshaft 5580063 Shaft, Cam Pulley 7058985 Belt, Timing (84HU7 G-200) CHOKE 5580089 Rocker Arm, Intake Valve 5580097 Rocker Arm, Exhaust Valve PART 5580105 Shaft, Rocker Arm...
  • Page 38 HONDA 4-CYCLE ENGINE MODEL NUMBER GCV-160-AS3A CYLINDER BARREL PISTON CONNECTING ROD I CRANKSHAFT OIL PAN] MUFFLER 7_!s?,'} J/_] u_' ,},,,_' _ L,b,y FLYWHEEL...
  • Page 39 HONDA 4-CYCLE ENGINE MODEL NUMBER GCV-160-AS3A CRANKSHAFT FLYWHEEL PART PART DESCRIPTION DESCRIPTION 5664495 Crankshaft Comp. 0348433 Key, Special, Woodruff #25 x 18 5581012 Washer, Thrust 6859722 Coil Assembly, Ignition 6859714 Flywheel Assembly 6315816 Cord, Stop Switch OIL PAN 5580683 Switch Assembly, Engine Stop 5580790 Spring, Brake Lever PART...
