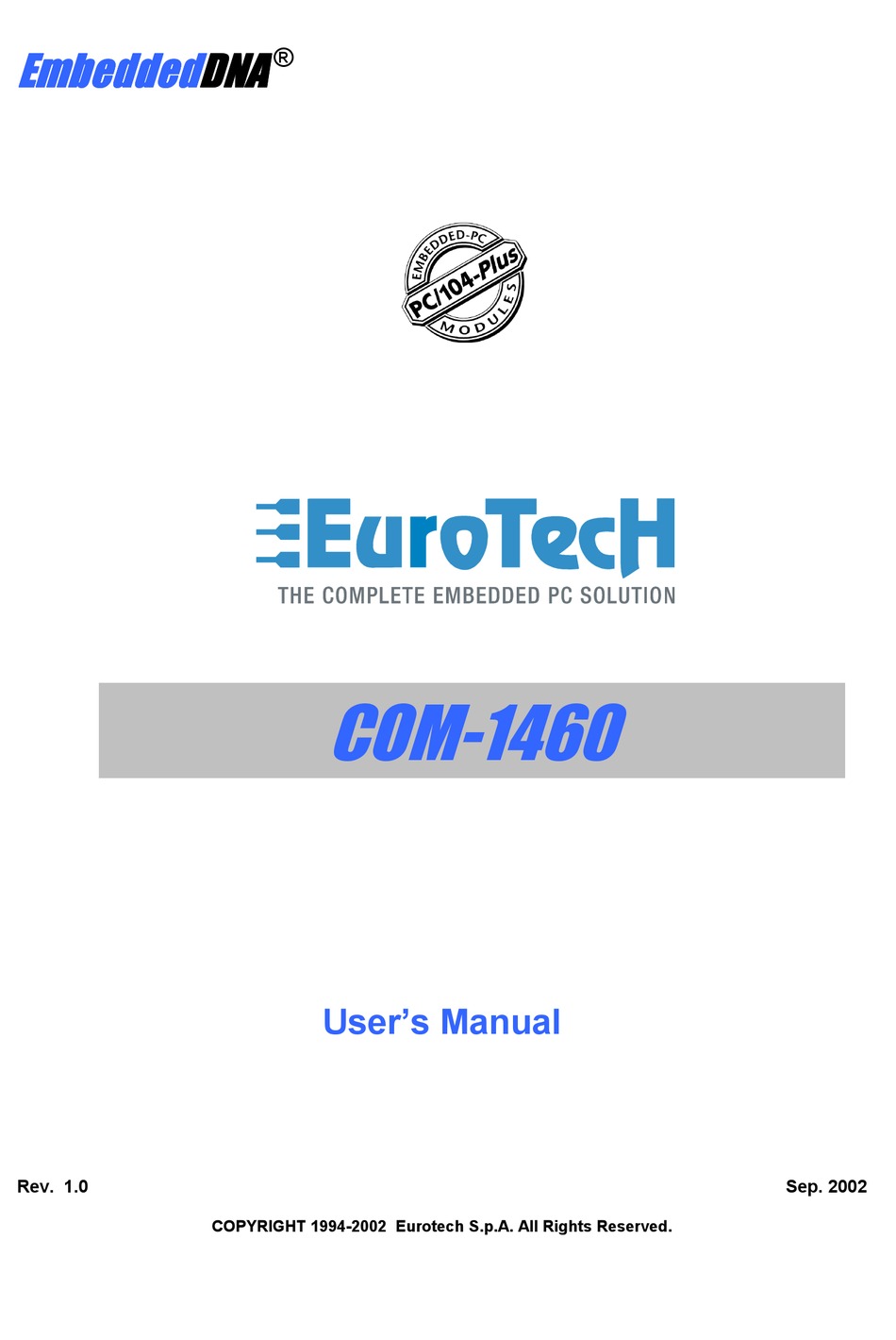

- Page 1 ® Embedded EmbeddedDNA Embedded Embedded COM-1460 PC/104-Plus CPU Module User’s Manual Rev. 1.0 Sep. 2002 COPYRIGHT 1994-2002 Eurotech S.p.A. All Rights Reserved.
- Page 2 PC/104-Plus – COM-1460 Module ABOUT THIS MANUAL This manual is meant for engineers and programmers who wish to develop systems based on the Eurotech COM-1460 PC/104-Plus module. It contains the module’s technical specifications, and describes the connections and firmware/software. It also describes how to install, configure and troubleshoot the COM-1460 module. Via J.
-
Page 3: Conventions
PC/104-Plus – COM-1460 Module Conventions The following table lists conventions that are used throughout this guide. Icon Notice Type Description Important features or Information note instructions Information to alert you to potential damage to a program, Warning system or device or potential personal injury... - Page 4 (This page is intentionally left blank.)
-
Page 5: Table Of Contents
Contents Conventions..............................3 Contents................................5 Chapter 1 Product Overview........................7 COM-1460 module’s functional blocks......................8 Product Definition ............................8 COM-1460 PC/104-Plus Module characteristics ..................8 Chapter 2 Jumper Description........................9 Jumper Layout and Configuration ........................ 10 Chapter 3 Connectors Description......................13 Connectors Layout ............................ - Page 6 PC/104-Plus – COM-1460 Module Returning For Service........................... 21 Appendix................................. 25 Electrical and Environmental Specifications..................26 Operating Characteristics ........................26 Absolute Maximum Ratings ........................26 MTBF ..............................27 Mechanical Dimensions........................28 Module Dimensions ..........................28 Safety Summary ..........................29 Ground the Instrument........................... 29 Do Not Operate in an Explosive Atmosphere..................
-
Page 7: Chapter 1 Product Overview
Chapter 1 Product Overview The COM-1460 is a PC/104-Plus module with 3 Firewire channels. For a complete list of Eurotech products please go to our web site: http://www.eurotech.it/ In the following paragraphs you will find a description of the COM-1460 characteristics. -
Page 8: Com-1460 Module's Functional Blocks
PC/104-Plus – COM-1460 Module COM-1460 module’s functional blocks The figure below shows the functional blocks diagram of the module. Firewire3 Firewire2 Firewire1 CTR-1460 Module Physical Interface TSB41LV03A PCI BUS ISA BUS Link (For signal pass PCI4450 Interface through only) Figure 1. Functional blocks of the COM-1460 module Product Definition COM-1460 PC/104-Plus Module characteristics... -
Page 9: Chapter 2 Jumper Description
Chapter 2 Jumper Description This chapter shows the jumpers layout and explains how to set up the jumpers. -
Page 10: Jumper Layout And Configuration
PC/104-Plus – COM-1460 Module Jumper Layout and Configuration The figure below shows the jumper layout of the COM-1460 module. In the figure below, the jumpers are indicated as followed by the jumper's number, while pin 1 of every three pin jumper is indicated by a red square pad. Figure 2. - Page 11 PC/104-Plus – COM-1460 Module The following table provides a quick cross-reference for them. Table 1. Jumpers Function Type Function Default Power supply for physical interface 3 pin 1-2: Reserved jumper 2-3: Power supply comes from J10 2pin GND to GND_A Open jumper JP2 must be left open...
- Page 12 (This page is intentionally left blank.)
-
Page 13: Chapter 3 Connectors Description
Chapter 3 Connectors Description This chapter provides a brief description of the COM-1460 module’s connectors, with their positions and functions. -
Page 14: Connectors Layout
PC/104-Plus – COM-1460 Module Connectors Layout The following figure shows the connectors with their layout and describes their function. Firewire Firewire Firewire Main Power J1 J2 PCI BUS Figure 3. Connectors layout Note: in the above figure, a red square pad indicates pin 1 of each connector. The table below lists the name of the connectors with their function and the reference page. -
Page 15: J1, J2 For The Isa Bus And J3 For The Pci Bus
PC/104-Plus – COM-1460 Module J1, J2 for the ISA Bus and J3 for the PCI Bus The ISA BUS Connectors J1 and J2 carry the signals for the ISA Bus. The ISA BUS signals are not used from the COM-1460. The only function of the ISA connector is the “passing-through”... - Page 16 PC/104-Plus – COM-1460 Module 1. Turn off power to the PC/104-Plus system or stack. 2. Select and install standoffs to properly position the module on the PC/104-Plus stack. 3. Touch a grounded metal part of the rack to discharge any buildup of static electricity. 4.
-
Page 17: J7, J8, J9 For Firewire
PC/104-Plus – COM-1460 Module J7, J8, J9 for Firewire Each of the Firewire ports - compliant with the IEEE 1394 OHCI standard - is a high speed bus that supports data transfer rates up to 400Mbps (100/200/400 Mbps selectable) and delivers more than 30 times the bandwidth of the popular USB peripheral standard. - Page 18 (This page is intentionally left blank.)
-
Page 19: Chapter 4 Troubleshooting
Chapter 4 Troubleshooting Many problems that you may encounter with your COM-1460 module are due to common errors such as bad (cable) connections or incorrect settings in the Setup Program. This chapter will help you attain proper system operation. It contains: Common problems and solutions Troubleshooting a PC/104-Plus system How to obtain technical support... -
Page 20: Common Problems And Solutions
PC/104-Plus – COM-1460 Module Common Problems and Solutions The following table lists some of the common problems that you may encounter using your COM-1460 module, and suggests possible solutions. If you have problems with your COM-1460 module, please review this table before contacting technical support. Table 4. -
Page 21: Returning For Service
PC/104-Plus – COM-1460 Module Visit the Eurotech web site for additional and current information: http://www.eurotech.it/ DownLoad Area and then select the Old and new versions of manuals, application notes, patches, drivers and BIOS files can be found at: ftp://ftp.eurotech.it/ Returning For Service Before returning any of Eurotech's products, you must call Eurotech Technical Support at +39-0433-485411 or fill in and send (by Fax: +39 0433 485499 or mailto:techsupp@eurotech.it) the “Repair Order Module”... - Page 22 (This page is intentionally left blank.)
-
Page 23: Serial Number
Repair Order Module For order repair or replacement of a defective Eurotech product, please complete this document. RMA: Don’t write anything into the space to the left. Your Return Material Authorization number will be assigned by Eurotech Technical Support Company Name: Division: Contact Name: Telephone:... - Page 24 (This page is intentionally left blank.)
-
Page 25: Appendix
Appendix... -
Page 26: A.1 Electrical And Environmental Specifications
PC/104-Plus – COM-1460 Module A.1 Electrical and Environmental Specifications The following section provides tables and illustrations showing the electrical, mechanical and environmental specifications for the COM-1460 module. In the following tables you will find: Operating Characteristics Electrical operating characteristics Operating temperature range Absolute maximum ratings MTBF Operating Characteristics... -
Page 27: Mtbf
PC/104-Plus – COM-1460 Module The module with extended Operating Temperature Range, –40°C to +85°C (-40°F to 185°F), version is also available. Warning! Stressing the device beyond the “Absolute Maximum Ratings” may cause permanent damage. These are stress ratings only. Operation beyond the “Operating Conditions” is not recommended. -
Page 28: A.2 Mechanical Dimensions
PC/104-Plus – COM-1460 Module A.2 Mechanical Dimensions Module Dimensions The COM-1460 module’s mechanical dimensions are shown in the following picture: Dimensions: 90 X 96 mm (3.6”X3.8”), height 15 mm (0.6”) 18.5 12.1 12.1 12.1 Ø 6.4 PAD Ø 3.2 HOLE 96.0 Dimensions are in millimeters Figure 9. -
Page 29: A.2 Safety Summary
PC/104-Plus – COM-1460 Module A.2 Safety Summary The following general safety precautions must be observed during all phases of operation, service, and repair of this equipment. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the equipment. Eurotech SpA assumes no liability for the customer’s failure to comply with these requirements. -
Page 30: Emi Caution
PC/104-Plus – COM-1460 Module EMI Caution This equipment generates, uses and can radiate electromagnetic energy. It may cause or be susceptible to electromagnetic interference (EMI) if not installed and used in a cabinet with adequate EMI protection. CE Notice This product complies with the EMC Directive (89/336/EEC). Compliance with this directive implies conformity to the following European Norms: EN55022 (CISPR 22) Radio Frequency Interference EN50082-1 (IEC801-2, IEC801-3, IEC801-4) Electromagnetic Immunity... -
Page 31: Glossary
Glossary Advanced Technology Attachment, is a disk drive implementation integrating the controller on the disk drive. There are several versions of ATA: ATA: Known also as IDE, supports one or two hard drives, a 16-bit interface and PIO modes 0, 1 and 2. - Page 32 PC/104-Plus – COM-1460 Module CPU (Central Processing Unit) is the heart (computational and control unit) of a computer. This device interprets and executes instructions. CVBS CVBS Composite Video Broadcasting Signal The Direct Memory Access is a technique for transferring data from the memory to a device. Data doesn’t pass through the CPU.
- Page 33 PC/104-Plus – COM-1460 Module Firewire Firewire is a high speed bus that supports data transfer rates up to 400Mbps (100/200/400 Mbps selectable) and delivers more than 30 times the bandwidth of the popular USB peripheral standard. Hard Disk Controller is a special-purpose chip and circuitry that directs and controls reading from and writing to a computer’s disk drive.
- Page 34 PC/104-Plus – COM-1460 Module references involve only the data standard, which is a byte stream used for controlling musical instruments and storing the output of such instruments. MPEG MPEG (Moving Picture Expert Group). Refers to one of several standard video-compression schemes. A CODEC for squeezing full-screen, VHS-quality digital video into a small data stream so that it can be played from a CD-ROM drive.
- Page 35 PC/104-Plus – COM-1460 Module RAM (Random Access Memory). Semiconductor-based memory that can be read-from and written-to by the microprocessor or other hardware devices. ROM stands for Read Only Memory. This memory can only be read-from but not written-to. SCSI SCSI stands for Small Computer System Interface. It is an I/O bus designed as a method for connecting several classes of peripherals to a host system without requiring modifications to generic hardware and software.
- Page 36 (This page is intentionally left blank.)
-
Page 37: Acronyms And Abbreviations
Acronyms and Abbreviations Advanced Power Management Line Printer AT Attachment Low Voltage Differential ATAPI ATA Packet Interface Megabyte BIOS Basic I/O System Mbps Megabits per second CVBS Composite Video Broadcasting Signal Megahertz Direct Memory Access MPEG Moving Picture Expert Group Error Correction Code NIDS Network Driver Interface Specification... - Page 38 PC/104-Plus – COM-1460 Module Technical & Sales Assistance If you have a technical question, please contact the Eurotech Customer Support Service mailto:techsupp@eurotech.it Old and new versions of manuals, application notes, patches, drivers and BIOS can be found at: ftp://ftp.eurotech.it/ If you have a sales question, please contact your local Eurotech Sales Representative or the Regional Sales Office for your area.
