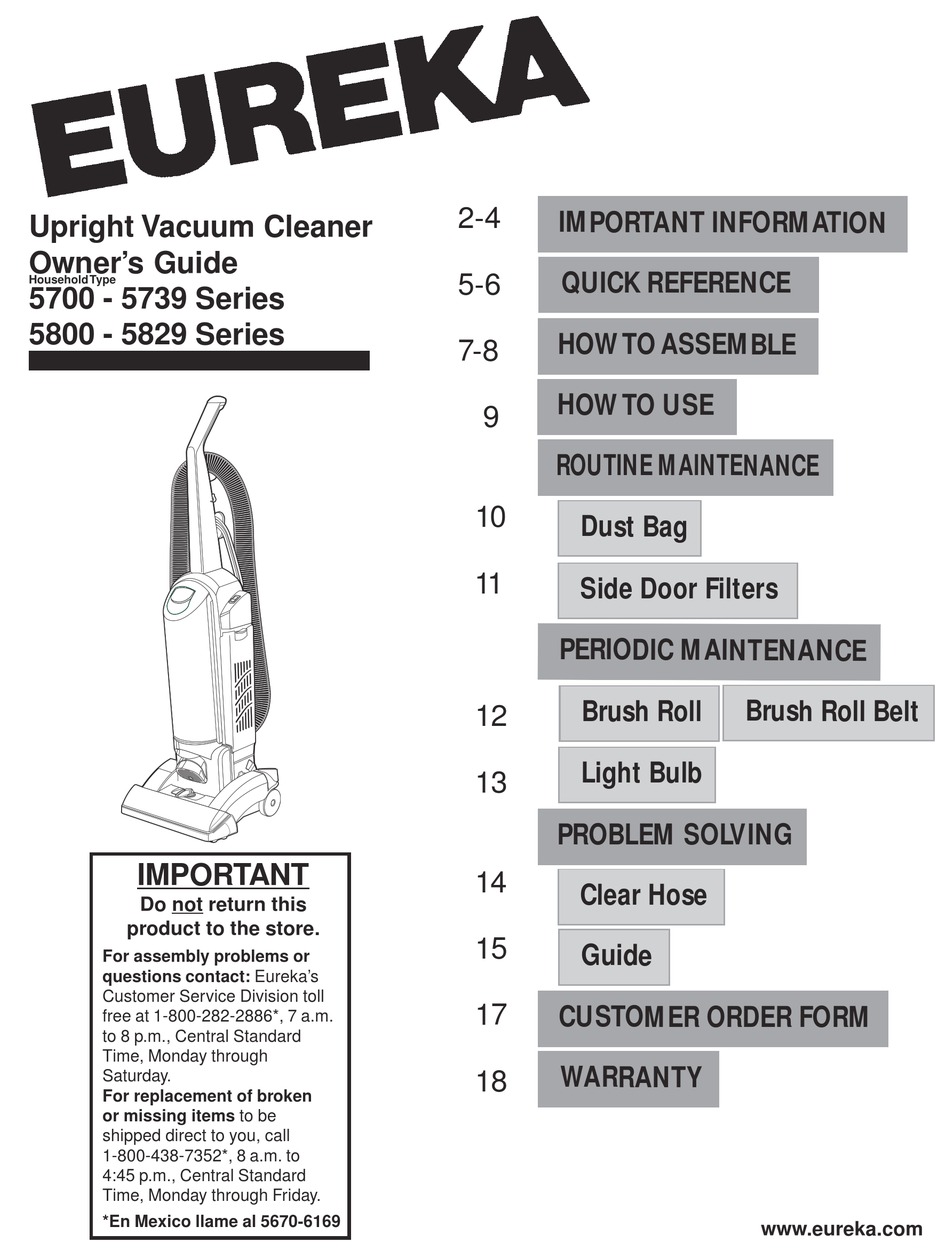

Upright Vacuum Cleaner
Owner's Guide
Household Type
5700 - 5739 Series
5800 - 5829 Series
IMPORTANT
Do not return this
product to the store.
For assembly problems or
questions contact: Eureka's
Customer Service Division toll
free at 1-800-282-2886*, 7 a.m.
to 8 p.m., Central Standard
Time, Monday through
Saturday.
For replacement of broken
or missing items to be
shipped direct to you, call
1-800-438-7352*, 8 a.m. to
4:45 p.m., Central Standard
Time, Monday through Friday.
*En Mexico llame al 5670-6169
2-4
5-6
7-8
9
10
11
12
13
14
15
17
18
www.eureka.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eureka 5700 - 5739 Series
Summary of Contents for Eureka 5700 - 5739 Series
- Page 1 5700 - 5739 Series 5800 - 5829 Series IMPORTANT Do not return this product to the store. For assembly problems or questions contact: Eureka’s Customer Service Division toll free at 1-800-282-2886*, 7 a.m. to 8 p.m., Central Standard Time, Monday through Saturday.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. WARNING To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. •... -
Page 3: Conseils De Sécurité
CONSEILS DE SÉCURITÉ Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires doivent être observées, incluant les suivantes: LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER VOTRE ASPIRATEUR. AVERTISSEMENT Pour réduire le risque de feu, de choc électrique, ou de blessure: • Ne pas utiliser à... -
Page 4: Service Information
If you prefer, you can write to The Eureka Company, Service Division, 807 North Main Street, Bloomington, Illinois 61701, USA. In Canada write to The Eureka Company, 866 Langs Drive, Cambridge, Ontario N3H 2N7. Refer to The Eureka Limited Warranty for complete service information. - Page 5 Cord Retainer. To use, push electrical cord down into cord retainer. ON/OFF Switch. International symbol I means On, International symbol O means Off. Dust Bag Cover Latch. Pull up on latch to remove bag cover giving access to the dust bag and motor filter. Filter Door Latch.
- Page 6 (I) position. The cleaner should turn on. 7. If the cleaner still does not operate, take it to any Eureka Authorized Service Center for repair. Call 1-800-282-2886 for the nearest Eureka Authorized Service Center to you.
-
Page 7: Attach Handle
CAUTION: Assemble the cleaner before using. CAUTION: Moving parts, make sure on/off switch is in off (0) position before plugging in. NOTE: Features may vary by model yet all parts assemble the same. Attach Hose Attach Handle CAUTION: Do not catch cord under handle. Upper Hose Retainer... - Page 8 Store Hose and Accessories Store Electrical Cord Nested Wands Cord Retainer Cord Hook Dusting Plug Brush Cord Hook You will find your cord retainer on the handle above the upper cord hook. Firmly push the electrical cord down into the cord retainer. This will place the cord out of the way the next time you vacuum.
- Page 9 ON/OFF Switch. International symbol I means On, International symbol O means Off. WARNING: Avoid injury. Keep loose clothing, Cleaner Height Setting. An adjustment hair, fingers, and all other parts of that raises or lowers the cleaner base body away from any moving part to match the type of floor surface.
- Page 10 The instructions in this booklet serve as a guide to routine maintenance. To avoid unnecessary service calls, check the dust bag, filters, belt, and brush roll often. NOTE: When vacuuming carpet fresheners or cleaners, powder, plaster dust, or similar fine substances, the dust bag and filters will require more frequent maintenance.
- Page 11 Pre-Motor 3. Reinstall filter after completely dry. Filter Use GENUINE EUREKA replacement pre-motor filter, Part No. 71480. Models equipped with Cartridge Filter Models equipped with Filter Pads (Only cartridge style filters can be used with these Check the filter pad each time the dust cup is models.)
-
Page 12: How To Replace Brush Roll Belt
10. Place hood back on cleaner. Make sure hood front Brush is behind furniture guard. Replace three screws. Roll 11. Tighten screws. 3. Lift left end of brush roll. Use GENUINE EUREKA replacement belt, Style U. 4. Remove and discard belt. Look for the GENUINE EUREKA product symbol. - Page 13 Lower handle. Remove the screw from lens cover. Requires a Phillips® head screwdriver. Pull lens cover from cleaner. Pull old light bulb out of socket. Push new light bulb into socket. Replace lens cover. Secure with screw. Use GENUINE EUREKA replacement light bulb, Part No. 57940-2.
- Page 14 To Clear Blockages in Hose Lower Hose Adapter Base Hose Nested Wands Locate lower hose adapter on the back of the cleaner. Remove lower hose adapter from rear of cleaner by lifting up and twisting. Check for blockages in the hose and base hose. Flexing the hose may help loosen any blockage.
-
Page 15: Time, Monday Through Saturday
NOTE: Turn off the switch and unplug the electrical cord before servicing. PROBLEM CAUSE SOLUTION ✓ Motor will not start. Electric Plug Push plug securely into outlet. Try another outlet. Check circuit breaker. ✓ Motor suddenly stops. Thermal Cut Off Page 6. -
Page 18: The Eureka Limited Warranty
This Warranty Covers Your Eureka cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of one year. The warranty is granted only to the original purchaser and members of his or her immediate household. The warranty is subject to the following provisions. - Page 20 Thank you for selecting a Eureka cleaner. Don’t Forget to Use Genuine Eureka Bags, Belts and Filters Caution: Damages caused by the use of non-genuine Eureka parts are not covered by the Eureka Limited Warranty. ©2002 White Consolidated, Ltd. Part No. 72104 (4/02)
