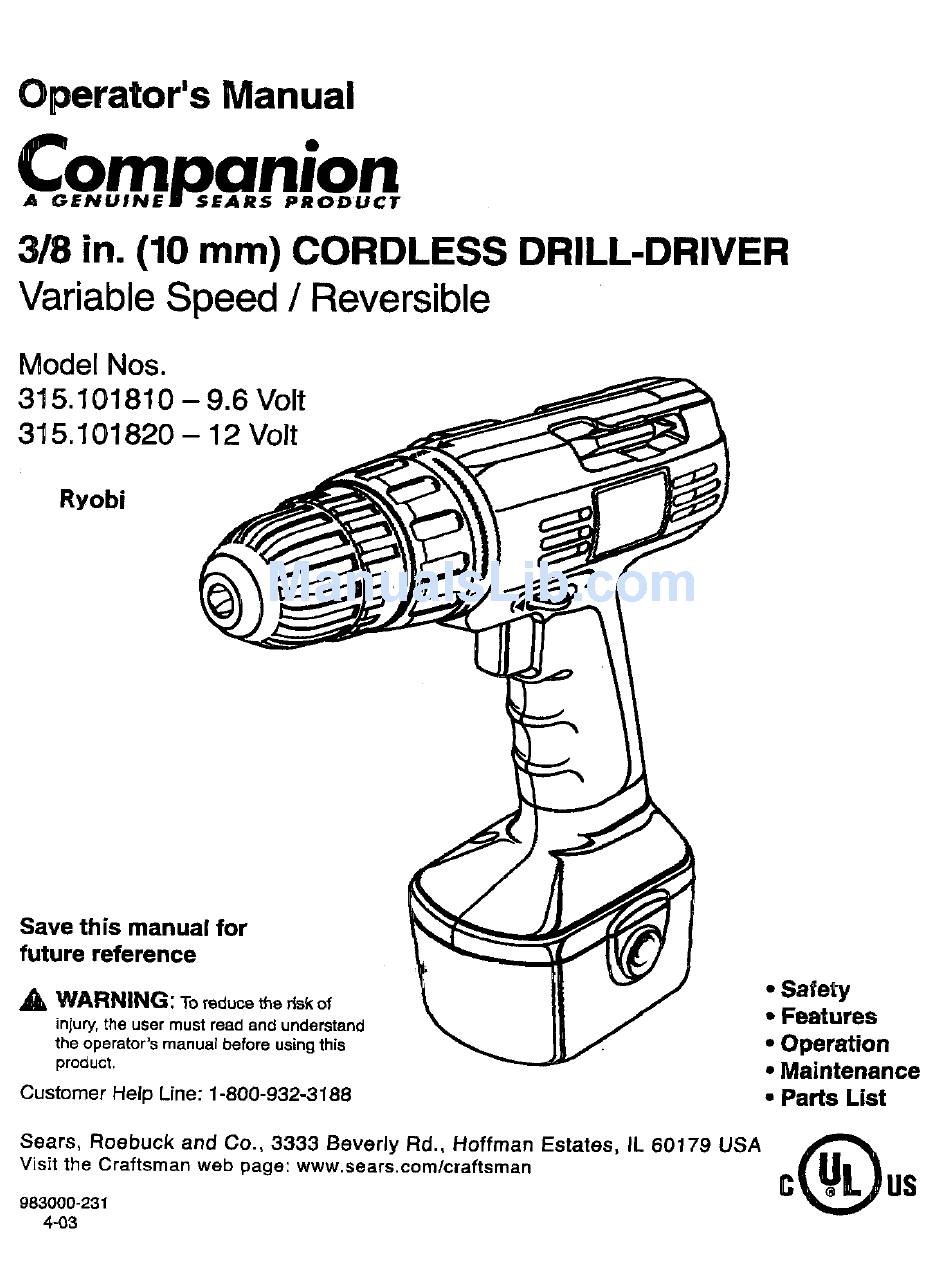

Page 1
• Operation the operator's manual before using this product, • Maintenance • Parts List Customer Help Lfne: 1-800-932-3188 Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 visit the Craftsman web page: www.sears.com/craftsman 983000-231 4-03...
Page 2
• General Safety Rules ..............................• Specific Safety Rules ..............................• Symbols ..................................• Specifications ................................. • Features ..................................• Operation .................................. 8-14 • Maintenance ...................._............... • Exploded View and Repair Parts List ........................... • Parts Ordering / Service ............................... FULL ONE YEAR WARRANTY ON COMPANION CORDLESS...
Read WARNING: end understand all Instnuc- Remove adjusting keys or wrenches before turn- Ing the tool on. A wrench or a I(ey that is left attached lions. Failure to follow all instructions (isled below, may result in electric shock, fire and[or serious to a rotating part of the tool may result in personal injury.
Page 4
• When servicing a toot, use only identical replace- SERVICE ment parts. Follow Instructions in the Maintenance • Tool service must be performed only by qualified sect|on of this manual. Use of unauthorizedparts or repair personnel. Service or maintenance performed failure to fallow Maintenance instructionsmay create a by unqualified personnel could result in a risk of injury.
Page 5
Do not operate charger with a damsged cord or WARNING: Never use a battery that has been dropped or received a sharp blow. A damaged plug. If damaged, have replaced Immediately by a qualified serviceman. Following this rule will reduce battery is subject to explosion.
Page 6
Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency...
MODEL NO.315.101810 MODEL NO. 315.101820 Chuck ........... 318 in. (tO mm) Keyless Chuck ........... 3/8 in. (10 mm} Keyless Motor ..............9.6 Volt DC Motor ..............12 Volt DC Switch ............Variable Speed Switch ............Variable Speed Gear Train ............. 1 Speed Gear Train .............
Page 8
TORQUE ADJUSTMENT R)HG KEYL_SS CHUCK STORAGE CHARGER ROTATION S ELEGTOR ASSEMBLY • After normal usage, 3 hours of charging time is WARNING: If any parts are missing, do not operate required to be fully charged. A minimum charge time this tool until the missing paris are replaced. Failure of 6 hours is required to recharge a completely to do so could...
TOINSTALL BATrERYPACK TO REMOVE BATTERY PACK Lock switch trigger on your drill by pla¢ir_ the direction Lock switch trigger on your drill by placing the direction of rotation selector in canter position. See Figure 3. of rotation selector In center position, See Figure 3. Locate latches on side of battery pack and depress both •...
SWITCH KEYLESS CHUCK See Figure 5. See Figure 6. Your drill starts and stops by depressing and releasing the A keyless chuck has been provided with your drill to allow for switch trigger. Release the switch tdgger to turn ddll OFF. easy installation and removal of bits, As the name implies, you can hand tighten or release drill bits in the chuck jaws.
INSTALLING BITS REMOVING BITS See Figure 7. Place the direction of rotation selector in center position. • Ptace the direction of rotation selector in center See Figure 3. This will turn oft the power to your drill. position. See Figure 3. This wi(l turn off the power to •...
Page 12
SCREWDRIVING BIT STORAGE TORQUE ADJUSTMENT See Figure 10. (Driving power of your drill-driver) When not in use, bits provided with your drill can be When using your drill-driver for various driving applica- placed in the storage area located on the top of your drill tions, it becomes necessary to increase or decrease the as shown in figure 10.
Page 13
WARN|NG: Always wear safety goggles or safety glasses with side shields when operating tool. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. DRILLING See Figure 11. When drilling hard, smooth surfaces, use a center punch to mark the desired hole location.
Page 14
CHUCK REMOVAL Insert hex key in chuck and tighten chuck jaws securely. Tap sharply with a mallet in a counterclockwise direction. See Figures 12, 13, and 14. This will loosen chuck on the spindle. It can now be • Lock the switch trigger by placing the direction of rotation unscrewed by hand,.
Do not abuse power tools. Abusive practices can damage WARNING: When servicing, use only Identica( tool as well as workptece. Sears replacement parts. Use of any other part may create a hazard or cause product damage. Only the parts shown on parts list, page 16, are intended to be repaired or replaced by the customer.
COMPANION 9.6 & 12 VOLT CORDLESS DRILL MODEL NOS. 315.101810 & 315.101820 The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your CORDLESS DRILL-DRIVER or when ordering repair parts. SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS i=l=...
Page 18
Your Home For repair-in your home-of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional'inStallation of home appliances and items like garage door openers and water heaters.
