Lvds Panel Voltage Selection Jumper; Fpd Brightness Connector; Lvds Inverter Power Voltage Selection Jumper - Intel D2550MUD2 Specification

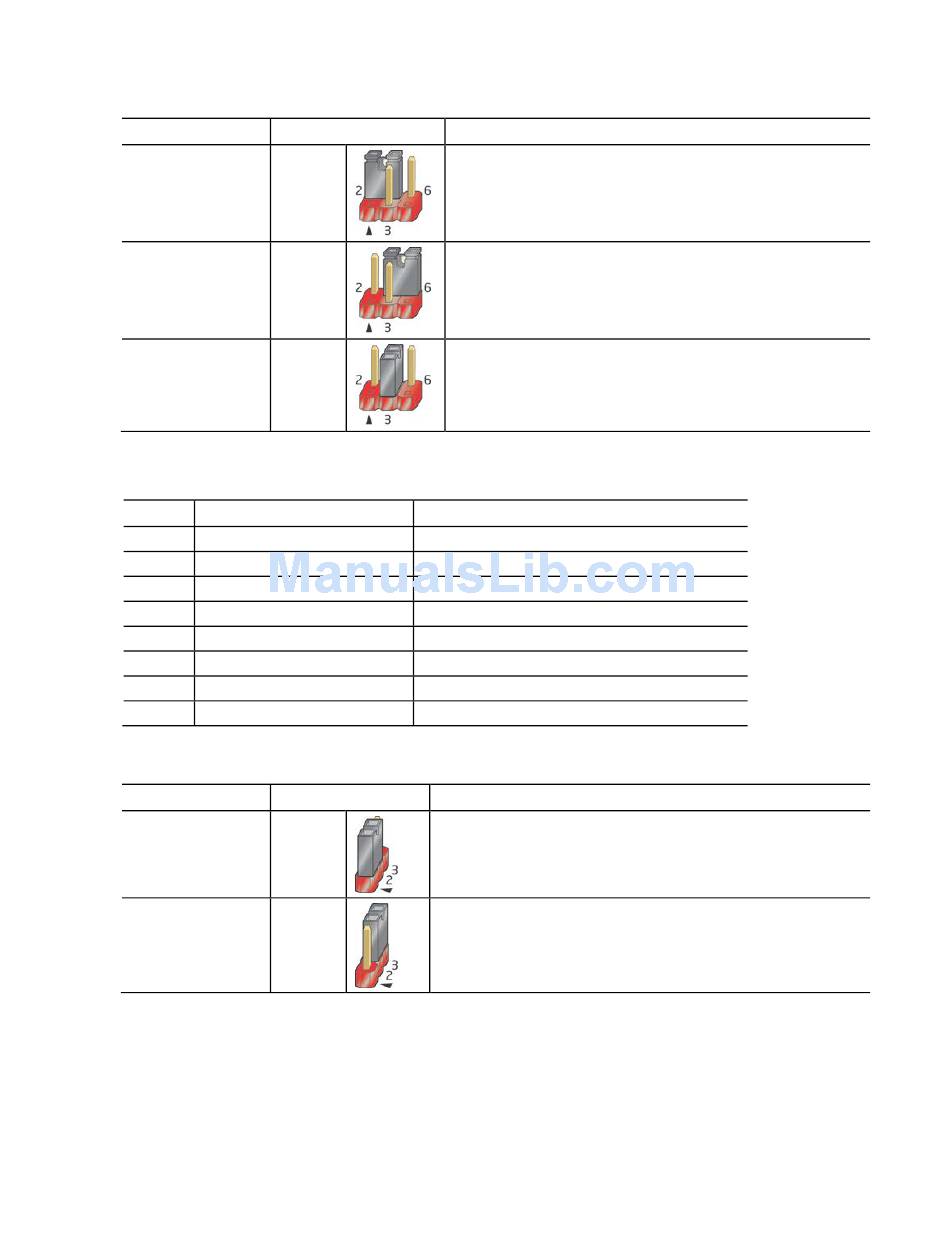

Table 14. LVDS Panel Voltage Selection Jumper
Voltage Jumper Setting
3.3 V 2 and 4
5 V 6 and 4
12 V 3 and 4
Table 15. FPD Brightness Connector
Pin Signal Name
1 BKLT_EN
2 BKLT_PWM
3 BKLT_PWR (5V/12V)
4 BKLT_PWR (5V/12V)
5 BKLT_GND/Brightness_GND
6 BKLT_GND/Brightness_GND
7 Brightness_Up
8 Brightness_Down
Table 16. LVDS Inverter Power Voltage Selection Jumper
Voltage Jumper Setting
5 V 1 and 2
12 V 3 and 2
Configuration
Jumper position for 3.3 V (default)
Jumper position for 5 V
Jumper position for 12 V
Description
Backlight enable
Backlight control
Backlight inverter power
Backlight inverter power
Ground (shared)
Ground (shared)
Panel brightness increase
Panel brightness decrease
Configuration
Jumper position for 5 V (default)
Jumper position for 12 V
Technical Reference
47
