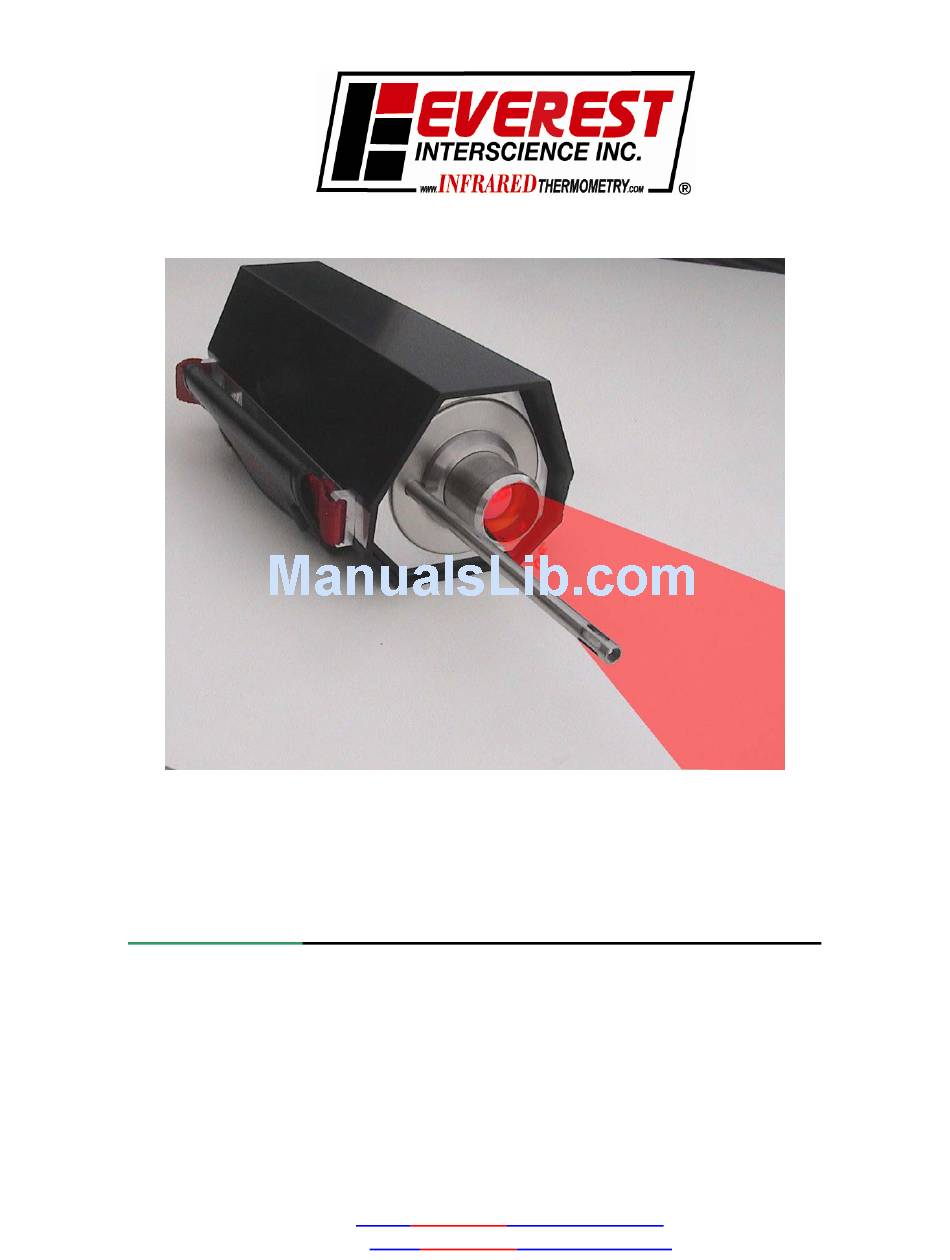

OPERATING MANUAL
FOR
AGRI-THERM II
HANDHELD DIFFERENTIAL THERMOMETER
MODEL 6110.4ZL
TEMPERATURE RANGE:
-40°C to 100°C or -40°F to 212°F
Physical Address: 1891 North Oracle
●
Tucson, AZ 85705-6444
Mailing Address: P. O. Box 5276
●
Tucson, AZ 85703-0276
Telephone: (520) 792-4545
●
Fax (520) 792-4546
●
Toll Free: (800) 422-4342
E-mail:
info@EVERESTInterscience.com
Website:
www.EVERESTinterscience.com
Advertisement
Table of Contents
Summary of Contents for Everest 6110.4ZL
- Page 1 OPERATING MANUAL AGRI-THERM II HANDHELD DIFFERENTIAL THERMOMETER MODEL 6110.4ZL TEMPERATURE RANGE: -40°C to 100°C or -40°F to 212°F Physical Address: 1891 North Oracle ● Tucson, AZ 85705-6444 Mailing Address: P. O. Box 5276 ● Tucson, AZ 85703-0276 Telephone: (520) 792-4545 ●...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CHAPTER INFORMATION PAGE INTRODUCTION Unpacking Your Infrared Thermometer OPERATING INSTRUCTIONS Battery Charging Procedure Abbreviations on Rear Panel Turning the AGRI-THERM II Emissivity Settings Surface Temperature Measurement Temperature Differential Measurement Ambient Temperature Measurement Signal Output THROUGH-THE-LENS INTRA-OPTICAL LIGHT SIGHTING TTL Intra-Optical Light Sighting Focusing with the... -
Page 3: Introduction
CHAPTER 1 INTRODUCTION verest Interscience, Inc., offers the most sophisticated non-contact infrared thermometers on the market today. The new AGRI-THERM II Handheld Differential Infrared Thermometer (Model 6110.4ZL) is the culmination of over thirty-eight years of research and development by our founder and President. These are revolutionary handheld infrared thermometers, as they can be focused in the field or lab using our Vario-Zooom... -
Page 4: Unpacking Your Infrared Thermometer
UNPACKING YOUR AGRI-THERM II INFRARED THERMOMETER hen you unpack your AGRI-THERM II Infrared Thermometer, please be sure the following items are enclosed: Your new Model 6110.4ZL AGRI-THERM II Infrared Thermometer 2. A Carrying Case 3. A Battery Charger 4. A Signal Output Cord 5. -
Page 5: Operating Instructions
CHAPTER 2 OPERATING INSTRUCTIONS BATTERY CHARGING PROCEDURE AGRI-THERM II has been charged at the factory before shipment. However, you may want to charge it again overnight before extended use. To recharge the batteries in your AGRI-THERM II Infrared Thermometer, plug the plug on the end of the six-foot lead of the supplied battery charger into the Rear Panel Jack of the infrared thermometer labeled “BATT.”... -
Page 6: Emissivity Settings
2.3 TURNING THE INSTRUMENT ON imply move the toggle switch on the Rear Panel entitled “PWR” to On. The “PWR” switch is located on the left side of the Rear Panel. EMISSIVITY SETTINGS (Target Emission Efficiency in %) missivity Compensation is done by pushing the “plus” (+) or “minus” (-) buttons on the Rear Panel of the infrared thermometer. -
Page 7: Signal Output
The following photograph shows where the “SEL,” “IR,” “DIFF,” and “AMB” buttons are located: 2.8 “DATA” OUTPUT He “DATA” output is on the upper right hand side of the face place of the AGRI- THERM II. The instrument is provided with a signal cord to connect to a data logger through this receptacle. -
Page 8: Through-The-Lens Intra-Optical Light Sighting
CHAPTER 3 THROUGH-THE-LENS (TTL) INTRA-OPTICAL LIGHT SIGHTING (Patent No. 4,494,881) 3.1 TTL SIGHTING ith the Everest Through-The-Lens (TTL) Intra-Optical Light Sighting System (Patent No. 4,494,881), an illuminated image of the infrared detector is projected directly through the infrared optics of the infrared temperature sensor, illuminating the exact area where a temperature measurement is being taken. - Page 9 To focus an instrument that will be used in the field or out-of-doors, first set the instrument up in subdued lighting in a laboratory. There you will be able to see the light being emitted by the Light Emitting Diode (LED) and determine the distance to spot size ratio.
-
Page 10: Agri-Therm
CHAPTER 4 SPECIFICATIONS AGRI-THERM II (Model 6110.4 ZL) SPECIFICATIONS TEMPERATURE MEASUREMENT Scale Range: -40˚C to 100˚C or -40˚F to 212˚F Resolution: 0.1˚C or 0.1˚F Accuracy: ±0.5˚C or ±1.0˚F Repeatability: ±0.1˚C or ±0.2˚F Temperature: All Functions in ˚C or ˚F, corresponding to voltage out Noise Effective Temperature: <0.1˚C or ºF Measurement Modes:... -
Page 11: Chapter 5 Maintenance
CHAPTER 5 MAINTENANCE 5.1 GENERAL AGRI-THERM II will be virtually maintenance free. It is recommended, however, that the instrument be returned to the factory after 24 months for a calibration check and recalibration, if necessary. It is important that you return the original battery charger with the instrument and to use this battery charger only when recharging your infrared thermometer. -
Page 12: Chapter 6 Limited Warranty Service Instructions
CHAPTER 6 ONE-YEAR LIMITED WARRANTY SERVICE INSTRUCTIONS verest Interscience warrants each instrument to be free of defects in material or workmanship for a period of one year from the date of shipment to the original purchaser. When examination of the instrument reveals that the fault has not occurred because of misuse or abnormal conditions of operation, Everest Interscience will service, replace or adjust any defective part or parts when the instrument is returned freight prepaid. - Page 13 EVEREST INTERSCIENCE, INC. 1891 NORTH ORACLE ROAD TUCSON, AZ 85705-6444 USA Please include a letter explaining the difficulty that you are having with the instrument, or complete the RMA Form provided to you, when returning the instrument for repair. An RMA Form can be downloaded from our website: www.EVERESTInterscience.com.
