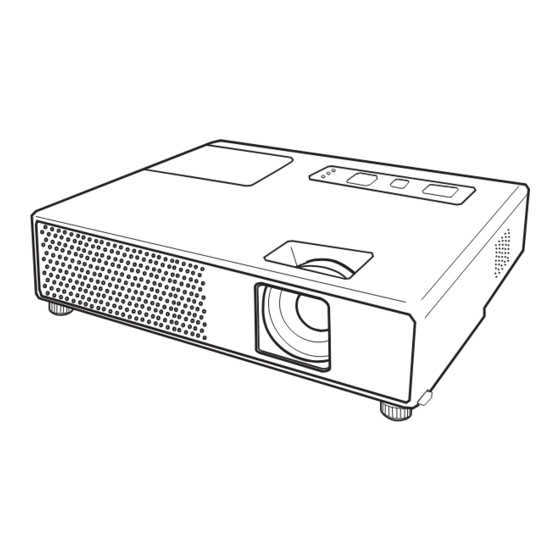

Projector
8783
User's Manual (detailed)

Operating Guide

Thank you for purchasing this projector.
WARNING ►Before using this product, please read all manuals for this
product. Be sure to read "Safety Guide" first. After reading them, store them in
a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
CAUTION
This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.
 Please refer to the pages written following this symbol.
NOTE • The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transfer or copy of all or any part of this document is not permitted
without express written consent.
Trademark acknowledgment
• Mac is registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
All other trademarks are the properties of their respective owners.


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8783 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dukane 8783

Summary of Contents for Dukane 8783

  • Page 1: About This Manual

    Projector 8783 User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” first. After reading them, store them in a safe place for future reference. About this manual Various symbols are used in this manual.

  • Page 2: Table Of Contents

    Content Content   About this manual . . . . . . . . . . 1 EASY MENU . . . . . . . . . . . . . . 21 Content .

  • Page 3: Projector Features

    Projector features / Preparations Projector features This projector has a capability to project various picture signals onto a screen. This projector requires only a minimal amount of space for installation and can produce a large projected image from even a short distance. The compact and light body of the projector can give a benefit to mobile users to carry it to anywhere comfortably.

  • Page 4: Part Names

    Part names Part names HOT! (1) (2) (3) Projector (1) Lamp cover (52) The lamp unit is inside. (2) Focus ring (16) (3) Zoom ring (16) (10) (4) Control panel (5) (9) (8) (11) (Bottom) (5) Speaker (32) (6) Elevator knobs (x 2) (16) (7) Elevator feet (x 2) (16) (8) Lens (13, 55) (9) Lens cover (3)

  • Page 5: Control Panel

    Part names (4) (5) (6) Control panel LAMP INPUT/ (1) STANDBY/ON button (13) STANDBY/ON ENTER MENU (2) INPUT/ENTER button (14, 20) TEMP (3) MENU button (20) POWER It consists of four cursor buttons. (4) POWER indicator (13, 57) (5) TEMP indicator (57) (6) LAMP indicator (57) Remote control (1) VIDEO button (15)

  • Page 6: Setting Up

    Setting up Setting up Install the projector according to the environment and manner the projector will be used in. Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1280x800. (a) Screen size (diagonal) (b) Projection distance (±10%) (c) Screen height (±10%)
  • Page 7 Setting up Arrangement (continued) WARNING ►Place the projector in a stable horizontal position. If the projector falls or is knocked over it could cause injury and/or damage to the projector. Using a damaged projector could then result in fire and/or electric shock.

  • Page 8: Connecting Your Devices

    Setting up Connecting your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them.
  • Page 9 Setting up Connecting your devices (continued) NOTE • Be sure to read the manuals for devices before connecting them to the projector, and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the resolution. - Some signal may need an adapter to input this projector.

  • Page 10: Connecting Power Supply

    Setting up Connecting power supply POWER indicator Put the connector of the power cord into the AC inlet of the projector. POWER Firmly plug the power cord’s plug into AC inlet the outlet. In a couple of seconds after Connector of the the power supply connection, the POWER power cord to the outlet...

  • Page 11: Remote Control

    Remote control Remote control Putting batteries Please set the batteries to the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place. Holding the hook part of the battery cover, remove it.

  • Page 12: Changing The Frequency Of Remote Control Signal

    Remote control Changing the frequency of remote control signal The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote MY SOURCE/ VIDEO COMPUTER DOC.CAMERA control does not function properly, attempt to change the signal ASPECT AUTO SEARCH...

  • Page 13: Power On/Off

    Power on/off Power on/off Turning on the power STANDBY/ON button POWER indicator Make sure that the POWER indicator turns in steady orange and the lens cover is removed. LAMP INPUT/ COMPUTER/ STANDBY/ON ENTER Press the STANDBY/ON button on the projector or STORAGE MENU SEARCH...

  • Page 14: Operating

    Operating Operating Adjusting the volume VOLUME +/- button Use the VOLUME +/VOLUME - buttons to adjust the volume. A dialog will appear on the screen to aid you in adjusting the volume. MY SOURCE/ VIDEO COMPUTER DOC.CAMERA If you do not do anything, the dialog will automatically disappear after AUTO ASPECT SEARCH...

  • Page 15: Searching An Input Signal

    Operating Selecting an input signal (continued) VIDEO button Press the VIDEO button on the remote control. Each time you press the button, the projector switches its input port as below. MY SOURCE/ VIDEO COMPUTER DOC.CAMERA S-VIDEO VIDEO ASPECT AUTO SEARCH BLANK FREEZE PAGE...

  • Page 16: Adjusting The Projector's Elevator

    Operating Adjusting the projector's elevator When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the projector within 11 degrees.

  • Page 17: Using The Automatic Adjustment Feature

    Operating Using the automatic adjustment feature AUTO button Press the AUTO button on the remote control. Pressing this button performs the following.  For a PC signal MY SOURCE/ VIDEO COMPUTER DOC.CAMERA The vertical position, the horizontal position, the horizontal ASPECT AUTO SEARCH...

  • Page 18: Correcting The Keystone Distortions

    Operating Correcting the keystone distortions KEYSTONE button Press the KEYSTONE button on the remote control. A dialog will appear on the screen to aid you in correcting the distortion. MY SOURCE/ COMPUTER VIDEO DOC.CAMERA ASPECT AUTO SEARCH BLANK Use the ▲/▼ cursor buttons to select the AUTO or MANUAL FREEZE PAGE VOLUME...

  • Page 19: Freezing The Screen

    Operating Freezing the screen Press the FREEZE button on the remote control. FREEZE button The “FREEZE” indication will appear on the screen (although the indication will not appear when the TURN OFF is selected MY SOURCE/ VIDEO COMPUTER DOC.CAMERA to the MESSAGE item of the SCREEN menu (36)), and the AUTO ASPECT SEARCH...

  • Page 20: Using The Menu Function

    Operating Using the menu function This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, C.C. and EASY MENU. EASY MENU consists of functions often used, COMPUTER/ STORAGE SEARCH VIDEO and the other menus are classified into each purpose. Each of these menus is operated ASPECT AUTO BLANK...

  • Page 21: Easy Menu

    EASY MENU EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table. Item Description Using the ◄/► buttons switches the mode for aspect ratio. ASPECT See the ASPECT item in IMAGE menu (26).

  • Page 22: Language

    EASY MENU EASY MENU (continued) Item Description Using the ◄/► buttons adjusts the brightness. BRIGHTNESS See the BRIGHTNESS item in PICTURE menu (23). Using the ◄/► buttons adjusts the contrast. CONTRAST See the CONTRAST item in PICTURE menu (23). Using the ◄/► buttons adjusts the strength of whole color. COLOR See the COLOR item in PICTURE menu (24).

  • Page 23: Picture Menu

    PICTURE Menu PICTURE Menu From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...
  • Page 24 PICTURE Menu PICTURE Menu (continued) Item Description Using the ▲/▼ buttons switches the color temperature mode. #1 HIGH DEFAULT � #1 HIGH CUSTOM � #2 MID DEFAULT � � #2 MID CUSTOM #6 Hi-BRIGHT-3 CUSTOM � � #3 LOW DEFAULT #6 Hi-BRIGHT-3 DEFAULT �...
  • Page 25 PICTURE Menu PICTURE Menu (continued) Item Description This projector has 4 memories for adjustment data (for all the items of the PICTURE menu). Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function. LOAD1 ó...

  • Page 26: Image Menu

    IMAGE Menu IMAGE Menu From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...
  • Page 27 IMAGE Menu IMAGE Menu (continued) Item Description Using the ▲/▼ buttons adjusts the horizontal phase to eliminate flicker. Right ó Left H PHASE • This item can be selected only for a computer signal or component video signal. Using the ▲/▼ buttons adjusts the horizontal size. Large ó...

  • Page 28: Input Menu

    INPUT Menu INPUT Menu From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...

  • Page 29: Ideo Format

    INPUT Menu INPUT Menu (continued) Item Description Set the video format for the s-video port and video port. (1) Use the ◄/► buttons to select the input port. (2) Using the ▲/▼ buttons switches the mode for video format. AUTO ó NTSC ó PAL ó SECAM VIDEO FORMAT N-PAL ó...
  • Page 30 INPUT Menu INPUT Menu (continued) Item Description The resolution for the COMPUTER IN1 and COMPUTER IN2 input signals can be set on this projector. (1) In the INPUT menu select the RESOLUTION using the ▲/▼ buttons and press the ► button. The RESOLUTION menu will be displayed.

  • Page 31: Setup Menu

    SETUP Menu SETUP Menu From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button on the ENTER button to execute the item. Then perform it according to the following table. Item Description Selecting this item performs the automatic keystone distortion...
  • Page 32 SETUP Menu SETUP Menu (continued) Item Description Using the ▲/▼ buttons turns off/on the whisper mode. NORMAL ó WHISPER WHISPER • When the WHISPER is selected, acoustic noise and screen brightness are reduced. Using the ▲/▼ buttons switches the mode for mirror status. NORMAL ó...

  • Page 33: Audio Menu

    AUDIO Menu AUDIO Menu From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table.

  • Page 34: Screen Menu

    SCREEN Menu SCREEN Menu From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ▲/▼...

  • Page 35: Tart Up

    SCREEN Menu SCREEN Menu (continued) Item Description Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected. MyScreen ó ORIGINAL ó TURN OFF Feature Screen can be registered by the MyScreen item MyScreen...
  • Page 36 SCREEN Menu SCREEN Menu (continued) Item Description When the registration is completed, the registered screen and the following message is displayed for several seconds: “MyScreen registration is finished.” If the registration failed, the following message is displayed: MyScreen “A capturing error has occurred. Please try again.” (continued) •...
  • Page 37 SCREEN Menu SCREEN Menu (continued) Item Description Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE NAME and press the ► button. The SOURCE NAME menu will be displayed. (2) Use the ▲/▼...

  • Page 38: Option Menu

    OPTION Menu OPTION Menu From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME.
  • Page 39 OPTION Menu OPTION Menu (continued) Item Description Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically. AUTO OFF When the time is set to 1 to 99, and when the passed time with no- signal or an unsuitable signal reaches at the set time, the projector...
  • Page 40 OPTION Menu OPTION Menu (continued) Item Description This item is to assign one of the following function to MY BUTTON 1 and 2 on the remote control (5). Choose 1 or 2 on the MY BUTTON menu using the ◄/► button first.
  • Page 41 OPTION Menu OPTION Menu (continued) Item Description AUTO ADJUST Using the ▲/▼ buttons enables/disables the automatic adjustment. When DISABLE is selected, the automatic adjustment feature is disabled, although rough adjustment is automatically performed depending on the basic setting. FINE ó FAST ó DISABLE FINE: Finer tuning including H.SIZE adjustment.
  • Page 42 OPTION Menu OPTION Menu (continued) Item Description KEY LOCK Using the ▲/▼ buttons turns on/off the key lock feature. When TURN ON is selected, the buttons on the projector except the STANDBY/ON button are locked. TURN ON ó TURN OFF •...
  • Page 43 OPTION Menu OPTION Menu (continued) Item Description This projector is equipped with security functions. User registration is required before using the security functions. Please contact your local dealer. 1. Using Security Features 1.1 Inputting the PASSWORD 1.1-1 Use the ▲/▼ buttons on the OPTION menu to select SECURITY and press the ►...

  • Page 44: Using The Myscreen Password Function

    OPTION Menu OPTION Menu (continued) Item Description 1.3 If you have forgotten your PASSWORD 1.3-1 Follow the procedure in 1.1-1 to display the ENTER PASSWORD BOX. 1.3-2 While the ENTER PASSWORD BOX is displayed, press and hold the RESET button for about 3 seconds or press and hold the INPUT and ►...

  • Page 45: Using The Pin Lock Function

    OPTION Menu OPTION Menu (continued) Item Description 2.2-4 Move the cursor to the right side of the CHECK PASSWORD BOX and press the ► button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time. Pressing the ENTER button will return to MyScreen PASS WORD on/off menu.
  • Page 46 OPTION Menu OPTION Menu (continued) Item Description 3.1-2 Use the ▲/▼ buttons on the PIN LOCK on/off menu to select TURN ON and the PIN BOX will be displayed. 3.1-3 Input a 4 part PIN Code using the ▲, ▼, ◄, ►, COMPUTER and INPUT buttons.

  • Page 47: Using The Transition Detector Function

    OPTION Menu OPTION Menu (continued) Item Description 4. Using the Transition Detector Function While the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below. • Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed.
  • Page 48 OPTION Menu OPTION Menu (continued) Item Description 4.3 Setting the Transition Detector off 4.3-1 Follow the procedure in 4.1-1 to display the Transition Detector on/off menu. 4.3-2 Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered PASSWORD and the screen will return to the Transition Detector on/off menu.

  • Page 49: Using The My Text Password Function

    OPTION Menu OPTION Menu (continued) Item Description 5. Using the MY TEXT PASSWORD function This item allows you to display your own message (MY TEXT) on the START UP screen and INPUT-INFORMATION. It can be protected by a password to prevent it from being overwritten.
  • Page 50 OPTION Menu OPTION Menu (continued) Item Description 5.3 Turning on the MY TEXT PASSWORD The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. 5.3-1 Turning on the MY TEXT PASSWORD function (1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT PASSWORD menu and press the ►...

  • Page 51: Uto Off

    C .C . (Closed Caption) Menu C.C. (Closed Caption) Menu The closed caption setting can be changed through C.C. menu in the advance menu. Please select the item that you will change using ▲/▼ cursor buttons. The C.C. (Closed Caption) is the function that displays a •...

  • Page 52: Maintenance

    Maintenance Maintenance Lamp A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.

  • Page 53: Lamp Warning

    Maintenance Lamp (continued) Lamp warning HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE WARNING ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.

  • Page 54: Air Filter

    Maintenance Air filter Please check and clean the air filter periodically. When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. Replace the air filter when it is damaged or too soiled. To prepare a new air filter, contact your dealer and tell the air filter type number.

  • Page 55: Other Care

    Maintenance Other care Inside of the projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year. Caring for the lens If the lens is flawed, soiled or fogged, it could cause deterioration of display quality.

  • Page 56: Troubleshooting

    Troubleshooting Troubleshooting If an abnormal operation should occur, stop using the projector immediately. WARNING ►Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately disconnect the power plug from the power outlet.

  • Page 57: Regarding The Indicator Lamps

    Troubleshooting Regarding the indicator lamps When operation of the LAMP, TEMP and POWER indicators differs from usual, check and cope with it according to the following table. POWER LAMP TEMP Description indicator indicator indicator Lighting Turned Turned The projector is in a standby state. Orange Please refer to the section “Power on/off”.

  • Page 58: Shutting The Projector Down

    Troubleshooting Regarding the indicator lamps (continued) POWER LAMP TEMP Description indicator indicator indicator There is a possibility that the interior portion has become heated. Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has Blinking sufficiently cooled down, please make confirmation of Turned...

  • Page 59: Phenomena That May Be Easy To Be Mistaken For Machine Defects

    Troubleshooting Phenomena that may be easy to be mistaken for machine defects About the phenomenon confused with a machine defect, check and cope with it according to the following table. Reference Phenomenon Cases not involving a machine defect page The electrical power cord is not plugged in. Correctly connect the power cord.
  • Page 60 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The brightness is adjusted to an extremely low level. 21, 23 Adjust BRIGHTNESS to a higher level using the menu function or the remote control.

  • Page 61: Specifications

    Specifications Specifications Item Specification Product name Liquid crystal projector Panel size 1.5cm (0.54 type) Liquid Crystal Drive system TFT active matrix Panel Pixels 1,024,000 pixels (1280 horizontal x 800 vertical) Lens Zoom lens F=1.7~1.9 f=19~23 mm Lamp 90W UHP Audio output 1 W x1 Power supply AC100-120V/3.4A, AC220-240V/1.7A...
