- Page 1 M3 SERIES OWNER'S MANUAL INTEGRATED SYSTEMS COMPONENT SYSTEMS M331i - M341i M341 M351i - M361i M351 M371I - M391i M361...
- Page 2 By your purchase of this product you have joined the growing family of discerning listeners who demand only the best. Welcome!! Sincerely, Rikki Farr Chairman, CEO Diamond Audio Technology, Inc. To learn more about the Diamond family, please visit our web site, www.diamondaudio.com...
-
Page 3: Thiele Small Parameters

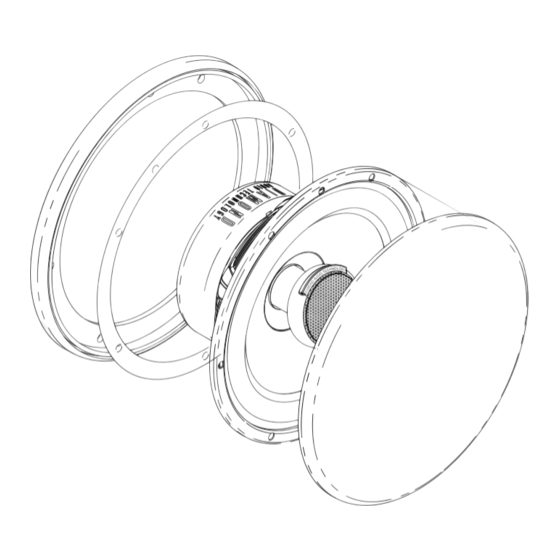

FEATURES - TEXTURED, CO-POLYMER CONES - micro texture improves high frequency response. - PROPRIETARY FRAMES - heavy gauge steel for increased stiffness, low resonance. - BUTYL RUBBER SURROUNDS - impervious to environmental degradation. - ALUMINUM DOME TWEETERS - smooth audiophile response. - DIAMOND AUDIO QUALITY - 3 year warranty with authorized dealer installation. - Page 4 INTEGRATED SYSTEMS - PARTS LIST (M331i, M341i, M351i, M361i, M371i, M391i) Each system contains: (2) M3 Speakers (2) M3 Grilles with Mount Ring* (2) Mounting Gaskets (1) Mounting hardware kit (2) 4x6 adaptors (M341i only) ASSEMBLY The drawing below shows the parts included and correct assembly of M3 integrated and M3 component midrange drivers.
-
Page 5: Surface Mount
M3 COMPONENT SYSTEMS COMPONENT SYSTEMS - PARTS LIST Gasket (M341, M351, M361) Mounting Each system contains: (2) M3 Speakers (2) M3 Grilles with Mounting Rings Tweeter (2) Mounting Gaskets Spring (2) M3 Crossovers Clip (2) M3 Aluminum Dome Tweeters with Flush Mount cups (2) M3 Tweeter Surface Mount Cups (1) Speaker Mounting hardware kit... - Page 6 M331i General dimensions in millimeters and [inches]. Not to scale. 118 [4.64"] 106 [4.16"] 4 [0.16"] 5 [0.19"] [0.43"] Ø88 [3.46"] [0.51"] [1.56"] Ø82 [3.23"]...
- Page 7 M341, M341i General dimensions in millimeters and [inches]. Not to scale. [5.10"] [4.63"] 140.5 [5.53"] [0.71"] 5 [0.19"] [0.11"] [1.81"] 72 [2.83"] 100 [3.93"]...
- Page 8 M351, M351i General dimensions in millimeters and [inches]. Not to scale. Ø 4.3 Ø 133 [0,16"] [5.24"] Ø 156 [6.14"] Ø 142 [5.59"] [1.02"] 6 [0.22"] [0.12"] 57.5 [2.26"] Ø 79 [3.11"] Ø 119 [4.68"]...
- Page 9 M361, M361i General dimensions in millimeters and [inches]. Not to scale. Ø4.3 [0.16"] Ø150 [5.90"] Ø174 [6.85"] Ø159 [6.25"] [0.12"] 63.5 [2.5"] Ø89 [3.50"] Ø136 [5.35"]...
- Page 10 M371i General dimensions in millimeters and [inches]. Not to scale. 114 [4.48"] 109 [4.29"] 107 [4.21"] [0.39"] [5.0"] [4.52"] [5.51"] [0.28"] [4.29"] 204 [8.03"] 220 [8.66"] 60.5 [2.38"] 180 x 125 [7.08" x 4.92"]...
- Page 11 M391i General dimensions in millimeters and [inches]. Not to scale. 169 [6.65"] 165 [6.49"] [4.84"] [6.42"] [4.57"] 232 [9.13"] 266 x 180 [10.47" x 7.08"] [0.82"] [0.11"] [3.03"] 214 x 125 [8.43" x 4.92"]...
- Page 12 LIMITED WARRANTY STATEMENT Diamond Audio Technology, Inc. (DAT) warrants all DAT products to be free of defects in material and workmanship for a period of one (1) year form the date of original purchase provided they are purchased from an authorized DAT retailer in the United States. However, the effective warranty period will be three (3) years if the products were purchased from and installed by an authorized DAT retailer.
