USER GUIDE 3918
User's Guide for the MAX6877 Power-Supply
Tracker/Sequencer
By: Eric Schlaepfer, Applications Engineer
Sep 20, 2006
Abstract: This application note is a step-by-step User's Guide for designing with the MAX6877 voltage
tracker and sequencer. The note explains how to make suitable component calculations.

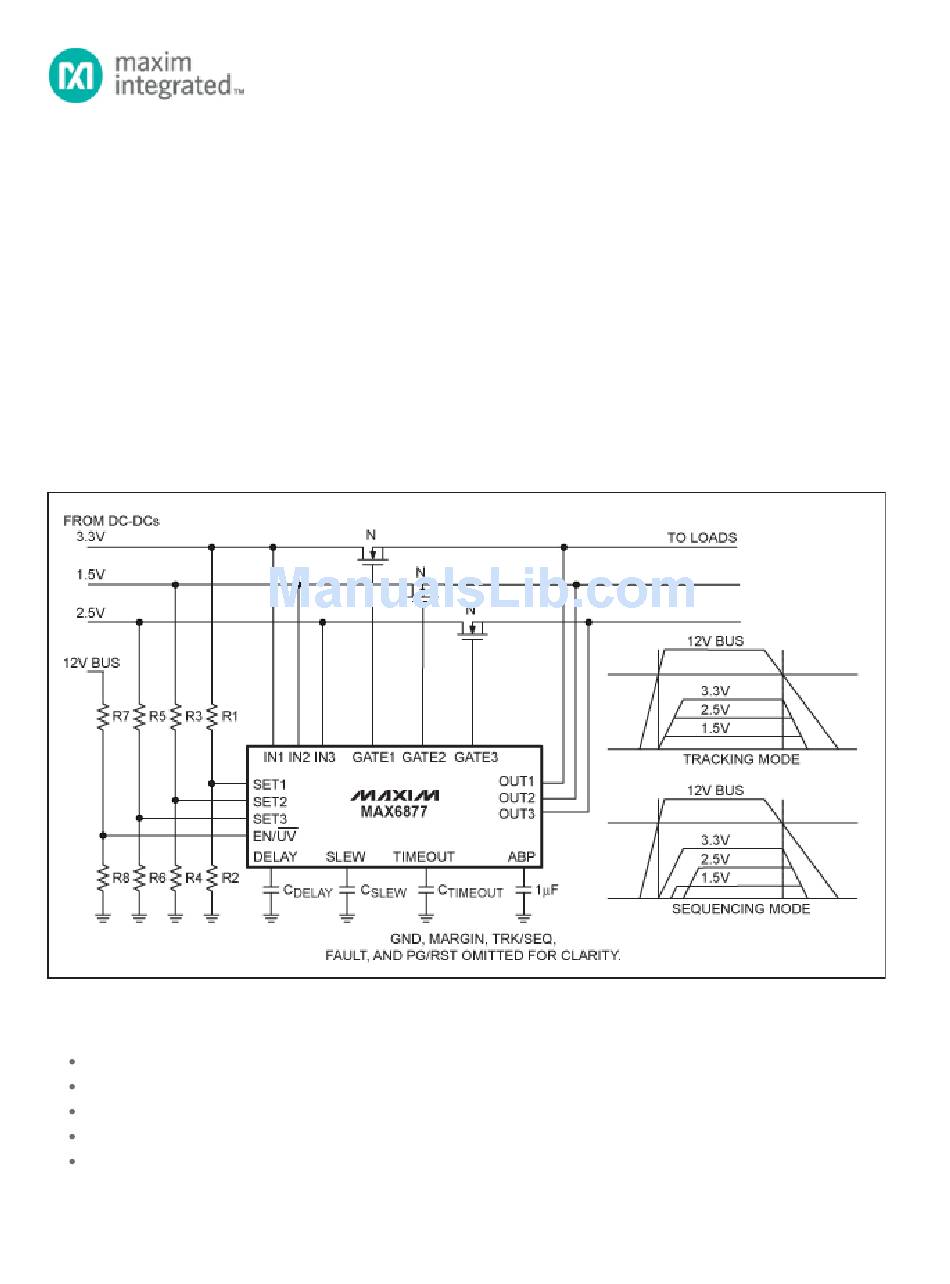

Figure 1. The basic circuit for the MAX6877.
MAX6877

Overview

Tracks or sequences up to three voltages
Closed-loop tracking control with programmable slew rate
Program thresholds with resistors
Program slew rate and timing delays with capacitors
Fault output and power-good output
Technical Documents
>
User Guides
> APP 3918
