Summary of Contents for LXI LX7007 pro IGC

  • Page 1 LX7007 pro IGC V1.0 Variometer and GPS-Navigation System Draft...

  • Page 2: Table Of Contents

    LX 7007 pro IGC V1.0 Apr.2005 Contents ...................................4 ENERAL ................................4 ECHNICAL DATA ) ........................5 OTARY SWITCHES AND KEYS BUTTONS 1.2.1 ON/START button - Switching the Instrument ON and OFF ................5 1.2.2 MODE selector (rotary switch)..........................6 1.2.3 UP/DOWN selector (rotary switch) ........................6 1.2.4 ENTER button...............................6 1.2.5...
  • Page 3 LX 7007 pro IGC V1.0 Apr.2005 2.2.6.1 Statistics during flight ............................... 41 2.2.6.2 Statistics after flight................................42 .............................43 ARIOMETER AND LTIMETER 2.3.1 Smart Vario description............................44 2.3.2 Altimeter ................................44 2.3.2.1 IGC barogram recalibration procedure ..........................44 2.3.3 Speed command ..............................44 2.3.4 Final glide calculation............................45 LX 7007 PRO IGC ..........................45 LYING WITH THE...

  • Page 4: General

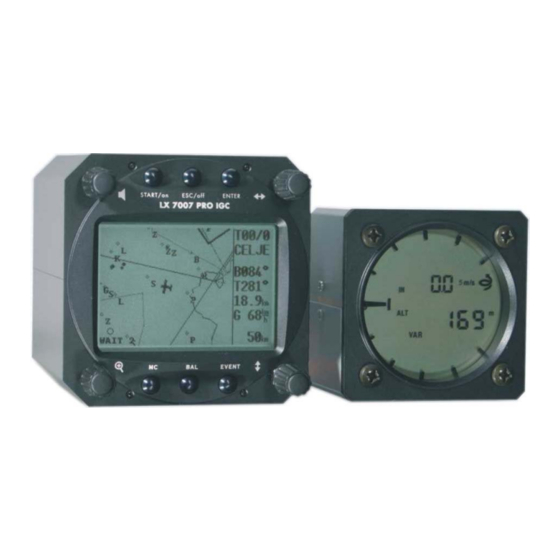

    LX 7007 pro IGC V1.0 Apr.2005 1 General The instrument consists of two units, the LX 7007 DU main unit, and the LX 7007 AU LCD Vario indicator unit. The 80mm diameter (3") main unit LX 7007 DU is fitted with an integral 12 channel GPS receiver and a high resolution display with 160x240 pixels.

  • Page 5: Rotary Switches And Keys (Buttons)

    LX 7007 pro IGC V1.0 Apr.2005 1.2 Rotary switches and keys (buttons) The following controls are mounted on the front face of the LX7007 DU • Four rotary selector switches • Six push buttons The LX7007AU is an indicator only and has no controls; the displayed information being controlled from the LX7000DU ENTER button START/ON button...

  • Page 6: Mode Selector (Rotary Switch)

    LX 7007 pro IGC V1.0 Apr.2005 1.2.2 MODE selector (rotary switch) The mode selector is used to change modes of operation. This switch has the highest priority in the system. Whenever it is operated, a mode change will occur. 1.2.3 UP/DOWN selector (rotary switch) This rotary switch has a lower priority than the mode selector switch and is active all the time in the selected mode.

  • Page 7: Operating Modes

    LX 7007 pro IGC V1.0 Apr.2005 2 Operating modes The LX 7007 PRO IGC has 7 modes or main menus. All of them are selectable directly by rotating the MODE switch. The diagram shows the menu (mode) structure of LX 7007 PRO IGC. ⇐MODE⇒...

  • Page 8: Qnh Res (Qnh And Safety Altitude)

    LX 7007 pro IGC V1.0 Apr.2005 2.1.1.1 QNH RES (QNH and Safety Altitude) Input Procedure: • Use the UP/DOWN selector to choose the item it is required to change (QNH, MG.VAR, ALT.R. or BUGS) • Press ENTER • Use UP/DOWN to select the value required and press ENTER to input it •...
  • Page 9 LX 7007 pro IGC V1.0 Apr.2005 Note!: The instrument is cabable of storing up to 30 different pilot's names. Each pilot's name, which can be password protected, can have different flight information programmed into it. This is useful if one likes to fly with a custom polar, fly the glider in different configurations, or fly in decentralized competitions, Online-Contest, Barron-Hilton- Cup, etc.
  • Page 10 LX 7007 pro IGC V1.0 Apr.2005 K-RECORD: This record can be used to store non-essential flight parameters and is not active by default. It should not be activated unless the IGC record format is fully understood. If required to be activated, the J-Record (see below) will select the flight parameters that are stored in the K-Record.

  • Page 11: Init

    LX 7007 pro IGC V1.0 Apr.2005 2.1.1.3 INIT The following parameters can be set using this option. • VARIO FIL: This sets the time constant of the vario from 0.5sec up to 5 secs; the default setting is 2.0 secs •...

  • Page 12: Display

    LX 7007 pro IGC V1.0 Apr.2005 2.1.1.4 DISPLAY This option sets the contrast of the LC display. The actual contrast can vary with viewing angle, ambient light level and temperature. The contrast is changed by rotating the UP/DOWN selector. Default contrast setting is 50%. 2.1.1.5 TRANSFER This option initiates the transfer of data between the instrument and a connected PC, PDA, LX 20 or Colibri.

  • Page 13: Setup Of Options Requiring Access By Password

    LX 7007 pro IGC V1.0 Apr.2005 2.1.2 SETUP of Options Requiring Access by Password, 96990, a After entering the password, further 21 system settings are available. During flight the password is not required, which means that when ENTER is selected in the Password option during flight, the LX 7007 PRO IGC goes immediately into the following setup menu! 2.1.2.1 AS SELECT (selection of airspace section)

  • Page 14: Obs. Zone (Observation Zone)

    LX 7007 pro IGC V1.0 Apr.2005 TP-QUICK POINT – AUTO When SELECT: OFF is selected, the actual position will not be selected for navigation When SELECT: ON is selected, the actual position will be selected automatically and displayed in the navigation page. NEAR RADIUS The setting has nothing to do with the setting described in LOGGER.
  • Page 15 LX 7007 pro IGC V1.0 Apr.2005 • A21: Orientation ( Options: TO NEXT, RAD.1. TP, and USER VALUE). If TO NEXT or RAD.1.TP are selected, then AUTO is also displayed not permitting any rotation. If USER VALUE is selected, the sector can be rotated.
  • Page 16 LX 7007 pro IGC V1.0 Apr.2005 Start 1: not valid with start Start 2: valid with start Start 3: valid with start Start 4: not valid with start It is therefore recommended that the graphics page is displayed during the start procedure to ensure that a good start is achieved.
  • Page 17 LX 7007 pro IGC V1.0 Apr.2005 Note!: All the examples discussed are intended to explain the programming procedures and present capability of the LX 7007 PRO IGC and do not claim to be comprehensive. Each competition will have its own rules regarding the definition of sectors, which can be found in the particular competition rules.
  • Page 18 LX 7007 pro IGC V1.0 Apr.2005 Note!: While the combined sector is used in many National competitions, it is emphasised that for record flights, FAI badges, 1000/2000km-diplomas and for the Barron-Hilton-Cup, only the FAI 90°-photo sector is valid! 2.1.2.3.3 FINISH ZONE This setting defines the FINISH ZONE or Line.

  • Page 19: Warnings - Airspace Penetration And Height Warnings

    LX 7007 pro IGC V1.0 Apr.2005 2.1.2.4 WARNINGS - Airspace Penetration and Height Warnings The LX 7007 pro IGC monitors the glider’s position both horizontally and vertically in relation to SUA, and will give both an acoustic and visual warning prior to the airspace being penetrated. The warning will be activated a specified number of seconds before entering the airspace –...

  • Page 20: Setup Gps

    LX 7007 pro IGC V1.0 Apr.2005 Note!: Use the DISMISS function to temporarily deactivate individual airspace warnings. All warnings can be reinstated using the RESET WARNINGS command in the SETUP/Warnings screen. ALTITUDE warnings can be setup in a similar way and inform the pilot that he is approaching pre-selected altitude limits.

  • Page 21: Graphic

    LX 7007 pro IGC V1.0 Apr.2005 • LAT/ LON: degrees and decimal minutes; or degrees, minutes and seconds • DIST: kilometers (km); nautical miles (NM); or statute miles (ml) • SP (Speed) kilometers per hour (km/h); knots (kts); or statute miles per hour (mph) •...
  • Page 22 LX 7007 pro IGC V1.0 Apr.2005 Class A will only be shown when the ZOOM scale is 100km or lower Note!: If, for instance, 100 km is selected, then the airspace will only be shown when the ZOOM range is 100 km or lower. When the ZOOM range is greater than 100 km, the particular airspace will not be shown.

  • Page 23: Edit Pilots (Pilot List)

    LX 7007 pro IGC V1.0 Apr.2005 APT ZOOM: The airport zoom setting defines the ZOOM range under which the airports will be displayed. For instance, a 50 km setting will only show the airports when the selected ZOOM range is 50 km or lower; at greater ZOOM ranges, the airports will not be shown.
  • Page 24 LX 7007 pro IGC V1.0 Apr.2005 Each pilot has the capability, if needed, of protecting his configuration by means of a personal password. This ensures that a particular pilot's configuration cannot be selected and altered by another pilot. If no pilot's name has been programmed, then UNKNOWN will be displayed and the settings made during the last flight will be recalled.

  • Page 25: Lx 7007 Pro Igc V1.0 Apr

    LX 7007 pro IGC V1.0 Apr.2005 2.1.2.9 SETUP NMEA The LX 7007 PRO IGC is capable of outputting positional data sentences in the NMEA format for use by other devices. The various output configurations are shown below and by placing the cursor on any one and pressing ENTER, the individual NMEA sentences will be displayed.

  • Page 26: Load

    LX 7007 pro IGC V1.0 Apr.2005 2.1.2.13 LOAD Each time the instrument is powered up, the ballast settings are set to the minimum. By setting the SWITCH ON LOAD: SET, the ballast setting will remain at the last setting made on the previous flight and will not be zeroed on instrument power up.

  • Page 27: Setup Input

    LX 7007 pro IGC V1.0 Apr.2005 2.1.2.15 SETUP INPUT The LX 7007 PRO IGC has an input for an external speed command switch. Using the external switch it is possible to switch between SC and Vario manually. Setting the SC INPUT to ON means that closing the switch will cause the instrument to enter SC mode, and setting SC INPUT to OFF means that closing the switch will select Vario mode.
  • Page 28 LX 7007 pro IGC V1.0 Apr.2005 UPPER NUMBER UPPER NUMBER SHOWS UPPER NUMBER SHOWS INTEGRATOR FLIGHT / LEG TIME DISPLAY LOWER SPEED COMMAND NUMBER MODE INDICATOR SHOWS TASK / LEG VARIO MODE SPEED INDICATOR NEEDLE GPS STATUS INDICATOR (NOT USED) SPEED COMMAND RING...

  • Page 29: Compass

    LX 7007 pro IGC V1.0 Apr.2005 Upper numerical line: • Integrator, time, flight time, leg time Lower numerical line: • ALT (NN altitude), distance, GL DIF. (final glide altitude difference), SPEED (TAS), LEG S. (speed on leg). 2.1.2.17 COMPASS This unit is an optional extra. The compass module is connected by the 485 bus to the LX 7007 PRO IGC. If the compass is connected, this setting enables the compass to be calibrated and is described in Chapter 7.

  • Page 30: Additional Navigation Page)

    LX 7007 pro IGC V1.0 Apr.2005 2.1.2.20 PAGE 3 (Additional Navigation Page) This page can only be activated or disabled. Default set is ON. 2.1.2.21 SETUP AUDIO A wide variety of audio tones can be configured: • SC: VOL H audio volume will be increased by speed command (H) or decrease by ( L) •...

  • Page 31: Near Airport

    LX 7007 pro IGC V1.0 Apr.2005 GPS status Battery indicator Coordinates IGC altitude By rotating the UP/DOWN selector the displayed altitude will appear in both m and ft at the same time. The TIME display can be changed to a Stop watch as follows: •...

  • Page 32: Navigation In Apt, Tp Or Tsk

    LX 7007 pro IGC V1.0 Apr.2005 2.2.3.1 Navigation in APT, TP or TSK There are five navigation pages; the first one is described below. Airport name and ICAO Bearing Distance Ground track Vario average Wind Final glide indicator Altitude AMSL or glide ratio indicator in SC MC and Ballast Course corr.

  • Page 33: Airport Selection, Team And Wind Calculation

    LX 7007 pro IGC V1.0 Apr.2005 Desired track input (OBS similar) Using ZOOM Off course deviation VOR similar indicator Further rotation of the UP/DOWN selector will call up the fourth, or arrival page. Time Wind, direction and speed, minutes since the last update OAT and battery voltage ETA (estimated time of arrival) and ETE (estimated time enroute) define the arrival time and the time needed to reach the destination.
  • Page 34 LX 7007 pro IGC V1.0 Apr.2005 If an incorrect letter is entered, then either press START or rotate the ZOOM selector to move the cursor back so that the letter can be re-entered. If the ICAO locator is unknown, then the following method should be used. With the cursor on ICAO, press ESC to move the cursor to the country.

  • Page 35: Tp - Turn Points

    LX 7007 pro IGC V1.0 Apr.2005 Offset input Method GSPEED DIF. is the simplest method. The calculation is based on measuring ground speed changes while circling. A minimum of two full circles are necessary to obtain an accurate wind. The message WAIT2 or WAIT 1 informs the pilot how many circles are left to get the result.

  • Page 36: Tp Edit

    LX 7007 pro IGC V1.0 Apr.2005 2.2.4.2 TP EDIT This option allows the pilot to change TP data at any time. The turn points used in LX 7007 PRO IGC have four attributes. Using attributes, when the turn points are displayed in graphic pages, they will be represented by different symbols.

  • Page 37: Tsk - Task

    LX 7007 pro IGC V1.0 Apr.2005 On activating the procedure, the present position is displayed with the name defined in one of two forms; AP (actual position), or TIME (date and time), depending on which option has been selected in the setup (through password) menu. Once selected, the data can be edited if required.

  • Page 38: Tsk - Select

    LX 7007 pro IGC V1.0 Apr.2005 The tasks are numbered from 00 to 99 and the turn points building a task numbered from 0 to 9. Point 0 is always the start point. 2.2.5.1 TSK - SELECT All stored tasks can be viewed by choosing SELECT and pressing ENTER. All pre-programmed tasks can now viewed by rotating the UP/DOWN selector;...
  • Page 39 LX 7007 pro IGC V1.0 Apr.2005 tasks are already modified for AAT. The AAT modified tasks are active for three flights only. After the third flight all sectors are set back to the default settings (as defined in SETUP/OBS.ZONES). This feature allows the competition pilot to make three take offs without loosing the AAT information.

  • Page 40: Tsk - New

    LX 7007 pro IGC V1.0 Apr.2005 Having used MOVE-function, the “new” point has a '#' as the first character (very significant). The sector and the reference point stay unchanged, but all navigation data is modified corresponding to the new (virtual) point. For example, the final glide is now calculated around the new point, and the statistics are modified in the same way.

  • Page 41: Statistics

    LX 7007 pro IGC V1.0 Apr.2005 All known methods (select, insert, and delete) can be used to change the declaration at this stage. Changing of declaration will not change the TSK. The take off and start points as well as finish and landing points will usually be the same.

  • Page 42: Statistics After Flight

    LX 7007 pro IGC V1.0 Apr.2005 Average speed on leg Time of confirmation During leg Completed leg During an active task leg, the time will remain blank as it is the TP confirmation time and is never shown until the TP is confirmed.

  • Page 43: Variometer And Altimeter

    LX 7007 pro IGC V1.0 Apr.2005 • ROUTE - route flown will be shown On pressing ENTER with the cursor on ROUTE, the display shows: after ZOOM To program ZOOM, press ENTER and a small cross will appear in the middle of the screen. Move the cross by rotating ZOOM and the UP/DOWN selector.

  • Page 44: Smart Vario Description

    LX 7007 pro IGC V1.0 Apr.2005 2.3.1 Smart Vario description The LX system incorporates two configurable electronic filters in the circuitry. The first filter adjusts the time constant and is adjustable between 0.5 and 5 seconds. The 0.5 setting is the fastest while the 5 setting provides maximum damping.

  • Page 45: Final Glide Calculation

    LX 7007 pro IGC V1.0 Apr.2005 • Continuous audio signal in + possible (other kinds of signals can be chosen, see setup) • No audio at correct speed (dead band). 2.3.4 Final glide calculation The final glide calculator calculates the final glide altitude difference to the selected point (APT, TP). In the task mode the final glide is always calculated from the current position, round all uncompleted turn points to the goal.

  • Page 46: Set Elevation (Take Off Elevation Input)

    LX 7007 pro IGC V1.0 Apr.2005 The password prevents another pilot from changing the configuration settings that have been set up by the named pilot. As soon as a pilot has been selected, the LX 7007 PRO IGC switches into the SET ELEVATION menu. In Summary: •...

  • Page 47: Preflight Check

    LX 7007 pro IGC V1.0 Apr.2005 2.4.3 Preflight check It is strongly recommended to check all settings in the setup mode access able without the password in case they have been changed by a previous pilot. All parameters remain unchanged after switching off, with the exception of: •...

  • Page 48: Starting A Task

    LX 7007 pro IGC V1.0 Apr.2005 Radial 30 Radial 70 Turn point For that sector enter: • ° ° A21 USER VALUE 230° ( 50 + 180 ); 50° is the symmetric axis between the two radials (30° + 20° = 50°, °...

  • Page 49: Automatic Swap On Reaching A Tp Using Standard Task And Aat

    LX 7007 pro IGC V1.0 Apr.2005 Confirming RESTART with Y will restore the actual task. The task is now ready for new start. The restart has no influence on recorded data or declaration. 2.4.4.3 Automatic swap on reaching a TP using standard task and AAT By default, the LX 7007 PRO IGC switches over to the navigation data of the next turn point, as soon as a fix is recorded in the sector of the destination TP.

  • Page 50: Tsk End

    LX 7007 pro IGC V1.0 Apr.2005 Example: Before press on Start After 2.4.4.5 TSK END On entering the finish zone the task stops automatically and a message TSK END will appear. If you want to fly a new task without landing, then it is necessary to use RESTART and SELECT. If the MOVE function has been used on the finish point, then it will be necessary to finish the task by using the START button as in the AAT sector.

  • Page 51: Simple Task

    LX 7007 pro IGC V1.0 Apr.2005 2.4.4.7 SIMPLE TASK The simple task feature is active prior to a regular task being started. The feature is very useful for pilots who do not fly tasks but fly from TP to TP (or to an APT). Simple task permits statistics to be stored like a real task and which can be displayed on the Statistics page and also evaluated by a PC after flight.

  • Page 52: Communication With Pc

    LX 7007 pro IGC V1.0 Apr.2005 3.1 Communication with PC After PC communication art was chosen by the pilot, a PC connected to the 5P round connector normaly positioned on the instrument panel, can be used. All kinds of PC communication can be provided using of IGC port available on the rear side of he unit.

  • Page 53: Some Help Having Problems With Communication

    LX 7007 pro IGC V1.0 Apr.2005 CONNECT indicates that both LX 7007 PRO IGC and PC have established connection and and are ready for data exchange. Note! IGC Shell program (developed by IGC) in conjunction with LXN-IGC.DLL can be used for flight download, convert to IGC and validate.

  • Page 54: Troubleshooting With Lxe

    LX 7007 pro IGC V1.0 Apr.2005 3.1.1.2 Troubleshooting with LXE • Available communication ports for LXE (Setup→Comm. Port) Highlighted ports are ready to be selected. Means that LXE will use checked port for communication with LX, there is no automatically selection by LXE.

  • Page 55: Recommended Lxe Settings For Safe Communication

    LX 7007 pro IGC V1.0 Apr.2005 How to disable Active Sync ? After right mouse click on ActiveSync symbol in task bar, choose Connection settings... and disable it. (PC's with only one comm. port). Problems caused by USB to 232 adapters. Normally PC has more than one USB port.

  • Page 56: Having Problems Downloading Flights (Read Selected Flight-Command)

    LX 7007 pro IGC V1.0 Apr.2005 3.1.2 Having problems downloading flights (read selected flight-command). Symptoms: • Baud rate speed is not constant (oscillating from 0k to 19k) • More retries downloading blocks Result could be unsuccessful downloading of the flight. Workaround: •...

  • Page 57: Communication With Pda

    LX 7007 pro IGC V1.0 Apr.2005 3.2 Communication with PDA A completely separated com. port with his own 9P sub D connector is situated on the rear side of the unit. LX 7007 has a built in DC/DC converter which ensures 5V power for PDA. A standard LX cable (1638 or 1636) will connect practically all iPAQ devices to LX 7007 without any additionally works.

  • Page 58: Communication Between Lx 7007, Colibri Or Lx 20

    LX 7007 pro IGC V1.0 Apr.2005 3.3 Communication between LX 7007, Colibri or LX 20 The LX 7007 PRO IGC is able to exchange data (bi-directional) with the LX 20, Colibri and Posigraph. The following data can be transferred: • *.DA4 files (TP and TSK) •...

  • Page 59: Installation

    LX 7007 pro IGC V1.0 Apr.2005 4 Installation The LX 7007 PRO IGC main unit (LX 7000 DU) needs one standard 80mm cut-out. The Vario sensor unit (LX 7007 AU) and any additional vario indicators need a standard 57mm cut-out each. Three pressure connectors are fitted to the back of the LX 7007 AU.

  • Page 60: Installation Of Pda Units

    LX 7007 pro IGC V1.0 Apr.2005 Installation of the LX 7007 PRO IGC • Prepare the cutout in the instrument panel according to the drilling template. • Remove the press-in covers from the four main selectors on the LX 7007 PRO IGC. You can now see the mounting screws.

  • Page 61: Lx 7007 Pro Igc Full Configuration ( All Connections Plug And Play )

    LX 7007 pro IGC V1.0 Apr.2005 4.2 LX 7007 pro IGC full configuration (all connections plug and play) LX7007 DU COLIBRI / LX20-2000 LX7COL CABLE LX1636/LX1638 CABLE LX7007 AU RS232, PC POWER RS485 RS485 SUPPLY POWER FLARM SUPPLY POWER SUPPLY LX7007 AU (Option) SUBD9 Stift (Male)

  • Page 63: Wiring

    LX 7007 pro IGC V1.0 Apr.2005 4.3 Wiring LX 7007 ANALOG UNIT Wiring yellow +12V white 30 cm black shield +1 2 V DC IN Chinch 30cm AUDIO OUT Speaker 0.5m SP EA KER SC switch T XD CONNECTED VP switch LX 7007 DIGITAL UNIT Wiring +12V DC IN LX7007 POWER IN 30 cm...
  • Page 64 LX 7007 pro IGC V1.0 Apr.2005 485 Spliting Unit (using additional LCD vario and Kompass) LX 7007 ANALOG UNIT Wiring LCD Vario RS485 - IN yellow 485 BUS SUBD9 / male +12V white SUBD 9 SUBD 9 485 BUS FEMALE FEMALE 30 cm black...

  • Page 65: Tree Structure Diagram

    LX 7007 pro IGC V1.0 Apr.2005 4.4 Tree structure Diagram ⇐MODE⇒ page 65...

  • Page 66: Passwords

    LX7007 pro IGC V1.0 Apr. 2005 5 Passwords 96990 Set up System parameters 55556 Activate external NMEA input (internal GPS will be disconnected) This function is active until the unit is switched OFF or a new input of 5556 is made After using password 55556, the INTEGRITY of flight recorder data will be lost (active flight only) 99999...

  • Page 67: Options

    LX7007 pro IGC V1.0 Apr. 2005 6 Options 6.1 LX 7007 PRO IGC - Compass Module Magnet field sensor LX 485 Bus 6.1.1 General The compass module is an electronic compass (magnetic field sensor), which was developed for the LX 7007 PRO IGC.

  • Page 68: Installation Of The Compass Module

    LX7007 pro IGC V1.0 Apr. 2005 The angular difference between HDG and TRK depends on the magnitude of the wind vector and is normally quite small, which means that the measurement has to be quite precise if accuracy is to be achieved. While the GPS data (TRK and GS) is precise, small inaccuracies in the heading of about 5°...

  • Page 69: Wind Calculation During Flight

    LX7007 pro IGC V1.0 Apr. 2005 Switch the LX 7007 PRO IGC back to Nav.-Page 3 and check again all 8 directions. The error should now be less than 1 – 2 (better to have 1 !). If the errors are larger, then one should search for faults in installation or in the adjustment procedure.

  • Page 70: Lx 7007 Pro Igc - Remote Control Units

    LX7007 pro IGC V1.0 Apr. 2005 6.2 LX 7007 PRO IGC – Remote control units 6.2.1 Remote control keyboard type 6.2.1.1 General The unit consists of aluminum housing (80x60x20 mm), a keyboard and a micro controller. The keys are made of rubber and have a tactile feel.

  • Page 71: Electronic Connection

    LX7007 pro IGC V1.0 Apr. 2005 6.2.1.3 Electronic connection The LX Remote should be connected to the LX 7007 PRO IGC via a free RS485 BUS port on the back of the digital vario (9 P female). If there are no free ports because other devices have been connected, then it is necessary to order a RS485 Splitting Unit to split one input into 3 outputs.

  • Page 72: Revision History

    LX7007 pro IGC V1.0 Apr. 2005 7 Revision history Apr 2005 NEW DONE Page 72...
