Simplicity 50” Mulch Kit Installation Instructions

Installation
Instructions
Kit Contents:
Ref. Part No. Qty. Description
1 1716697 3 BLADES, Mower
2 1726578 1 PLATE, Mounting
3 1732349A 1 BAFFLE ASSEMBLY
4 2171600 1 STRAP, Rubber
5 1933988 8 NUT, Push, 5/16
6 1960096 1 WASHER
7 1960393 1 SCREW, Phillips, #10-24 x 1
8 1933896 1 NUT, Hex, Nylock, #10-24
9 1927557 10 NUT, Hex, Flange Lock, 5/16-18
10 1931332 10 CARRIAGE BOLT, 5/16-18 x 5/8
11 1732436A 1 BAFFLE & DEFLECTOR, LH
12 1732433A 1 BAFFLE & DEFLECTOR, RH
13 1933988 1 CARRIAGE BOLT, 1/4-20 x 1-1/2
14 1920397 1 NUT, Lock, ESNA, 1/4-20

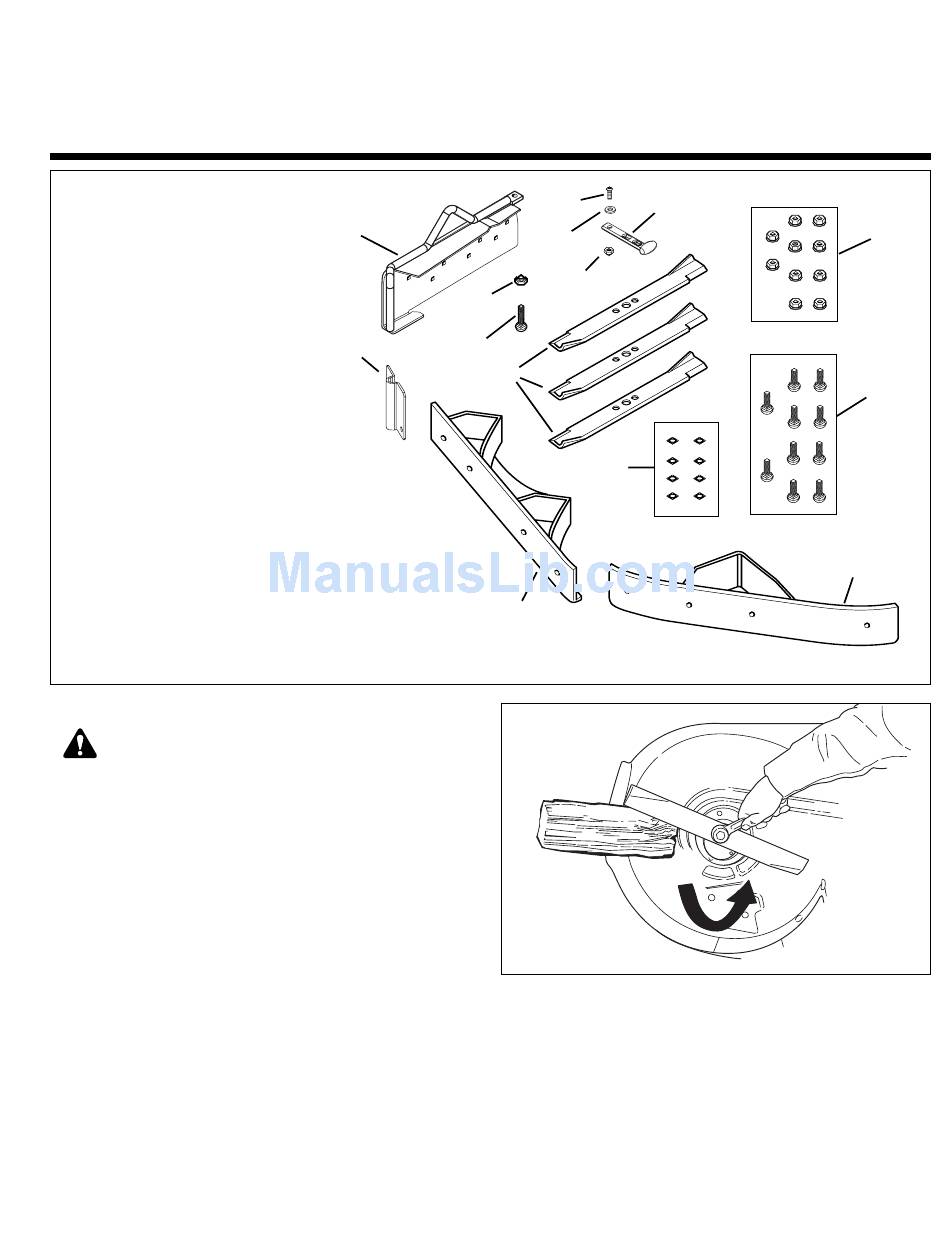

Figure 1. Contents
WARNING
Before beginning any service work turn off the
PTO, set the parking brake, turn off the ignition,
remove the key, and disconnect the spark plug
wire(s).
INSTALLATION
1. Remove the mower deck. Refer to Operator's
Manual (see Mower Deck Removal & Installation).
2. See Figure 2. Remove the blades. Use a block of
wood to prevent blade rotation while loosening the
blade nut by turning it counterclockwise.
3
14
13
2
1
12
Figure 2. Blade Removal
1
50" Mulch Kit
Mfg. No. 1695054
7
4
6
8
5
For Javelin / 250Z Series
9
10
11
LOOSEN
