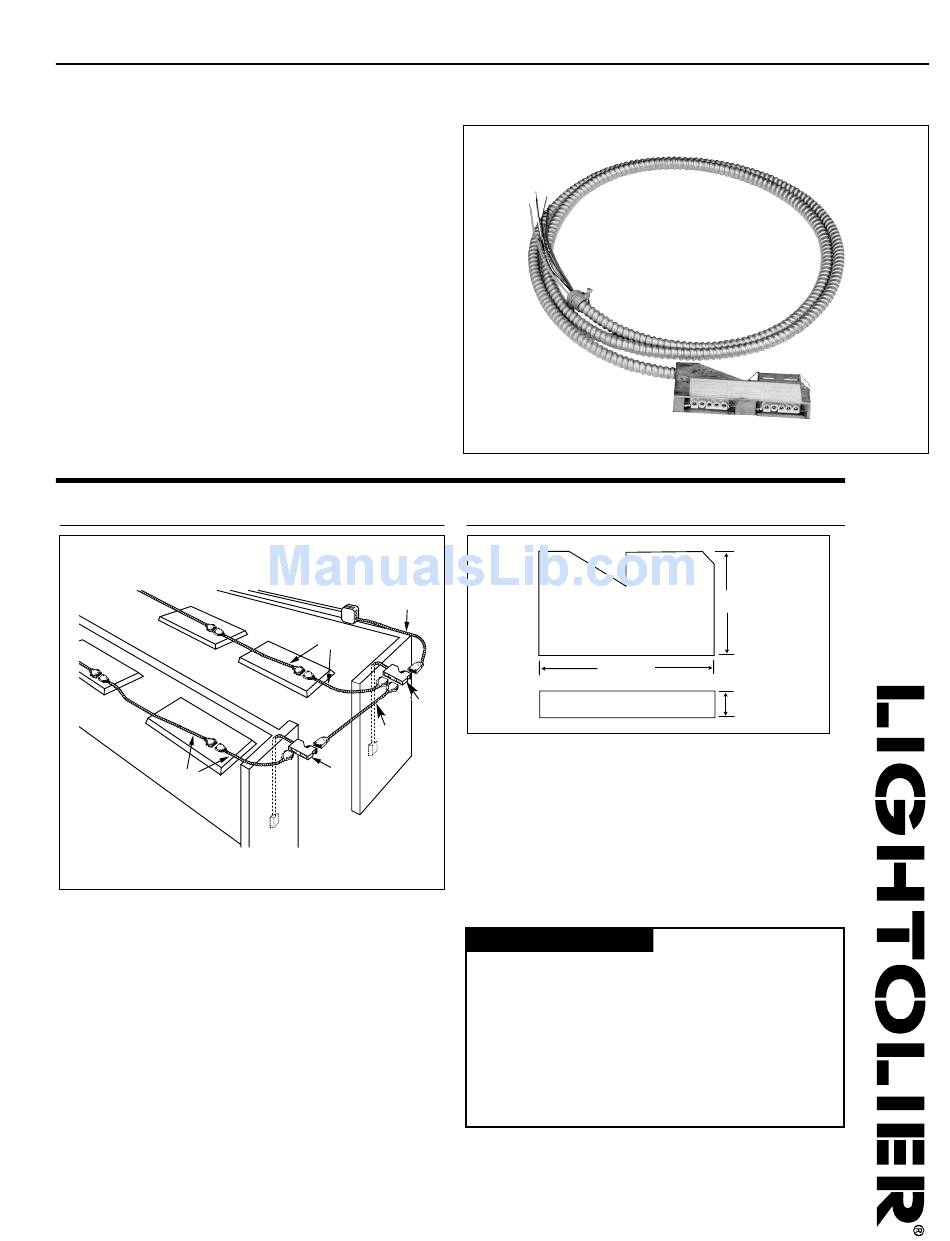

Lightolier Power Connect LS Cable Specification

Page 1 of 2
FEATURES
• Unit is low profile, 5-5/8" x 3-1/8" x 13/16".
• Die cast housing with zinc plated steel cover plate.
• Internal wires are #12 AWG THHN stranded copper, 600 volt, plus a
bare #12 AWG solid tinned copper ground conductor.
• Switch leg conductors are #12 AWG THHN solid tinned copper
ground conductor.
• 6 inch tap leads.
• 1/2" K.O. connector for mounting to junction box.
• I.B.E.W. UL and C-UL Labeled.
APPLICATION
RC
RC
The single-level, multi-level, two circuit and single-level first 3-way switching
units provide power-in/power-out and switched power-out for local line voltage
lighting control. The second 3-way and 4-way switching units provide switched
power-in and switched power-out only for local line voltage lighting control.
POWER-CONNECT™
DIMENSIONS
LD
LD
RC
RC
LC
LS
LC
LS
LS
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
