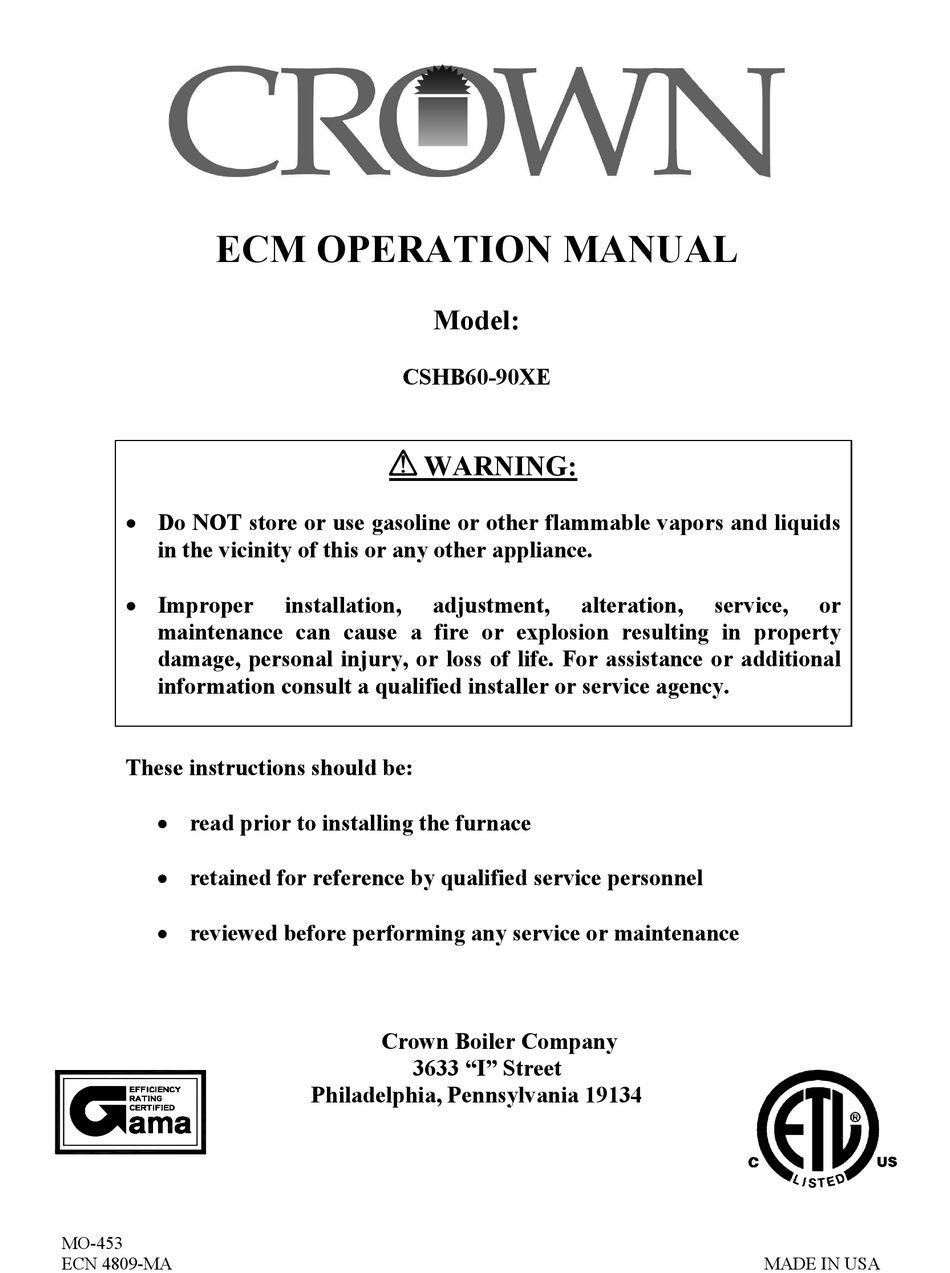

ECM OPERATION MANUAL
• Do NOT store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
• Improper
maintenance can cause a fire or explosion resulting in property
damage, personal injury, or loss of life. For assistance or additional
information consult a qualified installer or service agency.
These instructions should be:
• read prior to installing the furnace
• retained for reference by qualified service personnel
• reviewed before performing any service or maintenance
MO-453
ECN 4809-MA
Model:
CSHB60-90XE
c WARNING:
installation,
adjustment,
Crown Boiler Company
3633 "I" Street
Philadelphia, Pennsylvania 19134
alteration,
service,
or
MADE IN USA

Advertisement

Table of Contents
loading

Related Manuals for Crown CSHB60-90XE

Summary of Contents for Crown CSHB60-90XE

  • Page 1 ECM OPERATION MANUAL Model: CSHB60-90XE c WARNING: • Do NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. • Improper installation, adjustment, alteration, service, maintenance can cause a fire or explosion resulting in property damage, personal injury, or loss of life.

  • Page 2: Table Of Contents

    All installations and services must be performed by qualified service personnel. INDEX SECTION BEGINNING PAGE BLOWER CONTROLLER INFORMATION A. TERMINAL DEFINITIONS & FIELD WIRING B. WIRING & SWITCHES C. INPUTS D. OUTPUTS E. OPERATING MODES F. CFM TABLES ECM TROUBLESHOOTING A.

  • Page 3: Blower Controller Information

    All installations and services must be performed by qualified service personnel. BLOWER CONTROLLER INFORMATION A. TERMINAL DEFINITIONS & FIELD WIRING Burner Harness Connector P1 Pin 1 – Limit switch connection. Pin 2 – 120 VAC Line connection. Pin 3 – Burner pilot contact.

  • Page 4: Wiring & Switches

    All installations and services must be performed by qualified service personnel. B. WIRING & SWITCHES : TURN OFF THE ELECTRICAL POWER to the furnace before attempting to disconnect blower wiring. Figure 2: BOARD LAYOUT WITH SWITCHES...

  • Page 5: Inputs

    All installations and services must be performed by qualified service personnel. C. Inputs Power supplies Line voltage is applied between the "S1" and "N1" quick connect terminals. 24 VAC Class II Transformer secondary voltage supplied to X and C Limit Switch The 120VAC limit switch is connected to pins P2-1 &...

  • Page 6: D. Outputs

    All installations and services must be performed by qualified service personnel. EAC (electronic air cleaner) The control provides a 120VAC output for an electronic air Cleaner. This output is energized whenever the fan motor is energized (either low, heat or cool speed). Connection is made via male quick connect terminal labeled "EAC".
  • Page 7 All installations and services must be performed by qualified service personnel. Heat Mode When a call for heat ("W") is received from the thermostat, if the “Cool” mode is not already active, the “T-T” terminal is energized and the blower on delay is started. The on-off pattern of DIP switch SW2 (positions 1 and 2) select one of four blower on delay values (see Table 1).

  • Page 8: Cfm Tables

    All installations and services must be performed by qualified service personnel. F. CFM TABLES The following tables contain blower speed settings and their respective air flowrates for the ECM blower motor. To change air flowrates from that of the shipped settings, use the respective SW1 dipswitch on the furnace’s integrated control board (see Figure 2).

  • Page 9: Ecm Troubleshooting

    All installations and services must be performed by qualified service personnel. II. ECM TROUBLE SHOOTING A. DIAGNOSTC FEATURES The control board is equipped with 4 green Input Status LEDs and 1 red Board Status LED. These are intended to provide a quick view into furnace performance without requiring a voltmeter. The green Input Status LEDs are driven by the “Y”, “W”, “G”, and “DEHUM”...
  • Page 10 All installations and services must be performed by qualified service personnel. • Verify fan is not in delay mode – wait until delay complete • “R” missing/not connected at motor • • Stays at high CFM “R” missing/not connected at motor •...

  • Page 11: Troubleshooting Charts

    All installations and services must be performed by qualified service personnel. • Check and plug leaks in return ducts, cabinet Comfort Check • Check proper airflow settings • Low static pressure for lowest noise • Set low continuous-fan CFM • T’stat in bad location? Figure 3: ECM PIN CONNECTORS Troubleshooting table above and Figure 2 adapted from GE Industrial Systems publication GED-7161C,...
  • Page 12 All installations and services must be performed by qualified service personnel. THIS GUIDE SHOULD BE USED IN THE CASE OF A STOPPED OR MANFUNCTIONED ECM BLOWER MOTOR. THE FOLLOWING SHOULD HELP ESTABLISH THE TYPE OF MALFUNCTION OR DEVIATION FROM THE NORMAL BLOWER OPERATION. TO USE THIS DIAGRAM, YOU JUST NEED TO FOLLOW THE INSTRUCTIONS IN THE BOXES.

  • Page 13: Sequence Of Operation

    All installations and services must be performed by qualified service personnel. Sequence of Operation BLOWER Off- Delay Active? HEAT On-Delay LIMIT Mode On? Ended? Active? Active? 1.BURNER Off BURNER On 2. HEAT mode Off 3. BLOWER Off-Delay Started 4. Status LED Off COOL DEHUM On-Delay...
  • Page 14 All installations and services must be performed by qualified service personnel. Sequence of Operation Glossary Inputs: LIMIT - 120vac power from the High Limit Switch used to power the burner. W- Switched 24vac indicating a Heat call from the thermostat. Y - Switched 24vac indicating a Cool call from the thermostat.
