Lightolier ProSpec 28701 Specification

Page 1 of 2
ø 3/4"
3 1/2"
ø 1 1/8"

Ordering Information

Catalog No. Finishes
28701WH Matte White
28701TM Dark Titanium

Features

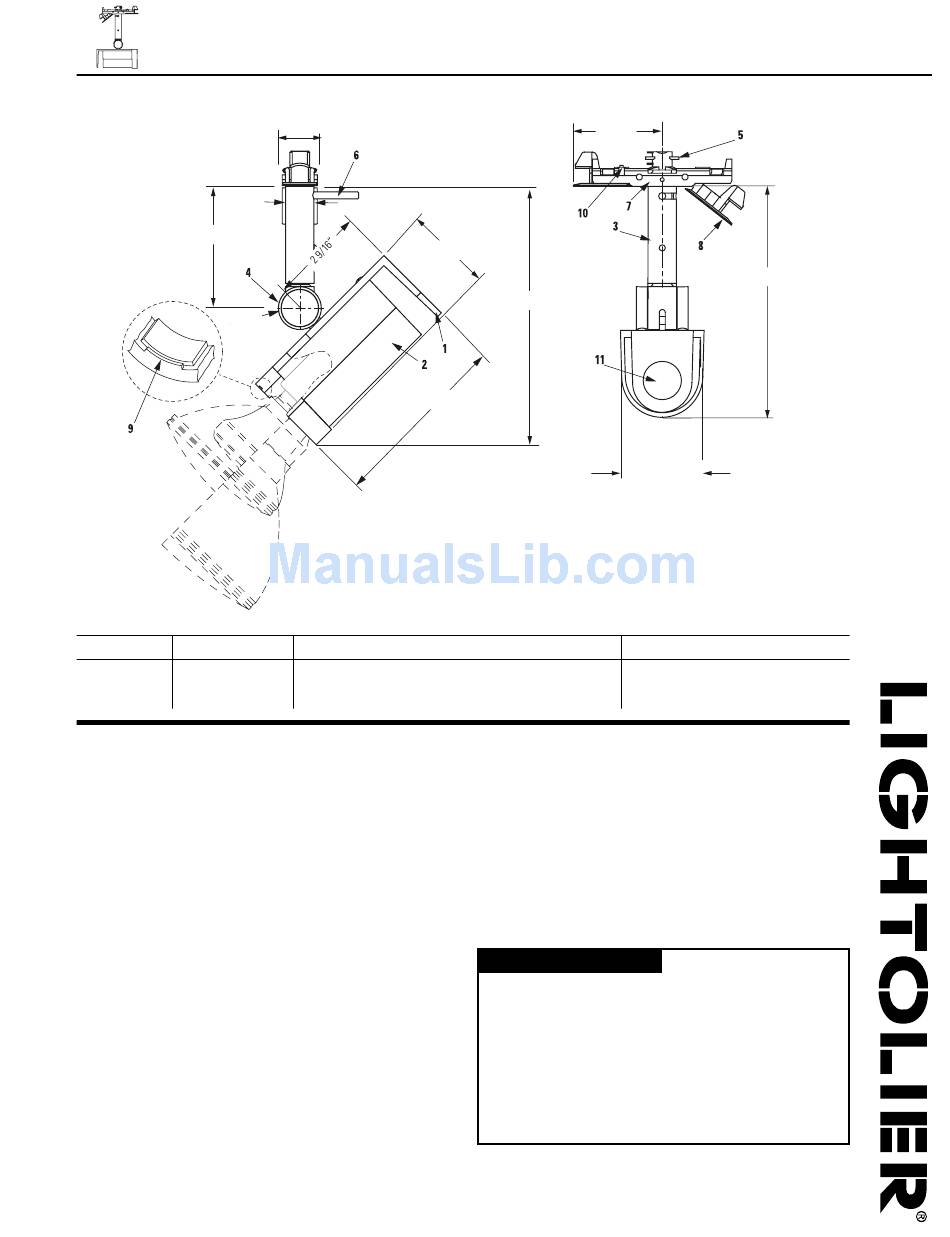

1. Arm: Die-cast aluminum, brushed and clear coated finish.
2. Socket Cover: Injection-molded thermoplastic.
3. Stem: Stainless steel, brushed and clear coated finish, with a permanently
tensioned horizontal rotation stop (315° rotation).
4. Stem Base: Die-cast aluminum, brushed and clear coated finish with a
permanently tensioned 90° vertical rotation stop (0° to 90°).
5. Contact Holder: High temperature thermoplastic. Secures fixture
mechanically and makes electrical contact with track.
6. Locking Lever: Nickel-plated steel. For mechanical/electrical connection to
track.
7. Track Attachment Fitting: Die-cast aluminum with separate mechanical
and electrical functions. Fitting cannot be engaged or disengaged while
fixture is powered. Polarity is not a concern with ProSpec Track because of
it's symmetrical positioning of circuits within the track, adapters are reversed
to access one or the other circuit.
8. Clamping Tabs: Black or White, injection-molded plastic. Expands or
releases gripper springs from track ledge; gripper springs hold attachment
fitting securely within track.
9. Embossed Keyway: For attachment of optional shades.
10. Ground Spring: Grounds fixture to track.
11. Hot Aiming Handle: Opening in arm provided to aim fixture while it is on.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1 leads.
Input Voltage: 120V, 60Hz
Dimming: Fixture may be used on a track with a dimmer. Consult the dimmer
manufacturer for correct dimmer selection for line voltage Incandescent and
Halogen sources.
15/16"
2 1/4"
4 3/4"
Track Mountings
ProSpec ™ Track System (DOES NOT MOUNT ON Lytespan
ProSpec ™ Track Lighting
Metallics
2 3/8"
7 1/8"
2 3/16"
Lamps
® TRACK) PAR16 through PAR38 250W Max.
PAR30 through PAR38IR 100W Max.
PAR38 Cool Beam 150W Max.
Options & Accessories
Accepts Metallics TM PAR20, 30, & 38 Dome Shades (8727, 8737, 8747),
Metallics TM Par20, 30, & 38 Barndoor Shades (8725, 8735, 8745), Metallics
Tech ® PAR20, 30, & 38 Ring Shades (8228, 8238, 8248), & Metallics
PAR30 Bezel Shade (8237A).

Finish

Feature number 2 painted in White or Titanium. Other external components are
brushed metal with protective clear coat.
Feature 7 & 8 White on 28701WH/Black on 28701TM

Labels

UL, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
