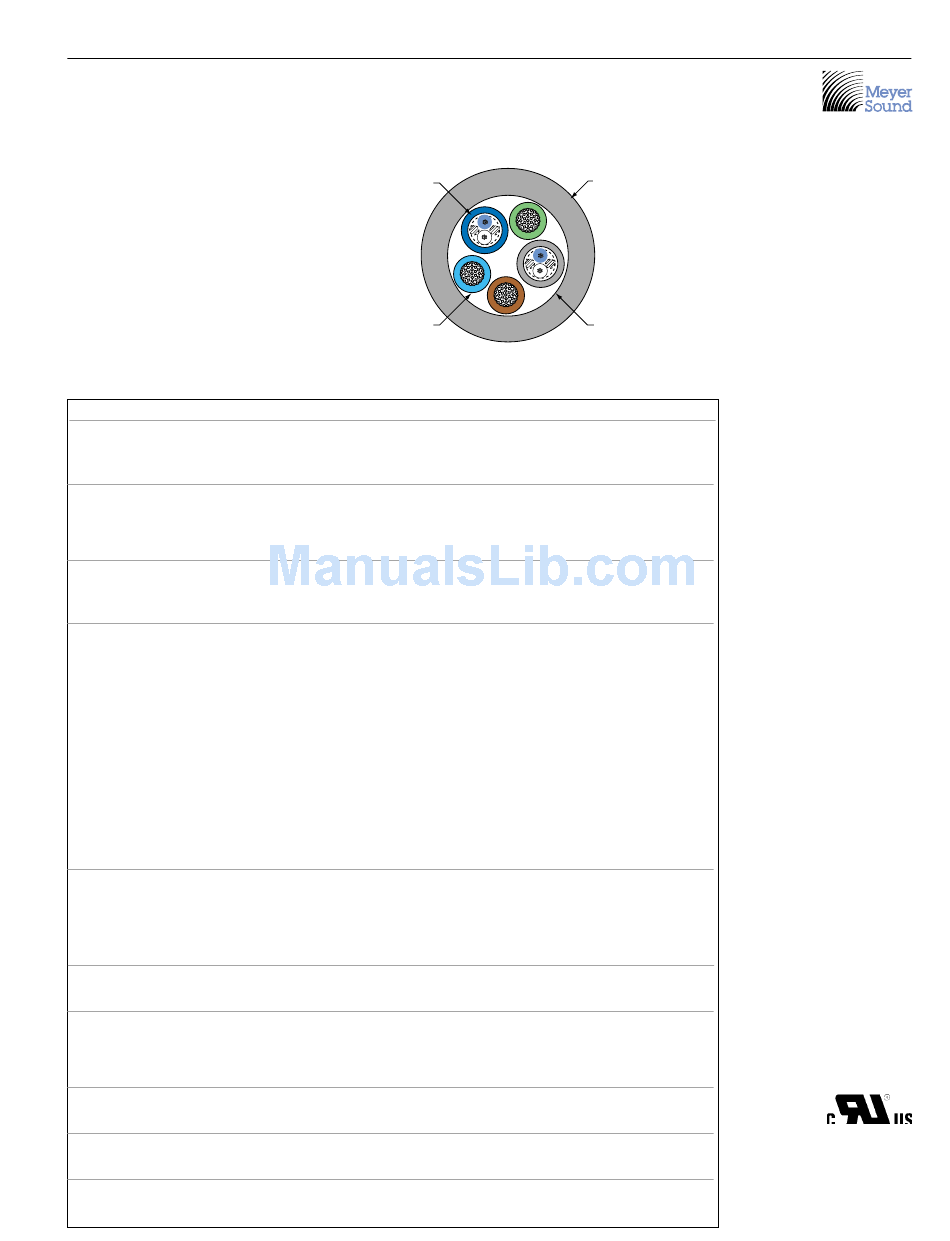

Meyer Sound MSPN 27.033.112.01 Datasheet

P R E L I M I N A R Y D A T A S H E E T
MULTI CABLE : MSPN 27.033.112.01

Description

Scope

Power Conductors

TSPJ-24 Components

Cable Lay
Binder

Outer Jacket

Finished O.D.
Rating
Color Code
(2) ea. TPSJ-24 awg
Digital Audio Pair
(Blue, Black)
(3) ea. 14 awg
(2.08 mm^2) Power Conductor
(Blue, Brown, Green/Yellow))
Composite Speaker Cable, UL recognized
3C-2.0mm two Power, two TSPl-24 awg Digital Signal
Three conductors of 14 awg power cabled with two
each digital signal pairs of 24 awg for speaker signal with an
overall flexible outdoor rated PVC elastomeric jacket
14 awg (41/30) bare copper (2.08 mm2) DC. Resist 2.530hms/lk'
PVC insulation .017"' wall UL/CSA AWM 300V 90C rated
Falmat P/N FM090100-1BF, 2c-24 awg shd PVC jck .192" dia.
24 awg (7/32) bare copper-ETP electrolytic tough pitch.
Foam Polyethylene, 76% Vel. Prop., cabled wiit PP rod fillers
Wires: Blue, White, Cable lay: 1.2" ±.1
Shield: Alumn./mylar + tin copper spiral 90%
Flexible PVC jacket FR rated to dia. .192"
TPSJ: characteristic Impedance 110 ohms/±10
Capacitance 12.5 pf/ft @ I KHz cond. - cond.
22.0 pf/ft @ I KHz cond. - shield.
Attenuation: 1.25 db/100/ft nm. @ 3 Mllz
3 ea. 14 awg, 2 ea. TSPJ-24 awg planetary cabled together with
anti-friction powder for added flexibility.
Cable lay: one tp14 awg Blue, Bm, 4 t.p.I cabled with two ea. TSP,
one ea. 14 awg grn/yel wi~ 7" lay nom.
Paper tissue 1.375" wide over cabled core, 15% overlap
Matte black flexible PVC .075" nom. with round smooth finish.
Print "27.033.112.01 Meyer Sound Laboratories Inc."
"Multi Cable UL AWM style 2464 80C 300V E-116018"
.545" ±.015"
UL Recognized AWM style 2464, -30C to 80C, 300V
Power: Blue, Brown, Green/Yellow 70/30%
Pair Jackets: Black, Blue
PVC, Outdoor
Flexible Jacket
(Black)
Cable Binder
paper-tissue
