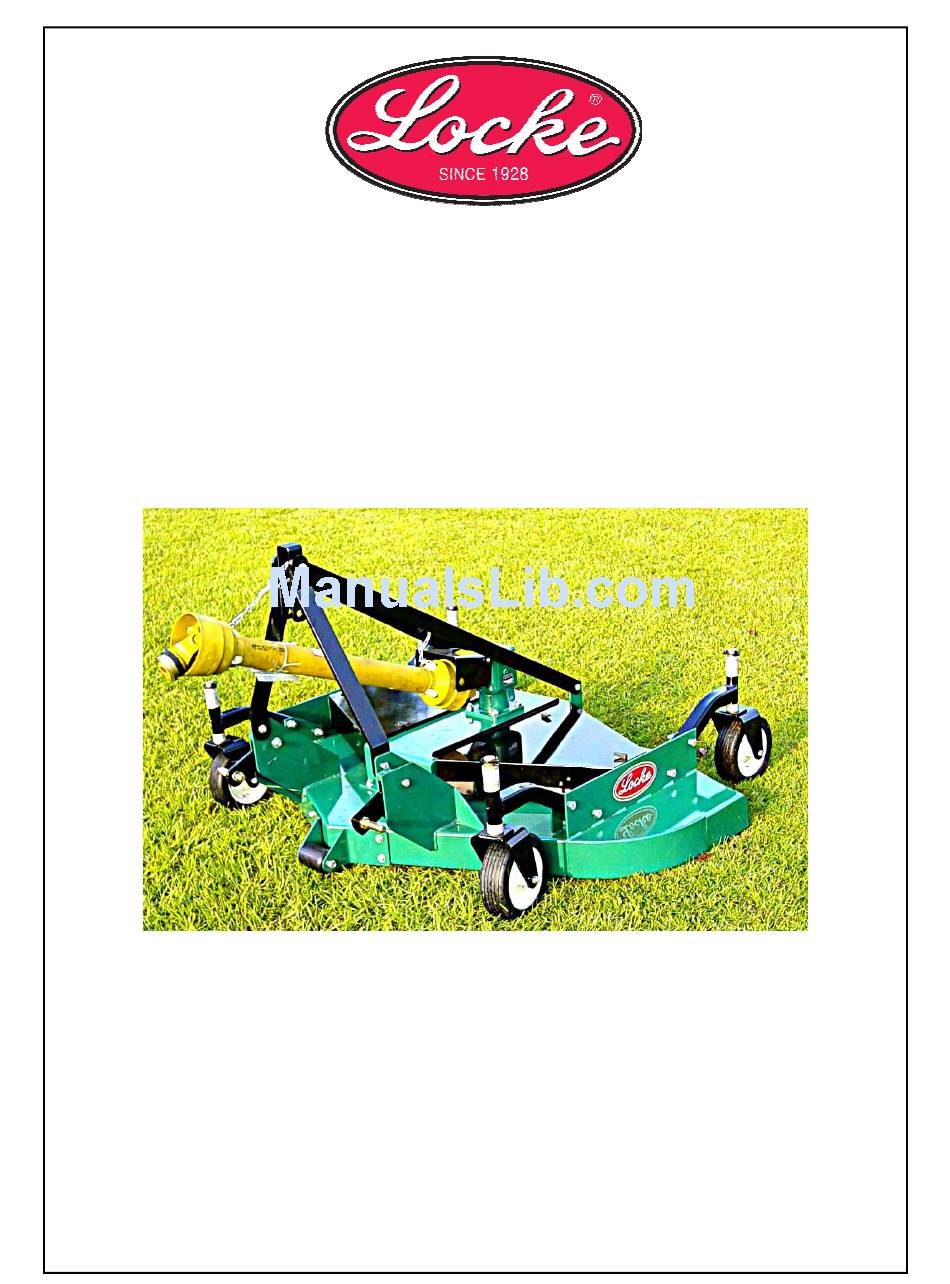

- Page 1 Finish Pro Series FP-148-C, FP-160-C, and FP-172-C Operator’s Manual Locke Turf Inc. 307 Highway 52E, Opp, Alabama 36467, (334) 493-1300...
- Page 2 If your manual should become lost or destroyed, Locke Turf will be glad to provide you with a new copy. Order from Locke Turf, 307 Highway 52E, Opp, Alabama 36467.
-
Page 3: Table Of Contents
It is the Retail Customer’s responsibility to deliver the product to the authorized Locke Turf Dealer, from whom he purchased it, for service or replacement of defective parts that are covered by warranty. -
Page 4: Introduction
More than merely devices created for mowing grass, the excellence of de- sign, construction and operation of Locke power mowers is unparalleled. Introduced in 1928, tested and proven, Locke power mowers may be con- sidered, in terms of today’s technology, the ultimate response to the need for the highest degree of quality lawn care. -
Page 5: Dealer Preparation Check List
DEALER PREPARATION CHECK LIST Single Deck Finishing Mower FP-100 BEFORE DELIVERING MACHINE- The following check list should be completed. Use the Operator’s Man- ual as a guide. 1. Assembly completed. 2. Gearboxes filled with oil. 3. All fittings lubricated. 4. All shields in place and in good condition. 5. -
Page 6: Safety Alert Symbols
Safety Alert Symbol This Safety Alert Symbol means: “ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” This symbol is used to call attention to safety precautions that should be followed by the operator to avoid accidents. When you see this symbol, carefully read the message that follows and heed its advice. - Page 7 IMPORTANT SAFETY PRECAUTIONS This symbol is used to call attention to safety precautions that should be followed by the operator to avoid accidents. When you see this symbol, carefully read the message that follows and heed its advice. Failure to comply with safety precautions could result in death or serious bodily injury.
-
Page 8: Federal Laws And Regulations
IMPORTANT FEDERAL LAWS AND REGULATIONS* CONCERNING EMPLOYERS, EMPLOYEES AND OPERATIONS. *(This section is intended to explain in broad terms the concept and effect of the following federal laws and regula- tions. It is not intended as a legal interpretation of the laws and should not be considered as such.) U.S. -
Page 9: Introduction & Description
SECTION I INTRODUCTION AND DESCRIPTION 1-1 INTRODUCTION 1-2 DESCRIPTION We are pleased to have you as a Locke Turf The MP-172, (figure 1-1), is designed for turf customer. Your FP-100 has been carefully designed maintenance applications where a high quality to give maximum service with minimum down time. -
Page 10: Preparation For Use
PTO ADAPTERS SHOULD NOT BE USED WITH quick couplers. (See tractor dealer if furnished cou- plers are not correct for your particular tractor.) Make ANY LOCKE TURF EQUIPMENT. FAILURE TO sure hydraulic line is not twisted or kinked. FOLLOW THESE INSTRUCTIONS WILL CAUSE DRIVELINE FAILURE AND POSSIBLE TRACTOR DAMAGE. -
Page 11: Operating Instructions
F. Route control chain to convenient location G. Attach driveline to tractor. Pull on each driveline and fasten to tractor. Be sure excess slack is re- section to be sure that yoke locks into place. moved from the chain to avoid entanglement with H. - Page 12 TIPS ON MOWING WITH A FINISHING MOWER The Locke Turf Finish Pro is a turf maintenance mower that uses sharp blades to maintain a healthy and beautiful appearance of your turf. To obtain the maximum effectiveness from your Finish Pro the tips listed below should be followed: Mow often –...
-
Page 13: Operation
Inspect blades for wear. Replace if necessary pull the two sections apart, apply thin coat of multi- per paragraph 4-5. Use only genuine Locke Turf re- purpose grease to outside of inner (male) section. Re- placement parts. If it is necessary to sharpen the assemble sections and install. -
Page 14: Spindle Belt Adjustment
Tighten the jam nuts on the adjustment rods. 4-4 SPINDLE BELT REPLACEMENT 5. Replace all shields before operating ma- chine. Use only genuine Locke Turf replacements parts. It is not necessary to replace both belts if only one is worn. Lower Adjustment Rod & Spring Flip up black latches and remove right and left side shields. -
Page 15: Blade Spindle Service
4-6 BLADE SPINDLE SERVICE If shaft bearings or other parts require replacement, it is recommended that a Locke Turf dealer or other quali- fied person service the blade spindle. If blade spindles must be disassembled, a special wrench kit must be used to prevent damage to the assembly. -
Page 16: Safety Decals
To promote safe operation, Locke Turf supplies safety decals on all products manufactured. Dam- age can occur to safety decals either through shipment, use or reconditioning, so Locke Turf will, upon request, provide safety decals for any of our products in the field at no charge. Contact your authorized Locke Turf dealer for more information. -
Page 17: Decals Continued
DECALS CONTINUED WARNING IMPLEMENT CAN FALL FROM HYDRAULIC SYSTEM FAILURE. TO AVOID SERIOUS INJURY OR DEATH, BLOCK UP OR SECURELY SUPPORT IMPLEMENT BEFORE WORKING UNDERNEATH. PURGE ALL AIR FROM HYDRAULIC SYSTEM BEFORE ATTEMPTING TO RAISE OR LOWER THIS IMPLEMENT. DO NOT USE HAND OR SKIN TO CHECK FOR HYDRAULIC LEAKS. -
Page 18: Torque Specifications
TORQUE SPECIFICATIONS Proper torque for American fasteners used on Locke Turf equipment. Recommended Torque in Foot Pounds (Newton Meters). * AMERICAN WRENCH BOLT DIAMETER SIZE (IN.) “A” (IN.) “B” AND GRADE 2 GRADE 5 GRADE 8 Bolt Head Markings THREAD SIZE 7/16 1/4 –20 UNC... - Page 19 LOCKE TURF BLADE SPINDLE SERVICE BLADE SPINDLE DISASSEMBLY Figure 2 1. Using safety gloves, hold the lower blade and re- move the 1/2" x 1-3/4” capscrew, Belleville washer, blade and shaft washer. Shaft Bushing 2. Remove the (4) 3/8” capscrews holding the upper disc assembly to the blade carrier.
- Page 20 Using two 3/8” x 3/4" UNC threads Grade Figure 5 8 capscrews, bolt the carrier wrench to the blade carrier. (Wrench Kit 50026073) (Figure 5) Blade Carrier 3/8” x 3/4” Wrench Put the spindle in the upright position and place UNC Threads the blade carrier wrench in a vise and secure it.
- Page 21 BLADE SPINDLE ASSEMBLY 1. Press the outer bearing in the housing Figure 8 Top Outer Bearing until the bearing bottoms out. (Figure Housing 2. Press the lower outer bearing on the shaft until it bottom out. (Figure 9) Figure 9 Lower Outer 3.
- Page 22 9. Remove the blade carrier wrench and restake Figure 13 the blade carrier into the notch of the outer shaft. (Figure 13) CAUTION USE SAFETY EYE PROTECTION WHEN USING HAMMER AND PUNCH TO PREVENT FLYING PARTICLES FROM INJURING EYES. Figure 14 Inner Shaft 10.
- Page 23 NOTES:...
- Page 24 Locke Turf Inc. 307 Highway 52E, Opp, Alabama 36467, (334) 493-1300...
