CH Byron Home easy HE-440 Installation Instructions

HOME
easy
RE-INVENTING THE HOME
The HE-440 allows you to control up to 4
separate outdoor electrical products
independently using the HomeEasy
remote control timer, with a maximum
combined load of 3000W.
Features:
-Selectable timer setting
-8 Programmable memory Settings
-Security Mode Setting
-Single and Daily Timer Functions
Product Specification:
4 Gang Remote Control Receiver: HE-440
Input: 230V - 240V ~50Hz
Range: 30 Metres (Open Distance)
Frequency: 433.92MHz
Max Load: 3000W
(Combined Resistive load)
IP56 (Lid Closed)
Warning: Never Exceed the Product Specification
INSTALLATION WARNING:
ON INSTALLATION TURN OFF YOUR MAINS ELECTRIC SUPPLY
This product should be fitted by a competent person in accordance with the
instructions listed below and with the relevant clauses of the IEE wiring regulations
BS7671.
For fixed installation only
The HE440 should be used in conjunction with a fused spur connection, all connections
to the socket need to be made as instructed, making sure that the cable used is
appropriate for the installation environment, free from stress & terminals are tightened
fully.
Input Power: (See Wiring Diagram)
1: Switch off and isolate the mains power before Installing or altering the
electrocal connections and remove the terminal covers.
2: Send the cable through the gland and into the HE440.
3: Cut back the cable to reveal the 3 separate wires
L= Live Brown
E= Earth Green & Yellow
N= Neutral Blue
4: Now strip each wire, exposing 10mm of its core
5: Insert the exposed core wires into their related terminals
and clamp down by tightening the respective screws.
Replace the terminal covers and tighten the cabel glands,
making sure wall wires are secure.
6. Reconnect the mains power, the HE440 is now ready for programming
(See Pairing/Deleting with Remote).
Replace the front cover and tighten the screws.
Wiring Diagram:
Input Power
230 - 240V ~50HZ
Accessory Output 1 Accessory Output 2
= Live Brown
= Earth Green & Yellow
= Neutral Blue
HE-440 Outdoor Remote
Control 4Gang Kit
HOME
easy
HE440
HE200
-IP56 Weather Proof
-30 Metre Wire Free Range
-CR2032/23A Battery (Included)
Remote Control PIR: HE-200
Battery: 23A & CR2032 (Included)
Range: 30Metres (Open Distance)
Frequency: 433.92MHz
Indoor use only
Accessory Output 4
Accessory Output 3
V1.0
Installation Guide:

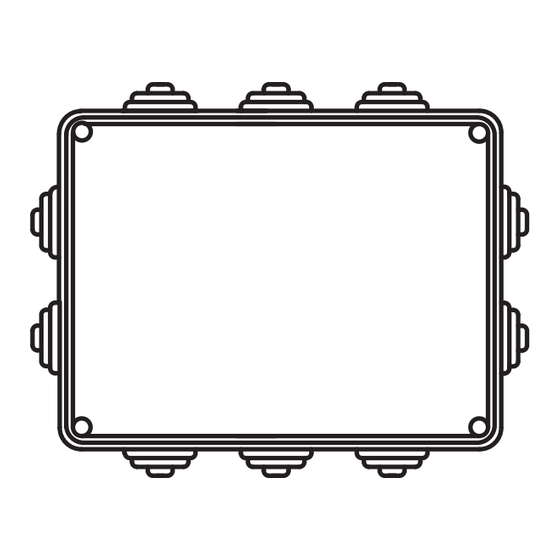

1. Remove the front cover by
unscrewing the 4 corner screws as
shown.
2: In the back half of the unit, in all four corners are
purpose made holes for fixing your HE440 to your
intended surface.The HE440 needs to be mounted
onto a flat, vertical surface, free from grease, loose
material and any corrosive substances. We
recommend a house or sturdy garden wall.
3. Using the back half of the unit as a template, mark
all four corners onto your chosen surface. Insert suitable
wall plugs and secure to the wall using number '8' screw
(recommended size - Not included).
Wiring Remote Socket:
On the outdoor enclosure you will see that there are a number of rubber entry spaces
(ë Entry blanksí) on each side, depending on location and wiring setup a number of
these can be removed.
Recommended Setup:
Voltage In:
230-240V ~ 50Hz
Once the entry blanks are
removed, appropriate cable
glands need to be installed (not
included).
If installing the HE440 with conduit from the sides or top attachment, a 5mm hole
must be drilled through the bottom left drainage hole.This will allow for any
condensation forming in the conduit, to drain out.
Caution: opening the drainage hole will affect the IP rating of the product. Ensure that
jetted water is not directly sprayed onto the unit.
Do Not drill out the drainage hole when installing the Outdoor socket into a dusty
environment. Always install the unit via the bottom cable entry, making sure that a 5mm
hole is drilled into the lowest point in the conduit system.
WARNING:
You MUST install an earth cable between the origin of the installation and the earth
terminal of the outdoor socket.This must be insulated inside a sleeve protector within
the conduit.
If using metal conduit, earth continuity must be maintained between conduits. Seal
Conduit and conduit entry with a non setting conduit sealant. Purchasable form you
local electrical retailer.
Operating Mode:
Each Acessory Output Channel can operate in 3 seperate modes, use the slide
switch on each channel to select the mode setting.
AUTO: Allows the Remote Control to switch on/off
the HE440. See Pairing/Deleting with Remote
ON: Sets the Outdoor socket as a standard outdoor socket.
USE THIS OPTION WHEN USING GARDEN
MACHINERY SUCH AS A LAWNMOWER OR HEDGE CUTTERS.
OFF: An additional safety feature of the HE440 is the ability to switch off the
power as per a normal socket.
Unused accessory Channels should be set to OFF
Channel 4 Out
Output:
230-240V ~ 50Hz
3000W Combined
