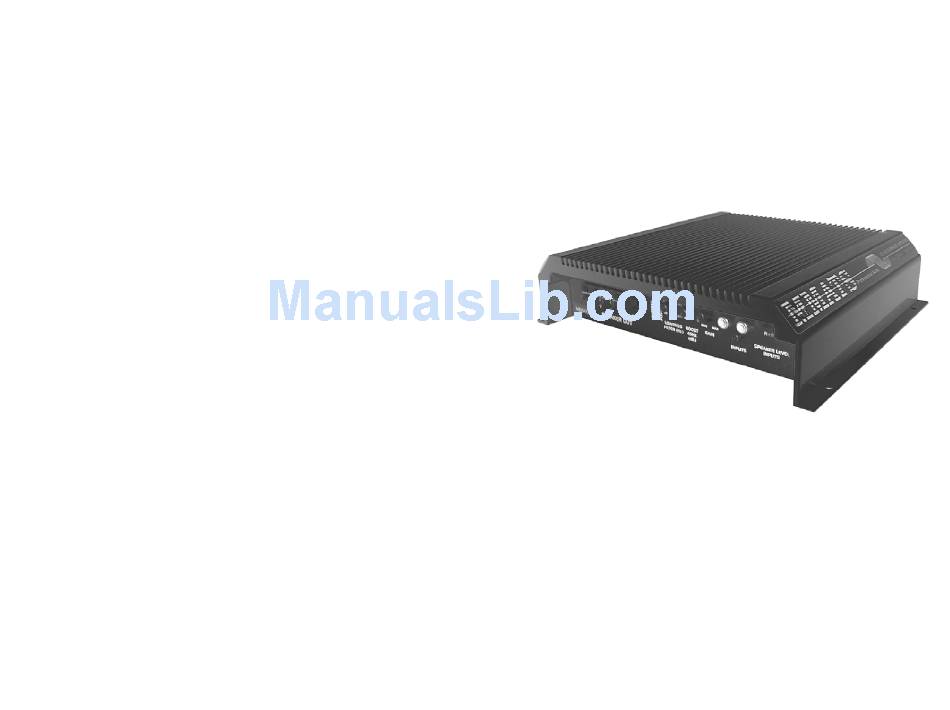

- Page 1 MMATS Professional Audio D600.2 Owner’s Guide MMATS Professional Audio 867 West 13 Court Riviera Beach, Fl. 33404 http://www.mmatsproaudio.com...
- Page 2 LASS ECHNOLOGY PECIFICATIONS MMATS Professional Audio is the industry leader in ultra-efficient Class D audio technology for 12 volt audio. RMS Power at 13.8V 350W into 4 ohms with less than .1% THD+N Your D600.2 amplifier is engineered using the best technology we 500W into 2 ohms with less than .1% THD+N...
- Page 3 EATURES UGGESTED OOKUP Ultra- Efficient Class D Audio Output Stage Regulated Pulse-Width-Modulated Power Supply D600.2 High Capacity Heat Sink SPEAKER Adjustable 12db Low Pass Filter OUTPUTS Adjustable 45Hz Bass Boost Low Level and Speaker Level Inputs 1% Surface Mount Components Computer Optimized Transformer Large Geometry Power MOSFETs Overload and Thermal Protection...
- Page 4 ONTROLS AND ONNECTORS ANEL AYOUT ONTINUED Speaker Terminals - Connect to speakers using at least 14 gauge speaker wire. Note that there are two Sp+ and SP- terminals that are internally wired in parallel to the + and - output of the class D stage. These are provided for easier connection of multiple speakers and should not be confused with the traditional Left and Right stereo hookup of traditional Speaker Terminals...
