Before installing detectors, please thoroughly read the system wiring and installation manuals, and manual I56-407,
Guide for Proper Use of System Smoke Detectors, which provides detailed information on detector spacing, placement,
zoning, and special applications. Copies of these manuals are available from Fire•Lite.

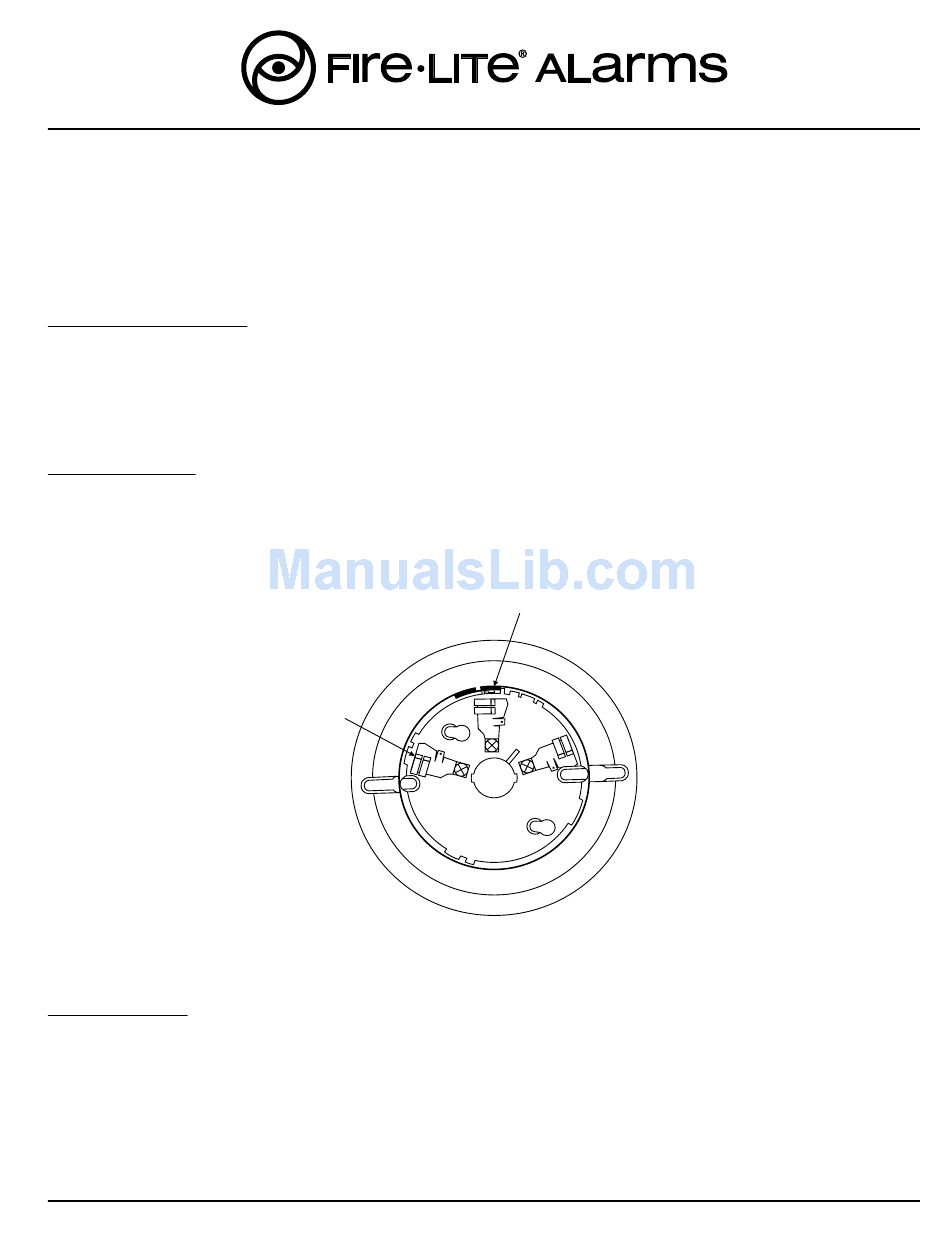

GENERAL DESCRIPTION
The B350LP Plug-in Detector Base is used with Fire•Lite models CP350 ionization, SD350 and SD350T photoelectronic de-
tectors, and H350 and H350R heat detectors
The B350LP base is intended for use in a 2-wire addressable system, with screw terminals provided for power (+ and –),
and remote annunciator connections. Communication takes place over the power (+ and –) lines.
BASE TERMINALS
NO.
FUNCTION
1
Power (–), Remote Annunciator (–)
2
Power (+)
3
SPECIFICATIONS
Diameter:
F400-21-00
B350LP PLUG-IN DETECTOR BASE
INSTALLATION INSTRUCTIONS
BASE
TERMINALS
6.1 inches (155 mm)
4 inch (102 mm) square box with or without plaster ring
Min. Depth: 1.5 inches (38 mm)
4 inch Octagon Box, Min. Depth – 1.5 inches (38 mm)
3-1/2 inch Octagon Box, Min. Depth – 1.5 inches (38 mm)
Single Gang Box, Min. Depth – 1.5 inches (38 mm)
Fire•Lite Alarms, Inc., One Fire•Lite Place, Northford, CT 06472, 203-484-7161
TAMPER PROOF
TAB
2
1
3
Figure 1. Terminal Layout
1
A78-1318-00
I56-954-01R
Advertisement
Table of Contents
Summary of Contents for Fire-Lite B350LP
- Page 1 B350LP PLUG-IN DETECTOR BASE INSTALLATION INSTRUCTIONS Before installing detectors, please thoroughly read the system wiring and installation manuals, and manual I56-407, Guide for Proper Use of System Smoke Detectors, which provides detailed information on detector spacing, placement, zoning, and special applications. Copies of these manuals are available from Fire•Lite. GENERAL DESCRIPTION The B350LP Plug-in Detector Base is used with Fire•Lite models CP350 ionization, SD350 and SD350T photoelectronic de- tectors, and H350 and H350R heat detectors...
- Page 2 MOUNTING This detector base mounts directly to 3-1/2 inch and 4 inch octagon boxes, 4 inch square boxes (with or with- out plaster rings) and single gang boxes. To mount, re- move the decorative ring by turning it in either direction to unhook the snaps, then separate the ring from the SNAP ON DECORATIVE...
- Page 3 REMOTE ANNUNCIATOR CAUTION: Do not loop wire under terminal 1 or 2. Break wire run to provide supervision of connections. CLASS A OPTIONAL WIRING A78-1253-00 Figure 3. Typical Wiring Diagram for 2-wire loop TAMPER-RESISTANCE Note: Do NOT use the tamper-resistant capability if the XR2 Removal Tool will be used. The Tamper Resistant Tab, in the Detector Mounting Bracket, can make the detector tamper-resistant by making it nec- essary to use a small screwdriver or similar tool to detach the detector from the base.
- Page 4 REMOTE ANNUNCIATOR, MODEL RA400Z Connect the remote annunciator between terminals 1 and 3 using the spade lug terminal included. The spade lug termi- nal is connected to the base terminal as shown in Figure 5. It is not acceptable for three stripped wires to be under the same wiring terminal unless they are separated by a washer or a lug like the spade lug supplied with the model RA400Z.
