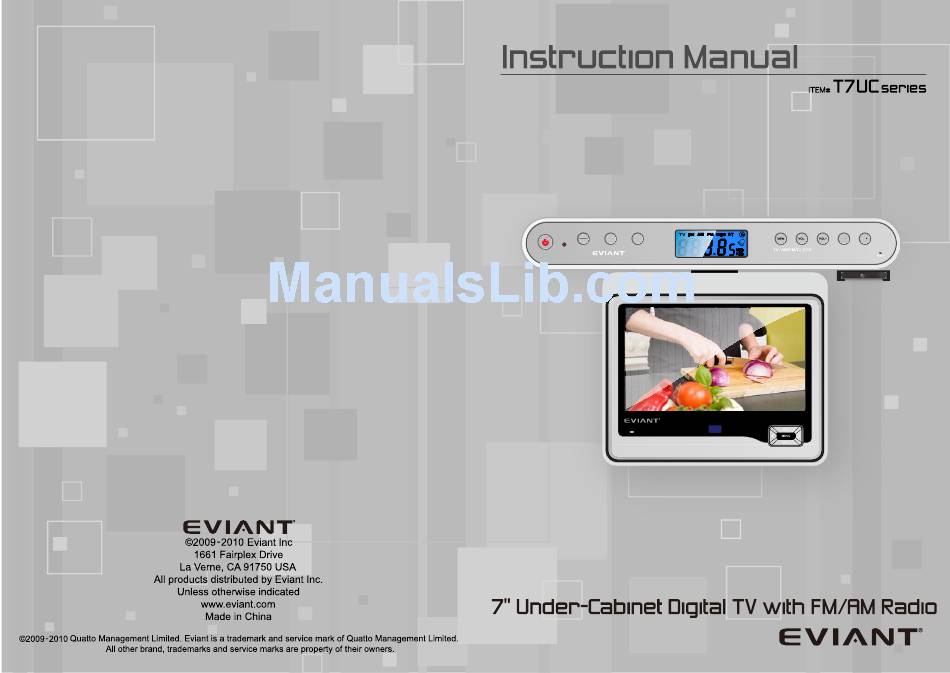

- Page 1 FM AM ALARM CLOCK...
-
Page 2: Introduction Important Safety Information

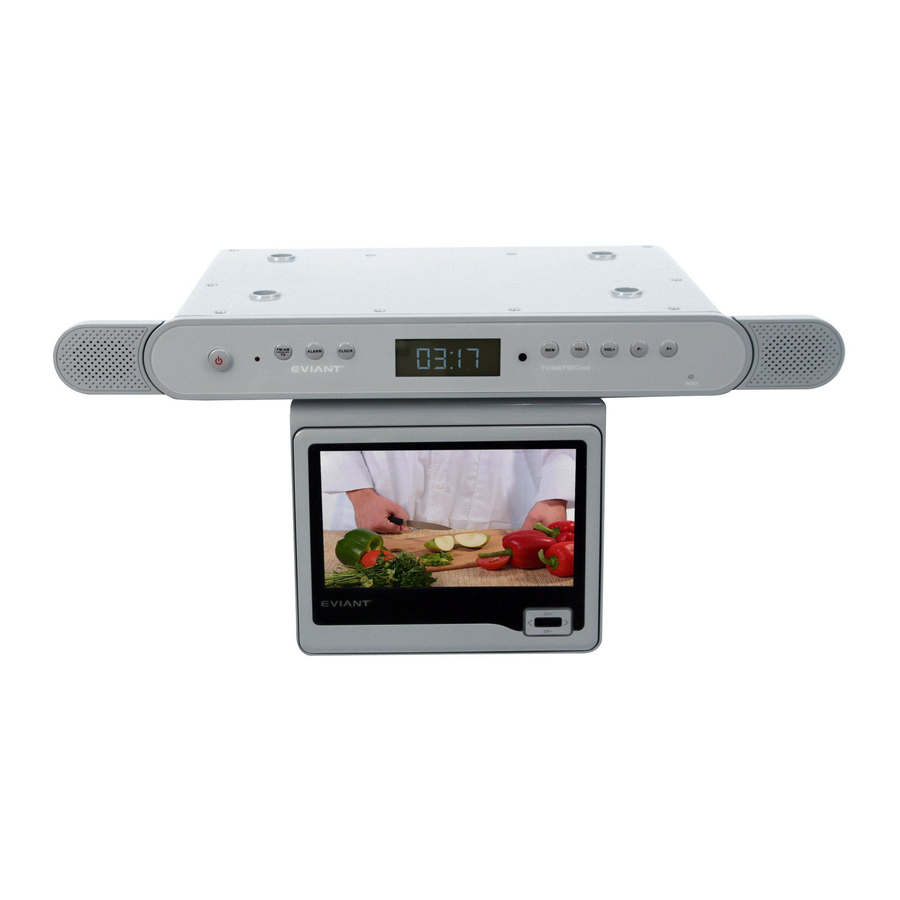

Introduction Congratulations on purchasing your Eviant T7UC Digital TV. On June 12, 2009 the conversion to digital television broadcasting will be complete all throughout the United States and Puerto Rico. Your digital television is designed to pick up both the older analog signals as well as the new digital signals. - Page 3 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 4: Fcc Compliance
FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 5: Table Of Contents
Table of Contents Introduction Important Safety Information ........1 FCC Compliance..........3 Accessories............3 Getting Started Unit view description ..........5 Remote control ...........7 Installing the unit under a cabinet......9 Plug in your T7UC..........10 Connecting to external antenna ......10 Open LCD screen and speakers ......10 Display Options of DTV Picture Menu ............11 Audio Menu ............12... -
Page 6: Getting Started
Getting Started 1. UNIT VIEW DESCRIPTION FRONT VIEW 1. Power switch 2. LED power indicator 3. FM/AM/TV 4. Alarm 5. Clock 6. LCD for radio and clock 7. MEM. 8. VOL-(For radio) 9. VOL+ (For radio) 10. P-(For radio) 11. P+ (For radio) 12. - Page 7 Getting Started （continued） Control Buttons Menu（for radio only） BUTTON Description FM/AM/TV FM/AM/TV Mode Switch. ALARM ALARM Mode CLOCK CLOCK Mode MEM. Start for scanning/Confirm the setting. VOL- Volume Down ◄: Decrease the volume level in FM/AM mode. VOL+ Volume Up ►: Increase the volume level in FM/AM mode. Channel Down▼: Move down the parameters and switch to the previous channel in FM/AM mode.
-
Page 8: Remote Control
Getting Started （continued） TV Navigation Buttons BUTTON Description MENU To go back one level at a time within menus. To open/close the menus. Channel Down: Move down in the menus and change to the previous channel in viewing mode. Channel Up : Move up in the menus and change to the next channel in viewing mode. - Page 9 Getting Started （continued） Description Unit standby or wakes up. 0-9 Number buttons: To change the channel and to select individual menu options. Channel Up ▲: Move up in the menus and change to the next channel in viewing mode. Volume Down ◄: Move left/change settings in menus. Decrease the volume level in viewing mode.
-
Page 10: Installing The Unit Under A Cabinet
Getting Started （continued） Remote Control Bracket Install the bracket on the bottom of the T7UC in the slots provided. Slide the remote control in the bracket when not in use just like figure shows. 3. Installing the unit under a cabinet Step: 1. -
Page 11: Plug In Your T7Uc
5. Connecting to external antenna Your Eviant T7UC is supplied with an external TV antenna that can be located a short distance away from the T7UC。Insert the external antenna plug just like below figure shows and position the antenna for best reception. -
Page 12: Display Options Of Dtv
Display Options Of DTV Use the on-screen menus to adjust the picture, audio, channels and other functions. Navigate the menus with the navigation buttons on the front of the T7UC or the Remote Control. Press MENU to enter the setup modes. Press MENU again to go back or exit the menu. -
Page 13: Audio Menu
Display Options of DTV （continued） Audio Menu Press the ◄ ► button to select Press the ▲▼ button to select the desired sub-menu. Balance Press the ▲ ▼ buttons to select Balance. Press the ◄ ► buttons to adjust the level. Prefer Language Press the ▲... -
Page 14: Options Menu
Display Options Of DTV （continued） Time Zone Press the ▲ ▼ buttons to select Time Zone. Press the ◄ ► button to select the desired time zone. Note: This item is only available under ATSC signal mode. Day Saving Time Press the ▲... - Page 15 Display Options Of DTV （continued） Closed Caption Press the ▲ ▼ buttons to select Closed Caption and press the ► button to enter the submenu. Press ▲ ▼ buttons to select desired submenu. CC Mode Press the ▲ ▼ buttons to select CC Mode. Press the ◄...
-
Page 16: Channel Setup
Display Options Of DTV （continued） Channel Setup Each region has different broadcast channels. Your T7UC will scan for all the channels in the area and remember each location. You can then go through and add or delete channels individually as you prefer. When completed, pressing the up / down channel buttons will take you through all of your selected channels in sequence. - Page 17 Display Options Of DTV （continued） Start to Scan Press the ▲ ▼ button to select Start to Scan. Press the ► button to start scan. The unit will automatically memorize the available channels in sequence. When completed, the unit will tune the first scanned channel.
-
Page 18: Setting Of Fm/Am Radio
Setting of FM/AM radio Press FM/AM/TV button to FM or AM radio mode. In radio mode, the TV will be shut down. Use P- button to switch to the previous channel. Use P+ button to switch to the next channel. Use VOL- and VOL+ buttons to adjust the volume. The first time when you enter FM or AM radio mode, please set the radio programs by AUTO scan or Manual scan: AUTO scan... -
Page 19: Troubleshooting
Before contacting customer service, review the steps below to solve simple problems. If you still suspect something wrong with this unit, immediately turn the power off, disconnect the power connector from the unit, and contact Eviant Customer Service. Never try to repair the unit yourself. -
Page 20: Specifications
Made in China www.eviant.com We are seriously concerned about environmental protection, and we hope that you share our concern as well. For more information regarding our recycling program, please visit us at http://www.eviant.com/green or call us at 1-866-935-4396. 7TH01...
