Connector Wiring - Genelec HT315A Installation Manual

Dimensions
Rack mount chassis
(mm) 480
(inches) 18
Speaker cable adapter
(mm) 118
(inches) 4
* Without Speakon connecting cable. Cable
connectors require additional 100 mm (4
inches) of space behind the amplifier

Connector wiring

HT315A SPEAKER CONNECTOR
PIN NUMBER SIGNALS
1 + T+
1 - T-
2 + M+
2 - M-
3 + B+
3 - N/C
4 + B-
4 - N/C
HT315A LED CONNECTOR
PIN NUMBER SIGNALS
1 + CLIP LED
1 - N/C
2 + POWER LED
2 - LED GND
Genelec Document D0099R005. Copyright Genelec Oy 9.2006. All data subject to change without prior notice
W H D
530 113*
/ 20 / 4 / *
7 7 7
8 8 16
67 57
5 / 2 5 / 2 1 /
8 8 4
Fig. 3. Installing the speaker cable adapter
1
2
3
4
International enquiries:
Genelec, Olvitie 5
FIN-74100, Iisalmi, Finland
Phone +358 17 83881
Fax +358 17 812 267
Email genelec@genelec.com
Installation Manual
Option 11 (HT315A-400)
HT315A Rack Adapter
4
2
3
1
Speaker cable connector
Speaker cable adapter
4 x 12 mm screw
Speakon 8- and 4-pole cables
(not included in the kit)
In the U.S. please contact:
Genelec, Inc., 7 Tech Circle
Natick, MA 01760, U.S.A.
Phone +1 508 652 0900
Fax +1 508 652 0909
Email genelec.usa@genelec.com
5

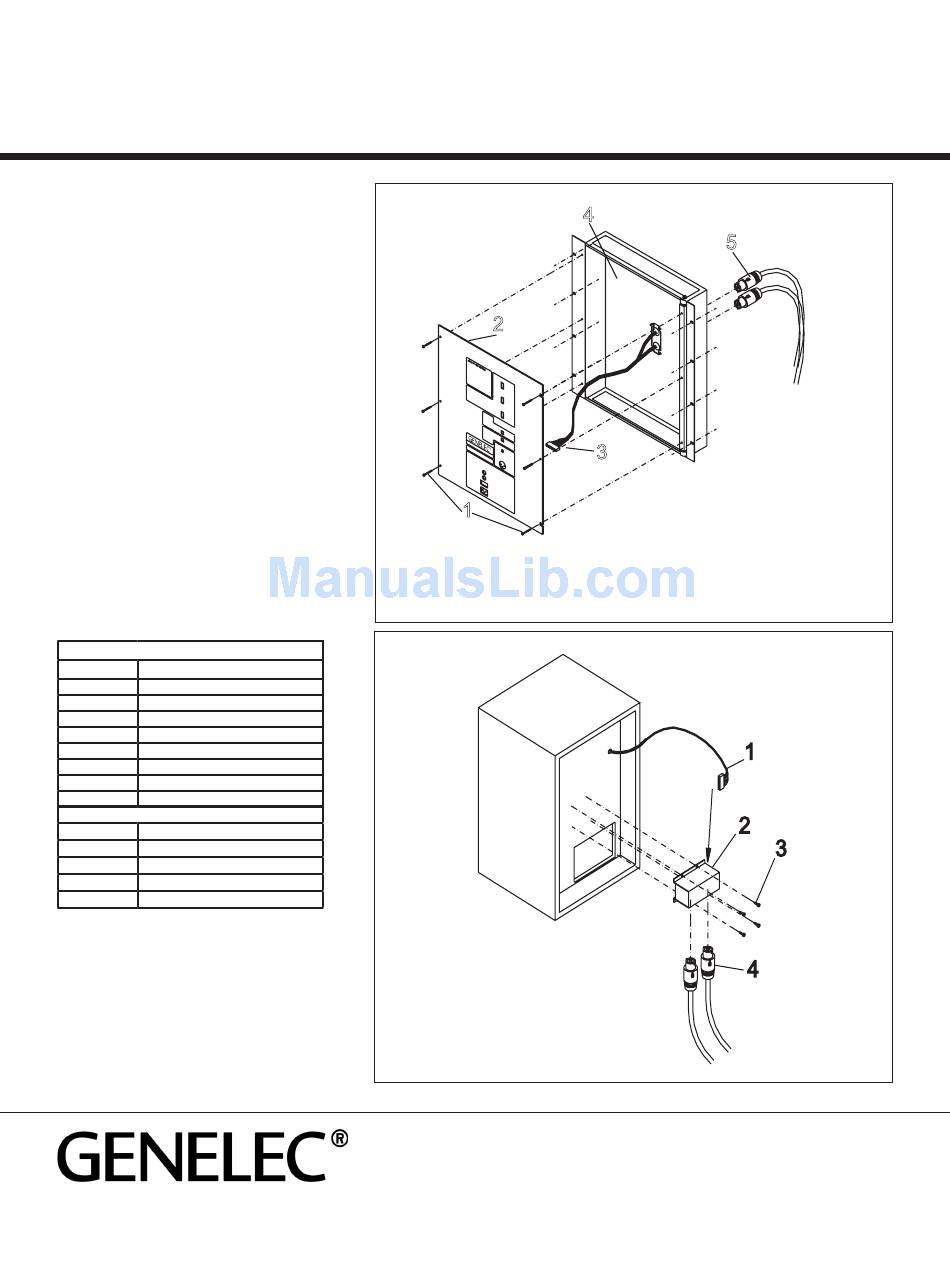

Fig. 2. Mounting the amplifier into
the rack adapter chassis
1 M4 screw
2 Amplifier unit
3 Rack adapter cable connector
4 Rack adapter chassis
5 Speakon 8- and 4-pole cables
(not included in the kit)
